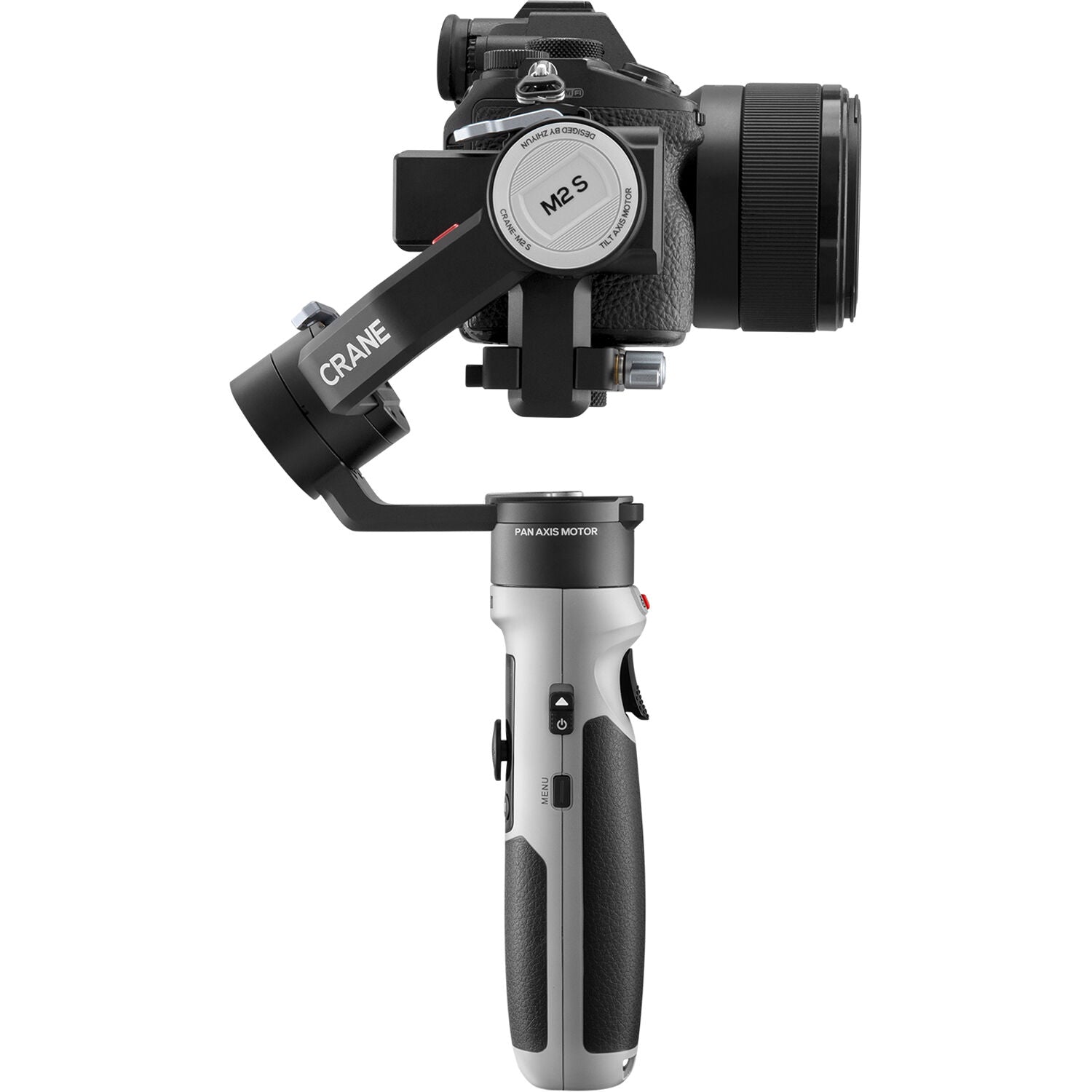

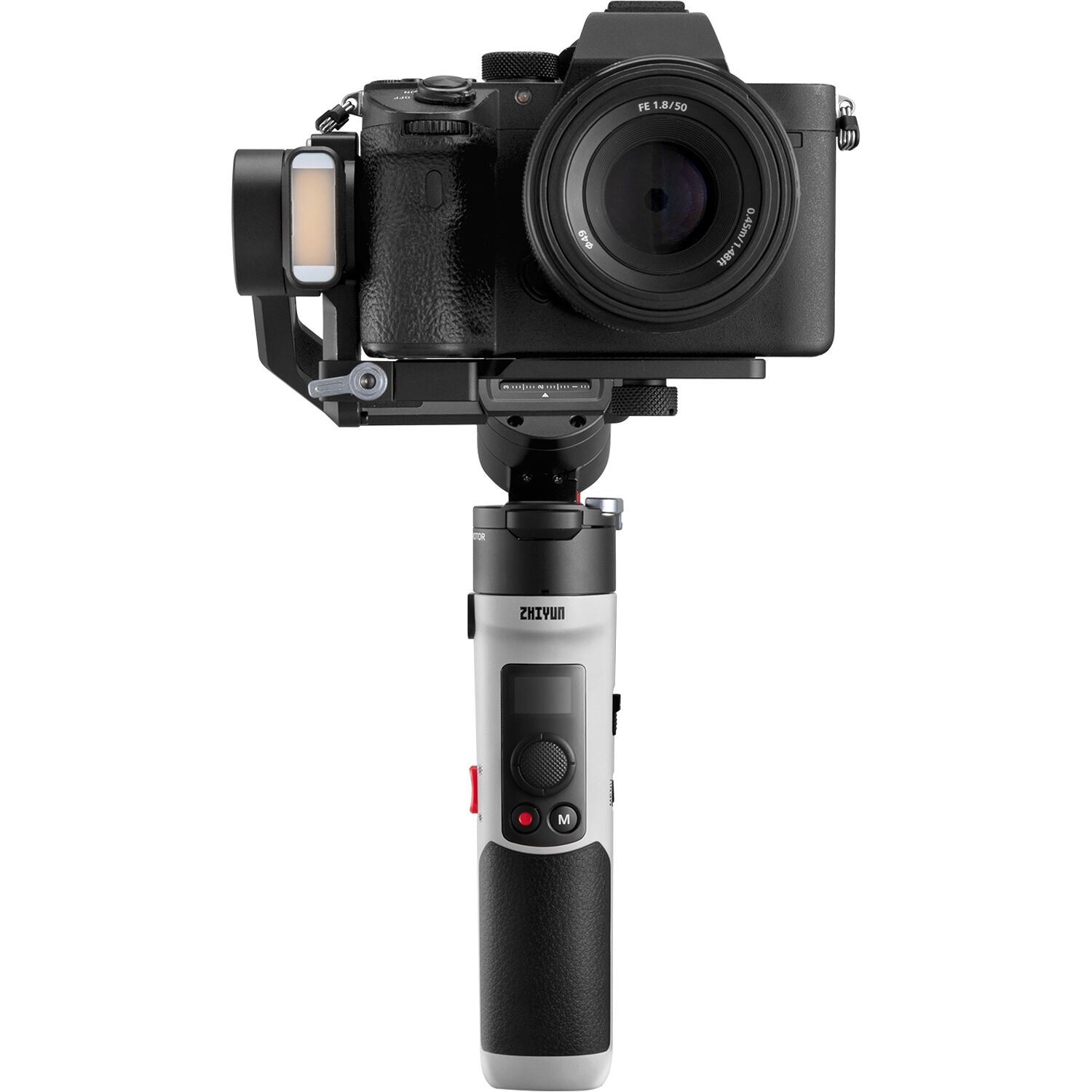

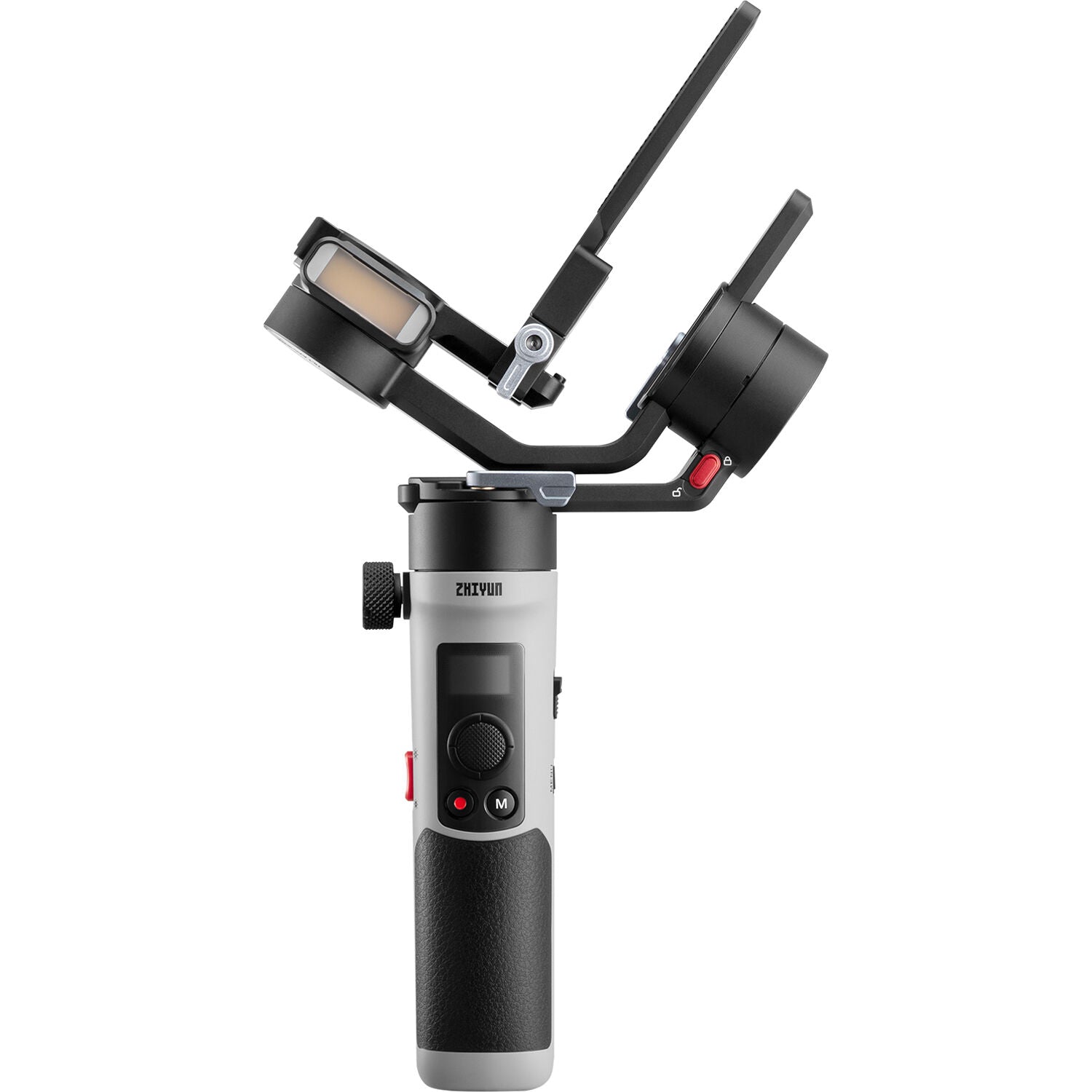

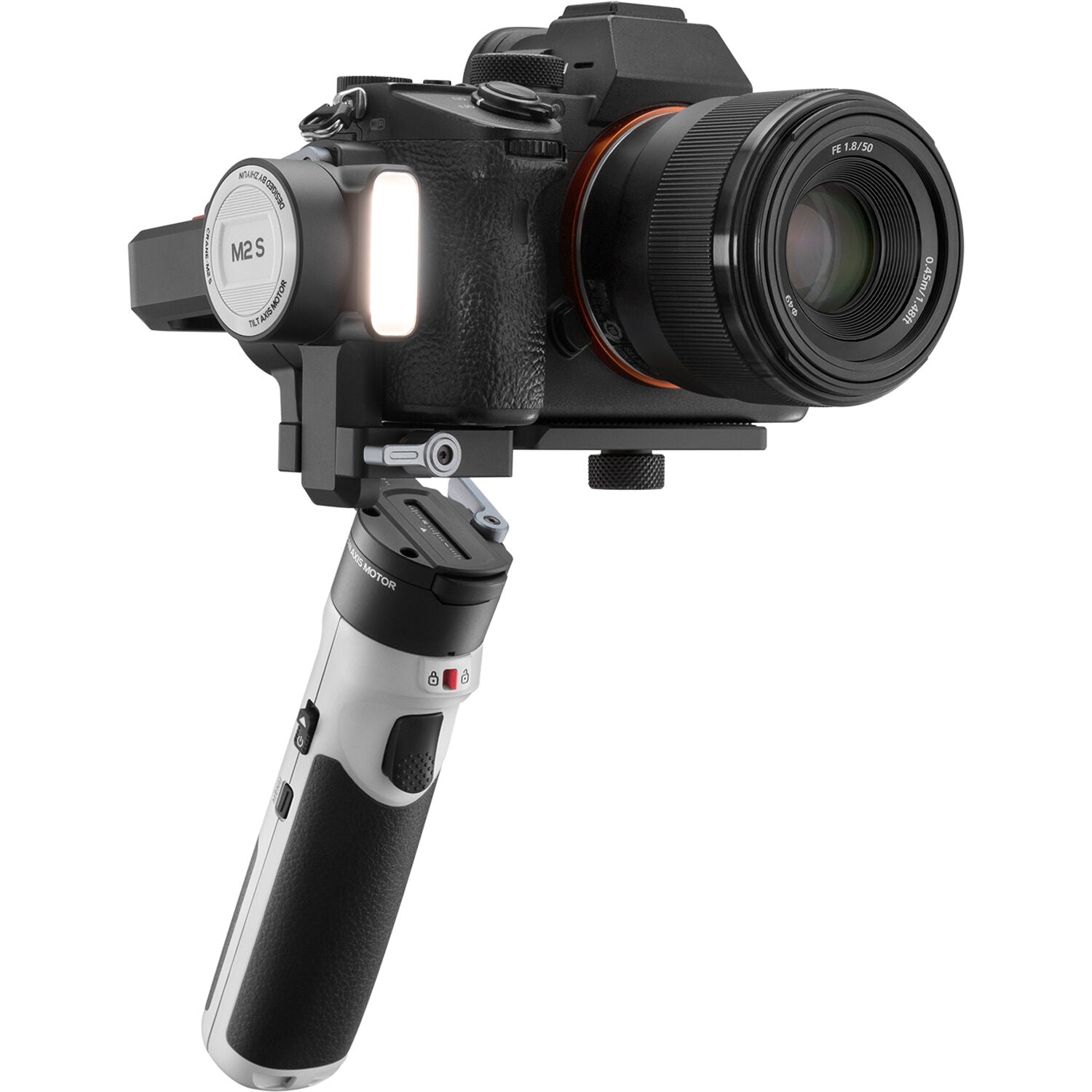

Zhiyun-Tech CRANE-M2 S 3-Axis Handheld Gimbal Stabiliser

Smaller and even more lightweight, the CRANE-M2 S 3-Axis Handheld Gimbal Stabiliser from Zhiyun-Tech is designed with even more power than its predecessor to support compact cameras, smartphones, and action cameras up to almost 1kg.

Runtime extended

USB Type-C interface supports 5V 1A power supply to the camera and PD Fast Charge protocol supported, 1hr 41min charge time, 10 hr runtime

Ergonomic design and efficiency

Smaller handgrip, stylish two-tone design, Bluetooth 5 support, a redesigned quick-release camera plate, and a built-in LED light.

Shooting options

The CRANE-M2 S offers 360° pan, 320° tilt, and 320° roll rotation across six modes of operation, including POV and Vortex modes. It runs for approximately 10.5 hours on a built-in battery that's rechargeable using an included cable.

Connection

Over a wired connection, the gimbal is able to power a supported camera and control its zoom, shutter, and video start/stop functions. You can also control the gimbal movements with the free-download ZY Play mobile app for iOS and Android, providing remote control over many functions of the gimbal and filmmaking features such as time-lapse, panorama, and slow-motion capture.

Quick-release functionality

The CRANE-M2 S features a quick-release camera mounting system that lets you secure or removes your camera at the push of one lock button. Scale marks and memory locks help you balance the camera and lock the balance position for the camera used. The built-in fill light is integrated besides the camera plate, it features a CRI of 90+, 1000-lumen brightness, and five brightness levels, and it includes four interchangeable filters to change the colour temperature.

• Zhiyun-Tech CRANE-M2 S 3-Axis Handheld Gimbal Stabiliser
• Quick Release Plate
• Mini Tripod
• 4 x Light Filter
• Micro-USB to USB Type-C Cable
• USB Type-C to Type-C Cable
• USB Type-C to Type-A Cable
• Limited 1-Year Warranty

Load Capacity: 998g
Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)

Controllable Range:
Yaw (Pan): 360°
Roll: 60° (-30 to 30°)
Pitch (Tilt): 220° (-60 to 160°)

Mechanical Range:
Yaw (Pan): 360°
Roll: 320°
Pitch (Tilt): 320°


Inputs: 1x USB-C (Power)
Outputs: 1x USB-C (Control / Power) Output
Wireless: Wi-Fi / Bluetooth 5.0 / 2.4 GHz Radio/RF
Mobile App Compatible: Yes: Android & iOS, App Name: ZY Play

Battery Type: Built-In (1150 mAh)
Battery Runtime: 10.5 Hours
Battery Charging Time: 1.5 Hours

Operating Voltage: 9.6 to 12.6 VDC
Operating Current: 135 to 4000 mA

Display Type: Fixed Non-Touchscreen OLED
Operating Conditions: -10 to 45°C
Dimensions: 240 x 150 x 68mm
Weight: 549 g
