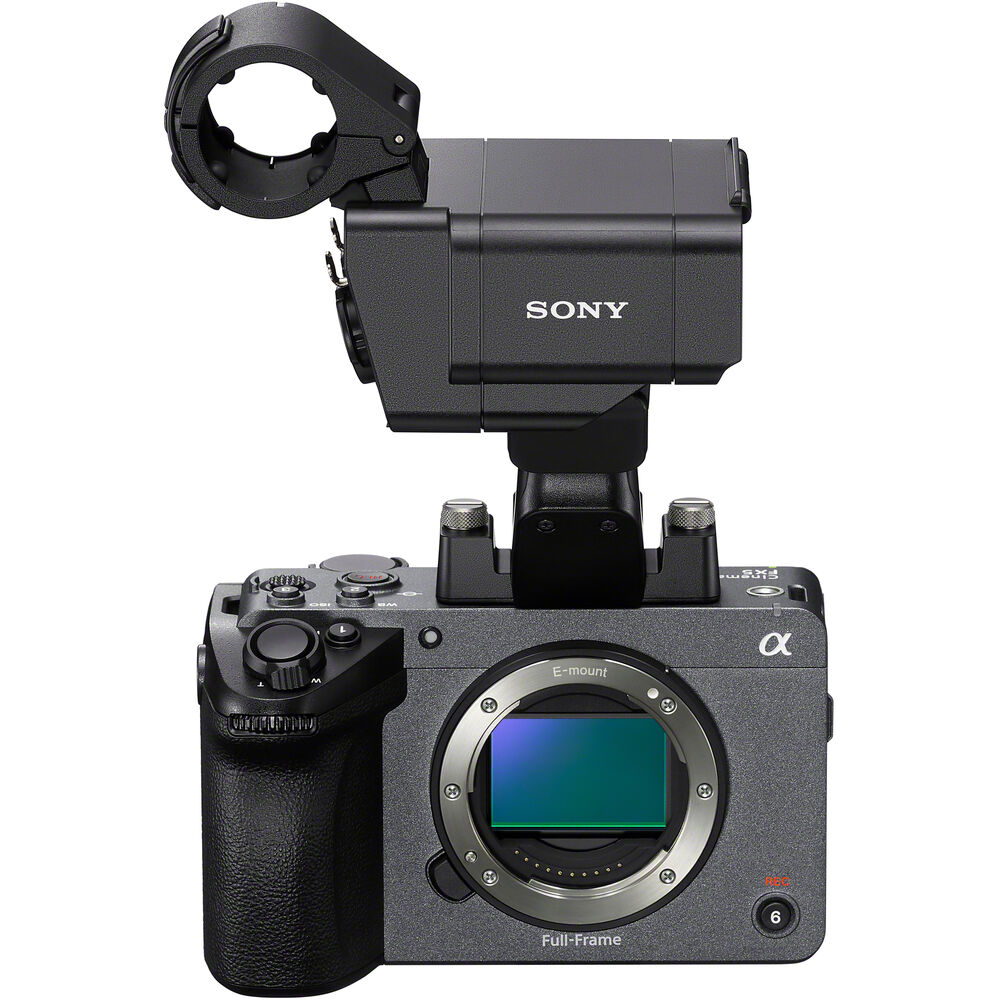

Sony FX5 Cinema Camera with XLR Handle

Capture Direct Sixteen-Bit Raw Internal Files

The stacked full-frame sensor transmits massive data streams directly to dual memory slots without needing external recording units.

Retain Extreme Shadow Detail Under Direct Sunlight

Fifteen stops of latitude capture high-contrast scenes with smooth highlight roll-off and noise-free shadows during midday outdoor shoots.

Maintain Clean Signal Performance in Low Light

Triple base sensitivity lets you switch operational gain profiles to record clean imagery without introducing digital noise.

Track Moving Subjects with AI Phase Detection

Seven hundred and fifty-nine phase detection points maintain sharp tracking across the entire image field during fast handheld operations.

Capture Expanded High Frame Rate Footage Internally

High-speed readouts record up to one hundred and twenty frames per second in four-kilobyte resolutions for smooth slow-motion playback.

Record Professional Four-Channel Audio Directly to Camera

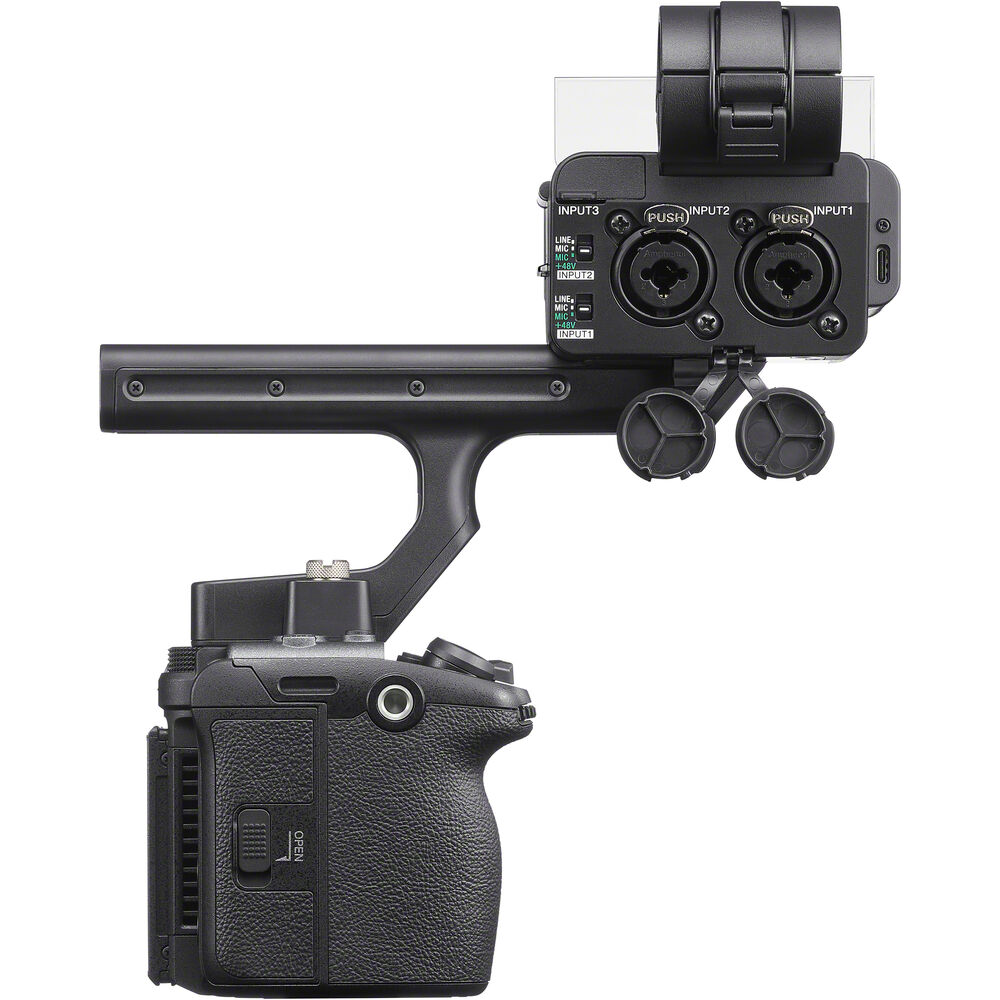

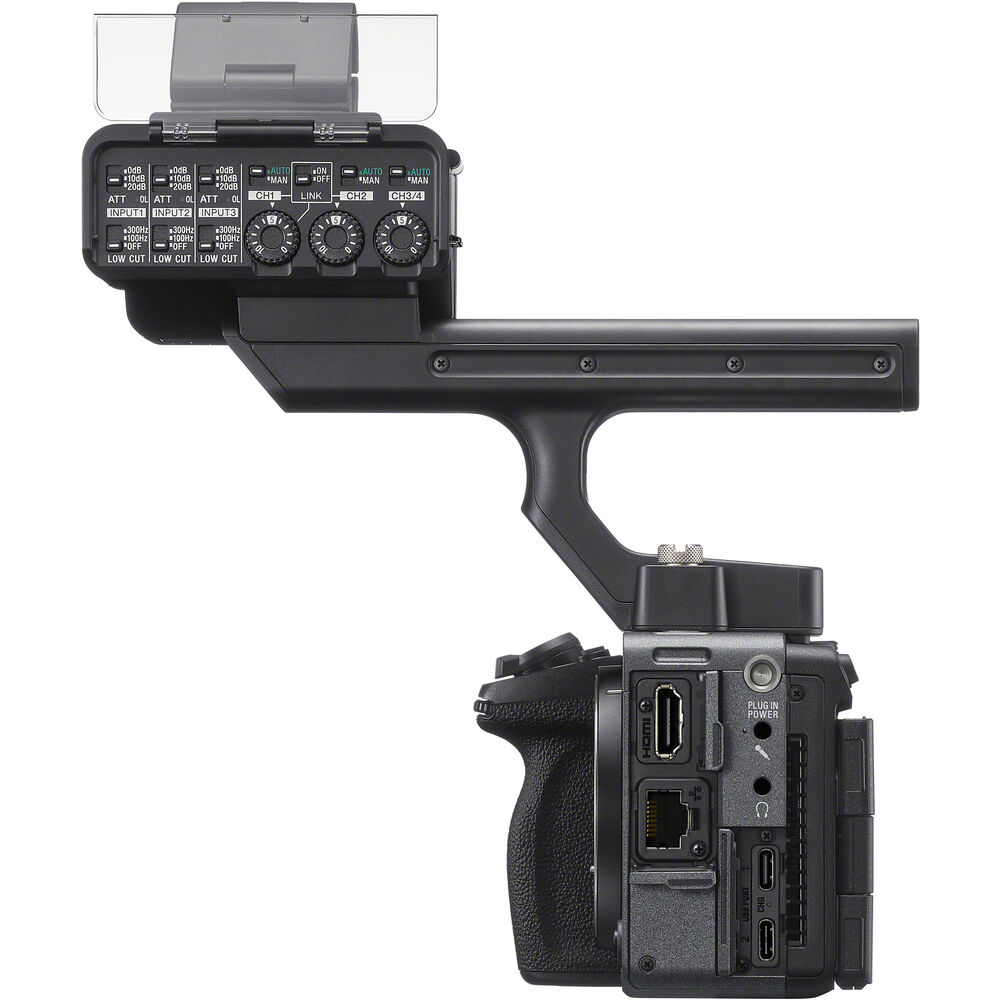

The detachable top unit supplies two balanced combined connectors with phantom power for studio microphones.

• Sony FX5 Cinema Camera with XLR Handle Unit
• Sony XLR-H2 XLR Handle Unit
• Sony NP-SA100 Battery (2670 mAh)
• Sony BC-SAD1 Battery Charger
• Sony Multi Interface Shoe Cap
• Sony ALC-B1EM Body Cap (Sony E)
• Viewfinder Terminal Protection Cap
• Limited 2-Year Warranty

Lens Mount: Sony E
Lens Communication: Yes, with Autofocus Support
Image Sensor: 35.9 x 24 mm (Full-Frame) BSI Stacked CMOS
Effective Sensor Resolution: Effective: 16.6 Megapixel (4992 x 3328)
Actual Sensor Resolution: Actual: 18.2 Megapixel
Image Stabilisation: Sensor-Shift, 5-Axis
Built-In ND Filter: No
Built-In CC Filter: No
Internal Filter Holder: No
Capture Type: Video Only
Shutter Type: Electronic Rolling Shutter
Shutter Speed: Electronic Shutter 1/8000 to 1/24 Second
Shutter Angle: 4.2 to 360°
ISO/Gain Sensitivity Video: Triple Base: 800 / 4000 / 12800 (Base ISO Is Dependent on Selected Color Space)
Native ISO/Gain Sensitivity: 320 to 409,600
Signal-to-Noise Ratio: Not Specified by Manufacturer
Advertised Dynamic Range: 15 Stops (16 Stops Sensor Overdrive Mode)
White Balance Range: 2000 to 15,000K
Exposure Modes: Aperture Priority, Auto, Manual, Sensitivity Priority, Shutter Priority
Focus Mode: Automatic, Manual Focus
Autofocus Points: Video Phase Detection: 759
Internal Video Capture: X-OCN LT 16-Bit: 4992 x 3328 up to 59.94 fps, 4096 x 2160 up to 59.94 fps, 3840 x 2160 up to 120 fps
Video Output 4:2:2 10-Bit via HDMI: 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps, 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps, 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/240 fps
Video Output Raw 16-Bit via HDMI: 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps (Sensor Crops During Output), 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support: No
Gamma Curve: S Cinetone, Sony S-Log 3
Built-In Microphone: Stereo (Microphone Location: Top)
Audio Recording: 4-Channel, 24-Bit at 48 kHz / 4-Channel, 24-Bit at 96 kHz / 4-Channel, 32-Bit at 48 kHz / 4-Channel, 32-Bit at 96 kHz
IP Streaming: H.264, RTMP, RTMPS, and SRT: 1280 x 720 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p (1.5 to 38.00 Mb/s)
Media/Memory Card Slot: Dual Slot: CFexpress Type A / SDXC (UHS-II)
Internal Storage: No

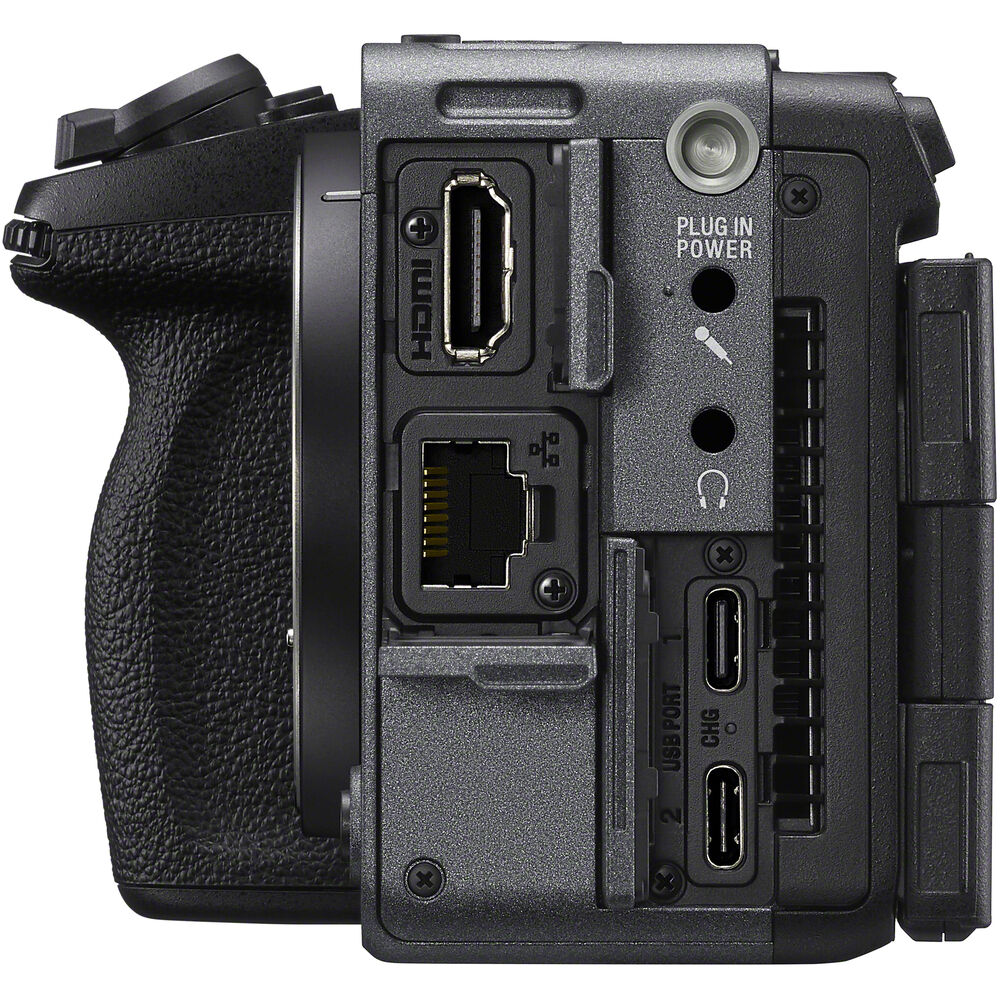

Video I/O: 1x HDMI Output
Audio I/O Inputs: 2x XLR / 1/4" TRS Combo Microphone Input on Included Handle (+48 V Phantom Power), 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body (Plug-in Power), 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Included Handle (Plug-in Power)
Audio I/O Outputs: 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O: 2x USB-C Input
Other I/O: 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input), 1x USB-C (USB 2.0) (Shared with Power Input), 1x RJ45 (Ethernet)
Wireless: Wi-Fi 6 (802.11ax)
Mobile App Compatible: Yes: Android & iOS (App Name: Monitor and Control; Functionality: Access Stored Files, Adjust Settings, Remote Control, and View Live Feed)
Global Positioning: GPS (Via Connected Smartphone)
Display Type: Primary Monitor: Free-Angle Tilting 3.5" Touchscreen LCD
Display Resolution: Primary Monitor: 2,764,800 Dot
Viewfinder: Dedicated Viewfinder Available Separately
Battery: NP-SA100
Power Consumption: 7.4 W
Operating Conditions: 0 to 40°C
Storage Conditions: -20 to 55°C
Shoe Mount: 1x Intelligent Hot Shoe
Tripod Mount: 2x 1/4"-20 Female (Bottom)
Accessory Mounting Thread: 5x 1/4"-20 on Camera Body, 3x 1/4"-20 on Included Handle
Materials: Magnesium Alloy
Dimensions (W x H x D): 132.2 x 79 x 87 mm
Weight: 734 g (With Battery, Recording Media)
