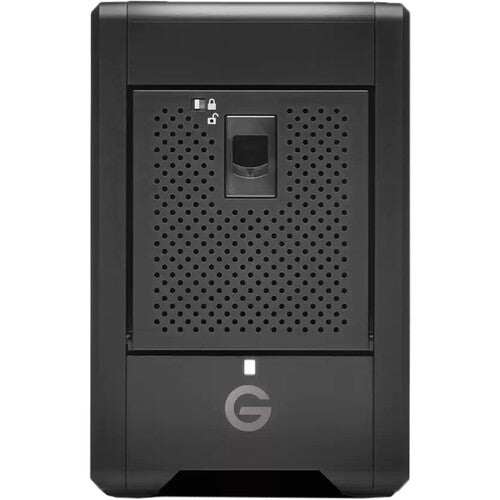

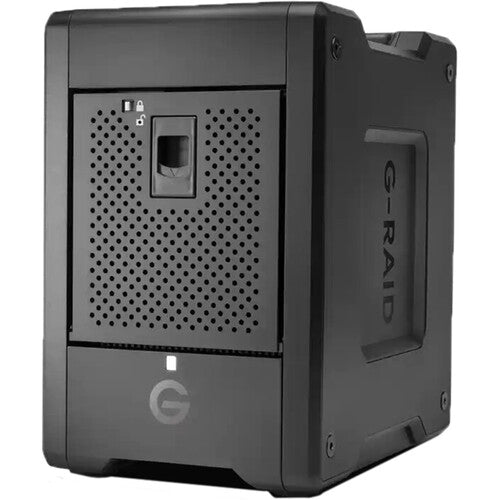

SanDisk Professional 80TB G-Raid Shuttle 4 (4x20TB)

Ideal Capacity for Demanding Workflows

Boasting an 80TB capacity, the G-RAID Shuttle 4 device delivers high-performance storage to save all your 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.

Removable UltraStar Enterprise-Class 7200 RPM Hard Drives

For demanding workloads and mission-critical footage, you can rely on the power and enhanced reliability of four removable UltraStar enterprise-class 7200 RPM hard drives.

Up to 640 MB/s Sustained Read Speeds in RAID 5

With read speeds up to 640 MB/s and write speeds up to 800 MB/s in RAID 5, the G-RAID Shuttle 4 delivers the performance needed to quickly ingest content and edit footage in real time.

Transportable Design

Built for easy travel between on-site production locations and the studio, the G-RAID Shuttle 4 provides powerful, portable storage to improve workflow efficiency wherever you are.

Optimized Support for Multi-Stream Workflows

Designed for multi-stream 4K and 8K production workflows, the device offers the bandwidth needed for multi-camera editing, rendering multi-layer effects, and fast exports.

Built-in Hardware RAID

For maximum performance, the G-RAID Shuttle 4 comes pre-configured in RAID 5 and supports RAID 0, 1, 10, and JBOD for flexible storage options.

Daisy-Chaining for up to 5 Additional Devices

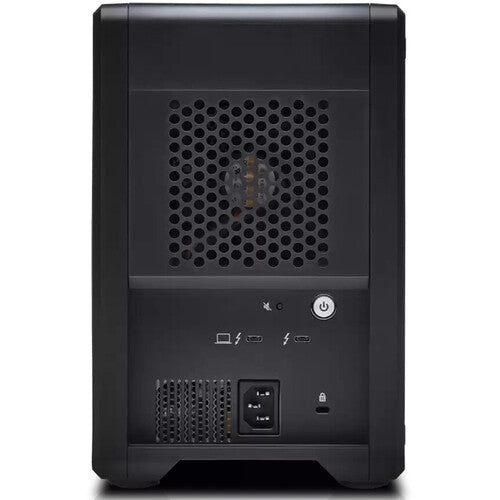

With dual Thunderbolt 3 ports, you can daisy-chain up to five additional devices, enabling connection to multiple drives, 4K displays, and more through a single computer connection.

USB Power Delivery

Includes USB Power Delivery support for added convenience and efficient device connectivity.

• G-RAID SHUTTLE 4 Storage System
• Thunderbolt™ 3 Cable (USB-C™ compatible)
• IEC Power Cable
• Quick Start Guide
• Limited 5-Year Warranty

Storage Capacity: 80 TB
Included Drives: 4 × 20 TB SATA III 3.5" HDD, 7200 rpm
RAID: Supported RAID Modes 0 / 1 / 5 / 10 / JBOD (Preconfigured in RAID 5)
Transfer Rates (RAID 5): Up to 640 MB/s Read, 800 MB/s Write
Number of Bays: 4 × 3.5" SATA III
Inputs/Outputs: 2 × USB-C Thunderbolt 3 (40 Gb/s)
Media Card Slots: None
PCI Expansion: None
OS Compatibility: macOS 11 or Later, Windows 10+ (via reformat)
Default OS Support: macOS
Encryption: None
Security Features: None
Input Power: 100 to 240 V AC, 50 / 60 Hz, 2 to 4 A
Operating Conditions: 5 to 35°C at 5 to 80% Humidity
Certifications: BIS, BSMI, CE, EAC, FCC-ICES, KC, RCM, SABER, UKCA, VCCI
Cooling: 1 × Fan
Dimensions: 266.95 x 247.9 x 173.99 mm
Weight: 7.5 kg
Package Weight: 10.5 kg
