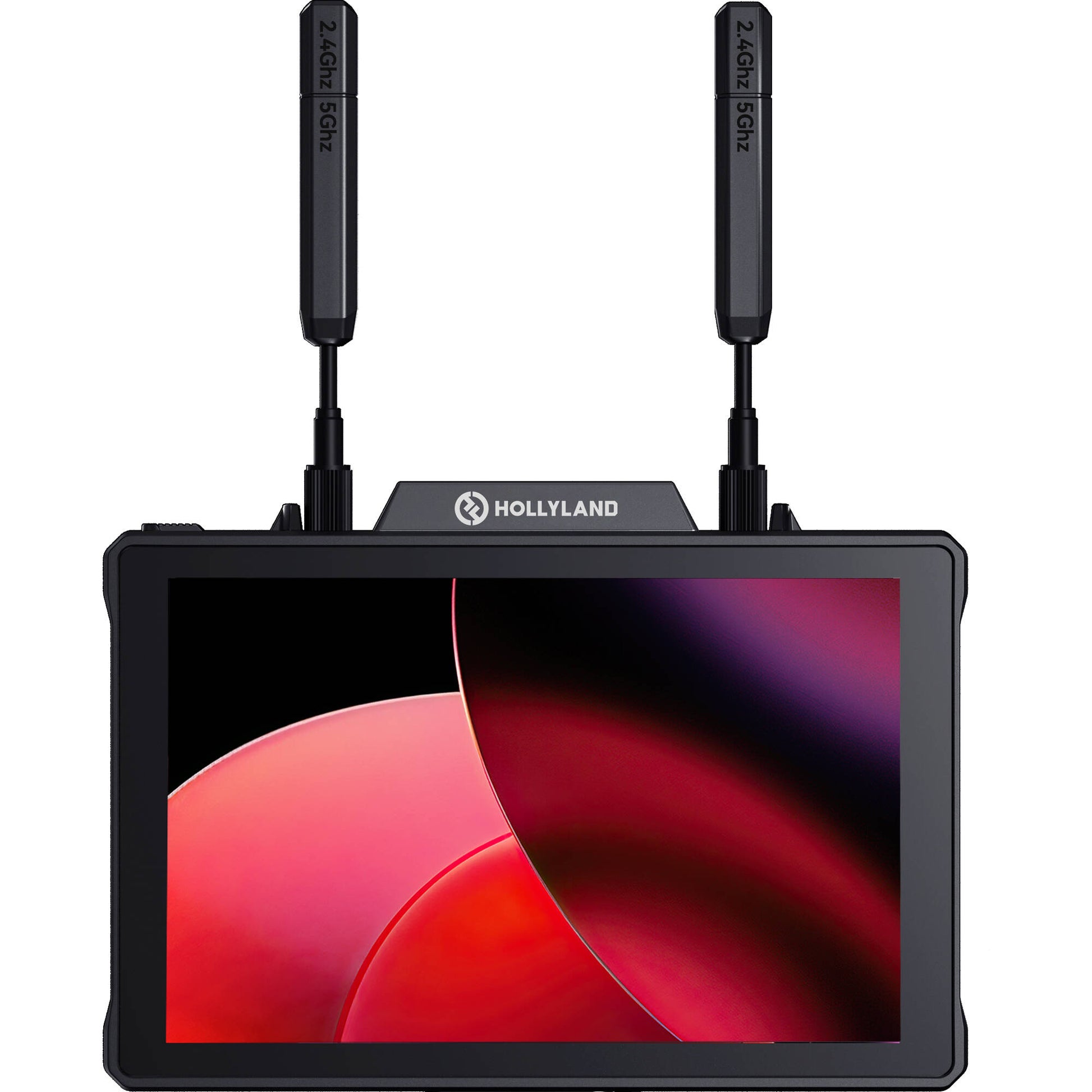

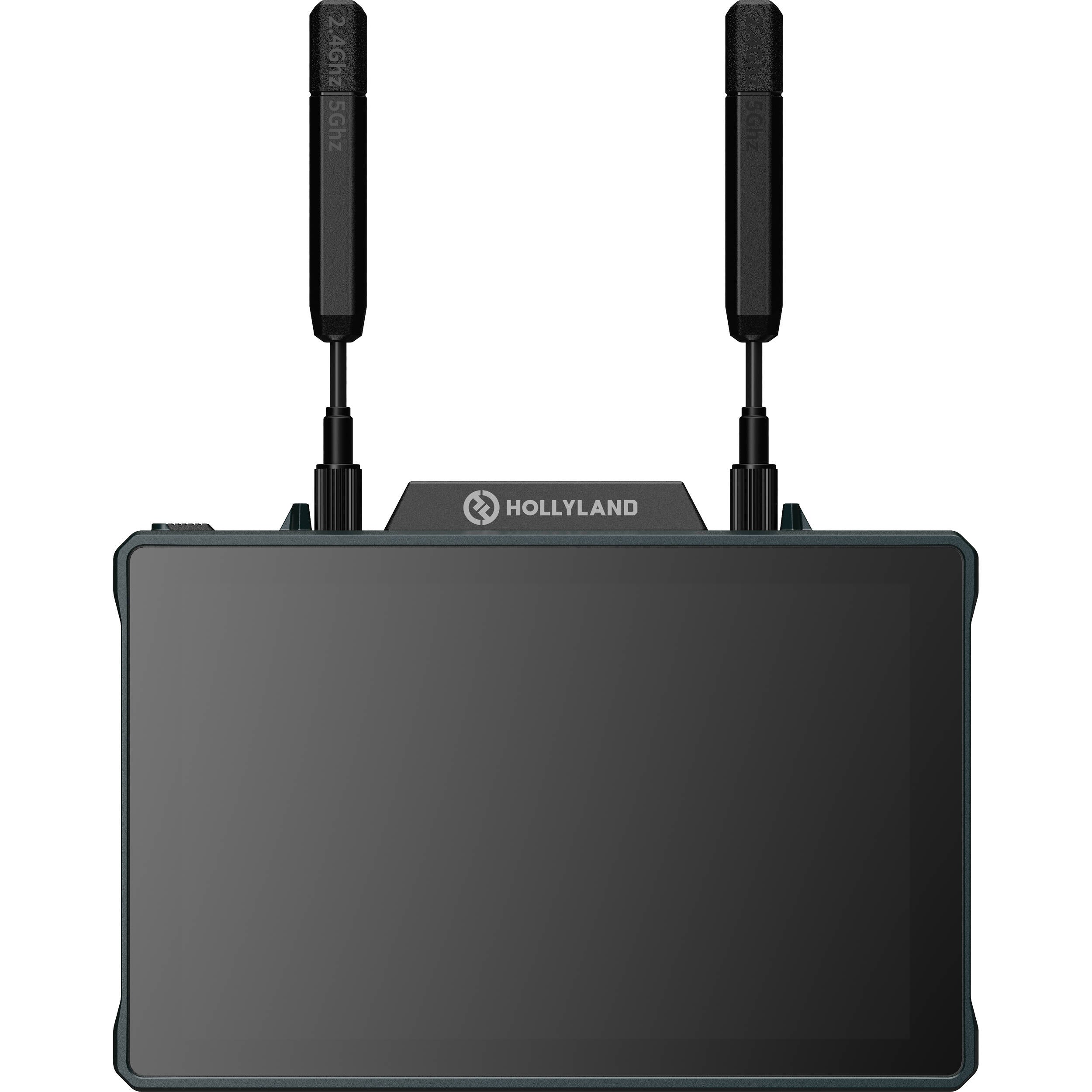

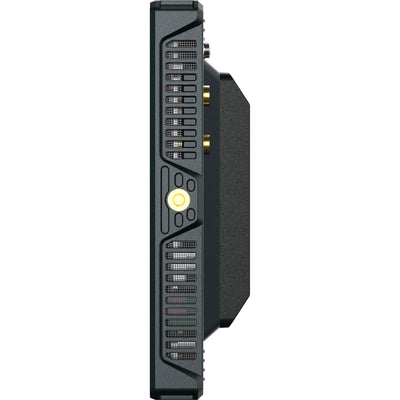

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX and monitor, all in one. It utilises Auto Dual-Band Hopping (ADH) technology. With 400m and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customisable shortcut keys.

Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

Features:

• 1TX & 4RX - Offers more flexibility when additional monitoring needs emerge on set.
• 400m & 0.06s Latency - Ultra-long range wireless transmission capability.
• 2.4 GHz & 5 GHz Dual Band - Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
• TX, RX, and Monitor – All in One, One device to meet your diverse needs
• Dual-View Quick Monitoring Switch - Conveniently switch to the desired view.
• 7-Inch & 1500 nits - 7-inch, better monitoring experience. 1500 nits, clear and visible even in outdoor or strong lighting conditions.
• Precise Image Analysis - More precise and advanced image analysis features for you.
• SDI & HDMI Loopout - Satisfies the diverse requirements of different user groups.
• RTMP Streaming - Convenient for live streaming and video conferencing.

More Flexible. Meet More Monitoring Needs.

Pyro 7’s Wi-Fi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

See Real-time Footage. Quick Monitoring Switch

Pyro 7 enables seamless connection with the Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilising two customisable buttons.

Dual Boosts. Less Latency and More Stability.

Compared to traditional video transmission systems, whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimising latency.

ADH - Auto Dual-Band Hopping

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Dual Band 2.4 GHz & 5 GHz.

Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won’t have to worry about video drop issues anymore.

Leap Forward – HollyOS Image Analysis

Precise Image Analysis, Enhanced Your Experience

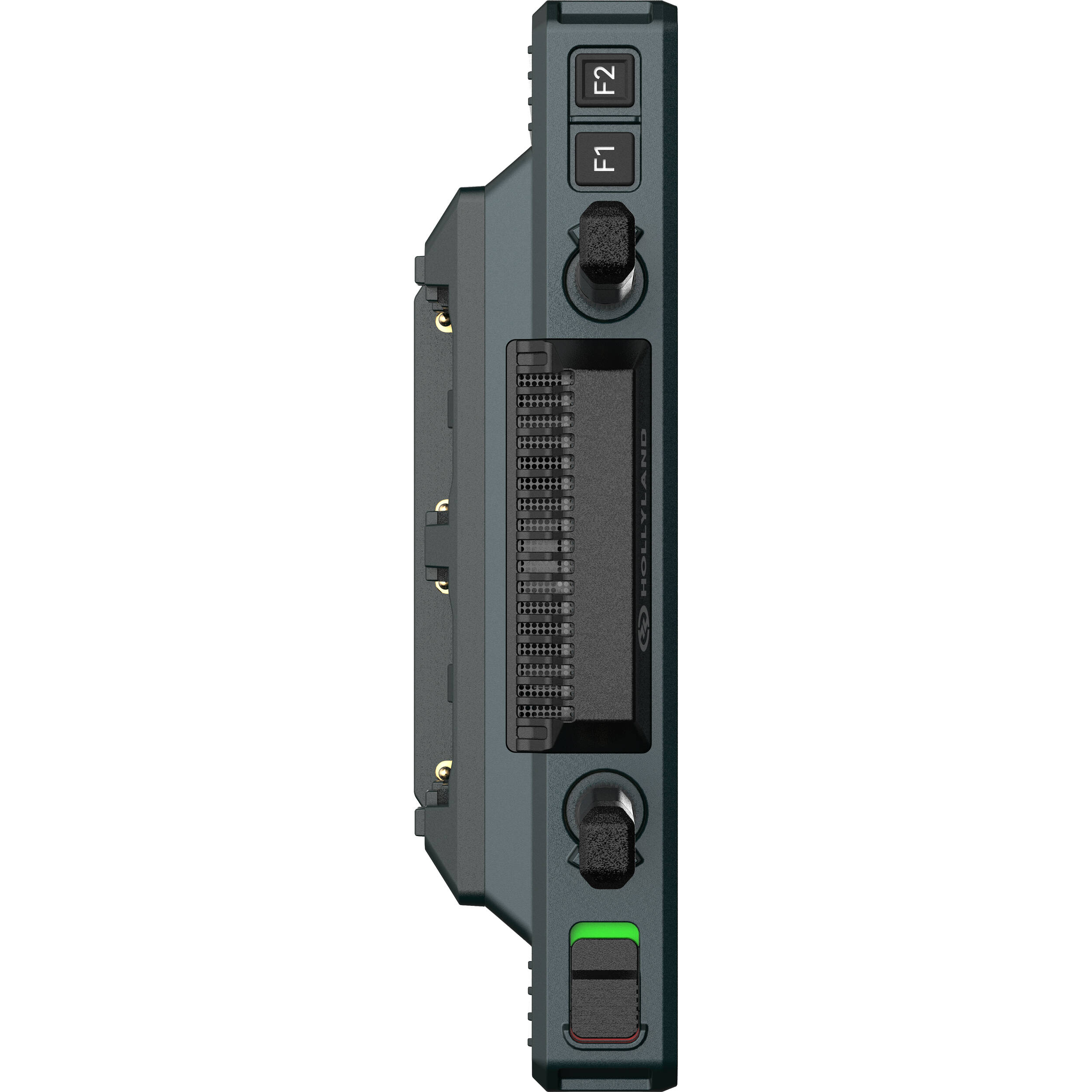

Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organisation of available videos into specific folders, catering to your needs for a streamlined editing workflow.

• Hollyland Pyro 7 Wireless Transceiver Monitor
• 2 x Paddle Antenna
• SD Card
• USB-C Converter
• D-Tap to Locking DC Power Cable
• Limited 1-Year Warranty

Panel Type: LCD
Display Size: 17.8 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1200 cd/m²
Contrast Ratio: 1000:1
HDR Support: No
LUT Support: Yes
Image Controls: Focus Peaking, Waveform
Antenna I/O: 2x RP-SMA Male

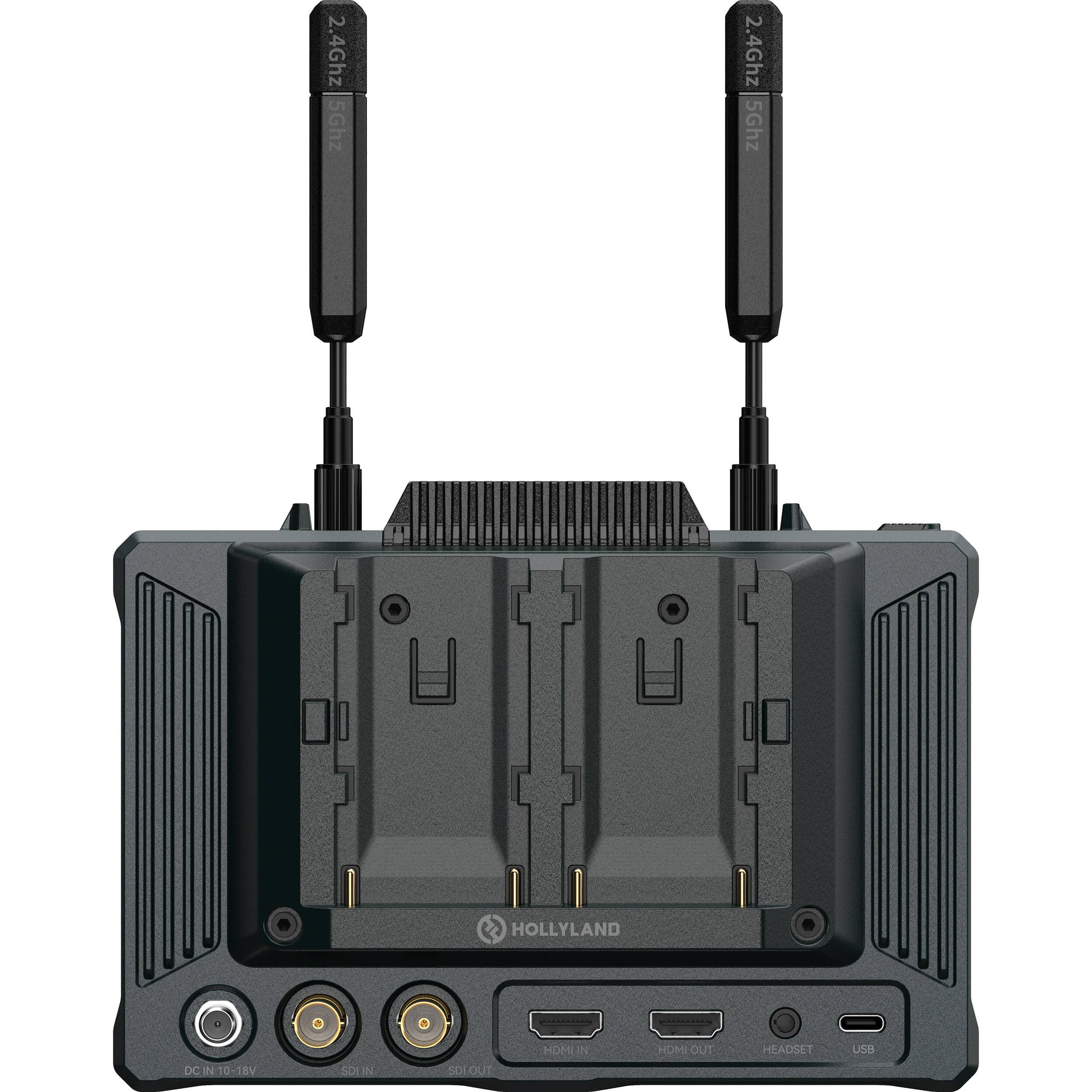

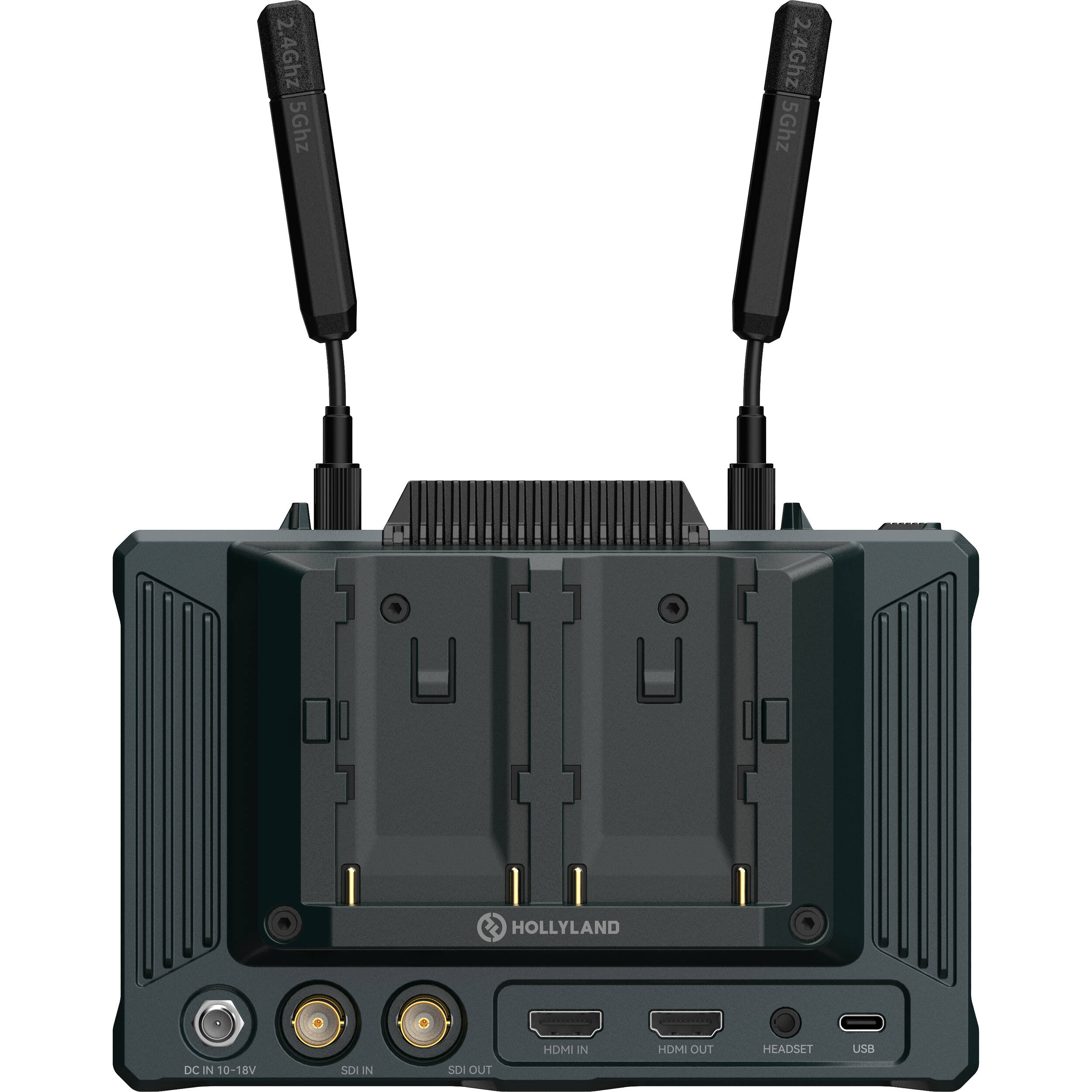

Video I/O: 1x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Output, 1x HDMI 1.4b Input, 1x HDMI 1.4b Output
Embedded Audio: HDMI/SDI: 8-Channel
Audio I/O: 1x 3.5 mm Headphone Output
Built-In Speaker: No
Power I/O: 1x Barrel Input
Other I/O: 1x USB-C (Firmware) Input

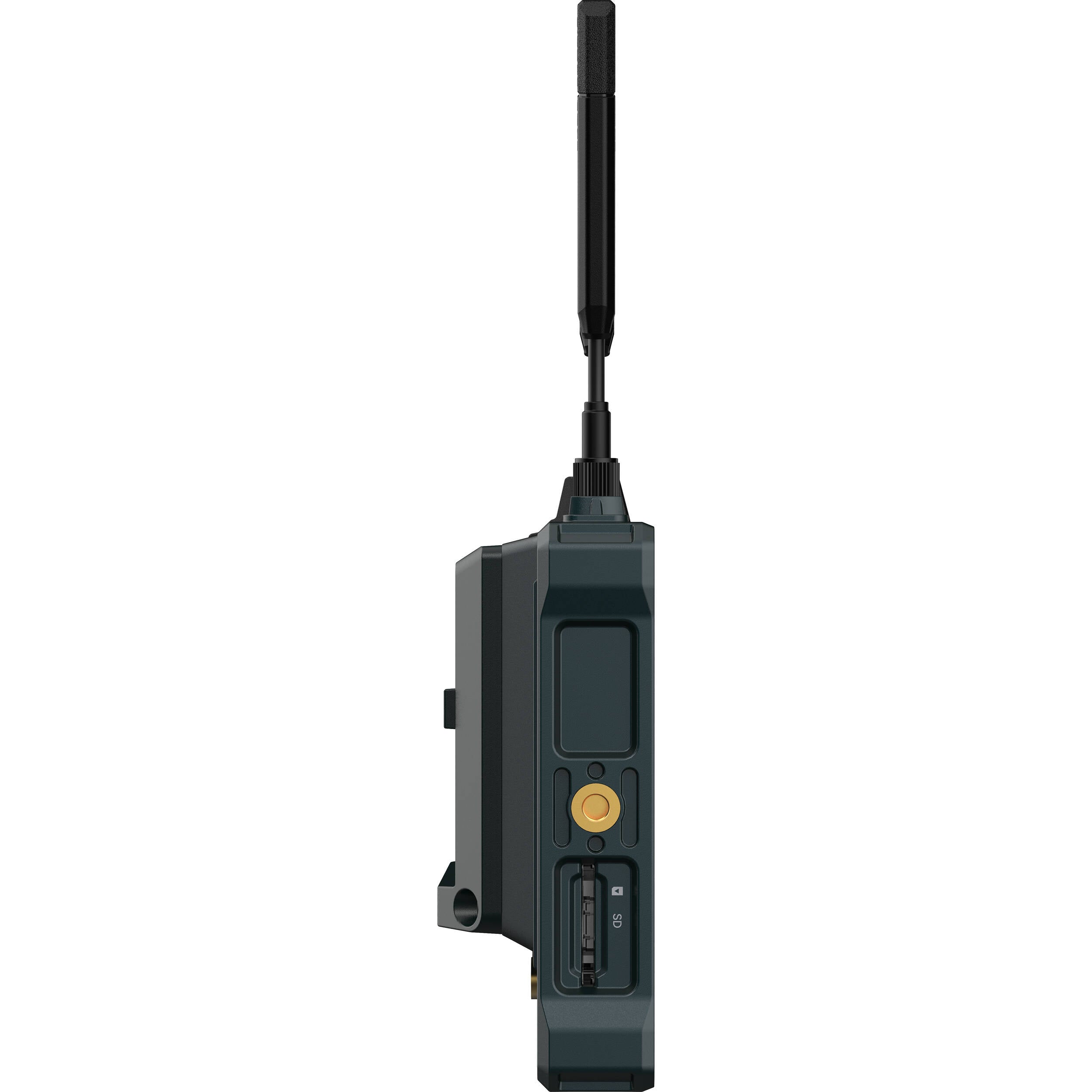

Media/Memory Card Slot: Single Slot SD/SDHC/SDXC [Supports Recording]
Encryption: No
Wireless Range: 396 m (Line-of-Sight), 198 m
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: US: 5.1–5.8 GHz, 2.412–2.484 GHz
Latency: 60 ms
RF Power: 23 dBm
RF Sensitivity: -80 dBm
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: Yes (Android & iOS)
App Name: HollyView
App Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
Video Format Support: HDMI UHD 4K: 30/29.97/25/24/23.98 fps, 1080p: 60/59.94/50/30/29.97/25/24 fps, 1080i: 60/59.94/50 fps, 720p: 60/59.94/50 fps
SDI: 1080p: 60/59.94/30/29.97/24/23.98 fps, 1080i: 60/59.94/50 fps, 720p: 60/59.94/50 fps
Audio Format: 4-Channel
Wireless Video Compression: Compressed
Timecode Support: Yes
Pulldown Conversion: No
Camera Trigger: No
Pre-Roll Record: No
Closed Caption Support: No
Reference Input: No
Phantom Power: No
Input Power: 10–18 VDC at 2.5 A
Battery: 2x L-Series Mount on Included, Interchangeable Plate
Power Consumption: 22 W (Maximum)

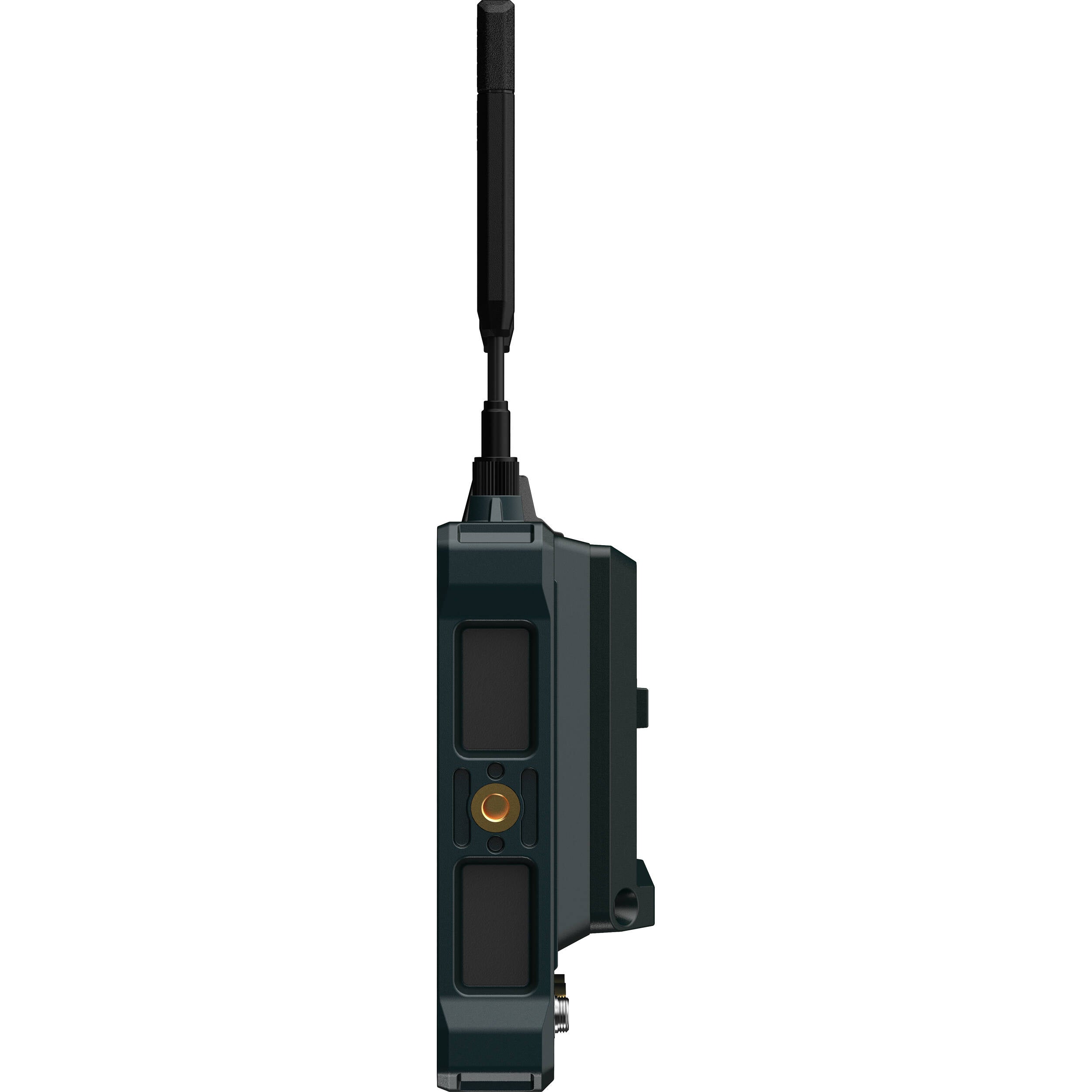

Tripod/Accessory Mounting: Bottom/Left/Right, 1x 1/4"-20 Female Environmental Resistance: No
Operating Conditions: -10 to 45°C
Storage Conditions: -40 to 60°C
Material of Construction: Aluminium, Magnesium
Dimensions: 180 x 127 x 32 mm (Excluding Antenna)
Weight: 0.545 kg (Excluding Antenna)
