Godox GM6S 5.5" 4K HDMI Ultrabright Touchscreen Monitor

Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 140cm device with a lightweight design, featuring an updated screen with 1200 cd/m² brightness. HDMI input and output to support both DCI and UHD 4K video. The camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.

Multiple function buttons can be configured to toggle between different settings and image monitoring tools. A single L-series battery plate, DC input, or USB Type-C port can power the monitor depending on your needs. The GM6S also has a DC output port to supply 7.8V of power to additional accessories. Included with the monitor is a sun hood to improve outdoor visibility and a cold shoe mount that attaches to any of the three 1/4″-20 threads.

• Five function keys can be custom programmed to toggle between various settings
• Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files
• DC power input, USB Type-C power input, and L-series battery plate
• Three 1/4″-20 mounting threads for accessories
• Rec.709 colour space

Image Monitoring Tools

• Focus Assist
• Zebra
• Waveform
• Lut Management
• Video Aspect Ratio
• Centre Marker
• Safety Marker
• Image Flip
• Grid
• Audio Meter
• False Colours
• Monochrome
• Pixel-To-Pixel
• Zoom

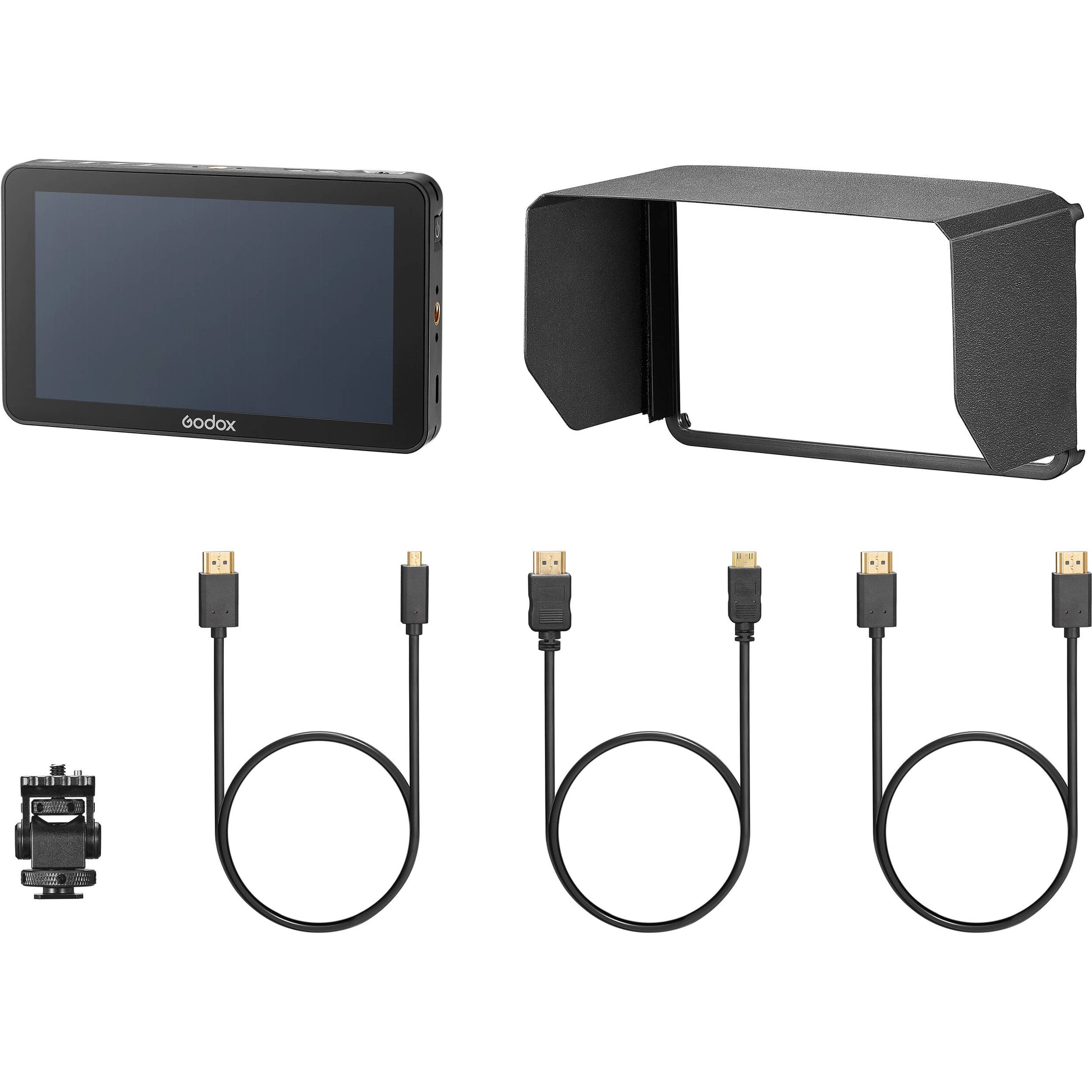

• Godox GM6S 5.5" 4K HDMI Ultrabright Touchscreen Monitor
• Sun Hood
• Tilting Cold Shoe Mount
• HDMI to HDMI Cable
• HDMI to Micro-HDMI Cable
• HDMI to Mini-HDMI Cable
• Screen Cloth
• Limited 2-Year Warranty

Panel Type: IPS-Type LCD
Display Size: 14.0 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: Horizontal 160°, Vertical 160°
Touchscreen: Yes
Maximum Brightness: 1200 nits / cd/m²
Contrast Ratio: 1000:1
Colour Support: 16.7 Million Colours (8-Bit)
Image Controls: Focus Assist, Image Flip, Waveform, Zebra
Video I/O: 1x HDMI 1.4 Input, 1x HDMI 1.4 Output
Audio I/O: 1x 3.5 mm Headphone Output, Embedded Audio via HDMI
Power I/O: 1x USB-C Input, 1x Barrel 5.5 mm (24 V DC) Input, 1x Barrel 5.5 mm (7.8 V DC / 1.5 A) Output
Media/Memory Card Slot: Single Slot SD/SDHC (LUT Upload Only)
Video Format: HDMI DCI 4K / UHD 4K / 1080p / 1080i / 720p / 576p / 576i
Gamma Curve: Rec709
Input Power: 7–24 V DC
Battery: 1x L-Series Mount on Fixed Plate
Power Consumption: 9 W
Tripod/Accessory Mounting: Top/Bottom/Right, 1x 1/4"-20 Female
Operating Conditions: -10 to 50 °C
Material of Construction: Metal, Plastic
Dimensions: 14.5 x 8.7 x 2.8 cm
Weight: 273 g
