DJI RS 5 features touchscreen subject selection with the new tracking module, smooth balancing from fine-tuning knobs, and direct control via the new briefcase handle. All backed by faster charging and extended battery life.

Features:

• 1-Hour Full Charge, 15% Extended Runtime
• Fine-Tuning Knobs and Teflon™ Enhanced Balancing
• New Z-Axis Indicator
• 2nd-Gen Automated Axis Locks
• Enhanced Intelligent Tracking and Composition
• Briefcase Handle With Gimbal & Camera Control

Next-Gen Algorithm, Enhanced Torque

Peak motor torque is up by 50% over the previous model, offering stability in fast-moving scenes. The 5th-Gen RS Stabilisation Algorithm further enhances stabilisation for walking, running, and vertical shooting, striking an ideal balance between stability and control.

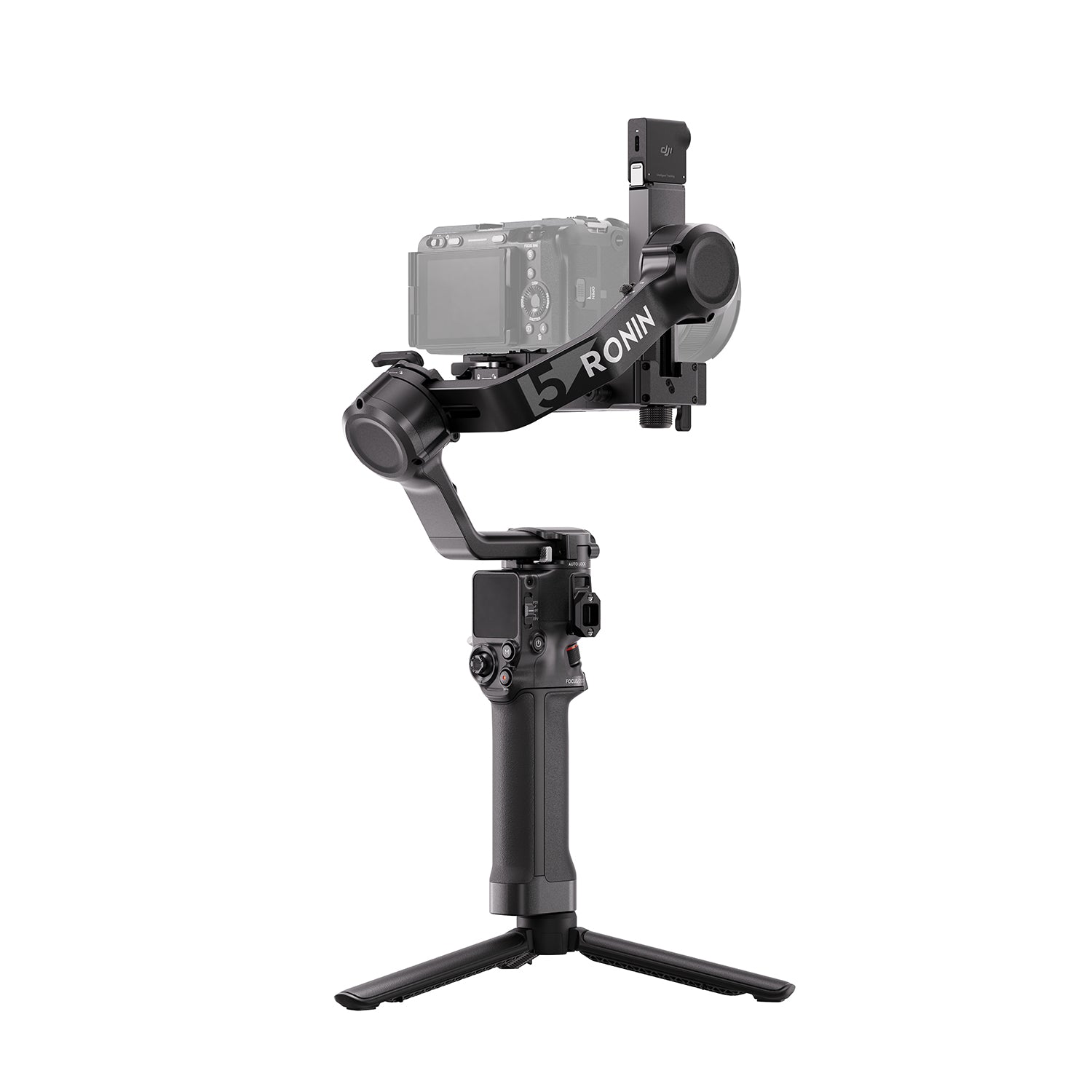

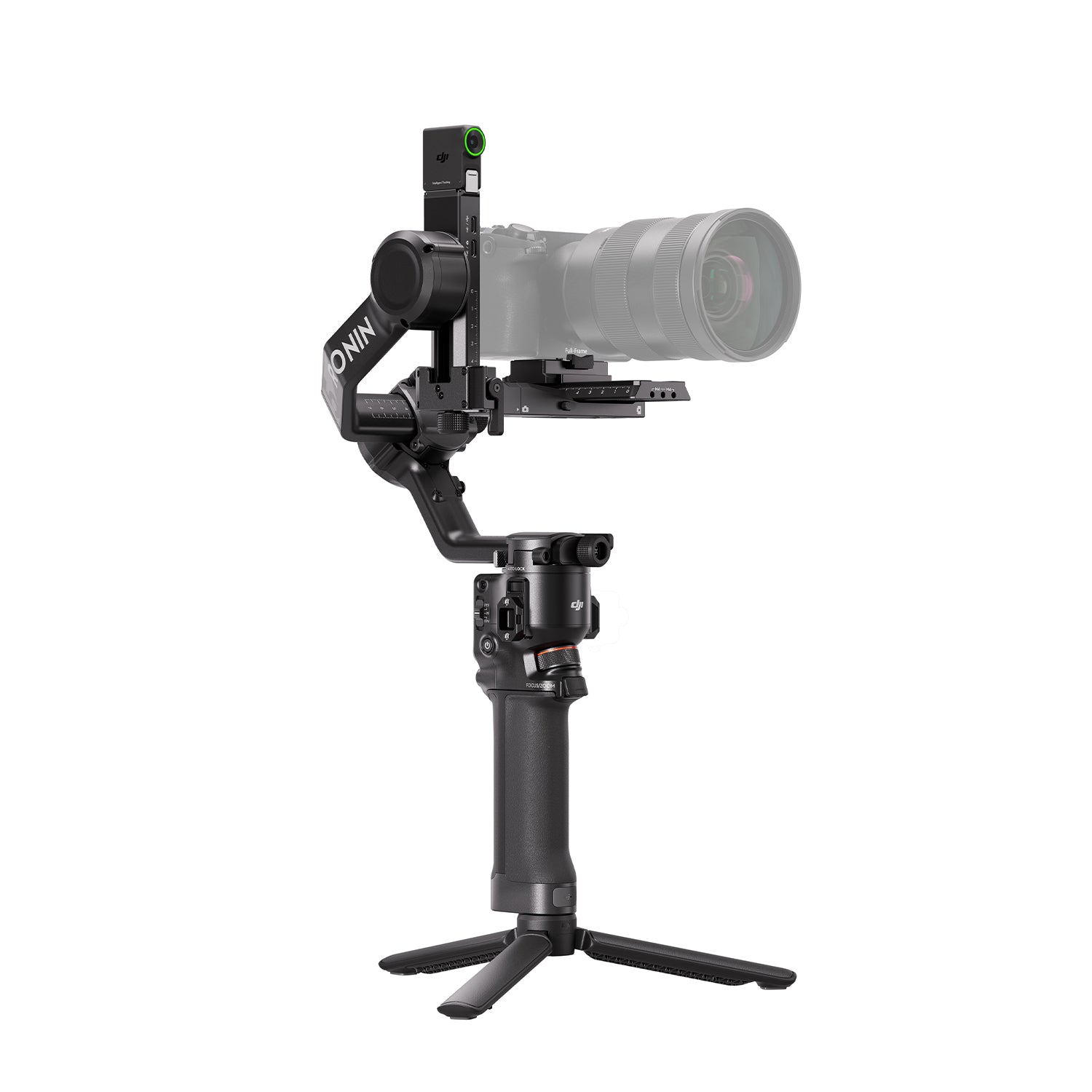

Compact Body With up to 3kg Payload

The gimbal weighs just 1.46 kg with battery grip and quick-release plates, and switches to vertical shooting without extra accessories. With a robust 3 kg payload capacity, it can carry mainstream mirrorless camera and lens combinations with ease.

Dual-Layered Quick-Release Plates

The Arca-Swiss upper plate and Manfrotto lower plate allow quick switching between gimbal and tripod without rebalancing, thanks to position memory. In addition, the upper plate adds an adjustable guide for secure camera mounting.

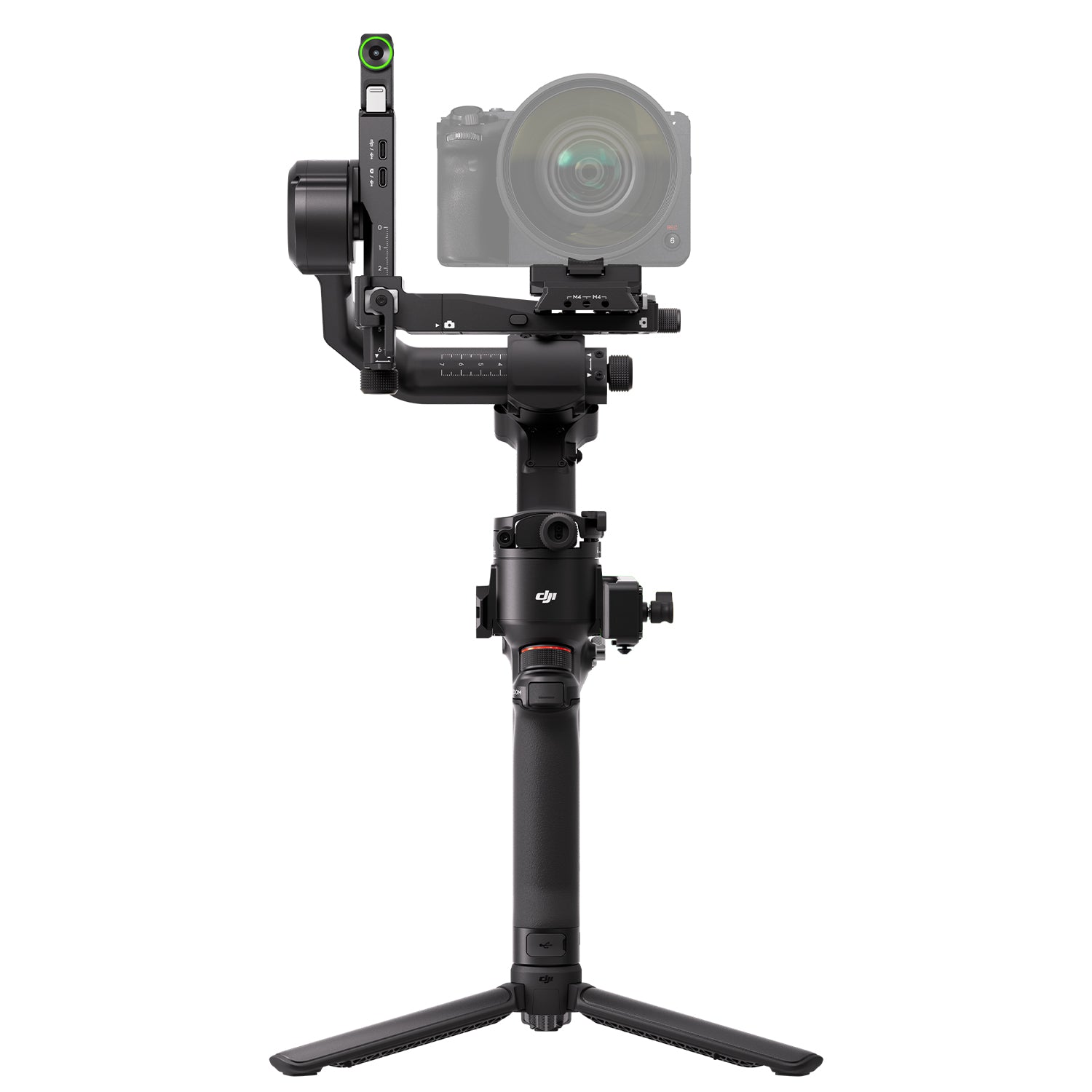

Support for DJI Focus Pro Motor

When paired with two Focus Pro Motors, RS 5 allows cinematographers to adjust the lens zoom via the joystick and precisely control the focus via the dial, facilitating smooth and effortless lens control.

Support for DJI SDR Transmission

Both independent cinematographers and small crews can utilise the DJI SDR Transmission for high-definition live feeds, remote gimbal and camera control, Force Mobile, and more.

RS Enhanced Intelligent Tracking Module

The module lets you frame and track any subject from the gimbal's touchscreen, keeping it precisely positioned. And when tracking a person, it offers a range of up to 10 meters and can reacquire the subject if they temporarily leave the frame.

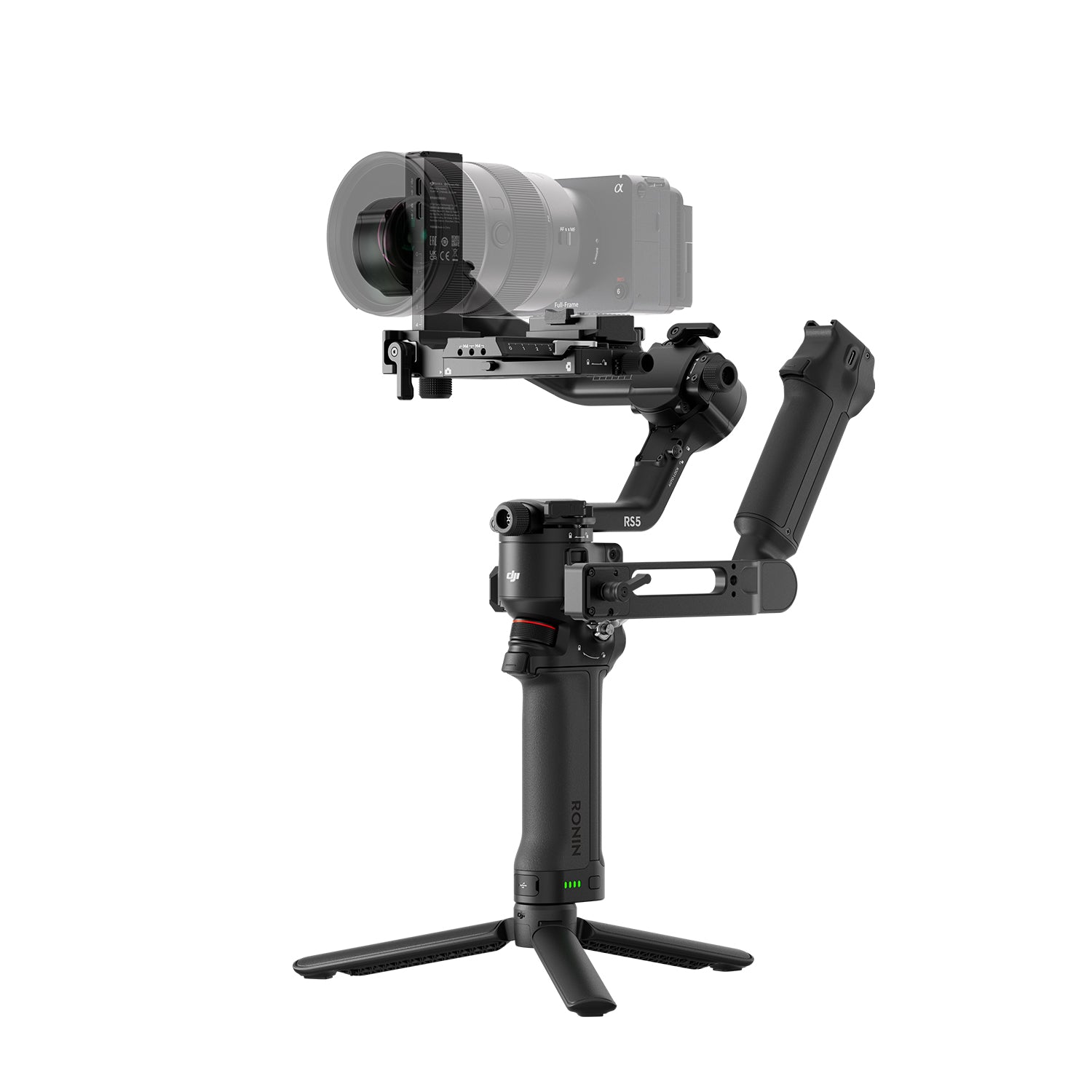

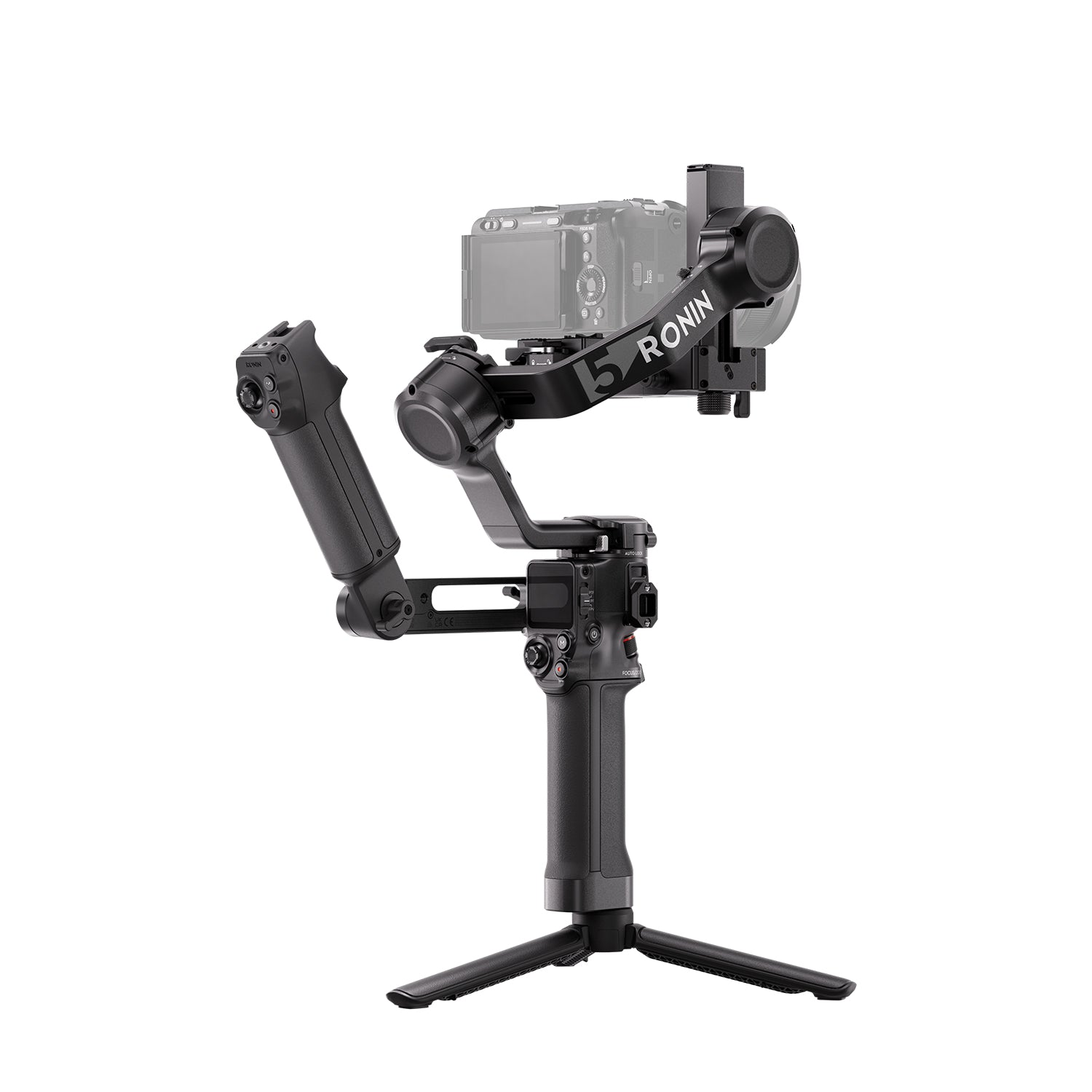

Electronic Briefcase Handle

The new Electronic Briefcase Handle offers intuitive, effortless single‑handed operation, featuring a joystick and buttons that control the gimbal and camera for more creative angles.

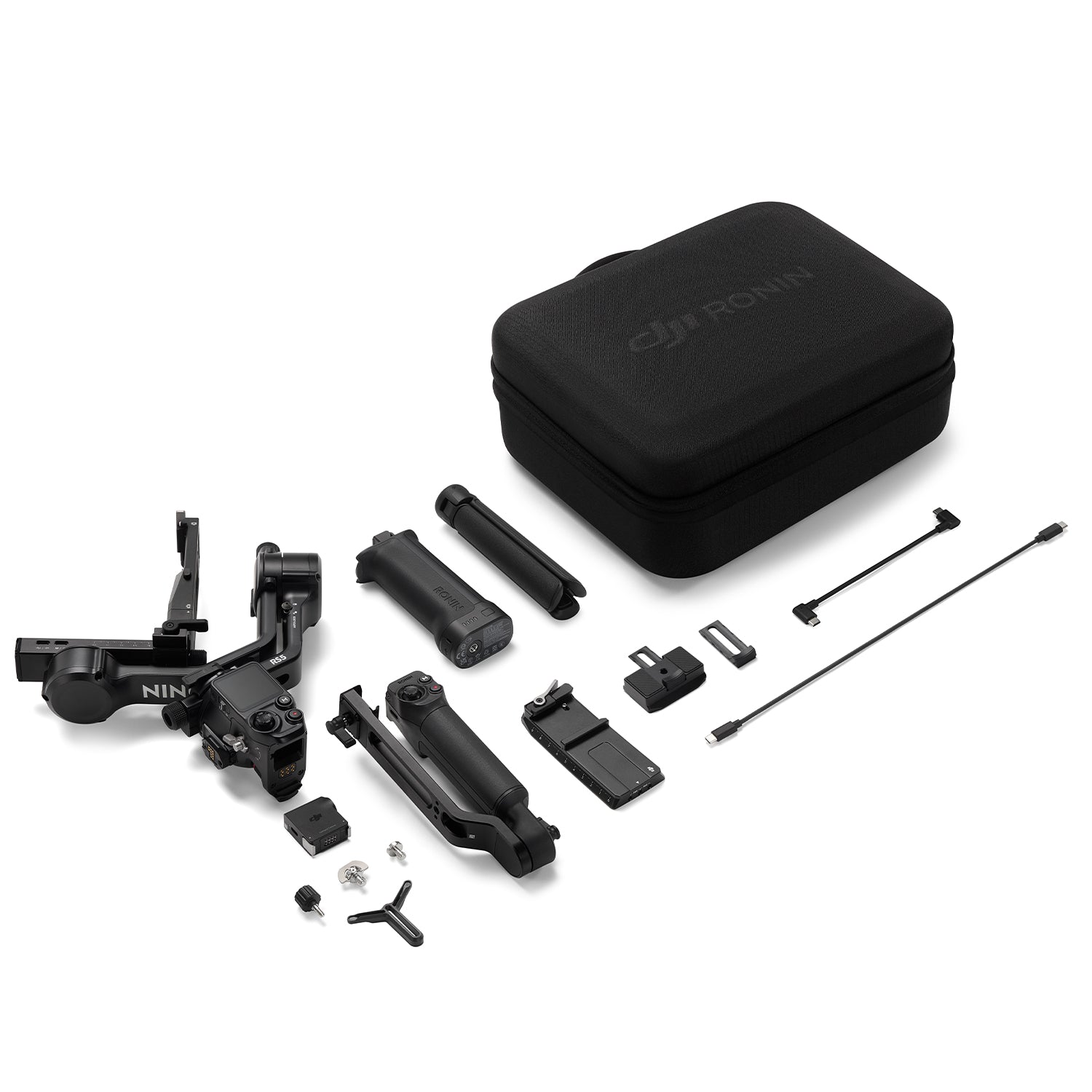

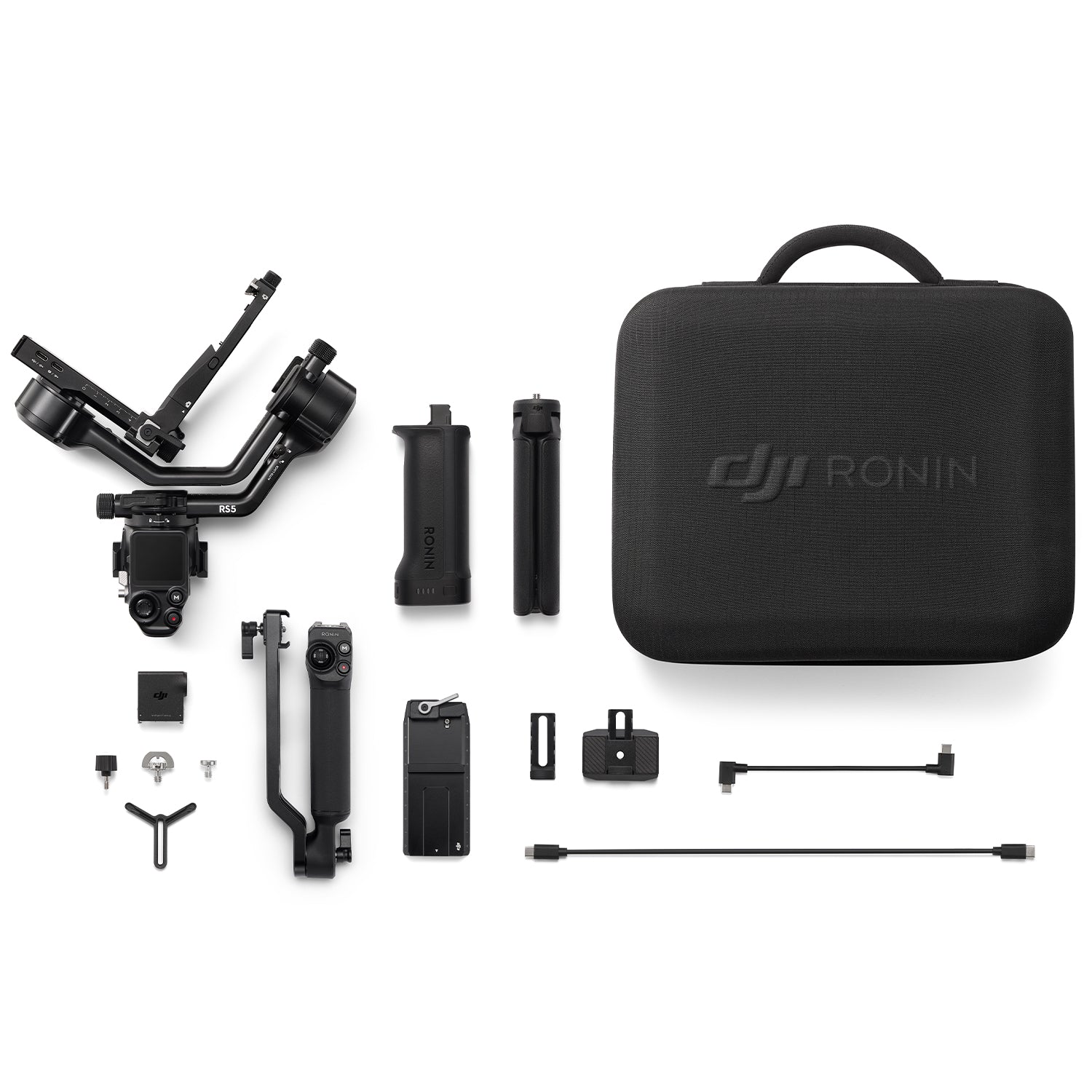

• DJI RS 5 Gimbal Stabiliser Combo
• Quick-Open Tripod
• DJI Logo Sticker
• Carrying Case
• Lens-Fastening Support
• L-Shaped Cable (USB-C, 13 cm)
• Screw Kit
• RS 5 Upper Quick-Release Plate
• RS 5 Lower Quick-Release Plate
• BG33 Battery Grip
• RS Enhanced Intelligent Tracking Module
• Electronic Briefcase Handle
• Multi-Camera Control Cable (USB-C, 30 cm)
• Limited 1-Year Warranty

Accessory Port: 1/4" -20 Mounting Hole, Cold Shoe, Camera Control Port (USB-C), Multifunctional Port (USB-C)
Battery: 2150mAh, Standby Approx. 14 Hours, Charging Approx 1 Hours
Connections: Bluetooth 5.0, USB-C Charging Port
App Requirements: iOS 14.0 or above, Android 9.0 or above
Payload: 3Kg
Maximum Controlled Rotation Speed: Pan: 360°/s, Tilt: 360°/s, Roll: 360°/s
Mechanical Range: Pan Axis: 360° continuous rotation, Roll Axis: -95° to +240°, Tilt Axis: -112° to +214°
Operating Frequency: 2.4000-2.4835 GHz
Axis Lock: Auto
Vertical Shooting: Supported
Operating Temperature: -20° to 45° C
Weight: Gimbal: Approx. 1193 g, Grip: Approx. 274 g, Quick-Open Tripod: Approx. 149 g, Upper and Lower Quick-Release Plates: Approx. 93 g
Dimensions:
Folded: 247.4×115.7×258.7 mm (L×W×H, excluding camera, grip, and Quick-Open Tripod)
Unfolded: 223.2×192.2×418.8 mm (L×W×H, including grip, excluding camera and Quick-Open Tripod)
