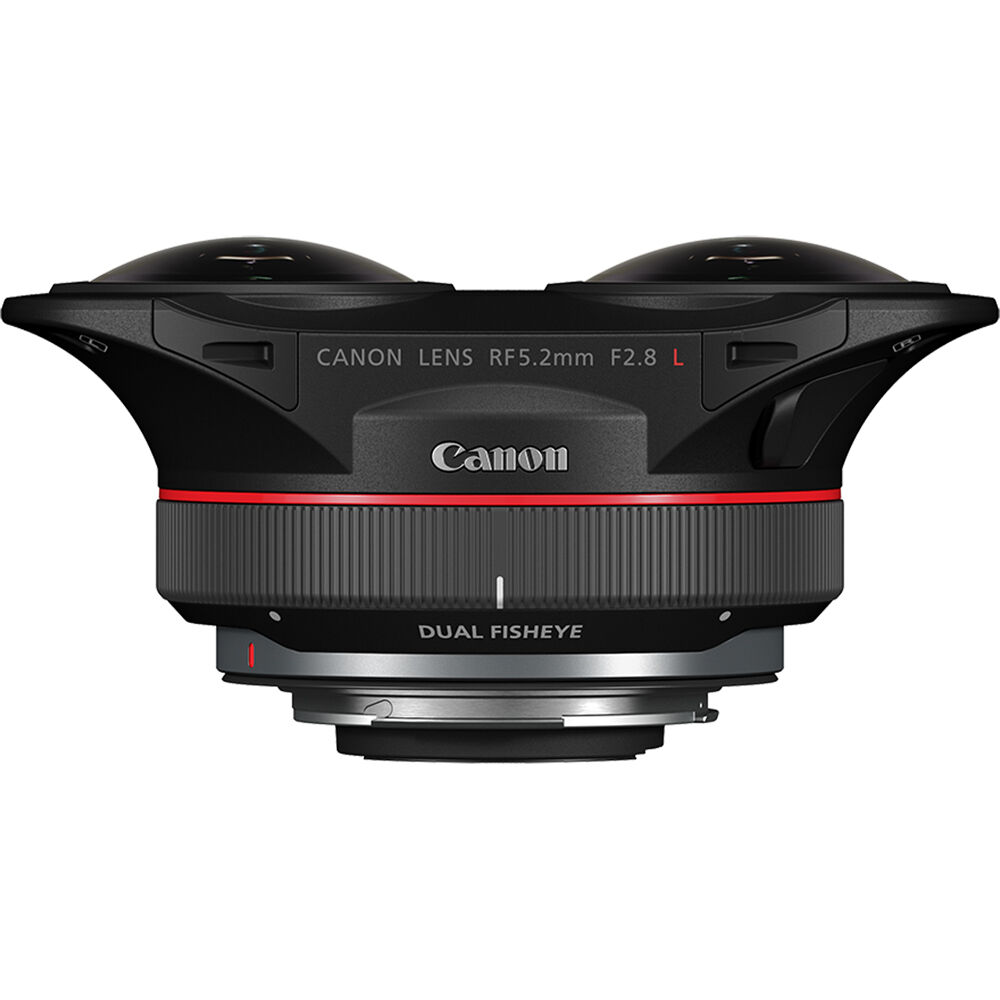

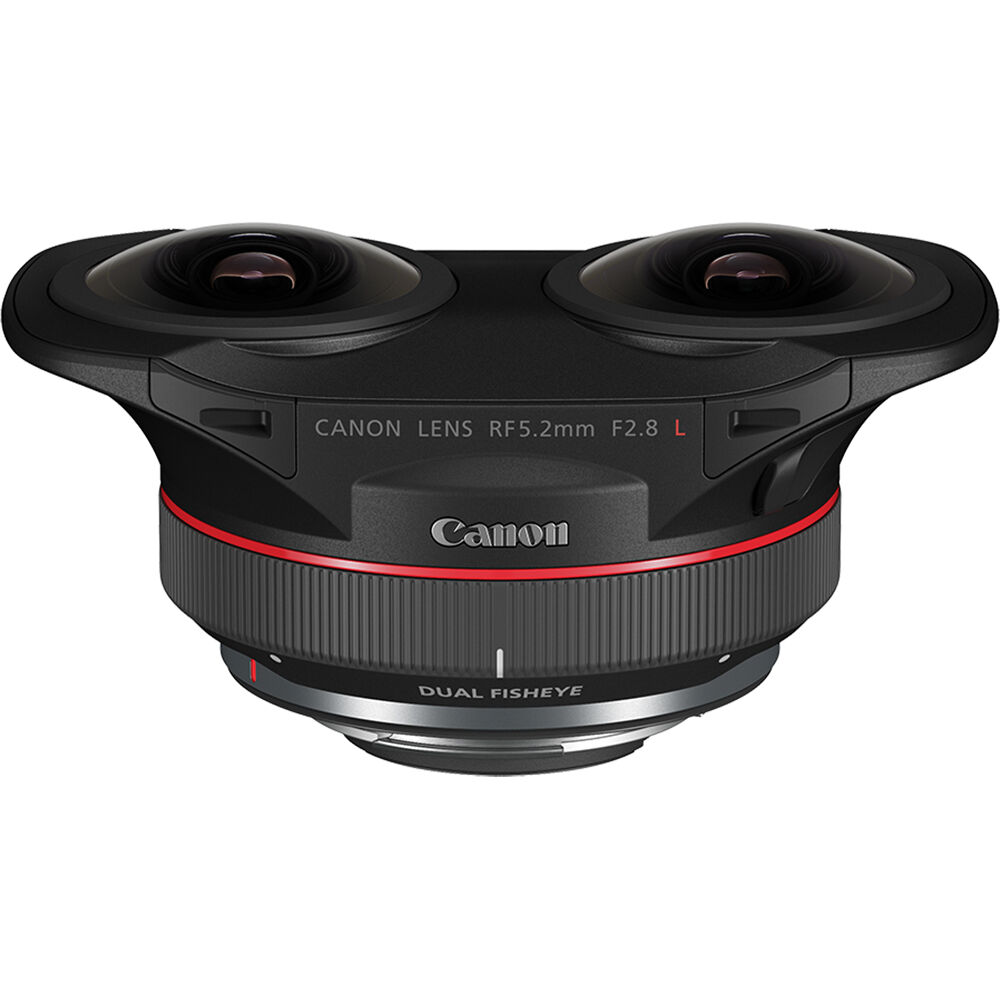

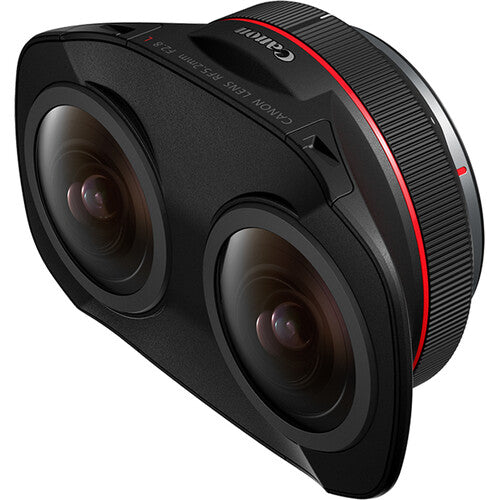

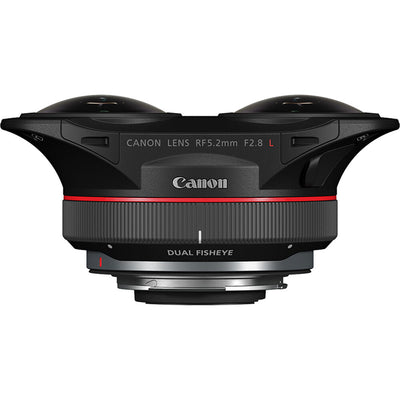

Canon RF 5.2mm f/2.8L Dual Fisheye Lens

Capture views that are more than virtual

Capture the world in virtual reality thanks to the RF 5.2mm f/2.8L DUAL FISHEYE; a compact, stereoscopic L-series RF lens capable of capturing super-sharp content that – with the rest of Canon’s EOS VR SYSTEM, including a camera and software solution – transforms footage into a truly breathtaking visual experience, immersing you within the environment.

Amazingly practical (3D) 180° VR capture

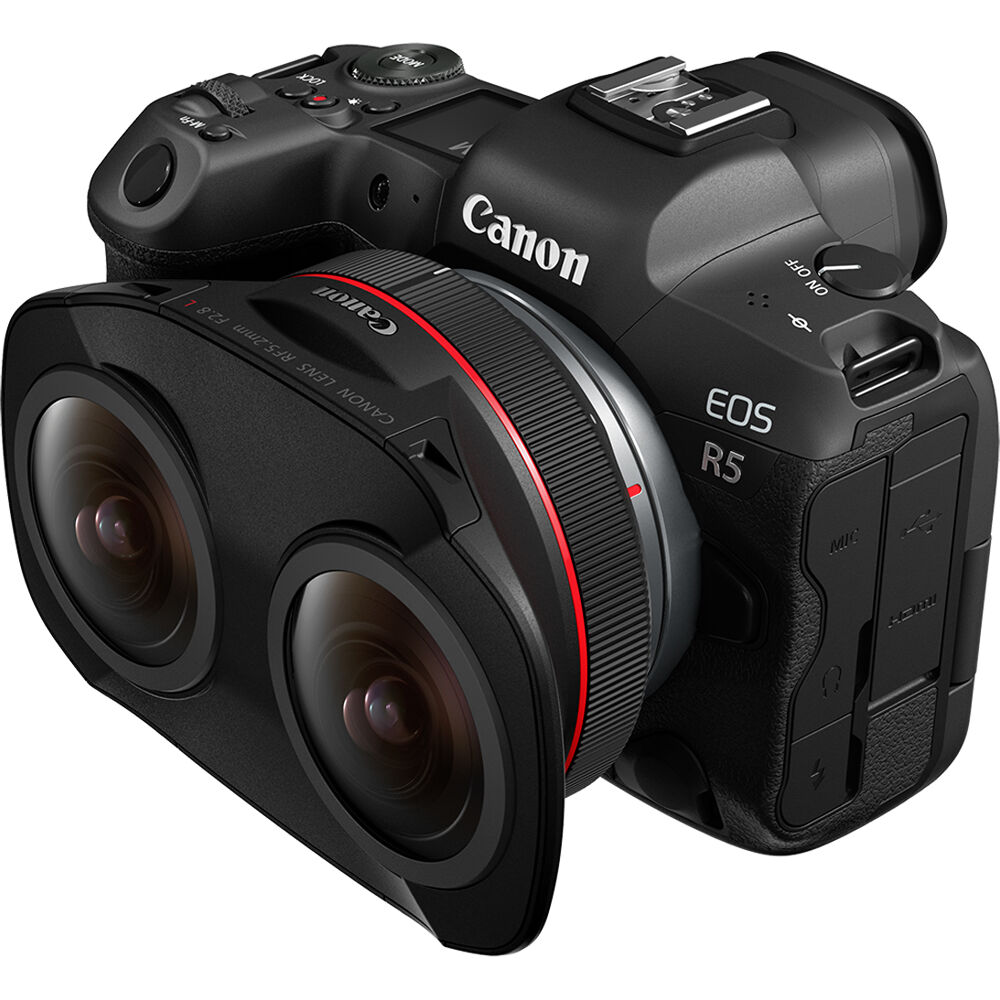

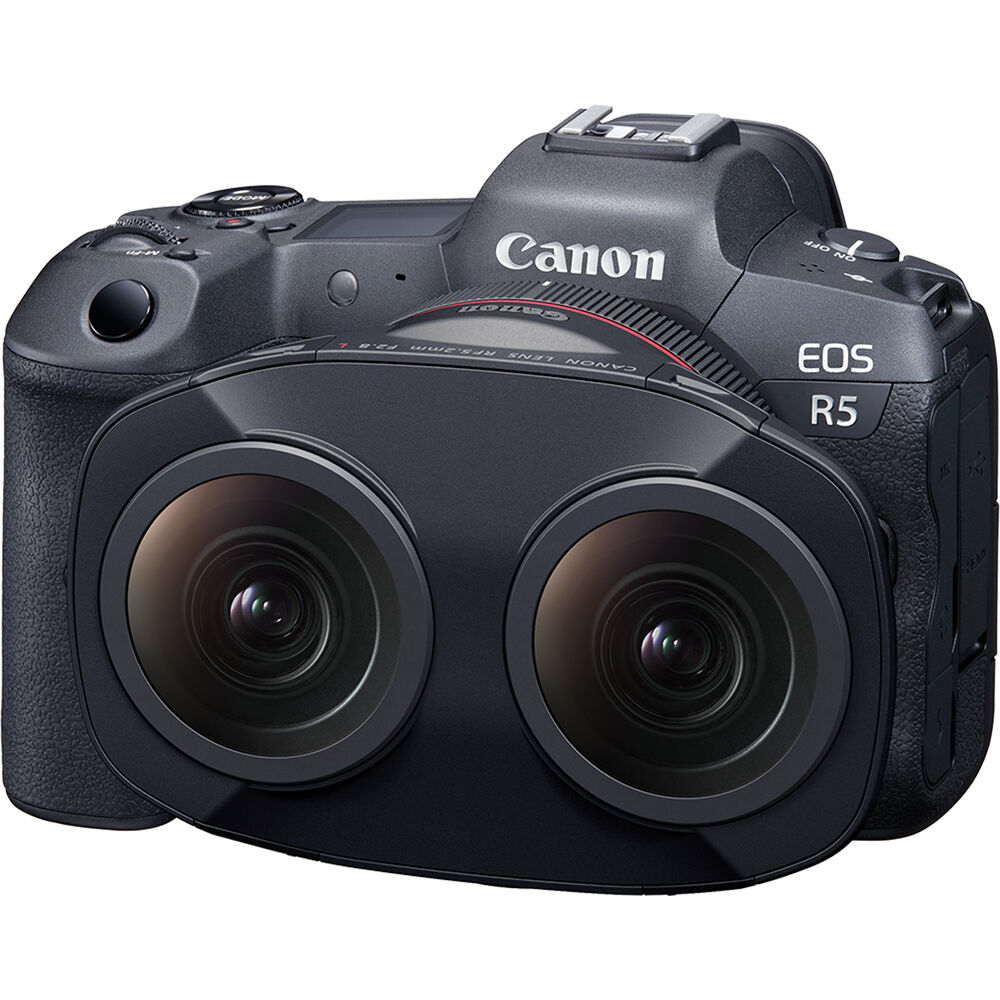

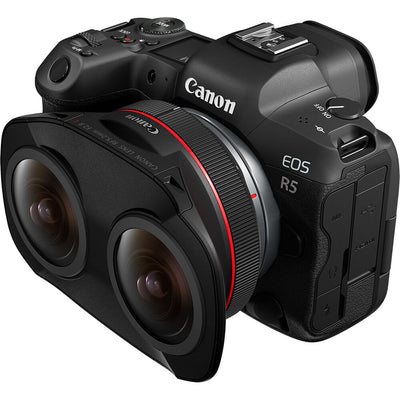

The compact, single mount design simplifies quick camera setups for professional stereoscopic 180° VR capture, when using compatible high resolution, Full Frame, RF mount cameras, such as the EOS R51 and R5 C.

Efficient and simplified workflow

Featuring a stereoscopic 190° field of view, two offset circular fisheye images are perfectly synchronised and recorded side-by-side onto a single Full Frame sensor, ready for Canon’s powerful EOS VR Utility2/plug-in to seamlessly process for final edit, requiring no additional stitching.

RAW (8K / 60P) video workflow

Compatible RAW video files taken with supported cameras (including 8K / 60P RAW LT files from the EOS R5 C) are automatically processed within EOS VR Utility, further simplifying a RAW workflow with higher frame rates.

High quality image capture

Featuring perfectly aligned, dual forward facing fisheye lenses, the RF 5.2mm f/2.8L DUAL FISHEYE utilises two UD elements per lens to correct for aberrations plus Canon’s special SWC coatings to reduce ghosting and flare, even in backlit conditions.

Fast f/2.8 aperture for low light shooting

The RF 5.2mm f/2.8L DUAL FISHEYE performs superbly in low light thanks to a fast f/2.8 aperture with accurately synchronised exposure and precise control via a dual Electro Magnetic Diaphragm (EMD) design.

L-series build and weather resistance

Because it’s an L-series lens, the RF 5.2mm f/2.8L DUAL FISHEYE is built for professional use. It is dust and splash resistant and features fluorine coatings to repel water and dirt on the lens surface.

Gel filter holder for precise exposure control

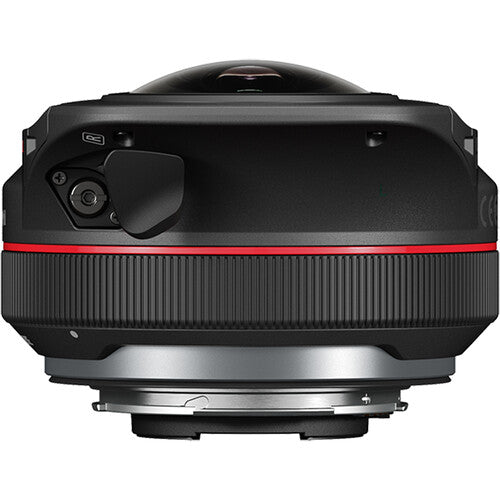

The RF 5.2mm f/2.8L DUAL FISHEYE has a rear-mounted gelatine filter holder for pre-cut ND gels which can be used to help precisely control light levels when in use on 180° VR video productions.

• Canon RF 5.2mm f/2.8L Dual Fisheye Lens
• Lens Cap 5.2
• Soft Lens Case LS10`4
• Limited 2-Year Warranty

Focal Length: 5.2 mm
Aperture: Maximum: f/2.8, Minimum: f/16
Lens Mount: Canon RF
Lens Format Coverage: Full-Frame
Angle of View: 190°
Minimum Focus Distance: 200.7 mm
Magnification: 1:33.33 Macro Reproduction Ratio, 0.03x Magnification
Optical Design: 12 Elements in 10 Groups
Aperture/Iris Blades: 7
Focus Type: Manual Focus
Image Stabilisation: No
Filter Size: Gel Filter (Rear)
Dimensions: ø: 12.2 x L: 5.3 cm
Weight: 352 g
