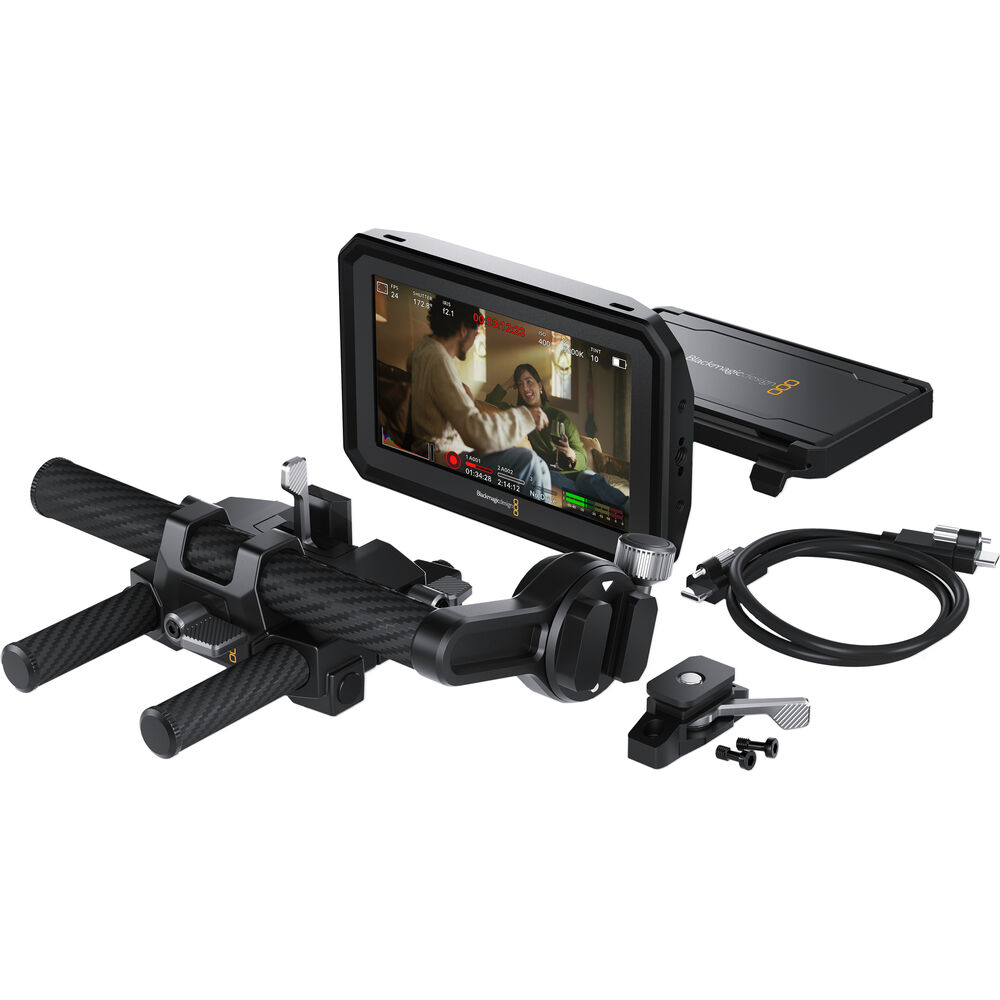

Blackmagic Design PYXIS Monitor EVF Kit

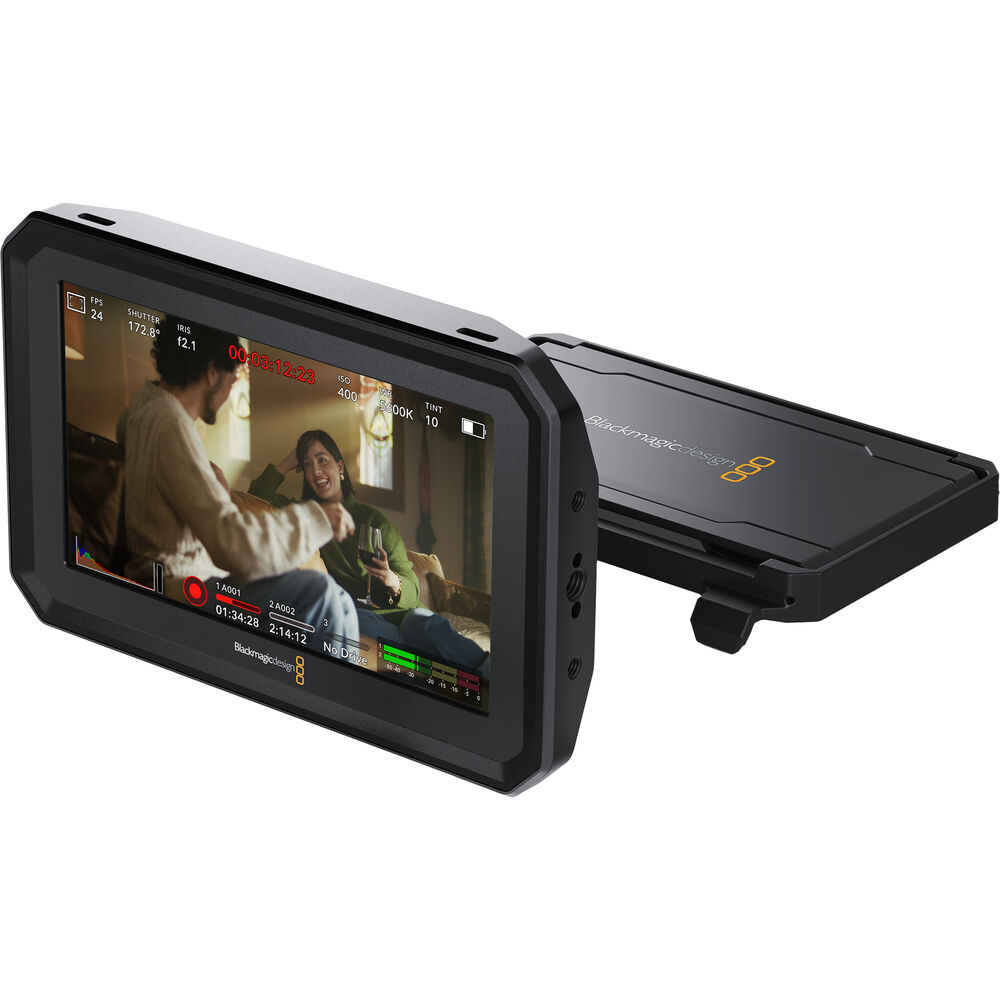

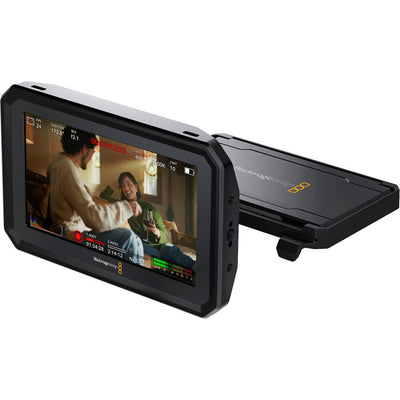

The PYXIS Monitor EVF Kit delivers a powerful combination of monitoring and rig flexibility. The 5-inch HDR touchscreen offers vibrant, high-brightness performance—especially beneficial in bright daylight shooting scenarios. The single USB-C connection not only simplifies rig setup by combining video, power and control into one cable but also maintains a robust locking interface suited for professional use. Custom function buttons and full access to camera menus, metadata and overlays let you control key parameters quickly without returning to the camera body.

Mounting versatility is another standout. The included EVF bracketry and carbon fibre rods let you convert the monitor into a viewfinder or crew monitor depending on your setup. With multiple ¼-20 and M4 mounting points, the hardware adapts to gimbals, drones, shoulder rigs or studio cages. The built-in tally light and accelerometer enhance usability for operators on location. For creators who demand both the precision of a full viewfinder and the flexibility of rig-mounted monitoring, the PYXIS Monitor EVF Kit is an integrated solution that minimises setup time while maximising control and visual clarity.

• Blackmagic Design PYXIS Monitor EVF Kit
• Clip-On Sunshade
• Monitor Swivel Mount
• Monitor Fixed Mount & Set of Screws
• Monitor Dovetail Shoe & Set of Screws
• USB-C Viewfinder Cable
• URSA Cine EVF Bracket Rod Mount
• URSA Cine EVF Rotating Bracket with 19mm Carbon Fiber Rod
• 2 x 15mm Carbon Fiber Rod
• Limited 1-Year Manufacturer Warranty

Model: Blackmagic Design PYXIS Monitor EVF Kit
Display Size / Resolution: 5″ / 1920 × 1080
Brightness: 1500 nits
Connector: USB-C locking connector (video/power/data)
Mounting Points: 1×¼-20 bottom (ARRI anti-twist), 2×M4 bottom, 1×¼-20 side, 2×M4 side
Supported Frame Rates: Up to 60 fps
Compatible Cameras: PYXIS 6K, PYXIS 6K PL, PYXIS 6K EF, URSA Cine 12K LF, URSA Cine 17K 65
Included Mounting Hardware: Sunshade, swivel mount, fixed mount with screws, dovetail shoe with screws, EVF bracket rod mount, EVF rotating bracket with 19 mm carbon fibre rod, 2×15 mm carbon fibre rods, USB-C viewfinder cables
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 °C to 60 °C
