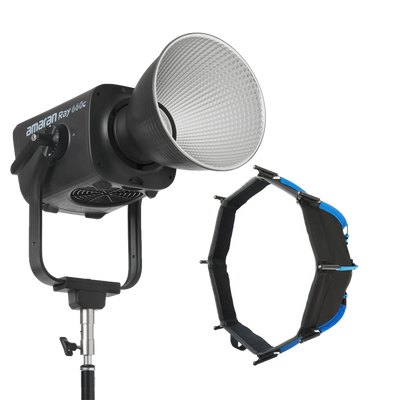

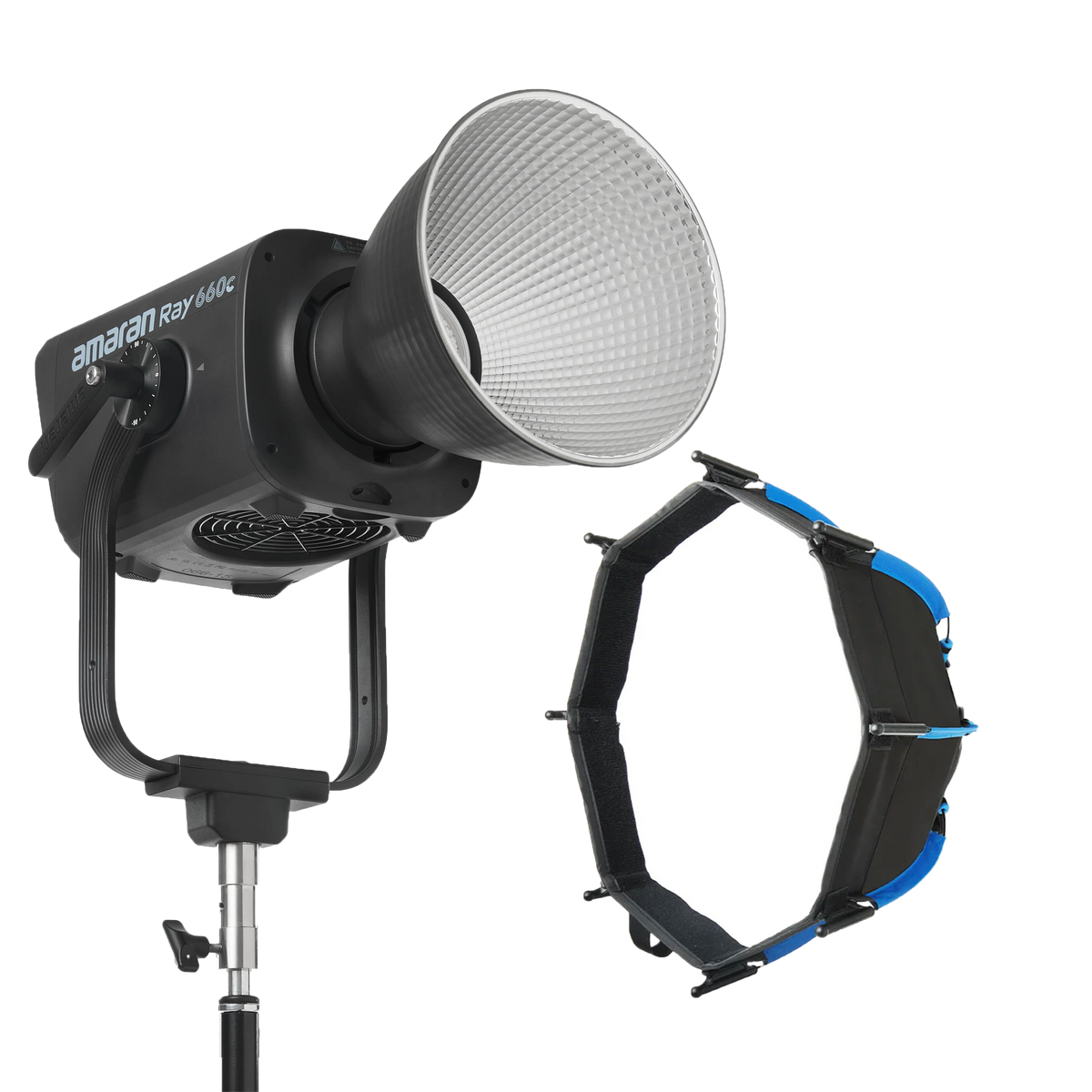

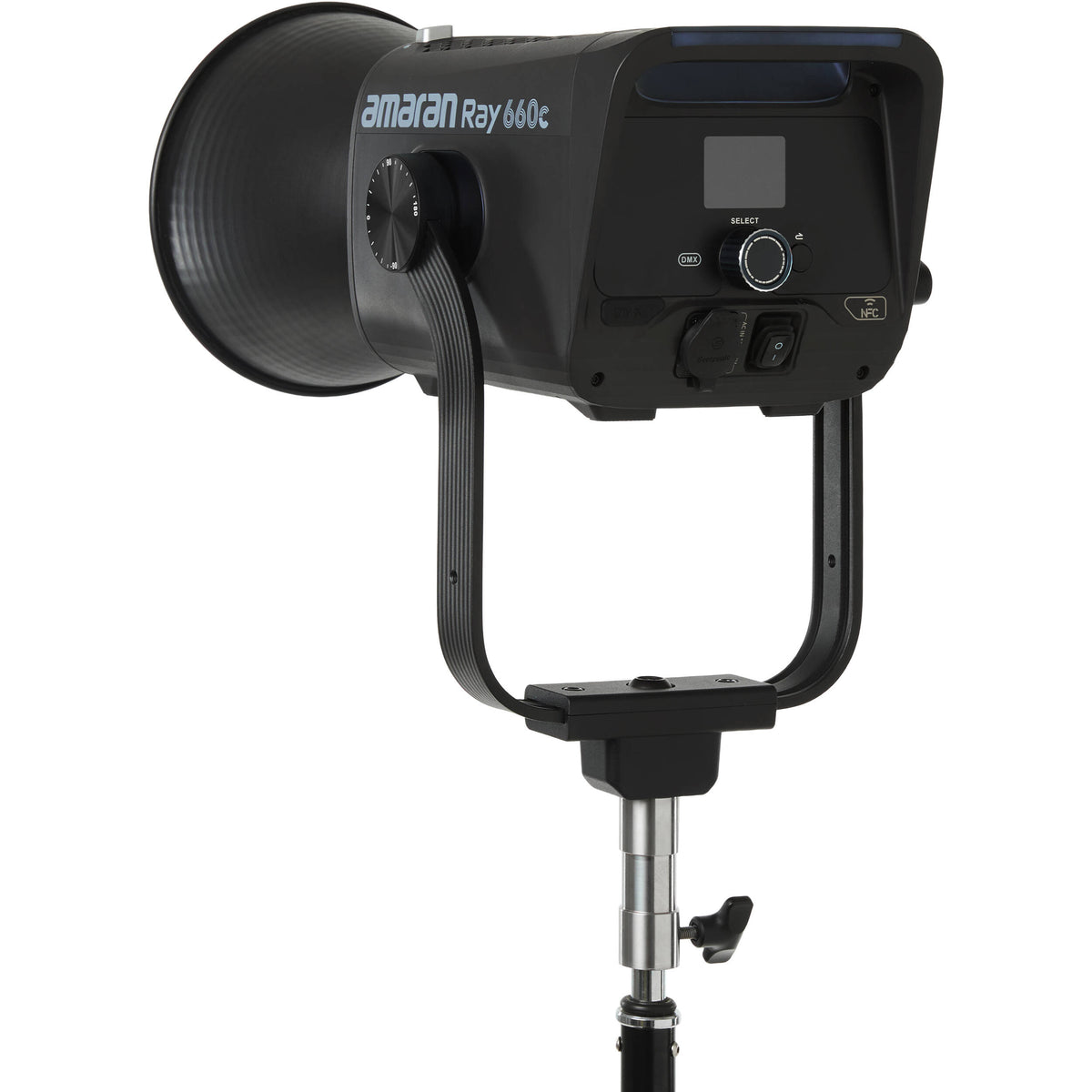

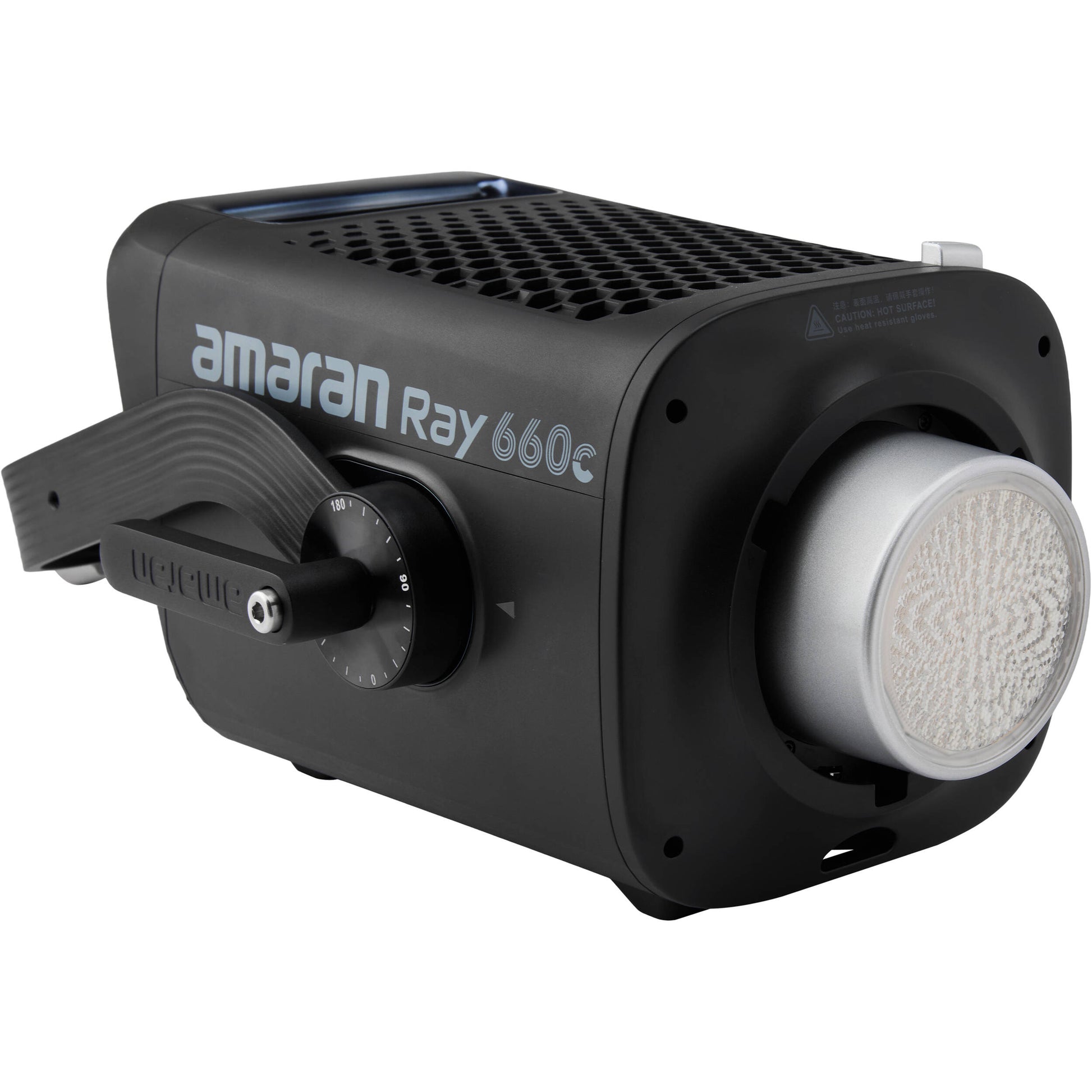

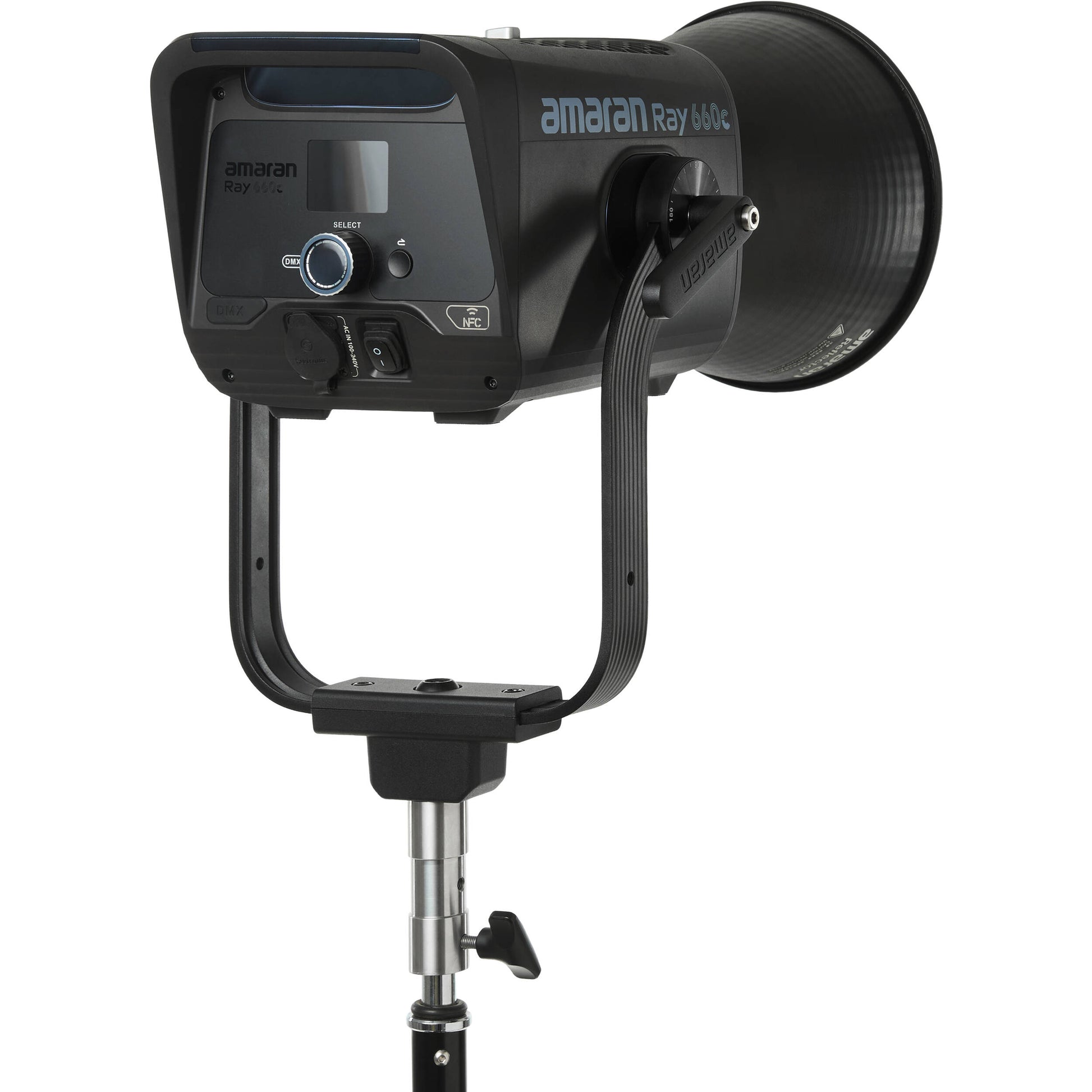

amaran Ray 660c RGB LED Monolight with Octa Dome 30

Brightest Output for Anywhere

The amaran Ray 660c delivers up to 38,500 lux @ 1m (bare), making it the most powerful amaran COB to date. With 660W of full-colour output, it lights larger spaces and wider frames with ease.

All-in-One Power. One AC Cable

As the first full-colour COB in its power class to feature an all-in-one, monolight design, the amaran Ray 660c integrates the power supply directly into the light. Plug in a single AC cable for faster, cleaner setups and simplified on-set operation.

DMX Control for Advanced Workflows

Add DMX control via the optional USB-C to 5-Pin Adaptor to integrate with industry-standard consoles and software. Trigger cues, sync multiple lights, and scale into advanced studio workflows

True-to-Life Colour with OmniColor

Powered by the OmniColor light engine, the amaran Ray 660c delivers a fuller, more balanced spectrum (producing cleaner whites, truer skin tones, and more accurate colour), achieving SSI scores of 87 (Tungsten) and 80 (D56).

360º Full Colour

amaran's OmniColor engine expands red and blue ranges for fuller, balanced light. The Ray 660c offers 2300-10,000K colour temperature (1800-20,000K in CCT+ mode), 0-100% stepless brightness, 360° colour control, and 12 FX effects.

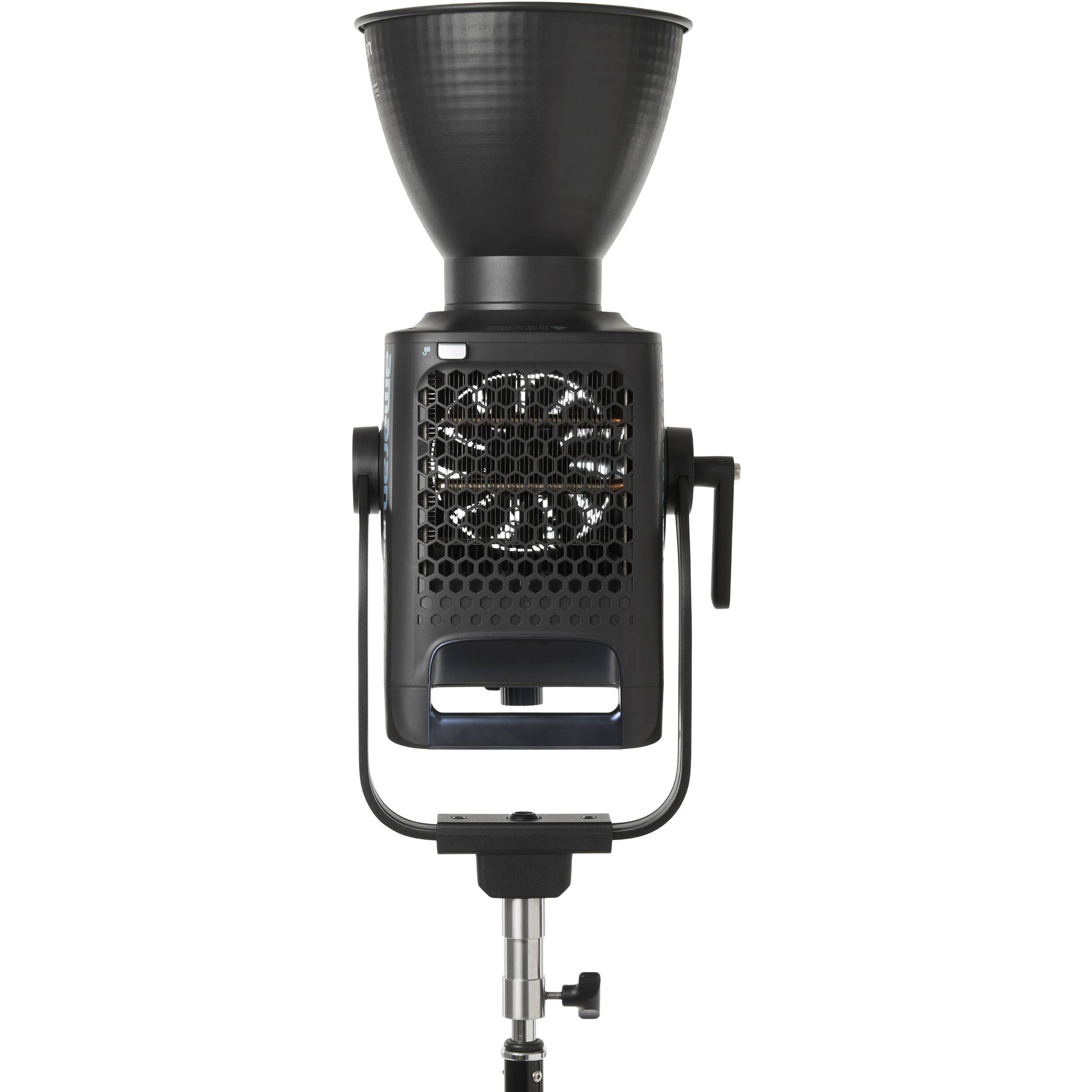

IP54-Rated Design & Low Fan Noise

IP54-rated for dust and splash resistance, with active fan cooling as quiet as 28 dBA at maximum output. Choose silent or smart fan modes.

Wide Compatibility

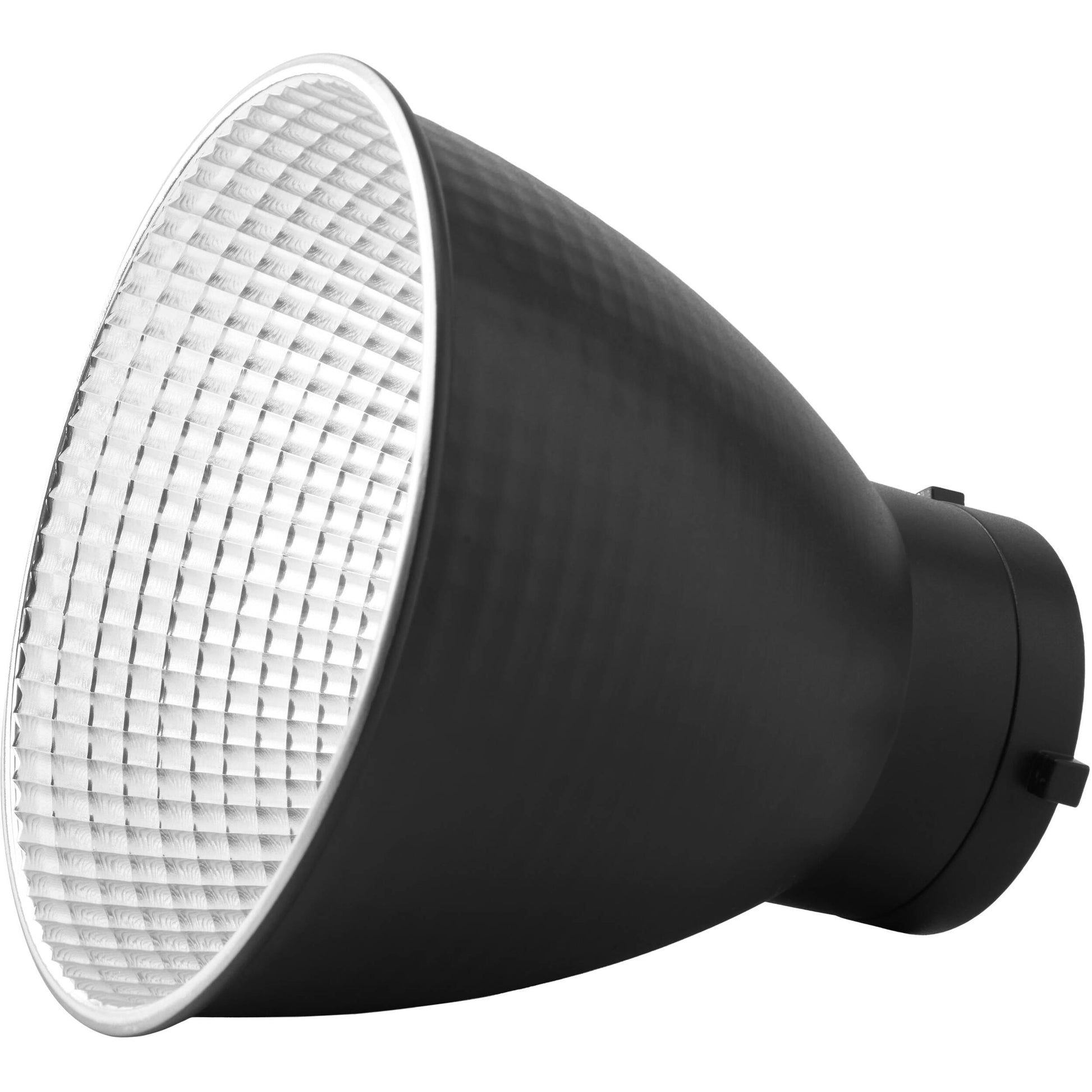

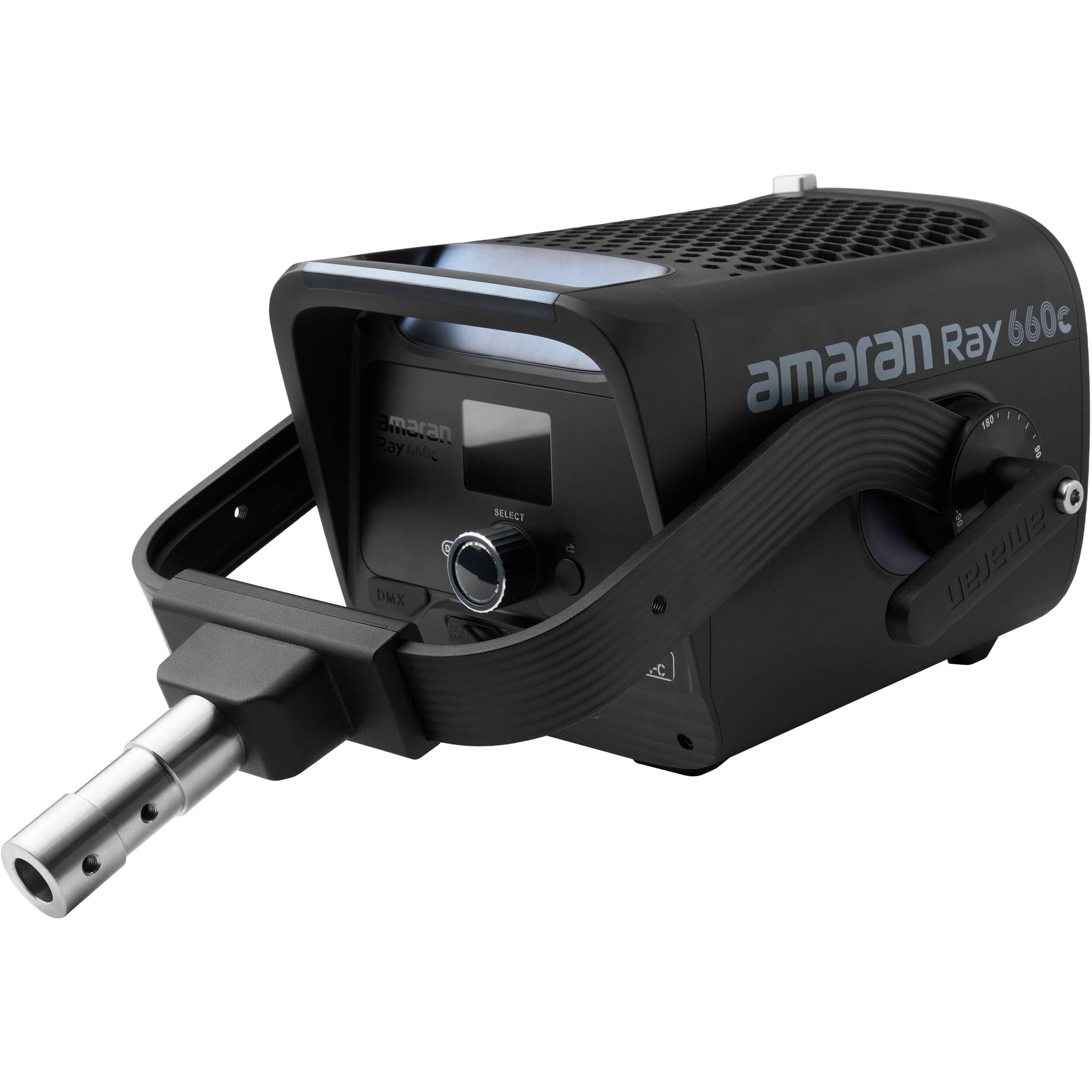

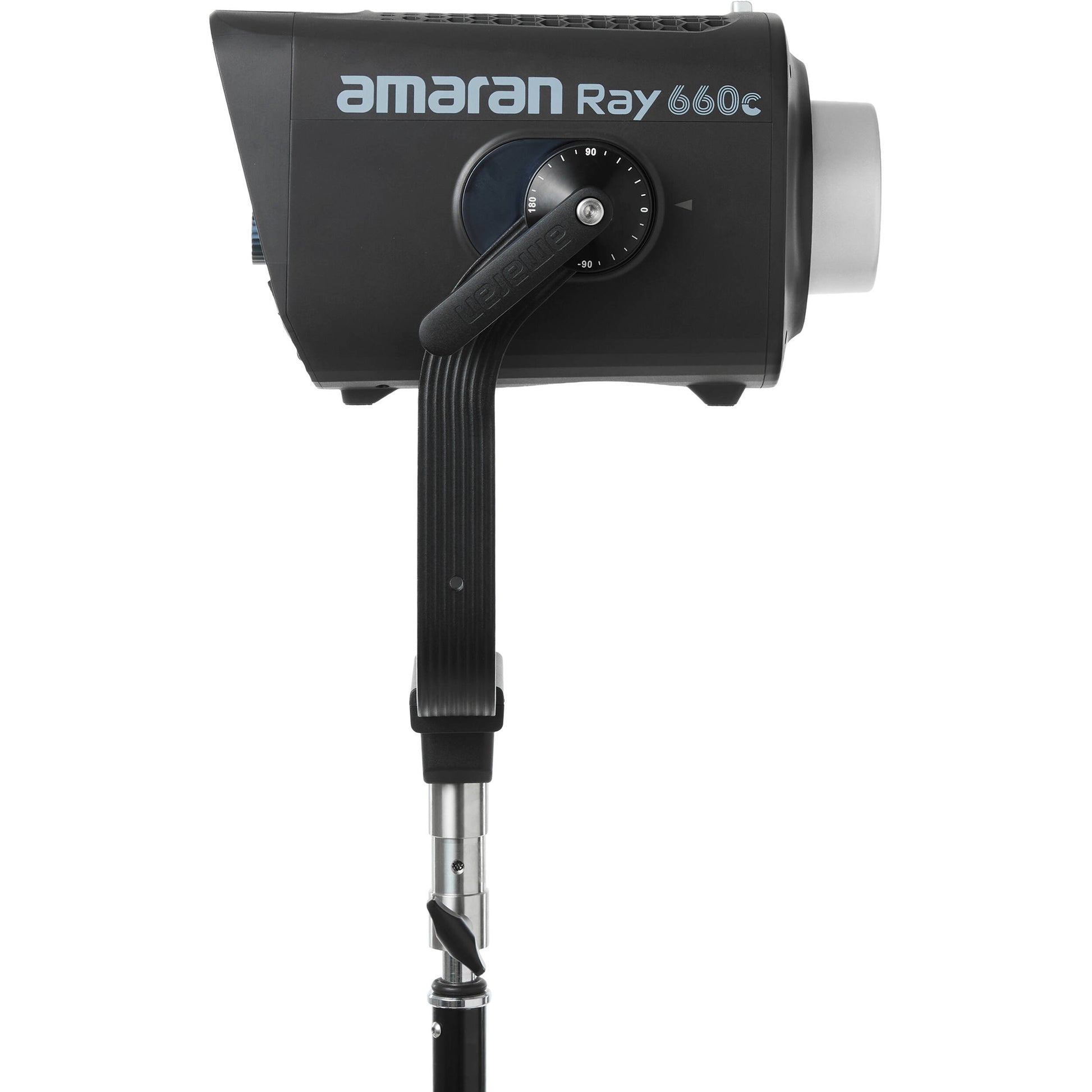

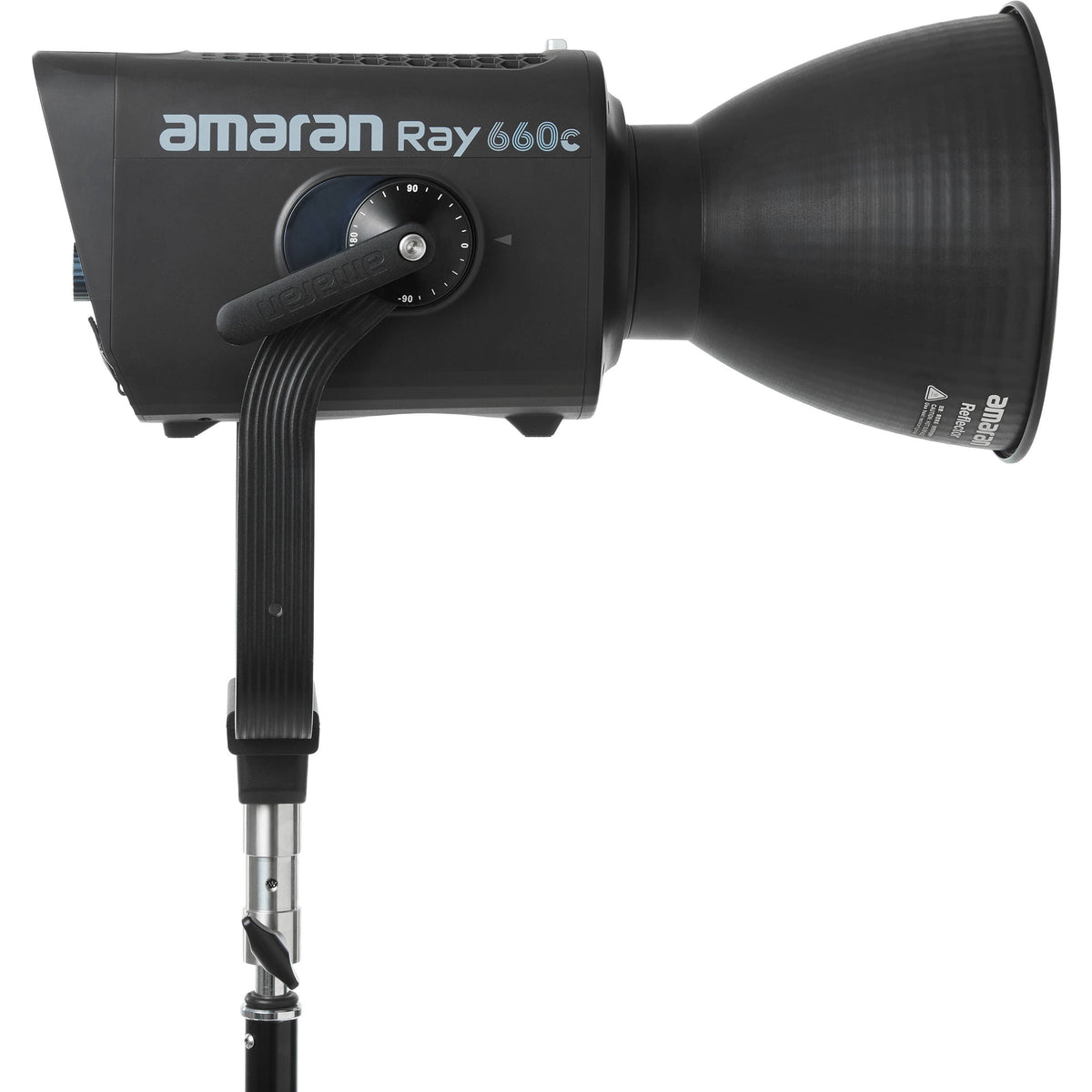

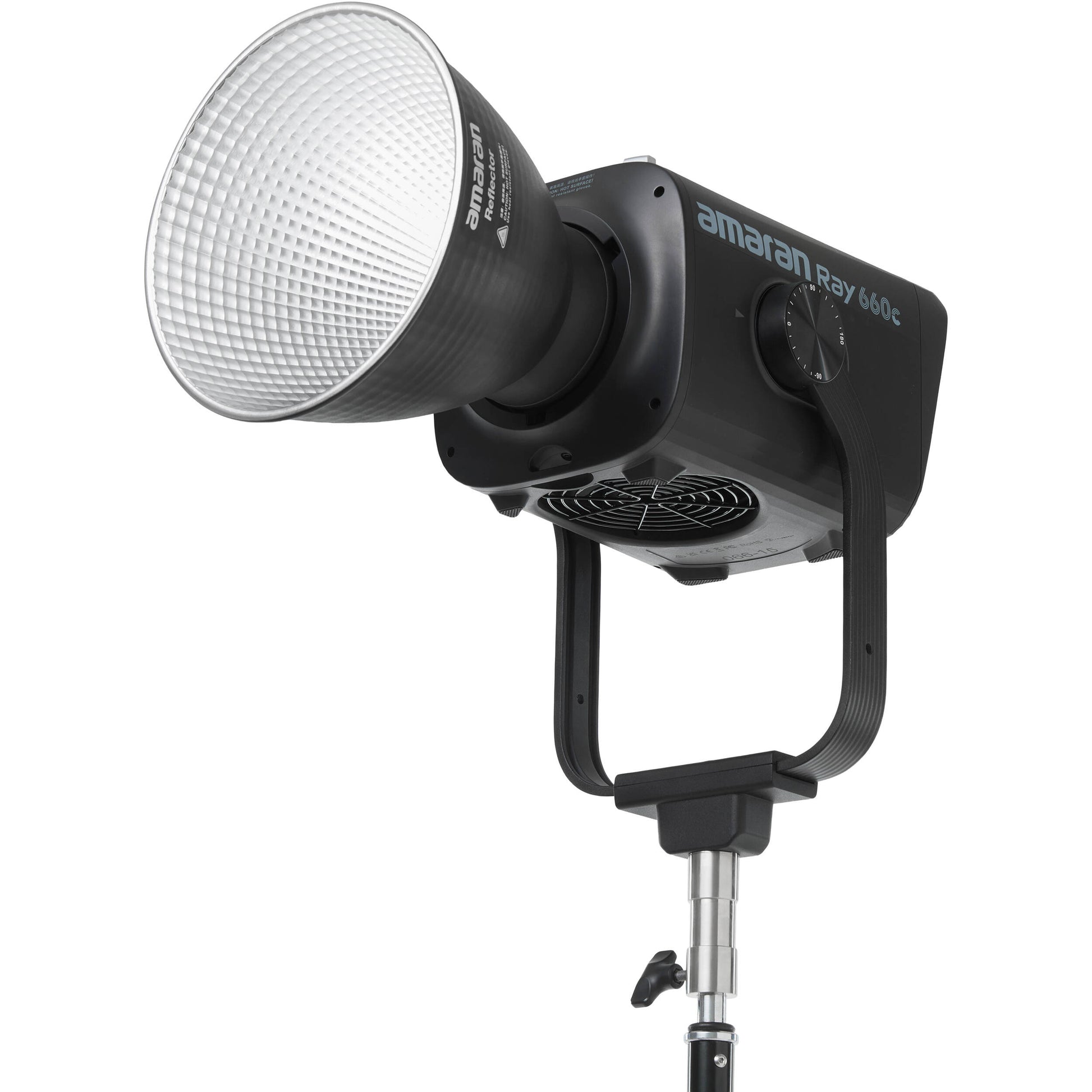

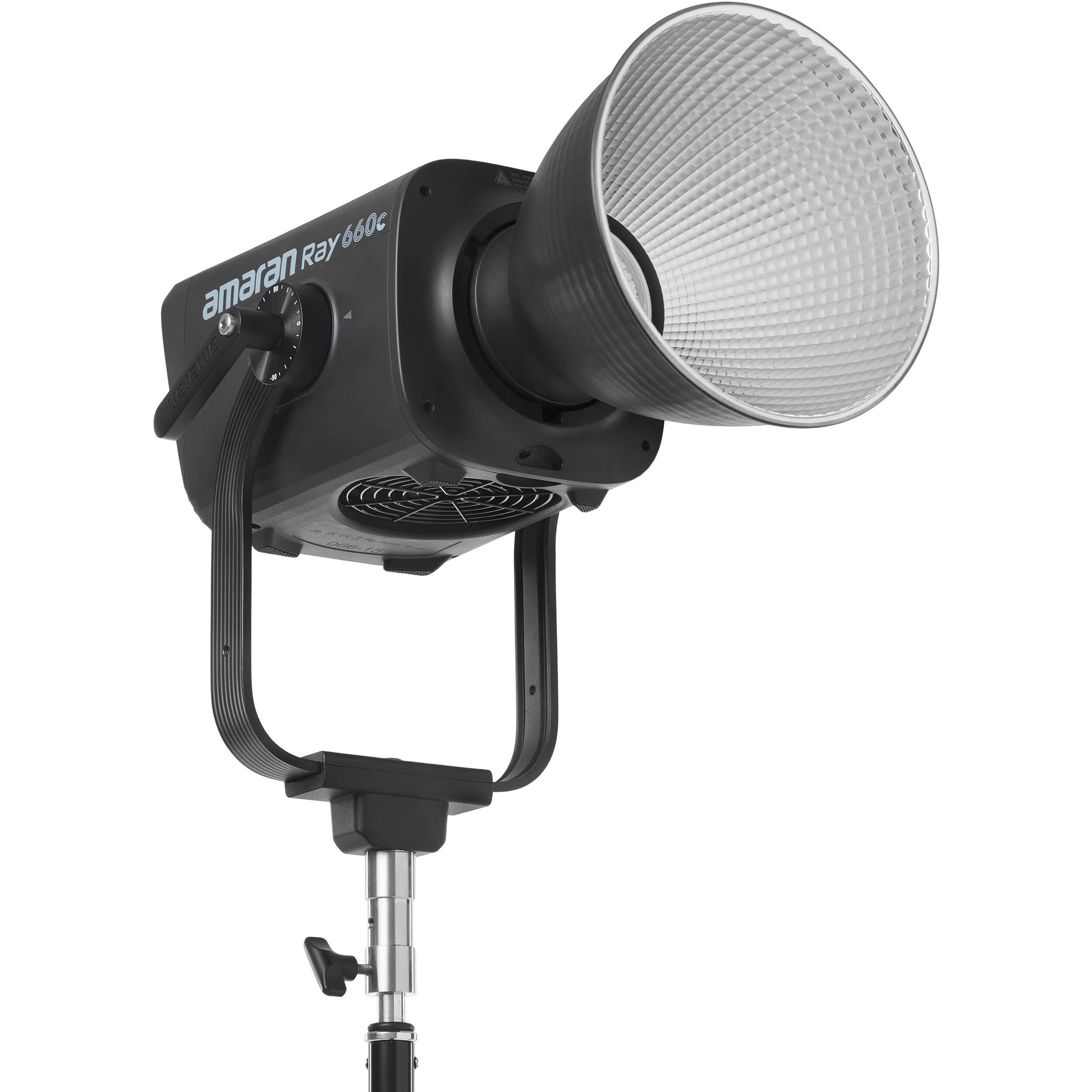

The metal, full-size Bowens mount fits the included reflector, an optional Fresnel, and other Bowens modifiers. The rotating yoke design includes dual junior/baby pins and a built-in safety chain bracket.

• amaran Ray 660c RGB LED Monolight

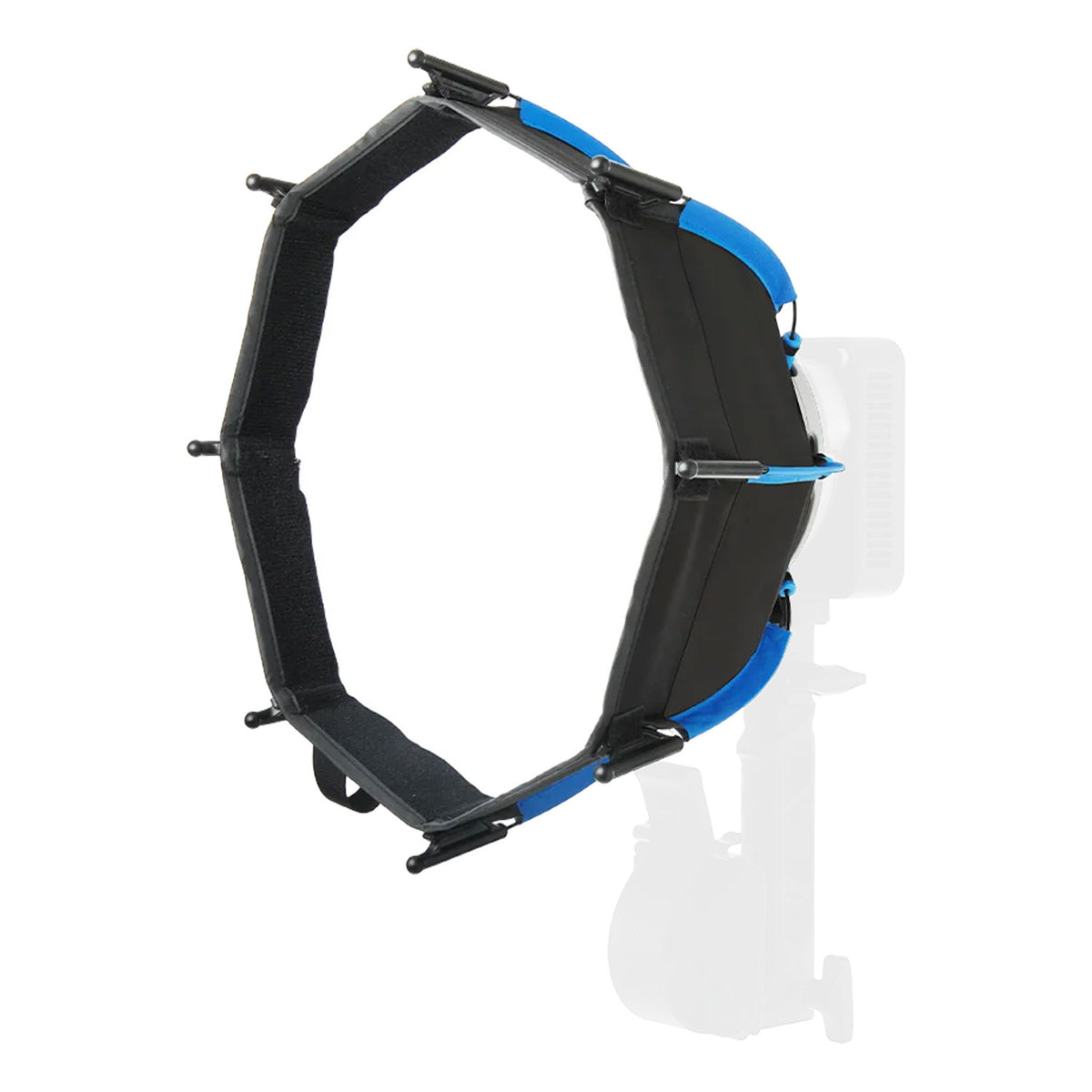

• Octa Dome 30

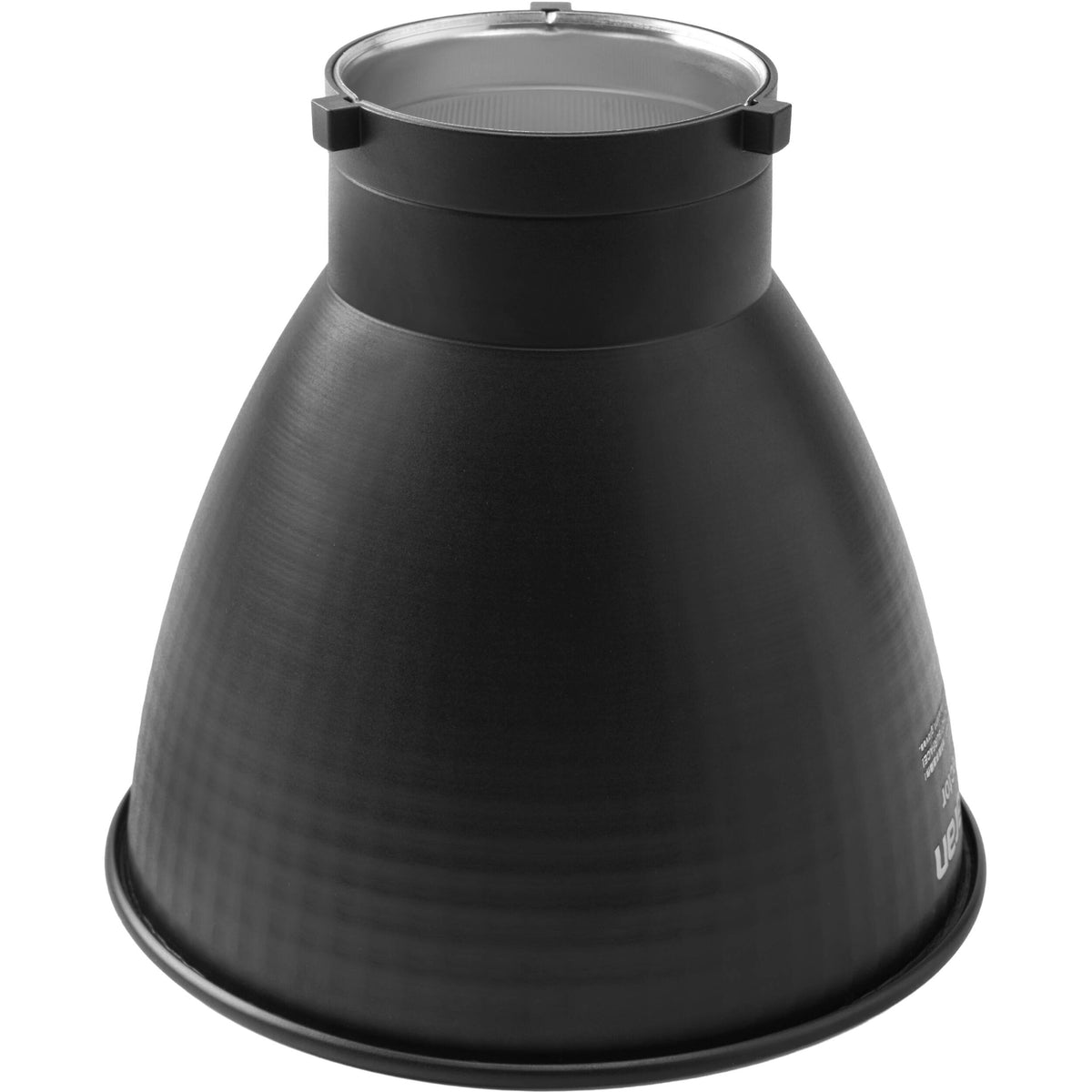

• Reflector
• AC Power Cable (5m)
• Blue Bowens Mount Protection Cover
• Ray 660c EPP Carrying Case
• Limited 1-Year Warranty

Item Type: 1x COB LED Monolight
Light Modifier: 1x Reflector
Storage Case: Yes
Lumens: 45,904
Photometrics: 70° at 3200K: 36,300 Lux at 1 m (Unmodified), 4,220 Lux at 3 m (Unmodified); 45° at 3200K: 86,900 Lux at 1 m (with Reflector), 8,670 Lux at 3 m (with Reflector); 70° at 5600K: 37,900 Lux at 1 m (Unmodified), 4,420 Lux at 3 m (Unmodified); 45° at 5600K: 90,400 Lux at 1 m (with Reflector), 9,010 Lux at 3 m (with Reflector)
Colour Temperature: 1800 to 20,000K; 2300 to 10,000K
Colour Modes: RGB, Daylight, Tungsten
Colour Accuracy Standard: CRI 95; TLCI 95; TM-30 Rf 94; TM-30 Rg 100; SSI 80 at 5600K; SSI 87 at 3200K
Dimming: App-Controlled / Built-In Dimmer / DMX; 0 to 100%
Cooling System: Fan
Beam Angle: 70° Unmodified; 45° with Included Reflector
Built-In Flash: No
Preprogrammed Effects: Yes
Umbrella Mount: No
Front Accessory Mount: Bowens S
Wireless Remote Control Type: Bluetooth
Mobile App Compatible: Yes, Android & iOS
App Name: amaran
App Functionality: Firmware Update, Remote Control
Wireless Range: 80 m
Power Source: AC Power (Cable Included)

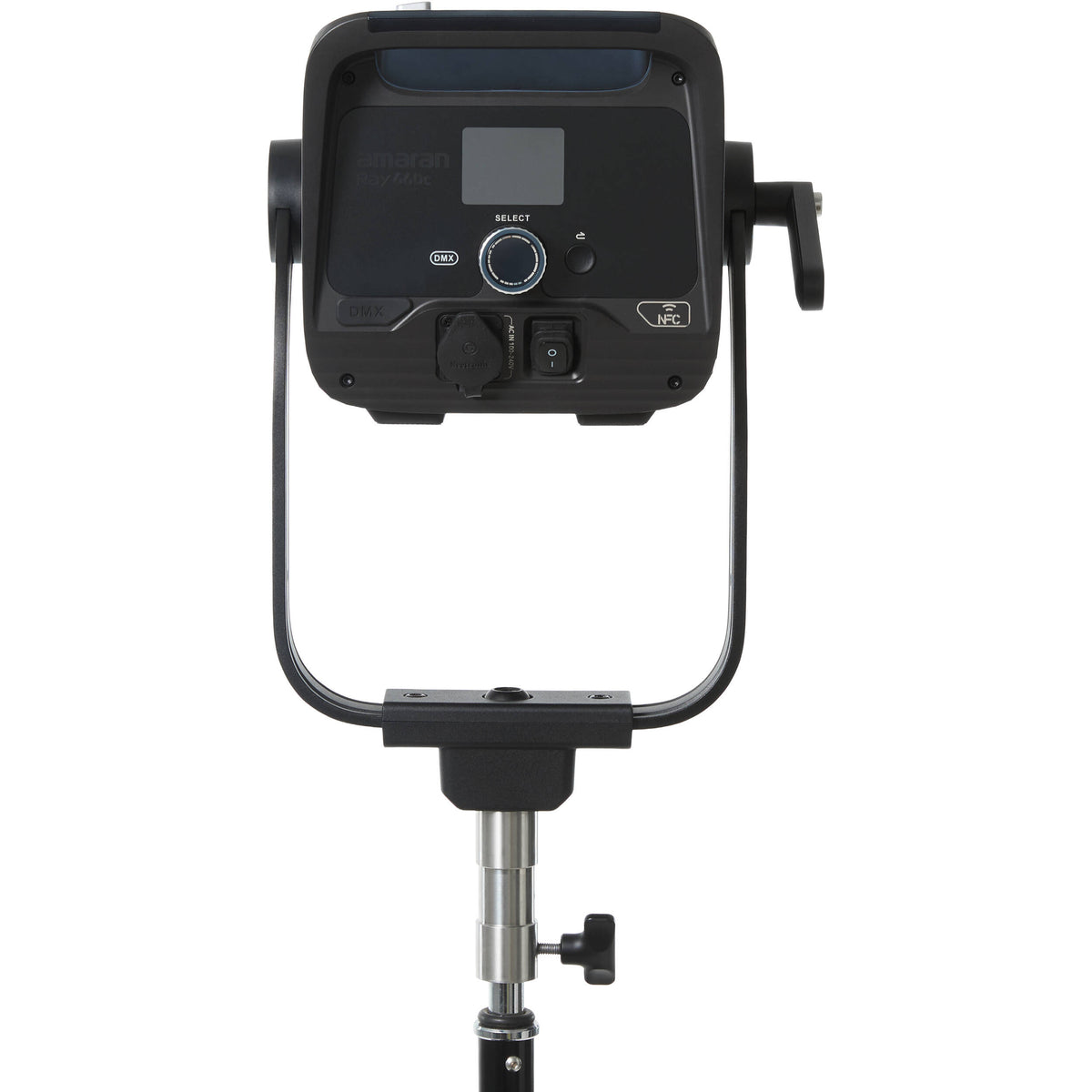

Inputs/Outputs: 1x AC Power Input (100 to 240 VAC, 50 / 60 Hz); 1x USB-C DMX/Firmware Input
Input Power: 100 to 240 VAC, 50 / 60 Hz
Included Adaptor/Cable: 1x USA Type-A/B Plug to Unspecified Cable, 5 m
Inline Switch: No
Power Pass-Thru: No
Power Consumption: 750 W (Maximum)
Yoke Type: Manually-Operated Yoke
Fixture Mounting: 1x 1-1/8" Stud with 5/8" Receiver via Yoke Mount
Display: LCD
Environmental Resistance: Dust/Water-Resistant (IP54)
Operating Conditions: -10 to 40°C
Storage Conditions: -20 to 80°C
Dimensions: 29.95 x 18.57 x 17.91 cm (Fixture)
Weight: 5.7 kg (Fixture)
