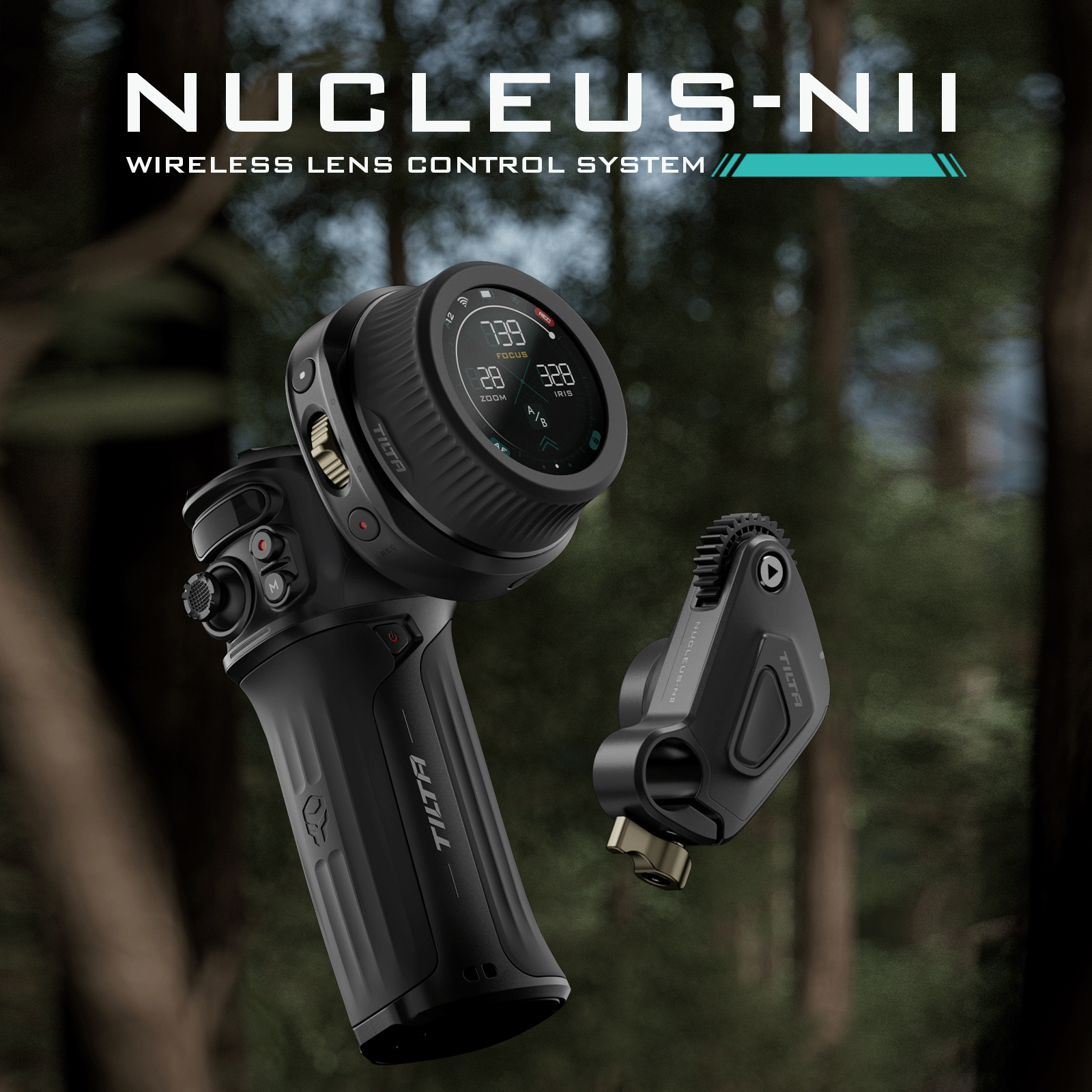

Tilta Nucleus Nano II FIZ Wireless Lens Control System

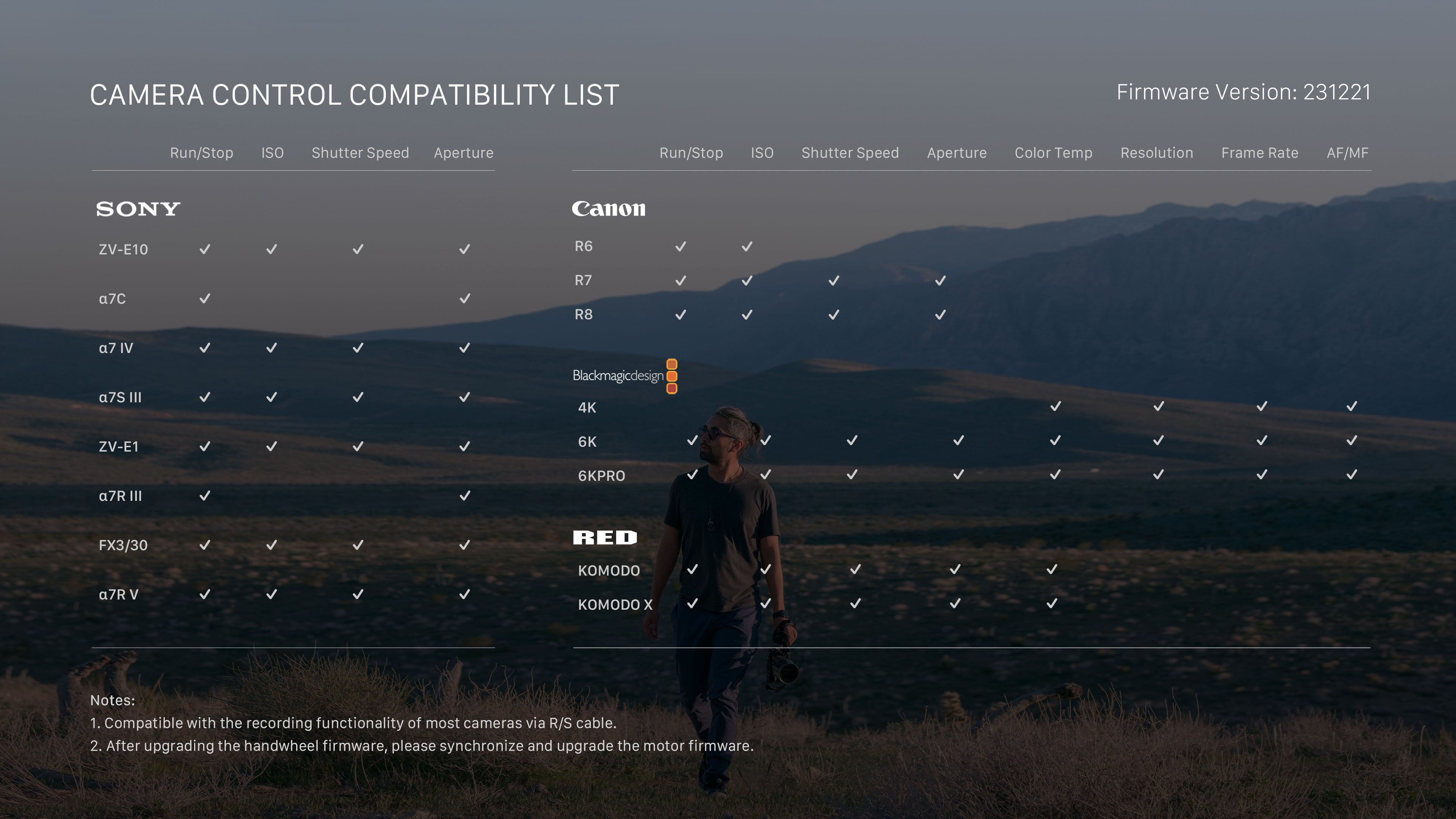

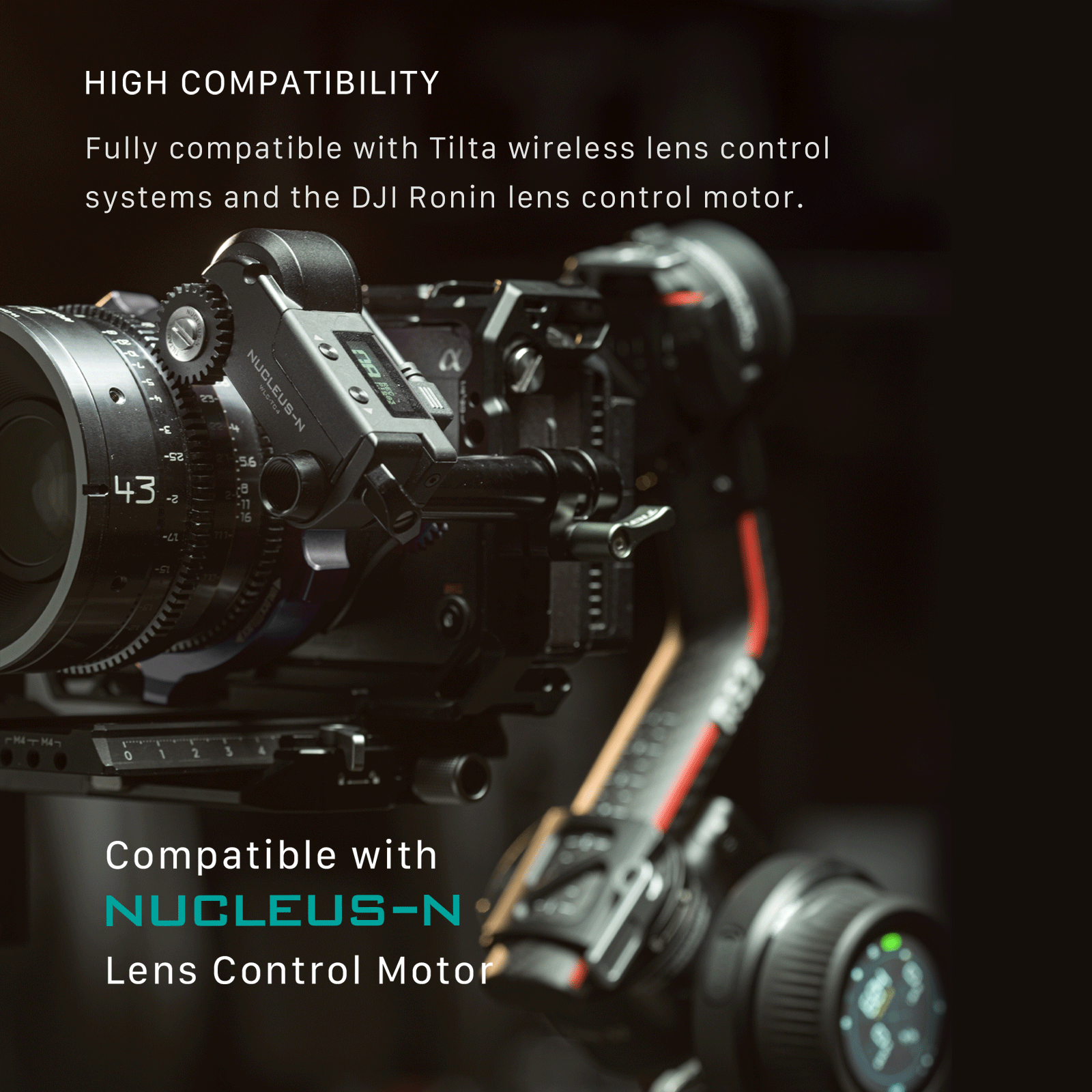

The Nucleus Nano II FIZ Wireless Lens Control System from Tilta is a focus, iris, and zoom control system designed for both freelance cinematographers and experienced DPs alike, whether they're using a handheld or gimbal-mounted rig. The basic system configuration includes a handwheel controller with upgraded touchscreen display and a lens control motor with five times the torque of its predecessor. USB-C connectivity, 2.4 GHz Wi-Fi, and Bluetooth connect the units to one another from up to 300' away and offer control compatibility with select camera systems, and Wi-Fi allows for firmware updates.

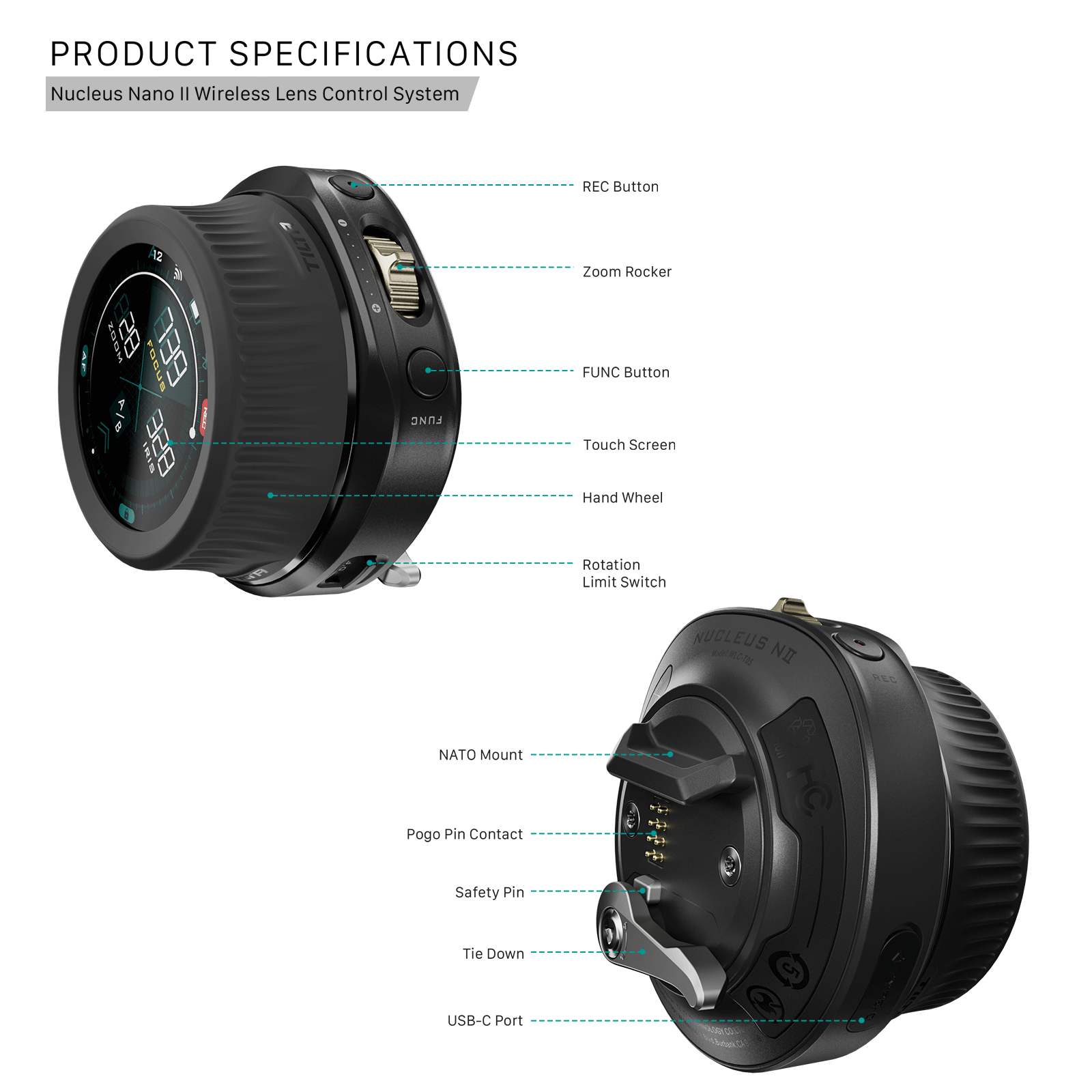

Handwheel Controller with Touchscreen

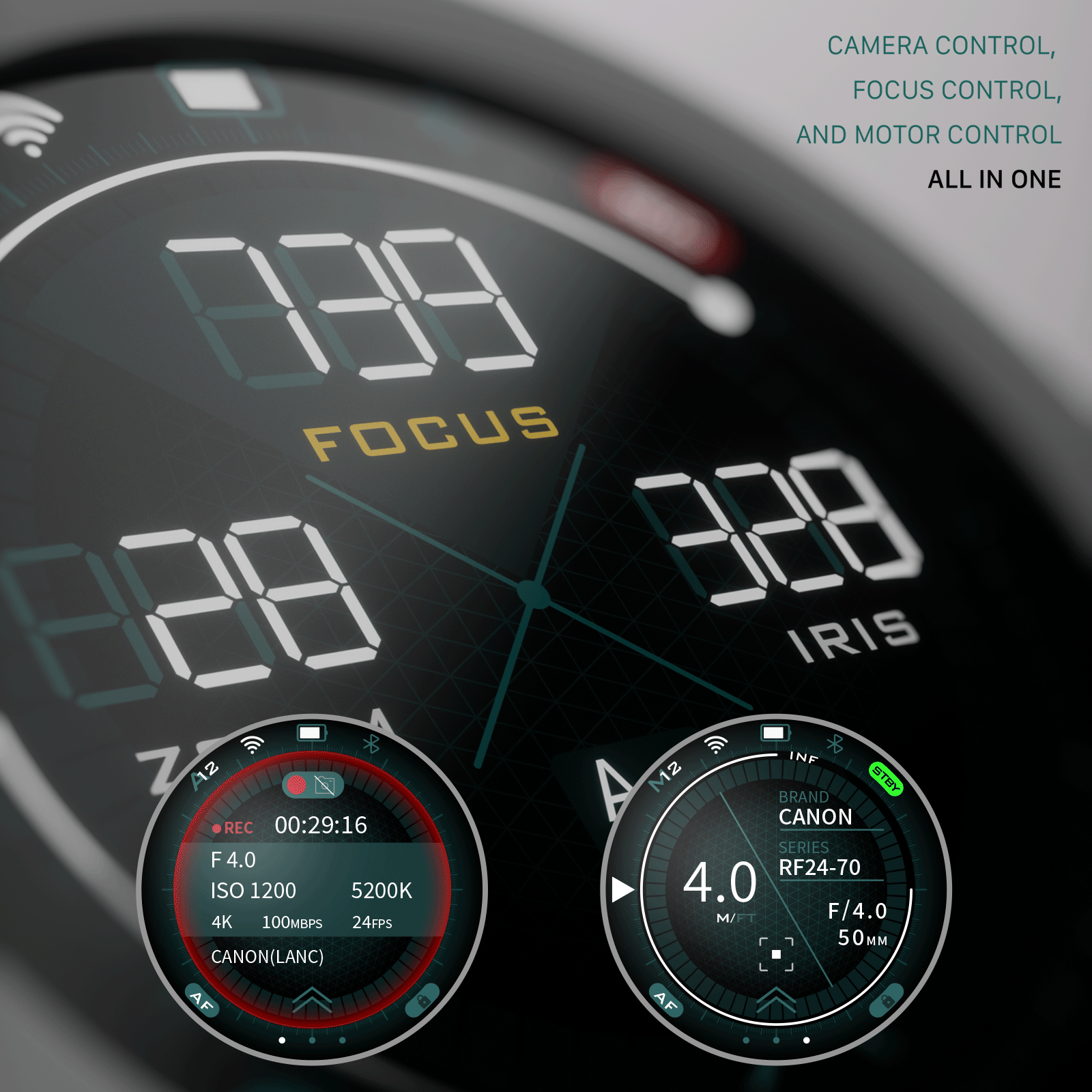

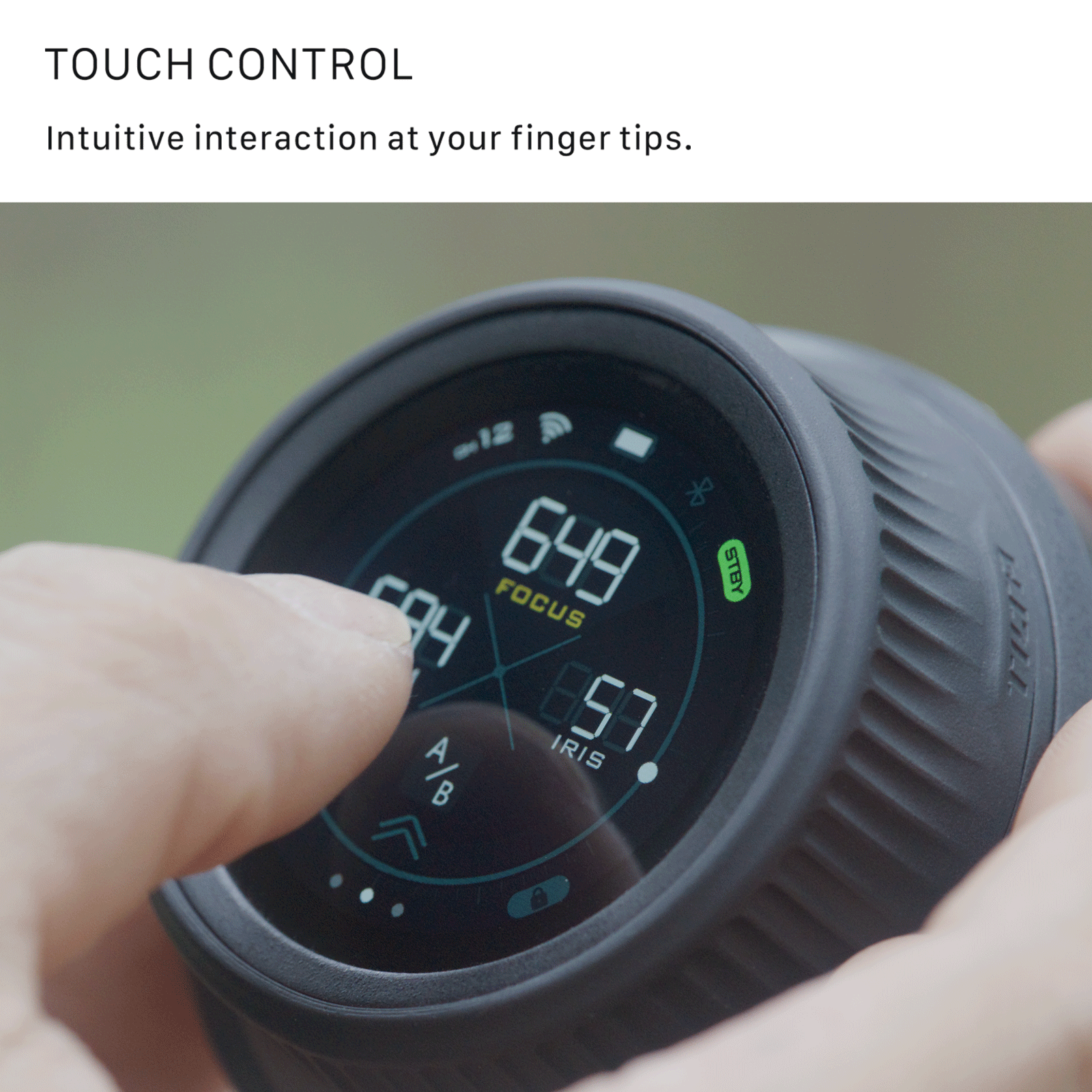

View your wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status on the outer portion of the controller's 1.6" touchscreen dial. FIZ parameters and A/B stop live on the center portion, with the option to lock the screen or toggle between auto and manual focusing. Two other menus can be accessed from the main screen to lock and adjust your connected camera's settings and view your current lens parameters. Additional settings that can be accessed from the interface include pairing and accessing manual controls for the motor as well as additional customizations for the handwheel.

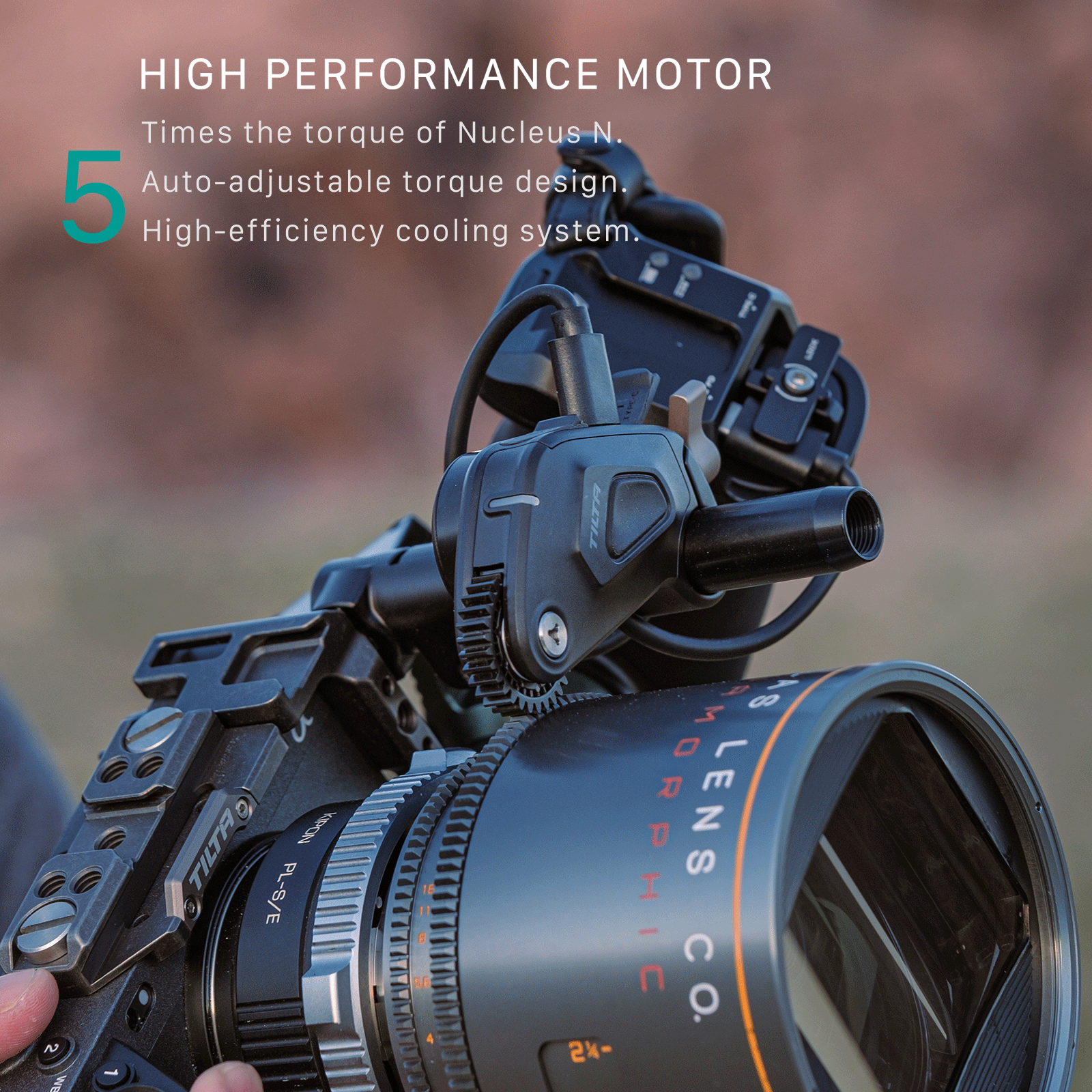

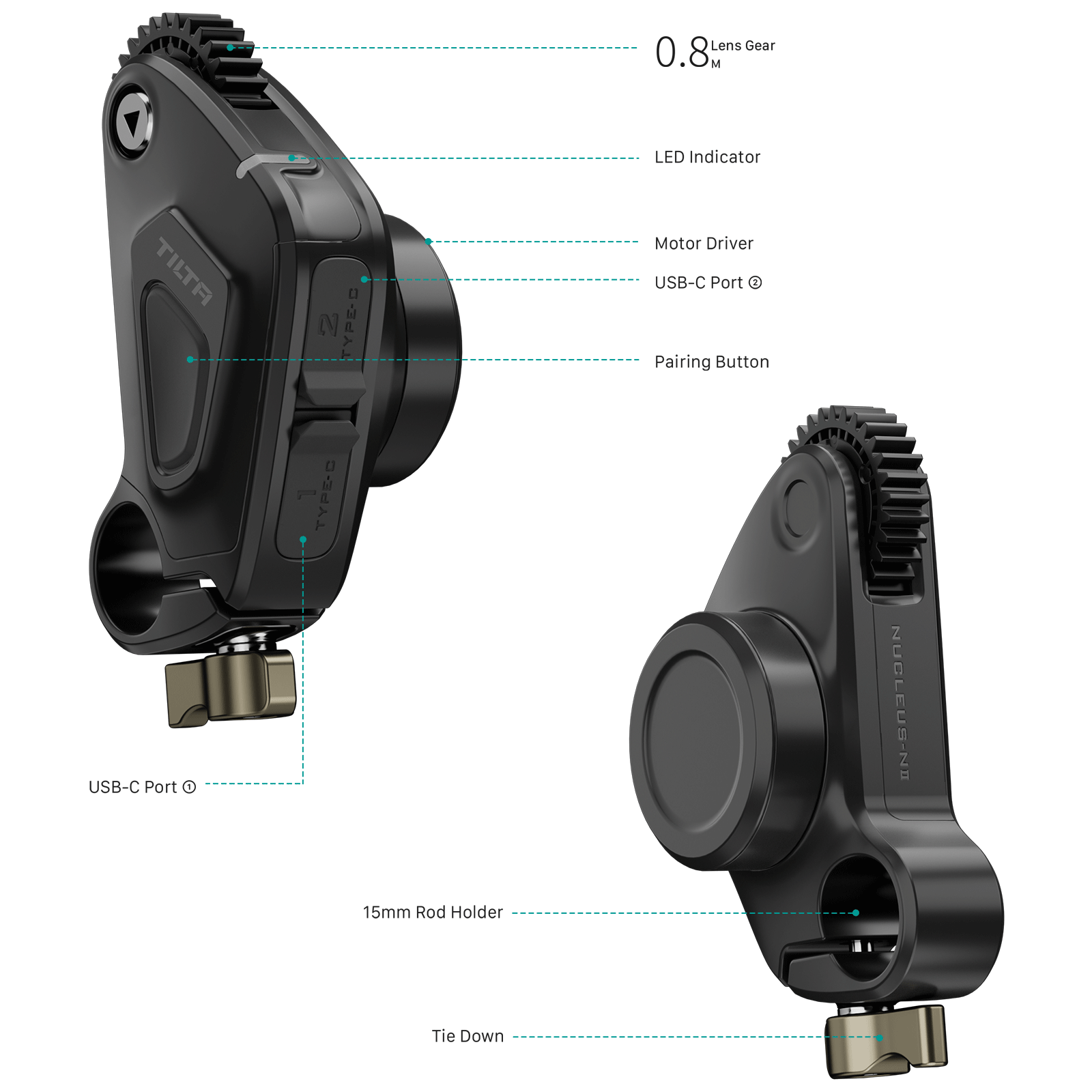

FIZ Lens Control Motor

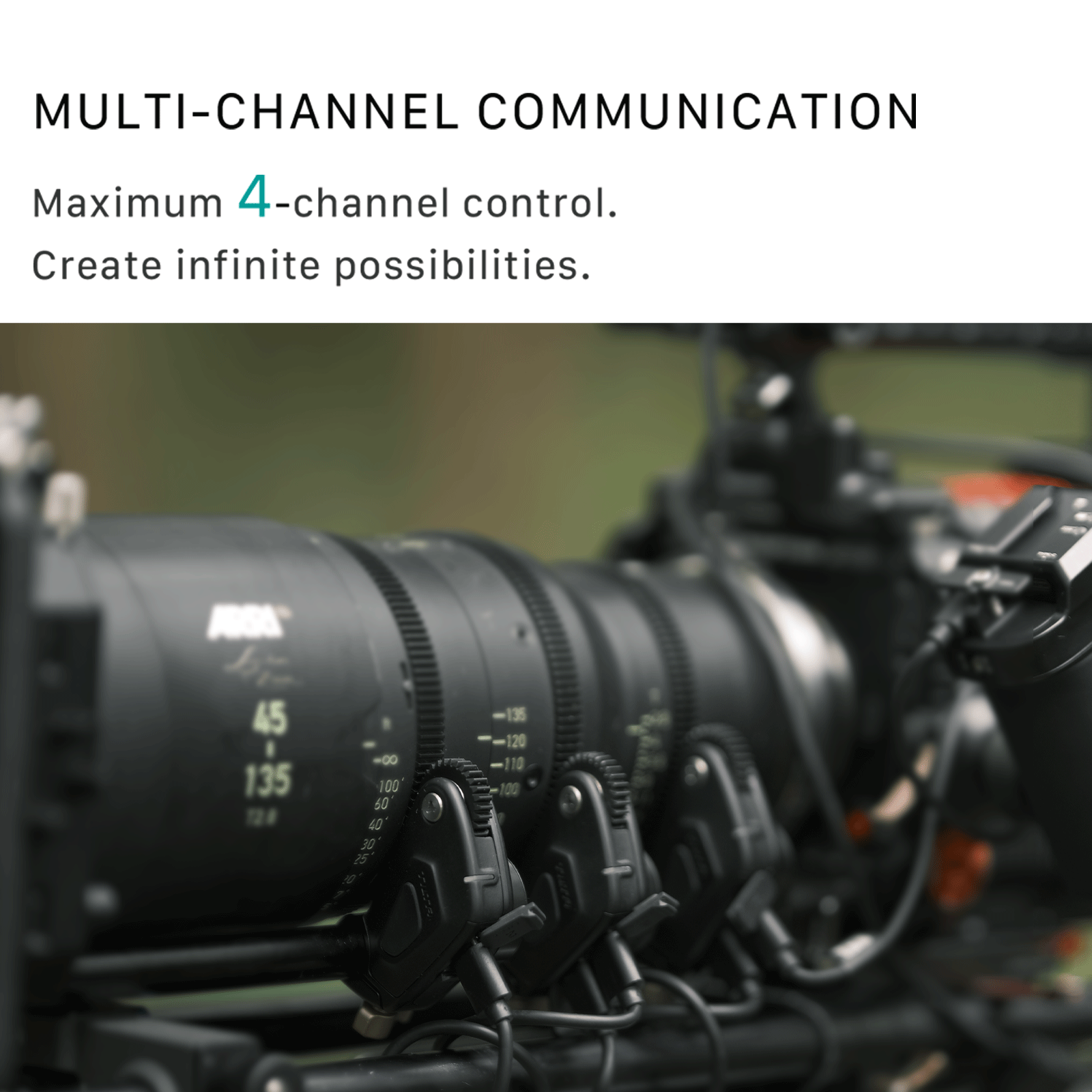

The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses, while an included lens adapter ring expands this compatibility for DSLR and mirrorless camera lenses. Two USB-C ports on the motor - one I/O and one input only - power the motor and can pass power through to multiple motors to control FIZ from a single source.

• Tilta Nucleus Nano II FIZ Wireless Lens Control System
• Tilta Nucleus Nano II Handwheel Controller
• Tilta Nucleus Nano II FIZ Lens Control Motor Kit
• Tilta Threaded 15mm Rod (Black, 4", Single)
• Tilta DSLR Lens Follow Focus Adaptor
• 15mm Rod Clamp Adaptor with 1/4"-20 Screws
• Tilta Rubber Rod Support
• USB-C Power Cable (11.8")
• Allen Key
• Carrying Case
• Limited 1-Year Warranty (Electrical)
• Limited 2-Year Warranty (Mechanical)

Compatibility: DSLR, mirrorless, cinema cameras
Control Range: Up to 100m (line-of-sight)
Channels: 8 selectable channels
Battery Life: 8+ hours
Weight: Motor approx. 200g, Hand unit approx. 320g
Dimensions: Motor 75 × 45 × 50 mm, Hand unit 130 × 70 × 40 mm
