Wimberley AP-604 Replacement foot for Canon 300 f/2.8 IS II, 200-400 f/4.0 IS, 500 f/4.0 IS II and 400 f/4.0 DO IS II

Wimberley Replacement Foot

For Canon 400mm f/2.8 IS I & II and 600mm f/4 IS I & II Lenses

The Replacement Foot for Canon 400 f/2.8 IS I & II and 600 f/4 IS I & II Lenses from Wimberley is an Arca-type compatible, black anodised 6061 aluminium foot with a double-dovetail mount for accessories that can attach to the top as well as to the bottom of the foot. Compared to the foot originally supplied with the lens, the lower profile of this lightweight and durable replacement foot lends for better balance when mounted atop a tripod head.

The lower profile also reduces flex and vibrations when in use. Furthermore, 1/4"-20 and 3/8"-16 sockets have been provided for tripod heads that do not have a compatible Arca-type clamp. Dual safety stops are also included to prevent accidental sliding of the lens if a clamp is partially open.

• Replaces the Len's Original Foot
• Arca-Type Compatible Double Dovetail
• Low-Profile and Low Center of Gravity
• 1/4"-20 and 3/8"-16 Mounting Sockets
• Dual Safety Stops
• Lightweight and Durable Foot
• Reduces Flex and Vibrations
• Black Anodised 6061 Aluminum

Compatibility

• EF 400mm f/2.8L IS I USM
• EF 400mm f/2.8L IS II USM
• EF 600mm f/4L IS I USM
• EF 600mm f/4L IS II USM

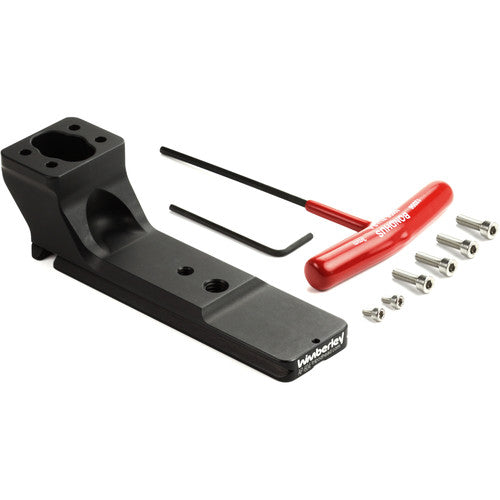

• Wimberley Replacement Foot for Canon 400 f/2.8 IS I & II and 600 f/4 IS I & II Lenses
• 4x M4 x 14mm Socket Head Cap Screws
• 2x M3 x 6mm Socket Head Cap Screws
• 3mm T-Handle Hex Key
• 2.5mm Hex Key
• Limited 5-Year Warranty

Compatibility: Canon EF 300mm f/2.8L IS II USM, 200-400mm f/4L IS USM, 500mm f/4L IS II USM, 400mm f/4L DO IS II USM
Mount Type: Arca-Swiss dovetail
Material: Aircraft-grade aluminium
Finish: Hard-anodised black
Dimensions: Approx. 14.5 × 3.8 × 2.3 cm
Weight: Approx. 130 g
