Sennheiser EW-DP Wireless Microphone ENG Set (S1-7)

Go Beyond Content

If you want to stand apart from the content creation crowd, quality is key - especially for filmmakers. Anyone can create content, but not everyone can create art. Many wireless audio products for solo and freelance filmmakers operate within the crowded 2.4 GHz band, making them unreliable and prone to dropouts and excessive noise due to Bluetooth and Wi-Fi interference. You need a streamlined, hassle-free, and reliable audio solution for filmmaking that helps you achieve your creative vision.

The Successor to the G4 Systems

The EW-DP is part of the Evolution Wireless Digital family, the successor to Sennheiser’s Evolution Wireless G4 analogue systems. Building on the renowned reliability and sound quality of the Evolution Wireless G4, Evolution Wireless Digital systems provide a range of improvements, including wireless sync over Bluetooth, enhanced ease of use with a large OLED display and Smart Assist App control, a wider dynamic range, and longer runtimes with the battery pack.

Key Information About the EW-DP System

The EW-DP system, along with all products in the Evolution Wireless Digital Series, does not use compander technology. This is because digital wireless modulation schemes allow for higher data rates, making companders unnecessary. Additionally, the EW-DP system is not compatible with Sennheiser's legacy analogue systems, such as the G3 or G4. The digital transmission technology employed by the EW-DP is not cross-compatible with analogue systems, meaning users will need to rely on modern digital solutions for optimal performance.

• Integrated Bluetooth for synchronisation and control
• Smart notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12 hours on transmitter, 7 hours on receiver (SKP up to 6 hours)
• Magnetically stackable components for versatile mounting
• Industry-leading 134 dB dynamic range for distortion-free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitoring & control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48 V & recording via microSD (ENG Set or component only)

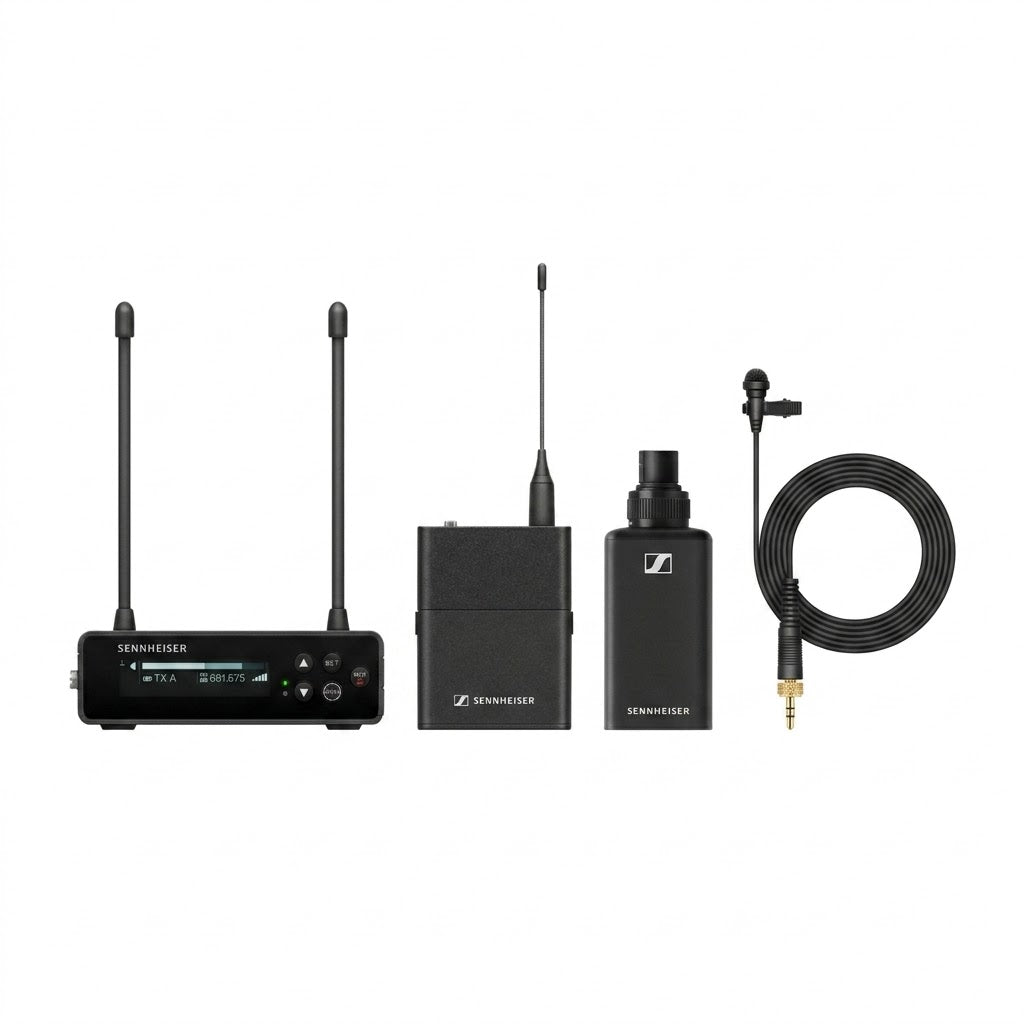

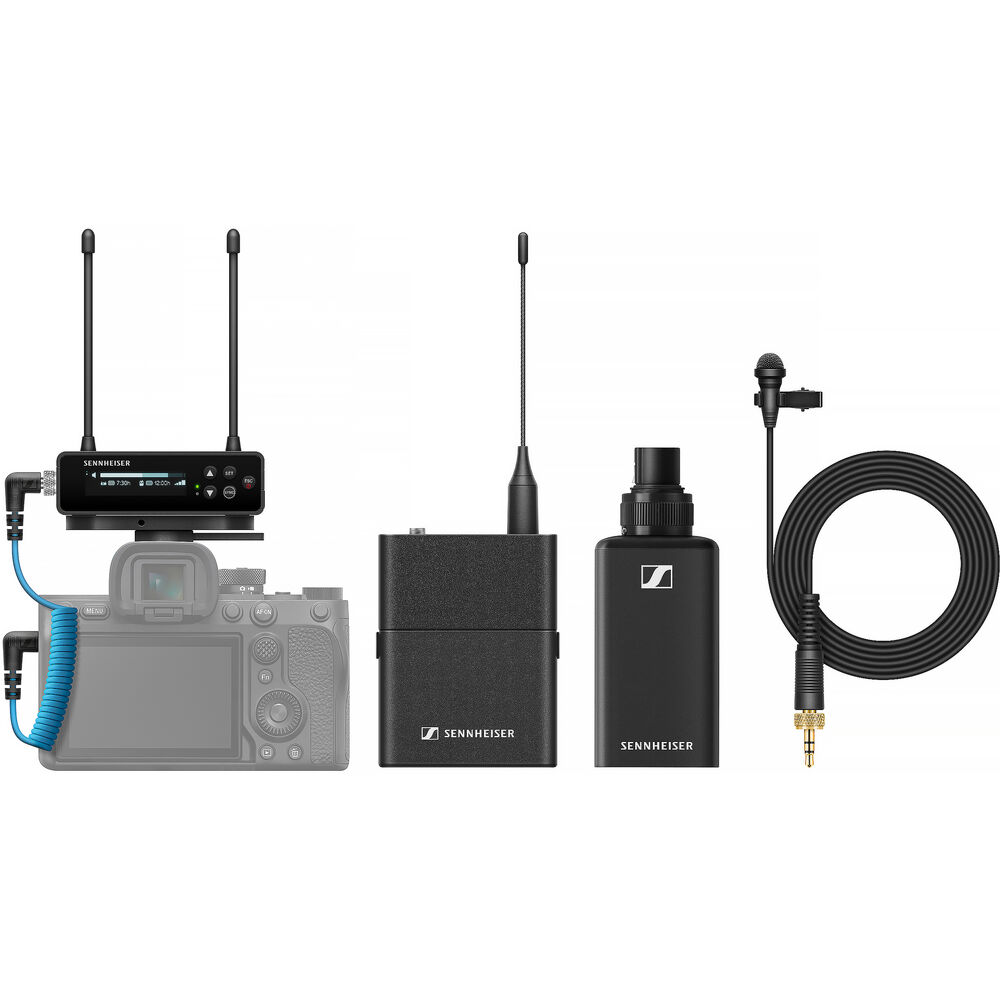

• EW-DP EK Portable single channel receiver
• EW-D SK Bodypack transmitter
• EW-DP SKP Plug-on transmitter
• ME 2 Lavalier microphone
• Mounting kit (cheese plate, cold shoe, belt clip, and screws)
• BA 70 Lithium Ion battery
• AA Batteries
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C Charging cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Limited 2-Year Warranty

System

• Audio link frequency range: S1-7: 606.2-662 MHz
• Bluetooth® Low Energy (BLE) frequency range: 2402-2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBFS
• Audio Total Harmonic Distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBFS input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Relative humidity: 5-95% (non-condensing)


ME 2 (Lavalier Microphone)

• Transducer principle: Pre-polarised condenser microphone
• Pick-up pattern: Omni-directional
• Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
• Max. SPL at 1 kHz: 130 dB
• Frequency response: 50 to 18,000 Hz
• Equivalent noise level (A-weighted): 32 dB
• Connector: 3.5 mm jack
• Cable length: Approx. 1.60 m
• Supply voltage: 7.5 V


EW-D SK (Bodypack Transmitter)

• Input voltage: 2.0 - 4.35 V
• Input current: < 300 mA
• Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
• BLE: max. 10 mW EIRP
• Dimensions (without antenna): 63 x 80 x 20 mm
• Weight (without batteries): Approx. 120 g


EW-DP SKP (Plug-on Transmitter)

• Input voltage: ~ 2.0 - 4.35 V
• Input current: < 300 mA (without record and P48)
• Power supply: 2x AA batteries 1.5 V or BA 70 rechargeable battery pack
• Transmit power: Audio link: 10 mW ERP
• BLE: max. 10 mW EIRP
• Audio output power: < 2 dBV max. (high level) / < 4 dBU max (high level)
• Output power (XLR): Max. 10 mA
• Dimensions: 108 x 42 mm
• Weight (without batteries): Approx. 163 g


EW-DP EK (Portable Receiver)

• Input voltage: ~ 1.8 - 4.35 V
• Input current: Typ. < 250 mA / Max. < 400 mA (BA 70)
  Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
  < 300 mA @ 5 V (USB-C standalone)
• Power supply: 2x AA batteries 1.5 V or BA 70 rechargeable battery pack or USB-C PD power supply (max.):
  5 V / 1500 mA
  9 V / 900 mA
  12 V / 700 mA
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: < 2 dBV max. (high level) / < 4 dBU max (high level)
• Headphone output: < 50 mW into 16 Ohms
• Dimensions: 86 x 67 x 28 mm
• Weight (without antennas and power supply): Approx. 140 g
