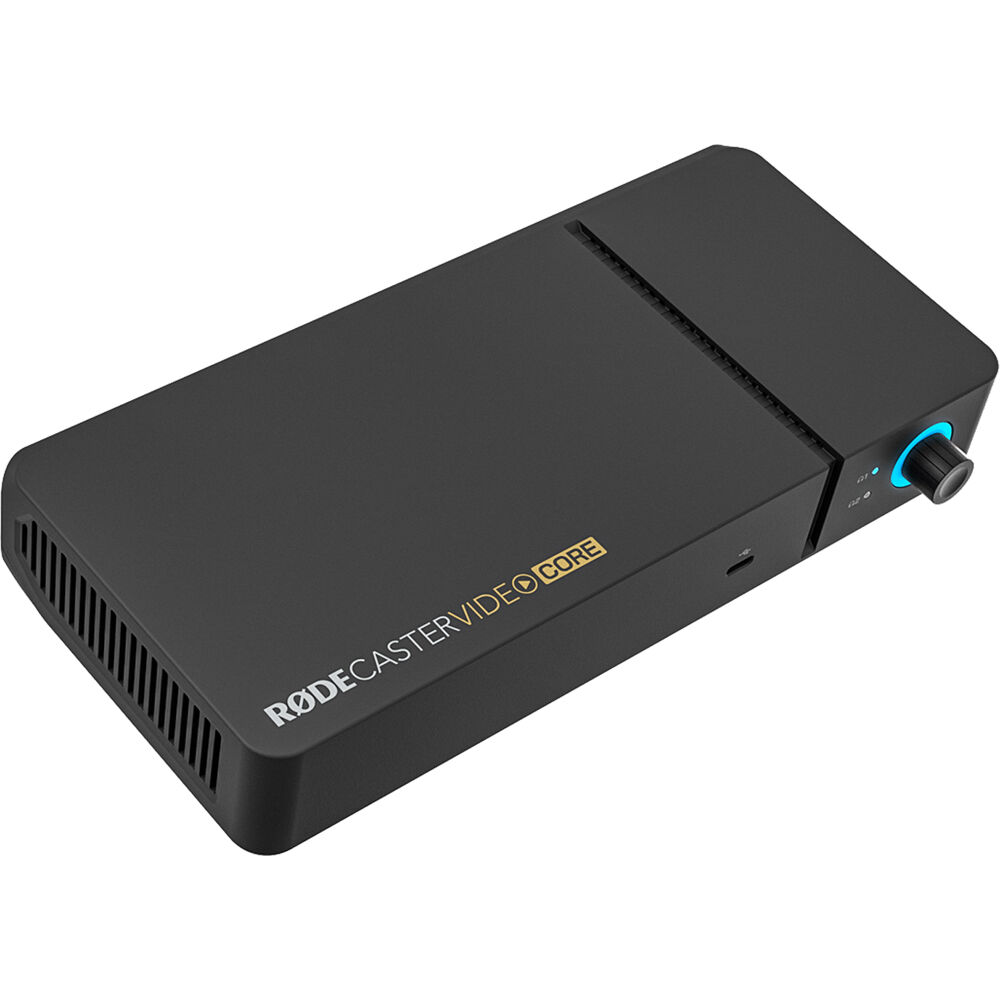

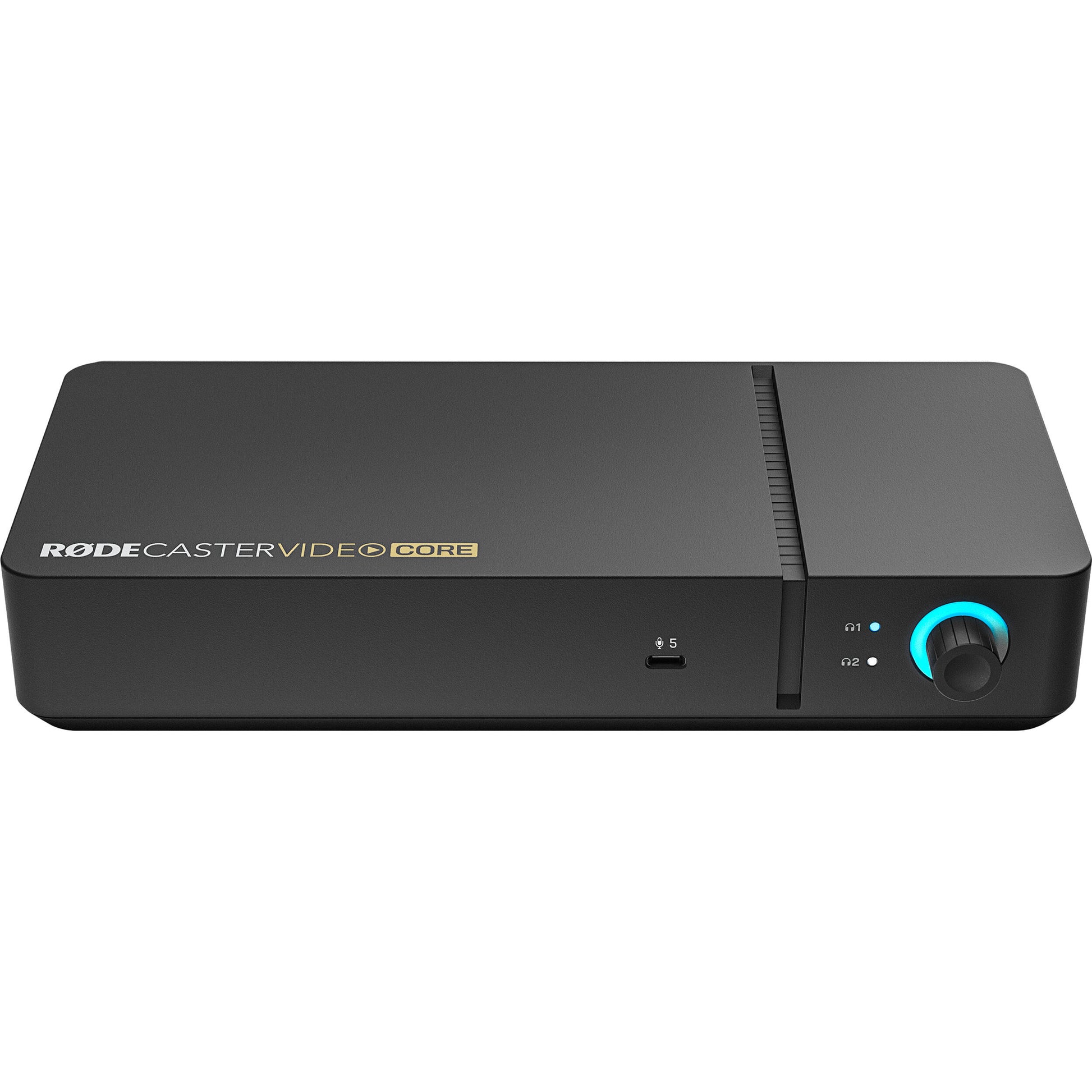

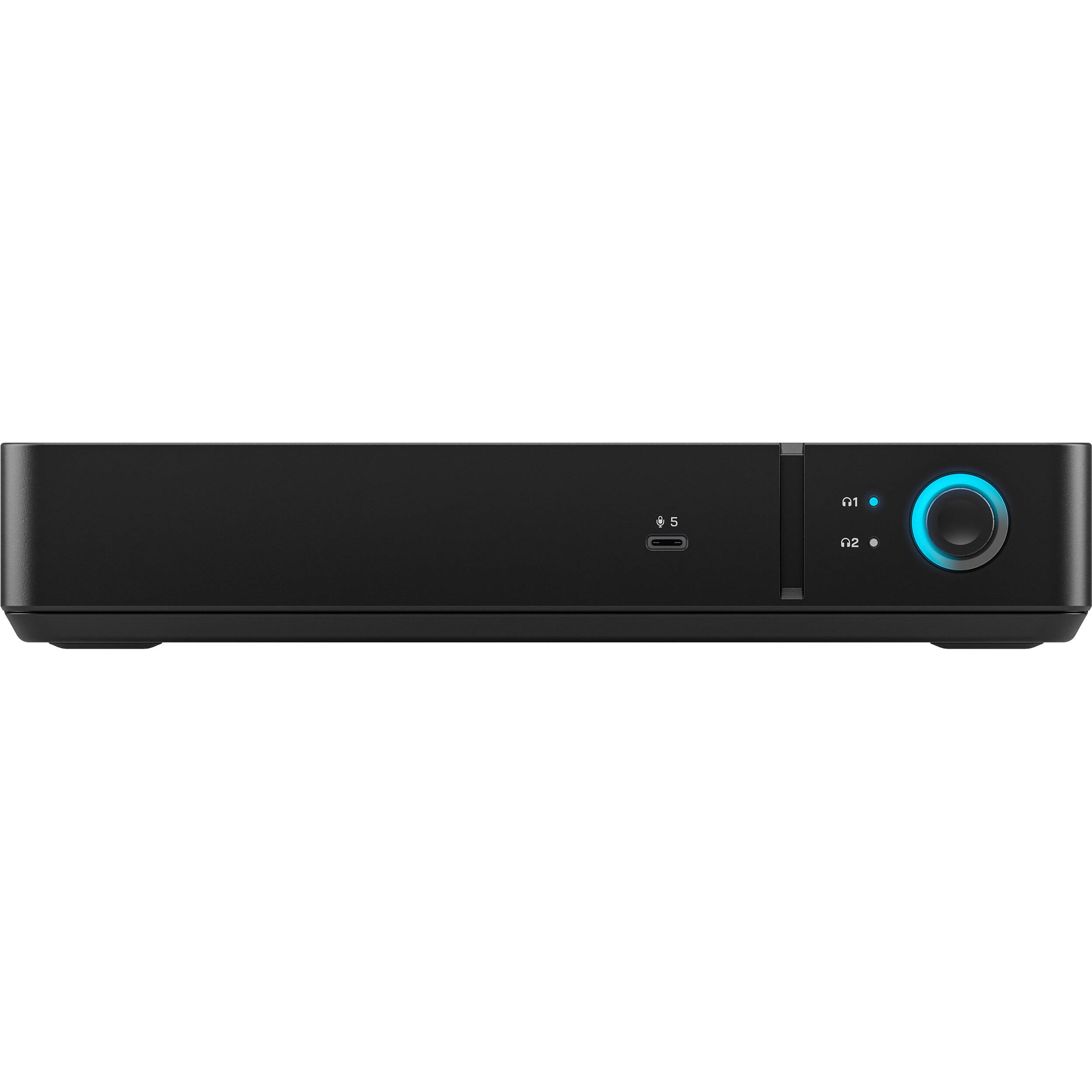

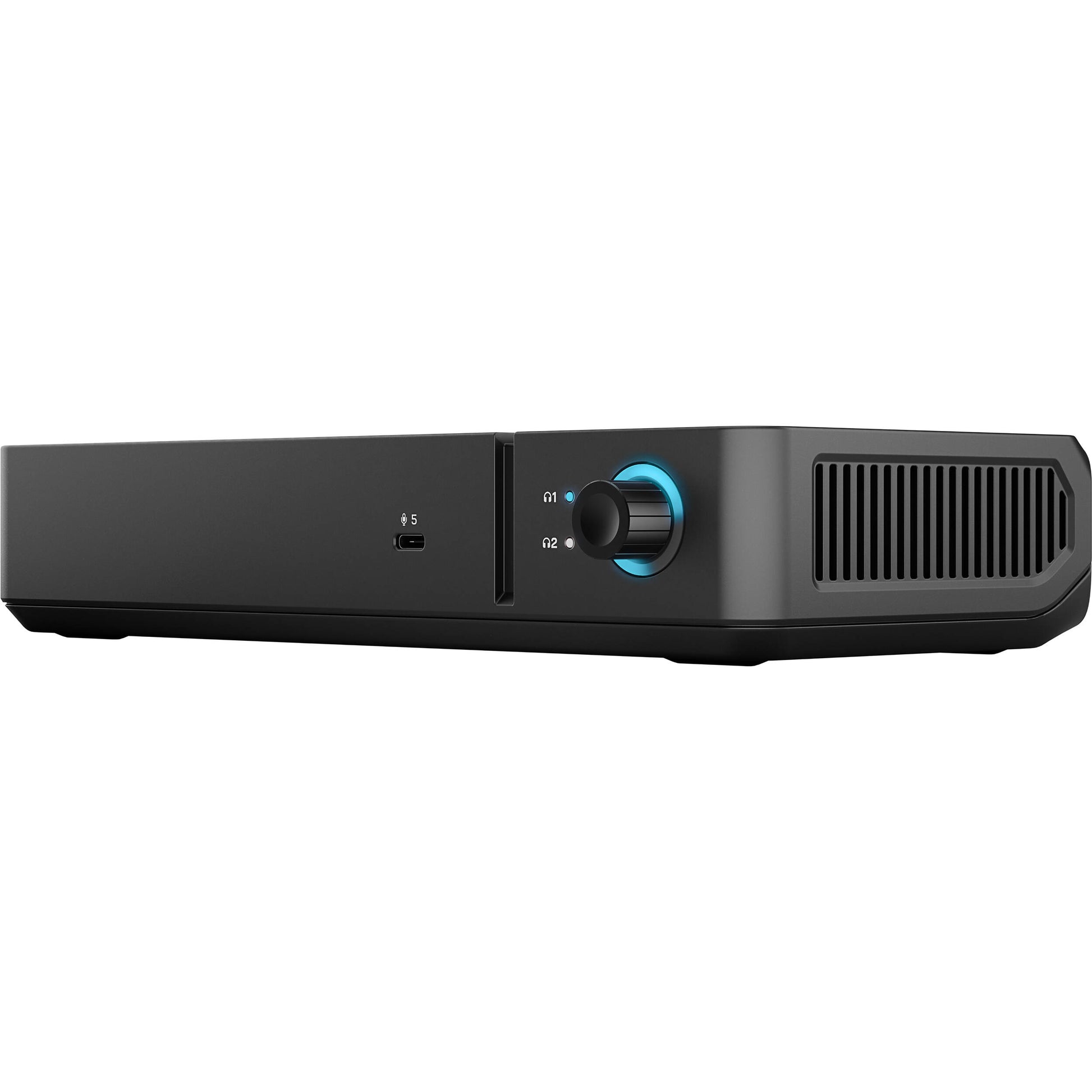

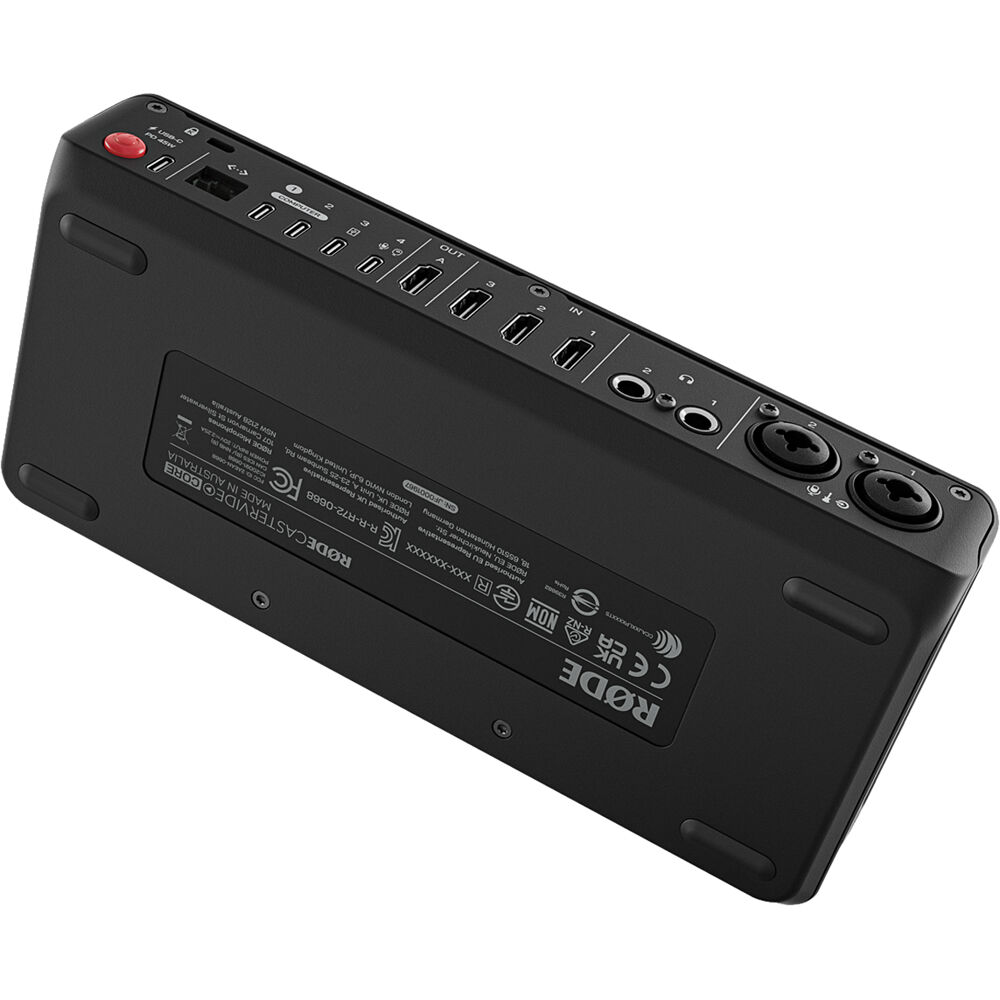

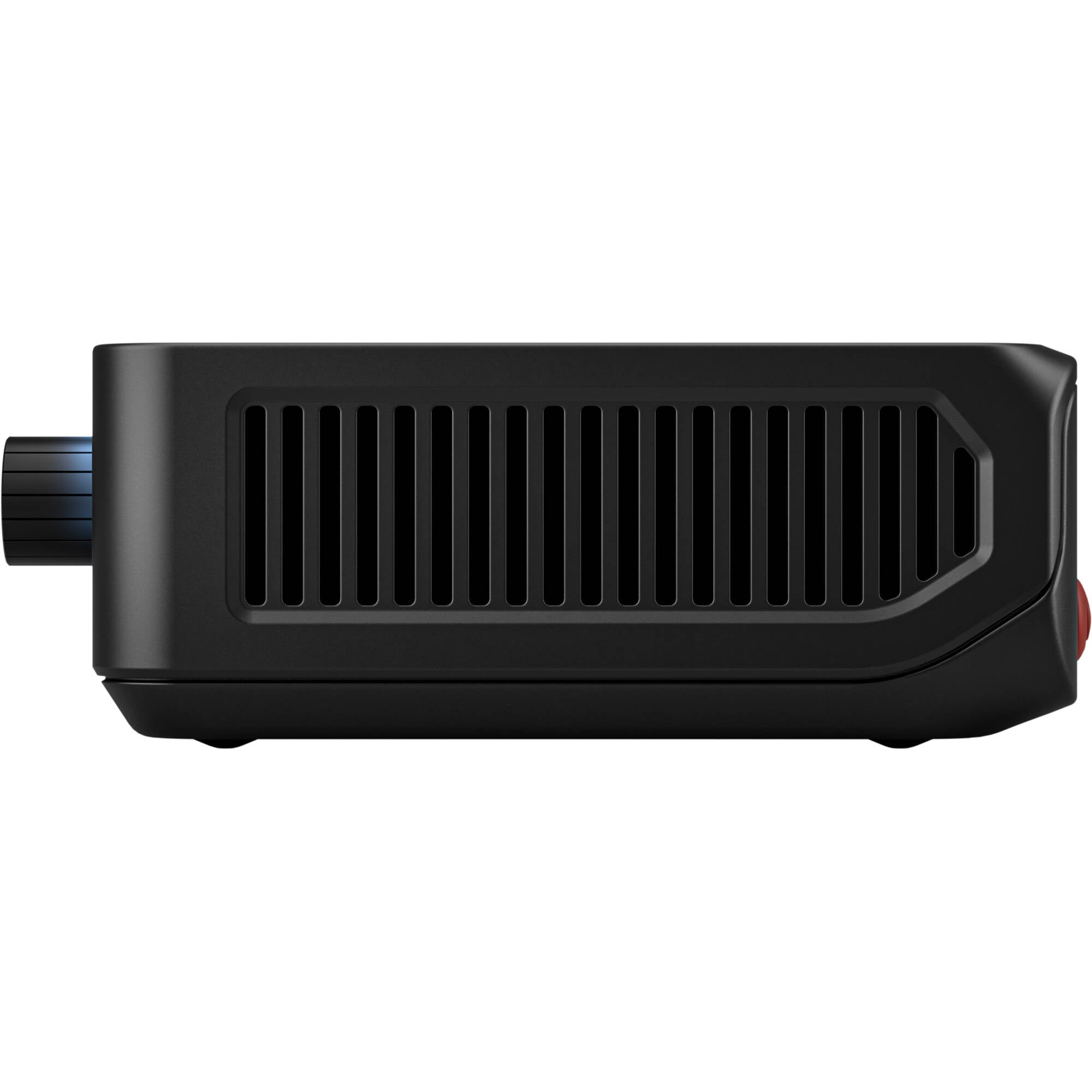

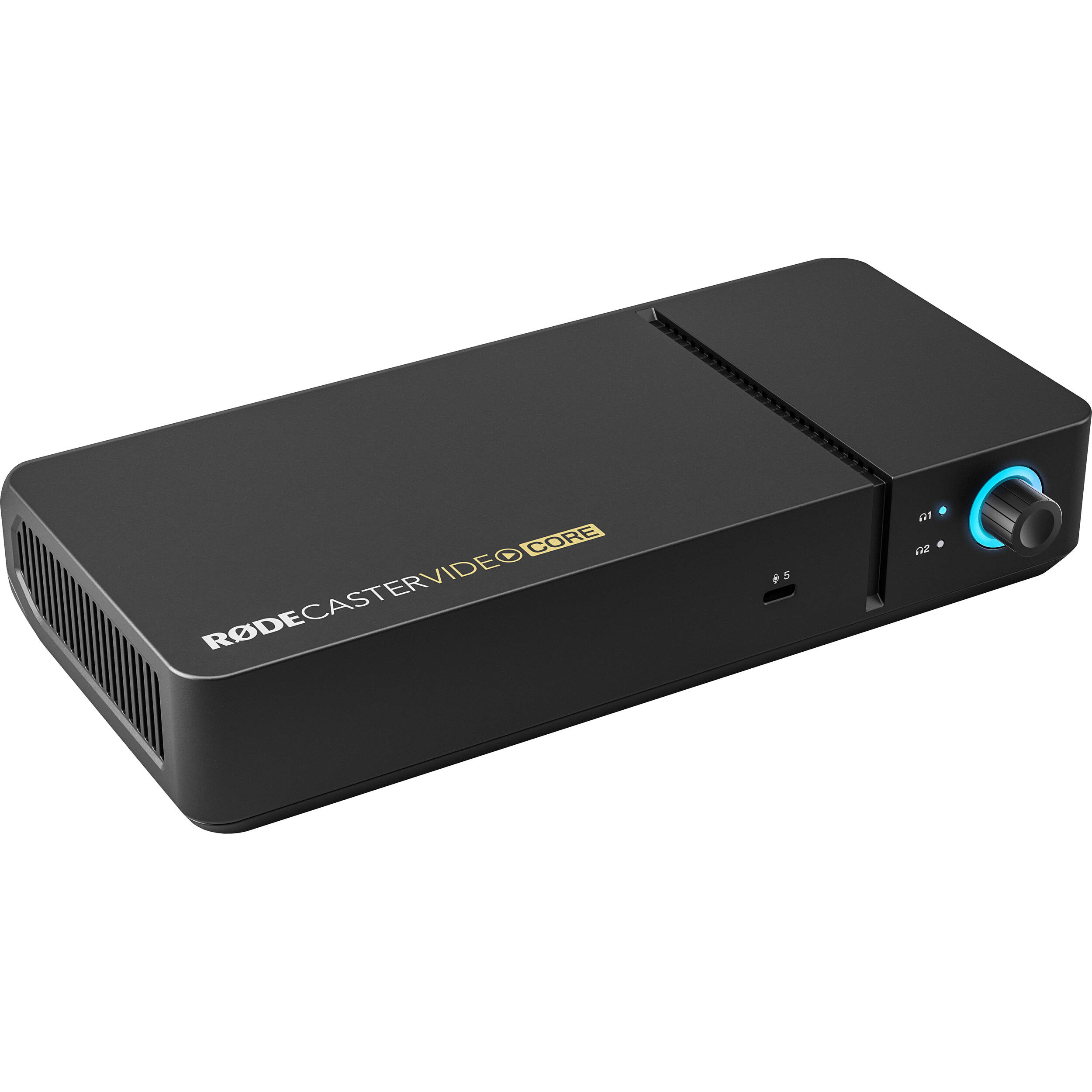

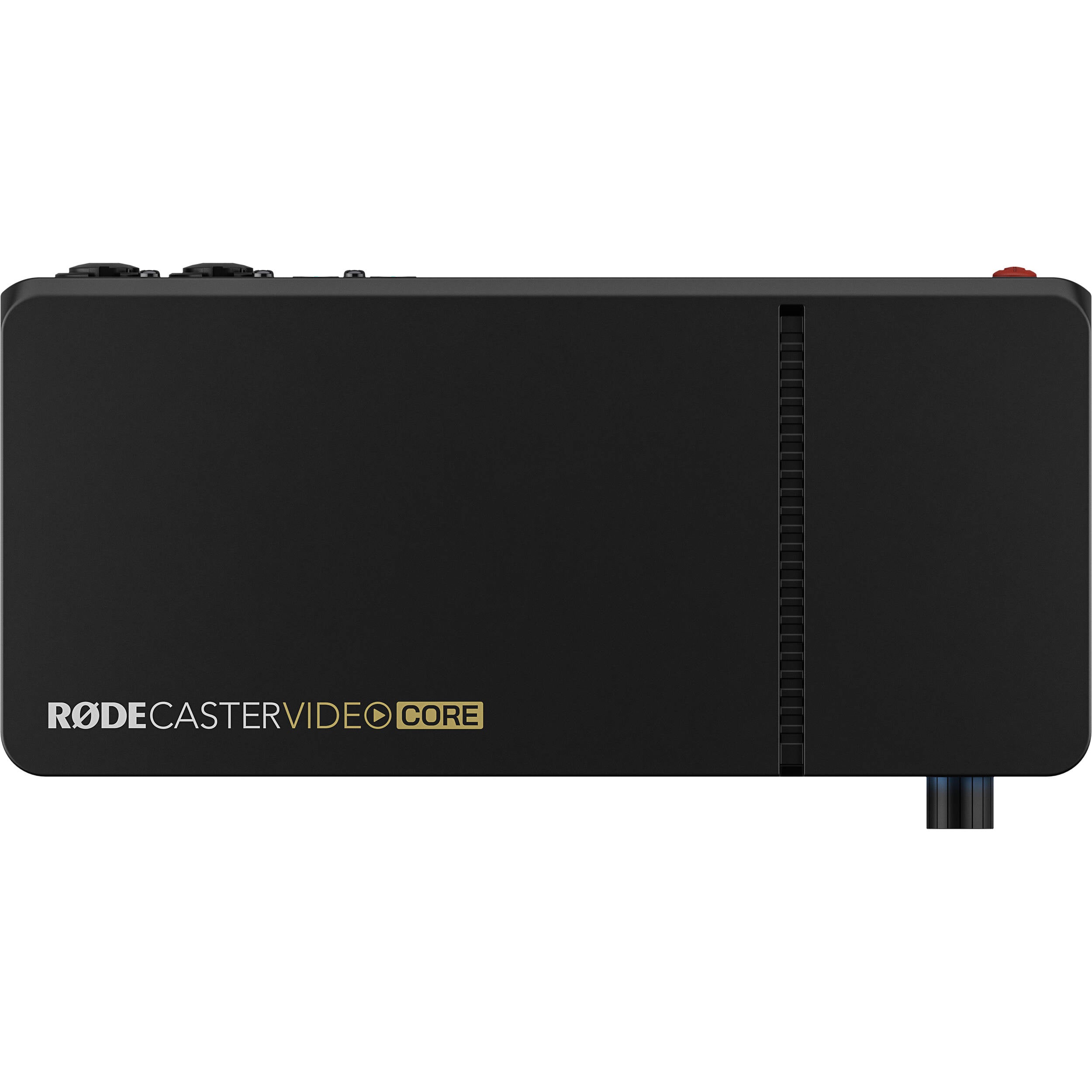

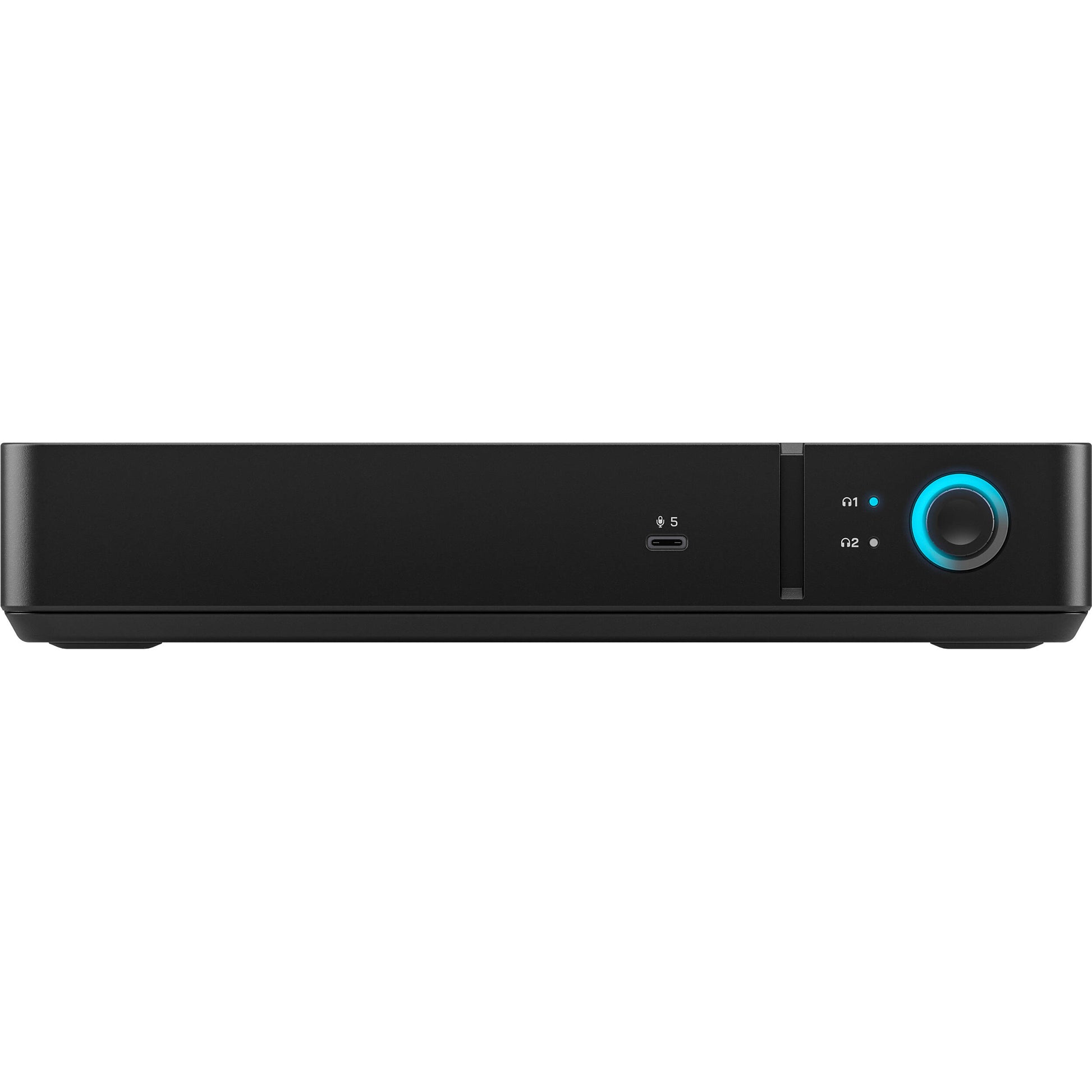

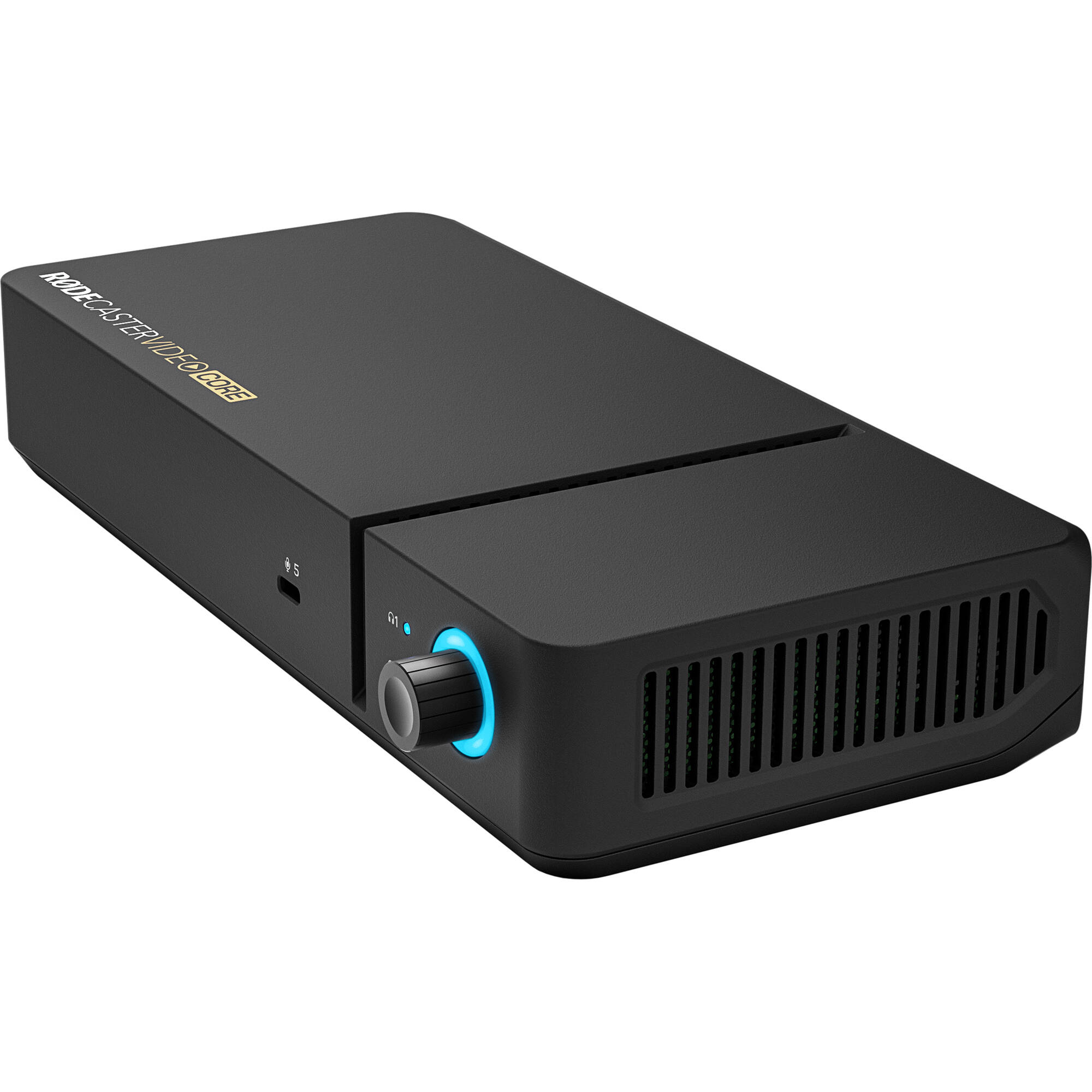

The RØDECaster Video Core is an all-in-one console for professional video and audio production, combining powerful video switching, recording and streaming tools with a fully integrated audio mixer. Designed for software-based control or as part of a modular setup with RØDECaster Sync, it delivers broadcast-quality results for video podcasts, live streams and studio productions.

With RØDECaster Sync, you can scale your setup by connecting the Video Core to the RØDECaster Pro II or Duo, managing audio and video from a single surface, expanding inputs and outputs, enabling shared audio mixing and recording, and unlocking advanced video switching. Switch it Up lets you control up to four video feeds in real time, cut between shots instantly and apply smooth, fully customisable transitions with sequenced live previews for perfectly timed switches.

Set the Scene lets you design and customise layouts, combining video sources, graphics and media into dynamic scenes. Save up to five unique setups and switch between them with a single press for a seamless workflow. Integrated Professional Audio allows mixing, processing and routing of up to nine audio sources via two studio-grade Neutrik® combo jacks. Each channel features APHEX® effects, including EQ, compression, Aural Exciter™ and Big Bottom™, for pristine, broadcast-quality sound.

The console also enhances your workflow with a multi-function USB-C port, letting you connect webcams, capture cards, UVC sources, or RØDE USB microphones. Hands-free Auto-Switching automatically changes camera angles based on who is speaking, while the Comprehensive Multiview display, accessible via the RØDECaster App, provides live previews of all inputs, scenes and feeds alongside critical production details.

The system makes graphics, media and multi-source layouts easy. Graphics Overlays lets you access and arrange logos, watermarks, lower-thirds and other assets. The Media Player integrates video, images and sounds, while Multi-source Layouts allow picture-in-picture, split screen and more. Automatic Keying simplifies green screen setups with effortless chroma keying.

Record On-Board captures your production directly to a hard drive or USB device, with optional independent recording of each video and audio source. Post-Production Simplicity enables seamless EDL export for DaVinci Resolve, importing switch points, transitions, media, overlays and full timeline data automatically. The free RØDE Capture app turns your iPhone into a high-quality camera, enabling dual-cam streaming, and Stream to Your Favourite Platform lets you broadcast directly to YouTube, Twitch or other platforms with custom audio routing for your audience, headphones and recordings.

Features:

• Switch between up to four video sources and five fully customisable scenes
• High-performance octa-core CPU video and audio processor
• Three full HD (1080p) HDMI inputs with auto frame rate conversion and one configurable HDMI output for viewing program, preview and multi-view
• Two flexible USB-C ports for connecting select video and audio devices
• Two studio-grade Neutrik® combo jacks with ultra-low noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
• Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
• Turn your RØDECaster Pro II or Duo into a modular production hub with RØDECaster Sync, unlocking expanded audio and video inputs/outputs.
• Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
• Media playback, keying, transitions, multi-source scenes, graphic overlays, audio mixing and advanced configuration via the RØDECaster App
• Connect an external SSD via USB to record video or output directly to a computer via UVC
• Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App
• Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
• EDL Export for DaVinci Resolve, importing switch, transition, graphic and timeline data for faster editing in post-production
• Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
• Stream directly to all major platforms via Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post-editing flexibility.
• Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia

Available M/E Layers: 9 M/E
Effect Types: 2x Chroma Key
Downstream Keys: 2x Overlay
Audio Mixing: 16-Channel Mixing
Switching Type: Software
Processing Resolution: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Colour Processing: 8-Bit 4:4:4 RGB
Audio Processing: 48 kHz / 32-Bit, 48 kHz / 24-Bit
Number of Video Input Sources: 4

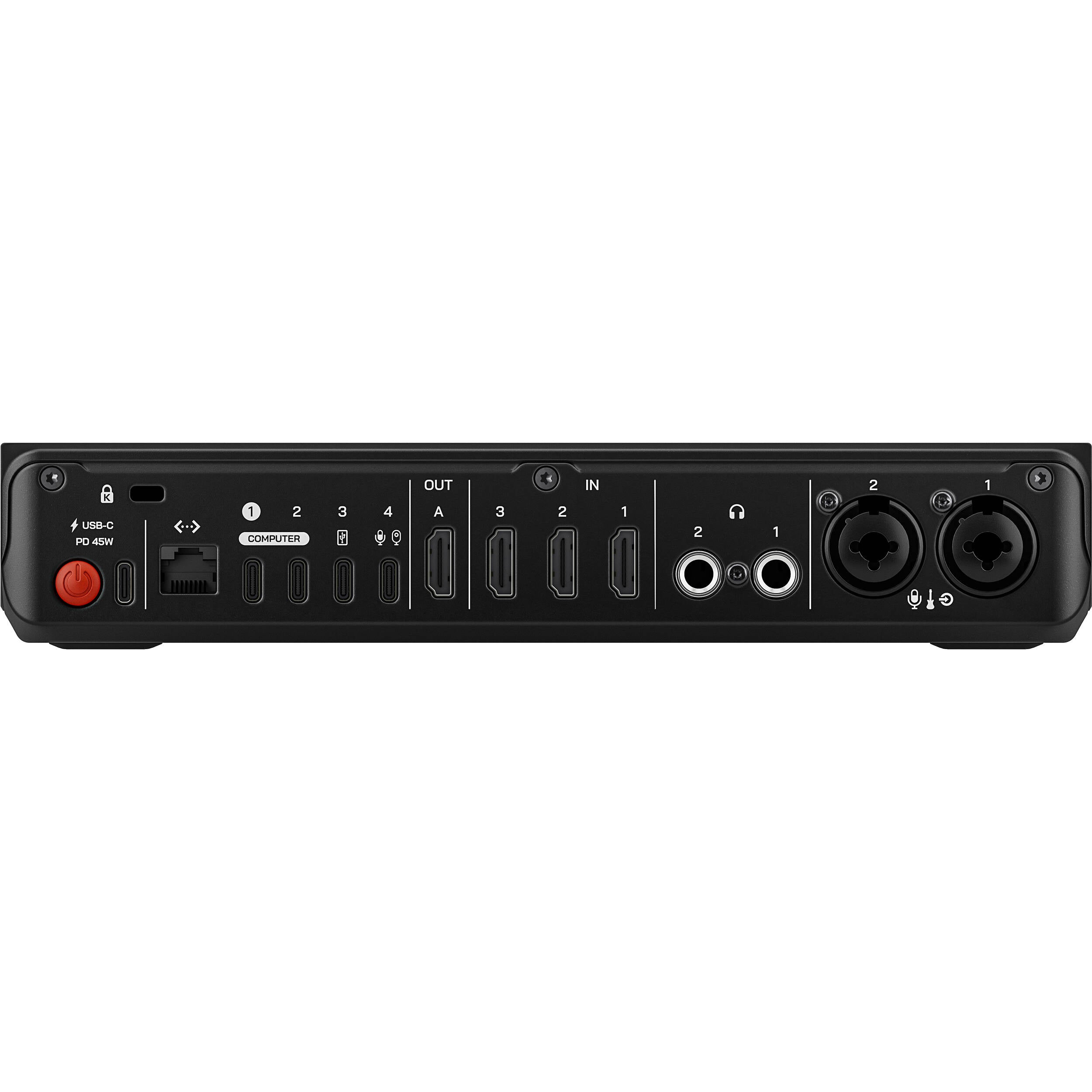

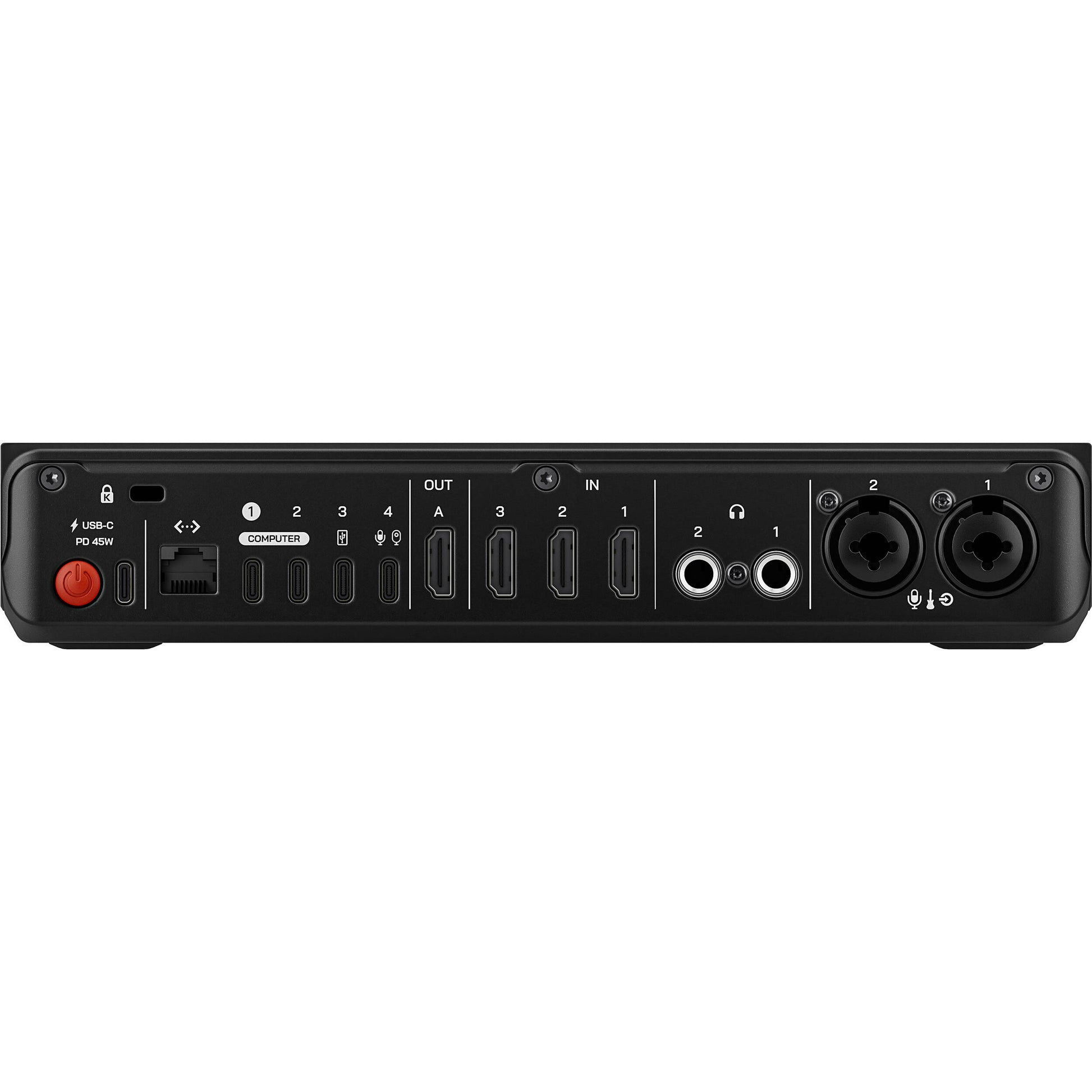

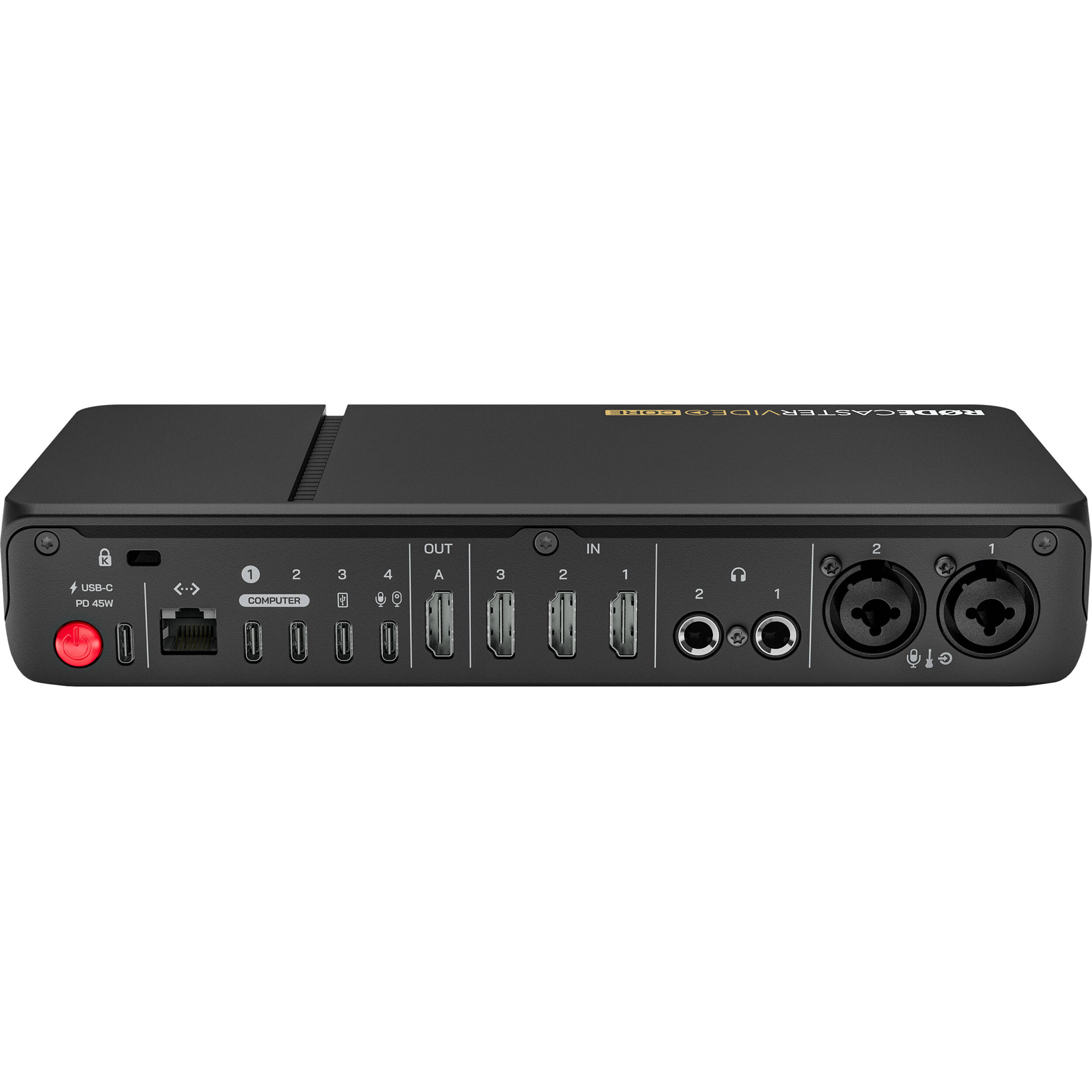

Video Inputs: 3x HDMI 1.4b Female, 1x USB-C (UVC) Female
Input Video Format: HDMI 8/10/12-Bit 4:4:4/4:2:2 RGB, YUV, 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 25/29.97/30 fps; USB-C 8-Bit 4:2:2 YUV, 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs: 2x Combo XLR-1/4" TRS, 5x USB-C
Input Audio Format: Analogue, LPCM 48 kHz
Video Output Channels: 2
Video Outputs: 1x HDMI, 1x RJ45 (NDI)
Output Video Format: HDMI 1080p at 24/25/30/50/60 fps, RJ45 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs: 2x 1/4" TRS
Output Audio Format: Analogue
Digital Audio Decoding: LPCM
HDCP Support: No
IP Video: H.264/H.265 1920 x 1080 at 23.98/24/25/29.97/30/50/59.94/60 fps Encoding
IP Audio: AAC-LC/PCM Encoding
Transport Protocols: NDI/HX2, NDI/HX3, RTMP, TCP
Compatible Services: Facebook Live, Twitch, YouTube Live
Internal Storage: 24 GB
OS Compatibility: macOS 11 or Later, Windows 10–11
Power I/O: 1x USB-C Input
Power Consumption: 45 W, Power Supply 20 VDC at 2.25 A
Dimensions: 239 x 125 x 45.5 mm
