Fixed Cameras, Superior Video

Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio Series provides sharp 1080p or crystal-clear 4K resolution, 12X or 20X zoom and the convenience of our easy-to-use online platform, Hive Studio, providing future-ready connectivity and control from anywhere.

Connect, Point, Produce!

The Studio Series features SDI, HDMI, USB, and IP output and comes native with NDI® HX3, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in Hive-Linked connectivity links to Hive Studio automatically!

Power, Endurance, and Performance

The Studio SE is your perfect entry into the world of videography, offering powerful zoom capabilities, reliable performance, and scalability.

Need to upgrade to the power of 4K resolution? Consider the Studio 4K. With either model, capture a head-and-shoulders shot of your subject from over 100 feet away with zoom strengths of 12X or 20X, perfect for medium or large spaces. Designed for utility, connectivity, and endurance, a camera from the Studio Series will be your new video system workhorse.

A Multitude of Applications

A Studio Series camera is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with additional fixed-camera options that complement your PTZ cameras. The Studio Series’ high-quality construction and discreet profile make it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as fixed cameras, the Studio Series is courtroom-friendly. Looking for a mix of fixed and PTZ cameras for your project? Check out the PTZOptics Producer, Action, and Flex bundles.

Future-Friendly Performance

Studio Series cameras are Hive-Linked (now in beta!) and equipped with cutting-edge onboard control technology, providing the perfect solution for evolving production workflows. With just a few clicks, you’ll have centralised management of all your cameras from anywhere with just a web connection, making controlling and configuring multiple cameras from a single interface easier.

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

• Camera Management Platform (CMP) for camera management, control, colour correction, and auto-tracking (zoom-only for the Studio 4K)
• Control apps for desktop and mobile devices
• Plugins and integrations for popular platforms, including OBS
• Camera configuration and management tools
• Support and testing utilities

• PTZOptics Studio SE Camera with 12x Optical Zoom
• 12V, 2A International Power Supply
• Lens Cap
• USB-A to USB-C Cable
• IR Remote
• 2 x AAA Battery
• Limited 5-Year Warranty

Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
HDMI Resolution & Frame Rate: 1920x1080p up to 60fps, 1920x1080i up to 60fps, 1280x720p up to 60fps
SDI Resolution & Frame Rate: 1920x1080p up to 60fps, 1280x720p up to 60fps
Optical Lens Focal Length: 4.1mm–49.2mm, F1.8–F2.68
Field of View: H 6.9°–72.5°, V 3.9°–44.8°
Display Field of View: 80.2°
Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
Shutter Speed: 1/30s–1/10000s
Presets: 255 presets
Preset Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported
Material: Aluminium, Plastic
Colour: Grey
Dimensions: 145 x 76 x 78.5mm
Weight: 0.68kg
Working Environment: Indoor
Humidity Range: 10%–80%
Operating Temperature: -10°C to 40°C
Storage Temperature: -40°C to 60°C

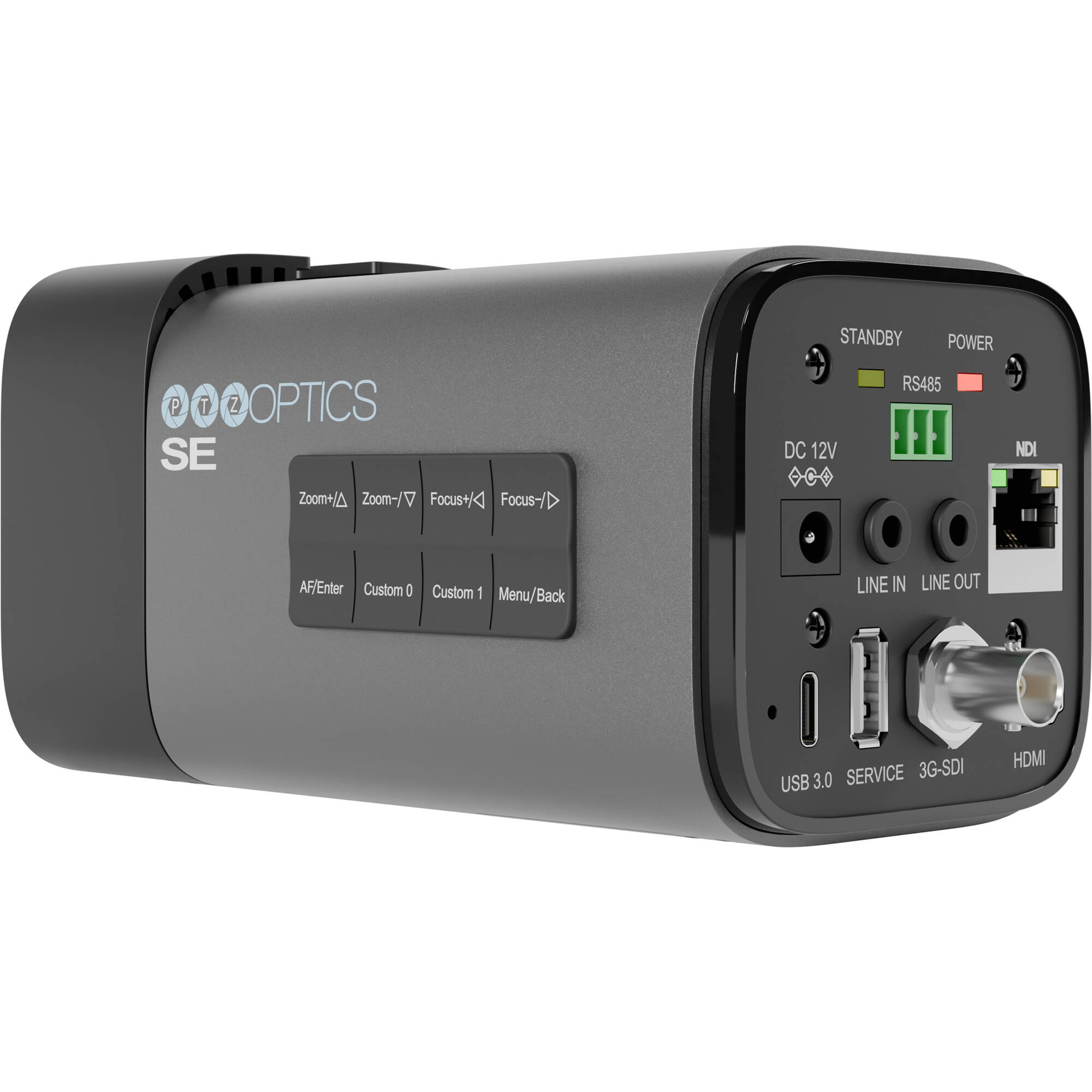

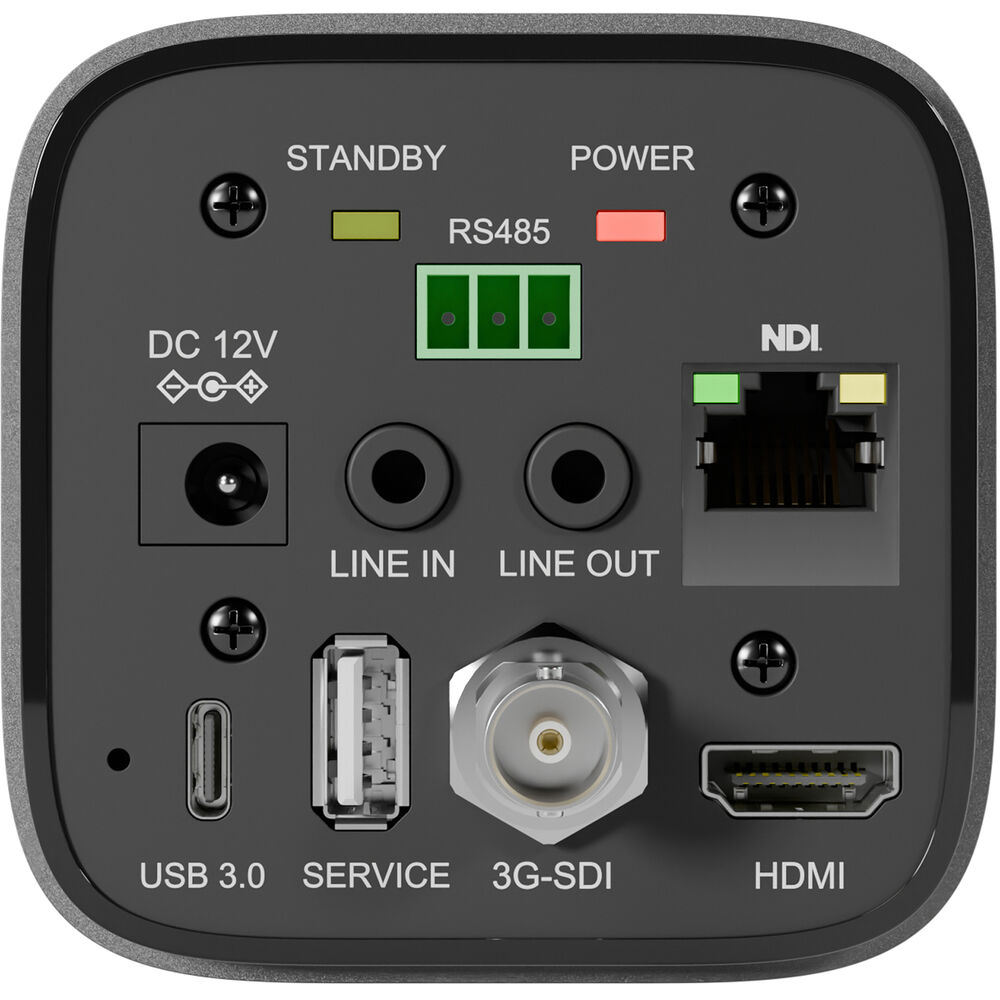

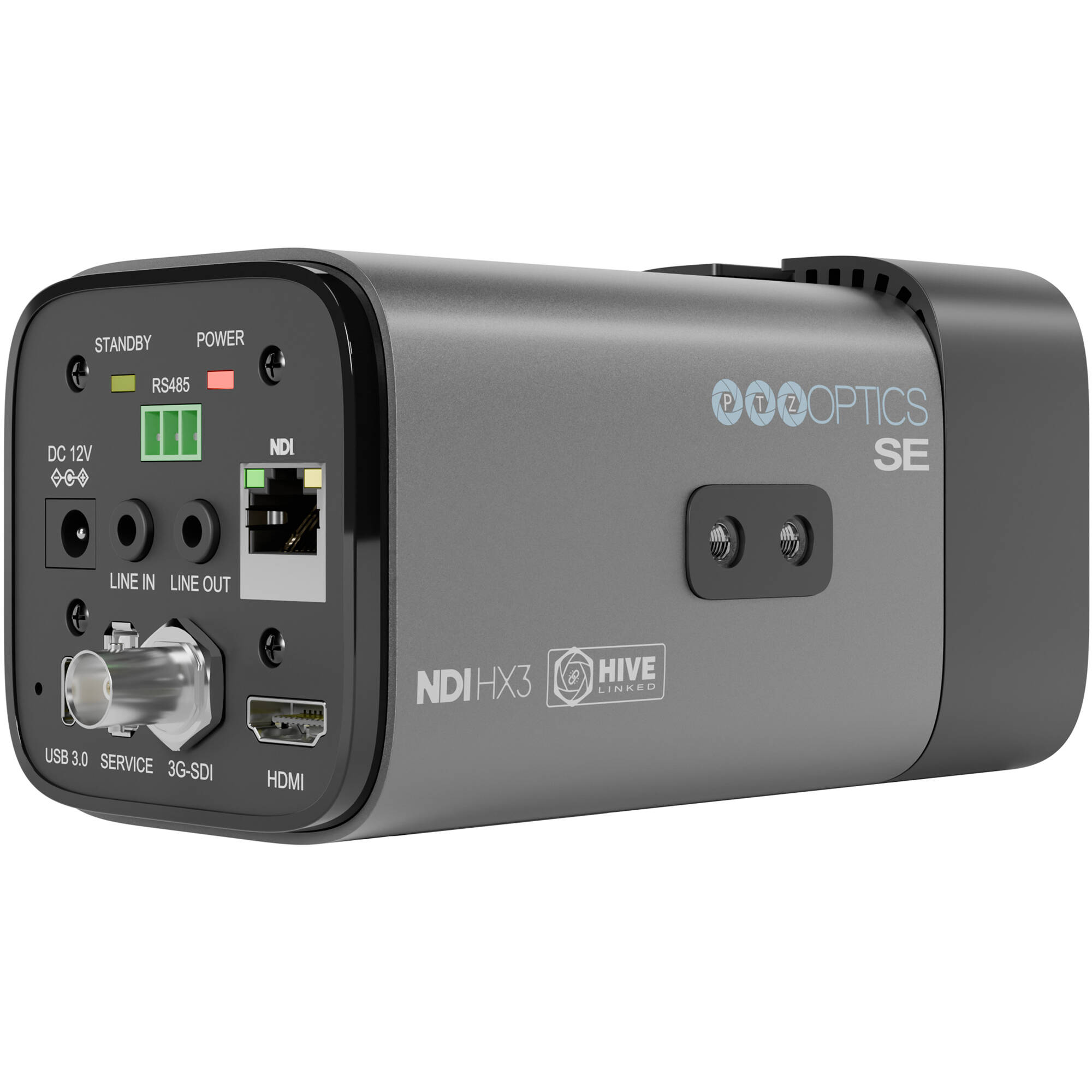

HD Video Output: RJ45 1GbE (NDI® HX3), HDMI 2.0, USB 3.0 Type-C, 3G-SDI (800mVp-p, 75Ω, SMPTE 424M)
Audio Interface: 3.5mm line input, 3.5mm line output
USB Video Formats: YUY2 up to 1080p30, MJPEG up to 1080p30, H.264 up to 1080p30
NDI/RTSP Video Formats: H.265 up to 1080p30
Compression Standards: H.264, H.265, MJPEG, YUY2
Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP(S), ONVIF, NDI® HX3, SRT, Multicast
IR Range: Up to 9m (4 IR addresses)
Power Supply: 12V DC or PoE (802.3at)
Power Consumption: Max 18W (2A)
