PTZOptics Move SE PTZ Camera 20x Zoom (Grey)

Feature-Packed and Built to Scale

Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. The PTZOptics Move SE combines HDMI, SDI, USB and IP outputs – with native NDI® now available – all into a single camera. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios.

Designed with You – and the Future – in Mind

Experience a more intelligent video production workflow with the Move SE’s updated user interface and feature set that continually expands based on user feedback. Plus, PTZOptics’ one-click firmware updates make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. And with the 20x optical zoom option, plus PoE, the Move SE can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track

With the Move SE’s auto-tracking features, users can control their production from behind the scenes – or right in front of them. Plus, the Move SE’s Presenter-Lock™ auto-tracking features allow users to lock into a specific person, even while other people are in the frame, and switch between on-stage presenters with the click of a button. In addition to the Move SE’s auto-tracking features, users also have access to PTZOptics’ latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

From hardware to software, the options for camera control are endless - allowing you to take charge of your camera in a way that fits your workflow.

Perfect for Public Spaces

With safety and ease of use in mind, the Move SE includes IR remote control receivers on both the front and back of the camera, so operators can control the camera’s movements from any angle. And for added security in public spaces, the Move SE is equipped with a Kensington lock to deter theft and ensure peace of mind. Whether you’re using the Move SE in a classroom, public courtroom, or shared meeting space, you can rest easy knowing that it’s built to handle the demands of any public setting.

Discreet Mounting Options

Mount your PTZOptics Move SE camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Take Control Your Way

Users can control Move SE cameras using video production software and hardware such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, Tricaster, and the Elgato StreamDeck - or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move SE cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® Bridge (native NDI® now available) and cloud-based software such as PTZOptics Hive and Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.

• 20x Optical Zoom
• Built-In Auto-Tracking
• Advanced White Balance Modes
• Wide Dynamic Range
• Full Frame Rates: 1080p-60/50/30/25/59.94/29.97, 720p-60/50/59.94
• Up to 1080p Resolution @ 60fps
• SRT Support
• 2D & 3D Noise Reduction

• PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey)
• 12 VDC Power Adaptor
• IR Remote Control
• Limited 5-Year Warranty

Video Sensor: 1/2.8", SONY CMOS, Effective Pixels: 2.07M
Resolution and Frame Rate: 1080p - 60/50/30/25/59.94/29.97, 720p - 60/50
Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X (480x270), 8X (240x135), 16X (128x72)
Minimum Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Lens: 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation: Supported
Digital Noise Reduction: 2D & 3D Digital Noise Reduction
Field of View: 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
Display Field of View: 20x: 67.8°
Pan/Tilt Movement: Pan Movement: ±170°
Pan Speed: 1.7° ~ 100°/s
Tilt Movement: +90° to -30°
Tilt Speed: 1.7° ~ 69.9°
Image Flip, Mirror and Freeze: Supported
Presets: 255 Presets
Preset Accuracy: 0.1°
Power Options: Power Supply: DC 12V / PoE (802.3af)
Input Power: 2A (Max)
Physical Specifications: Material: Aluminium, Plastic
Colour: White and Grey
Dimensions: 142mm (W) x 169mm (D) x 164mm (H) (189mm max height with tilt up)
Weight: 1.445 kg
Working Environment: Indoor
Operating Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 60°C

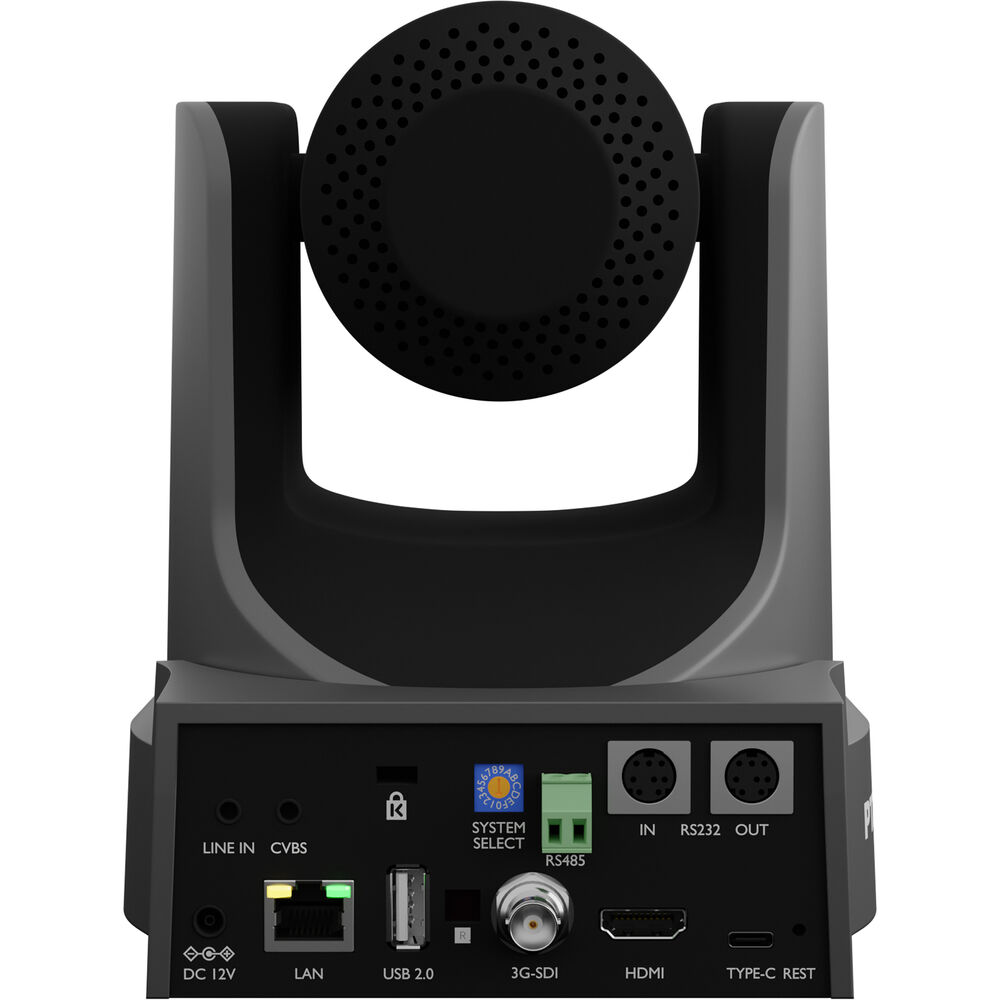

Rear Board Connectors: HD Video Output: 1x RJ45: 10/100 Adaptive Ethernet Port
HDMI: 1x HDMI: version 1.3
3G-SDI: 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, compliant with SMPTE 424M standard
USB 3.0 Type C: 1x USB 3.0 Type C
Audio Interface: 1x 3.5mm Line Level Input
Communication Interface: 1x 8 pin Mini-DIN RS232 input, Max distance: 30m, protocol: VISCA / Pelco-D / Pelco-P
RS232 Output: 1x 8 pin Mini-DIN RS232 output, Max distance 30m, protocol: VISCA / Pelco-D / Pelco-P
RS485 Input/Output: 1x 2 pin Phoenix port, RS485 input/output, Max distance: 1200m, protocol: VISCA / Pelco-D / Pelco-P
IR: 4x IR Addresses, Max distance: 9m
Power Jack: JEITA type (DC IN 12V)
Network Interface: RJ45: 10/100M Adaptive Ethernet Port, supports PoE (802.3af)
