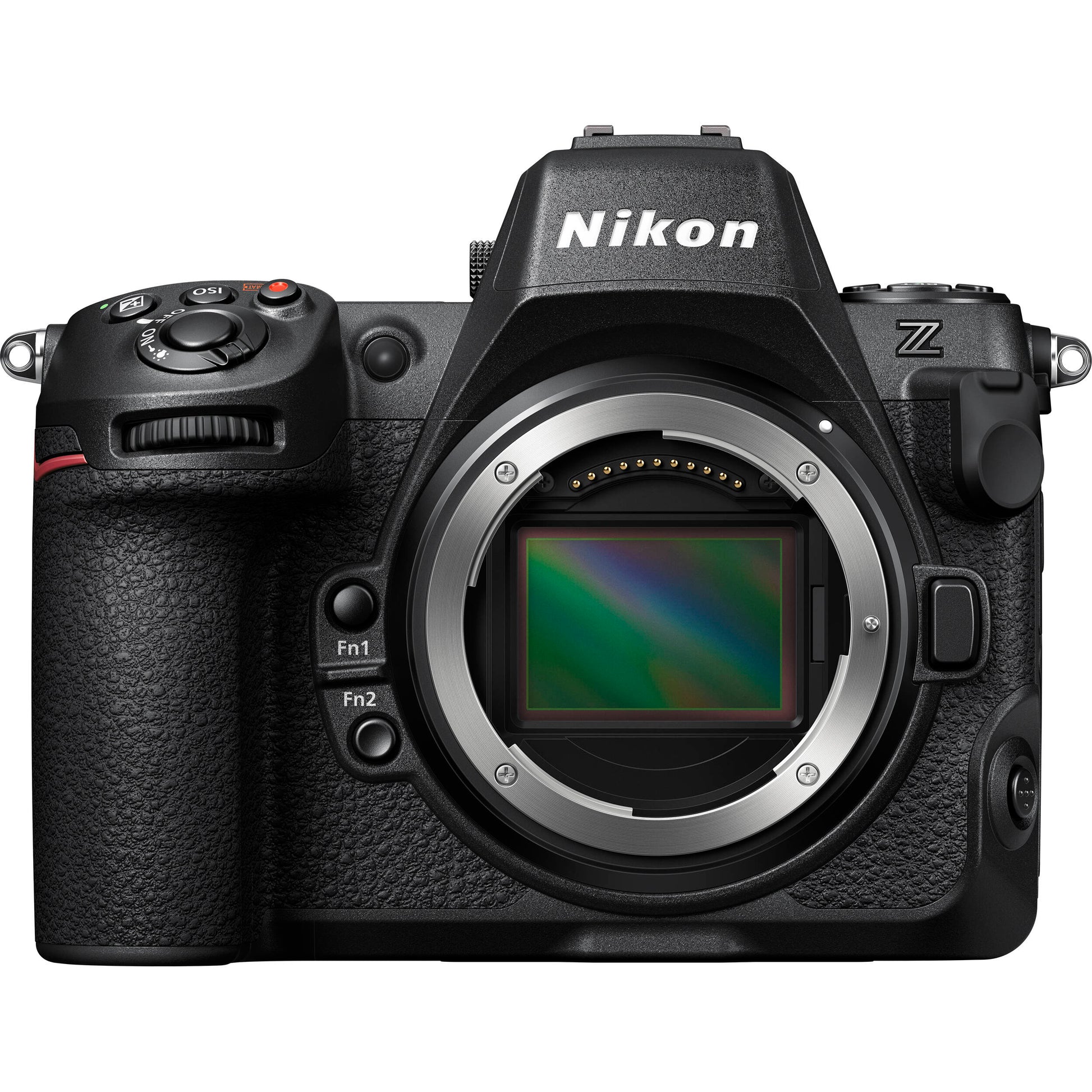

Image Sensor
Picture Angle: Nikon FX format
Effective Pixels: 45.7 million
Sensor Size: 23.9 mm x 35.9 mm
Image Sensor Format: FX
Image Sensor Type: Stacked CMOS Sensor
Total Pixels: 52.37 million
Dust-Reduction System: Image Dust Off reference data (NX Studio software required)
Dust-Off Reference Photo: Yes
Image Area (pixels): FX-format
(L)8,256 x 5,504
(M)6,192 x 4,128
(S)4,128 x 2,752
DX-format
(L)5,392 x 3,592
(M)4,032 x 2,688
(S)2,704 x 1,792
16:9 (36 x 20)
(L)8,256 x 4,640
(M)6,192 x 3,480
(S)4,128 x 2,320
File System
File Format Still Images: JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression; size-priority and optimal-quality compression available, NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats, NEF (RAW): 14 bit with lossless, high-efficiency*, or high-efficiency compression , HEIF: Supports fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression; size-priority and optimal-quality compression available , NEF (RAW)+HEIF: Single photograph recorded in both NEF (RAW) and HEIF formats
Storage Media: SD (Secure Digital) and UHS-II compliant SDHC and SDXC memory cards, CFexpress (Type B), XQD Type Memory

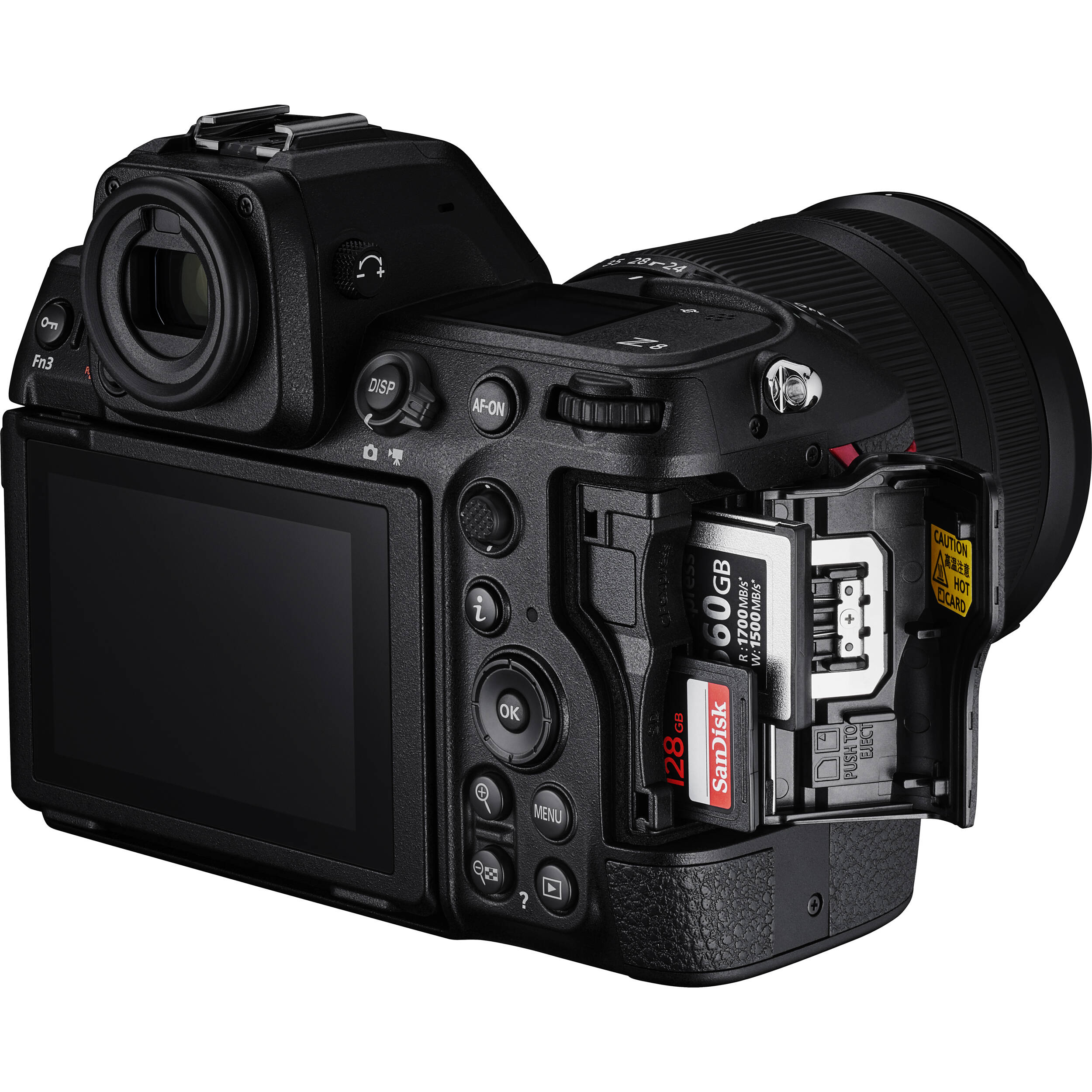

Card Slot: 2 slots (1 CFExpress Type B/XQD and 1 SecureDigital)
File System: DCF 2.0, Exif 2.32 , MPEG‑A , MIAF
Viewfinder
Viewfinder: 1.27-cm/0.5-in. approx. 3690k-dot (Quad VGA) OLED electronic viewfinder with color balance and auto and 18-level manual brightness controls, and support for high frame rates
Viewfinder Frame Coverage: Approx.100% horizontal, 100% vertical
Viewfinder Magnification: Approx.0.8x (50 mm lens at infinity, -1.0 m -1)
Viewfinder Eyepoint: 23mm (-1.0 m-1; from rearmost surface of viewfinder eyepiece lens)
Viewfinder Diopter Adjustment: −4 – +3 m−1
Eye Sensor: Automatically switches between monitor and viewfinder displays
Lens
Depth-of-Field Control: Yes
Lens Compatibility at a Glance: ***Z mount NIKKOR lenses, F mount NIKKOR lenses with mount adapter; restrictions may apply
Compatible Lenses: Z mount NIKKOR lenses, F mount NIKKOR lenses with mount adapter; restrictions may apply
Shutter
Shutter Speed: 1/32000 to 30 sec. (choose from step sizes of 1/3, 1/2 and 1 EV, extendable to 900 sec. in mode M), bulb, time
Fastest Shutter Speed: 1/32000 sec.
Slowest Shutter Speed: 900 sec.
Flash Sync Speed: Up to: X=1/200 sec. to 1/250 sec.; synchronizes with shutter at 1/200 sec. or slower; Auto FP High-Speed sync supported
Bulb Shutter Setting: Yes
Shutter Release Modes: Single frame, Continuous L , Continuous H , Self-timer, High-speed frame capture with Pre-Release Capture
Approx. Frame Advance Rate: Continuous L: 1-10 fps , Continuous H: 10-20 fps (14-bit NEF/RAW: Approx. # fps) , High-speed frame capture: (C30) Approx. 30 fps) , High-speed frame capture (C120): Approx. 120 fps, Maximum frame advance rate as measured by in house tests , High-speed frame capture (C60): Approx. 60 fps
Continuous Shooting Options: Continuous L: 1-10 fps , Continuous H: 10-20 fps (14-bit NEF/RAW: Approx. # fps) , High-speed frame capture: (C30) Approx. 30 fps) , High-speed frame capture (C120): Approx. 120 fps , Maximum frame advance rate as measured by in house tests
Self-Timer: 2, 5, 10, 20 sec.; 1-9 exposures at intervals of 0.5, 1, 2, or 3 sec.
Timer duration electronically controlled
Silent Shooting: Yes
Exposure
Exposure Metering System: TTL metering using camera image sensor
Metering Method: Matrix metering, Center-weighted metering: Weight of 75% given to 12 mm or 8 mm circle in center of frame or weighting can be based on average of entire frame , Spot metering: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point, Highlight-weighted metering
Metering Range: -3 to +17 EV
Exposure Modes: Programmed auto with flexible program (P), Shutter-priority auto (S), Aperture-priority auto (A), Manual (M)
Exposure Compensation: -5 to +5 EV in increments of 1/3 or 1/2 EV available in modes P, S, A, and M
Exposure Lock: Luminosity locked at detected value
Picture Control: Auto, Flat, Landscape, Monochrome, Neutral, Portrait, Standard, Vivid, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon), Selected Picture Control can be modified, Storage for custom Picture Controls
Multiple Exposure: Add, Average, Lighten, Darken
HDR Overlay: Yes
Photo mode flicker reduction: Yes
High-frequency flicker reduction: Yes
Sensitivity
ISO Sensitivity: ISO 64–25600 in step sizes of 1/3 and 1 EV, can also be set to approx. 0.3, 0.7, or 1 EV (ISO 32 equivalent) below ISO 64 or to approx. 0.3, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control available, Note: ISO sensitivity is limited to 400–25600 when HLG is selected for tone mode.
Lowest Standard ISO Sensitivity: 64
Highest Standard ISO Sensitivity: 25600
Lowest Expanded ISO Sensitivity: 32
Highest Expanded ISO Sensitivity: 102400
Long Exposure Noise Reduction: Yes
High ISO Noise Reduction: Yes
Active D-Lighting: Can be selected from:
Auto, Extra high 2 , Extra high 1 , Extra High, High, Normal, Low, Off
Active D-Lighting Bracketing: Yes
Focus/Autofocus
Single-Point AF Mode: Yes
Dynamic AF Mode: Yes
Auto-Area AF Mode: Yes
Autofocus System: Hybrid phase-detection/contrast AF with AF assist
Detection Range: -7 to +19 EV (-9 to +19 EV with starlight view Detection range (ISO 100, f/1.2 lens, 20 °C/68 °F using single servo AF (AF-S)
Lens Servo: Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); full-time AF (AF-F; available only in video mode); predictive focus tracking Manual focus (M): Electronic rangefinder can be used
Focus Point: 493 (single-point AF), Number of focus points available in photo mode with single point AF selected for AF-area mode and FX selected for image area
AF-Area Mode: Pinpoint, Single-Point, Wide-area AF (S), Wide-area AF (L), Wide-area AF (L-people), Wide-area AF (L-animals), Auto-area AF, Auto-area AF (people), Auto-area AF (animals), Dynamic-area (S) , Dynamic-area (M) , Dynamic-area (L) , 3D-tracking , Subject-tracking AF , Pinpoint and Dynamic-area AF (S, M, L), 3D-tracking available in photo mode only , 3D-tracking available in video mode only , Subject-tracking AF available in video mode only, Wide-area AF (C1) , Wide-area AF (C2)
Focus Lock: Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing center of sub-selector
Focus Modes: Pinpoint, Single-point, Dynamic-area AF, Wide-area AF (S), Wide-area AF (L), Wide-area AF (L-people) , Wide-area AF (L-animals) , Auto-area AF, Auto-area AF (people) , Auto-area AF (animals) , Pinpoint and Dynamic-area AF available in photo mode only
Maximum Autofocus Areas/Points: 493
Vibration Reduction: 5-axis image sensor shift
Autofocus Fine Tune: Yes
Flash
Flash Bracketing: Yes
X-Sync Speed: 1/200 sec.
Top FP High Speed Sync: Up to:1/8000 sec.
Flash Control: TTL: i-TTL flash control; i-TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash with spot metering
Flash Sync Modes: Front-curtain sync, Rear-curtain sync, Red-eye reduction, Red-eye reduction with slow sync, Slow sync, Off
Flash Compensation: -3 to +1 EV in increments of 1/3 or 1/2 EV available in modes P, S, A, and M
Flash-ready Indicator: Lights when built-in flash or optional flash unit is fully charged; flashes as underexposure warning after flash is fired at full output
Accessory Shoe: ISO 518 hot-shoe with sync and data contacts and safety lock
Nikon Creative Lighting System (CLS): i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, Auto FP High-Speed Sync, unified flash control
Flash Sync Terminal: Yes
White Balance
White Balance: Auto (3 types), Choose color temperature (2,500 K–10,000 K), Cloudy, Direct sunlight, Flash, Fluorescent (3 types) , Incandescent, Natural light auto, Preset manual (up to 6 values can be stored), all except choose color temperature with fine-tuning, Shade
White Balance Bracketing: Exposure and/or flash, white balance, and ADL
Live View
Live View Shooting: Photography Live View Mode, Movie Live View Mode
Movie
Movie Metering: TTL exposure metering using main image sensor
Movie Maximum Recording Time: 2 hours 5 minutes
Movie File Format: MOV, MP4, NEV
Movie Video Compression: N-RAW (12 bit) , Apple ProRes RAW HQ (12 bit) , Apple ProRes 422 HQ (10 bit), H.265/HEVC (8 bit/10 bit), H.264/AVC (8 bit)
Movie Audio Recording Format: Linear PCM, AAC, Linear PCM (48 KHz, 24 bit, for videos recorded in NEV or MOV format) or AAC (48 KHz, 16 bit, for videos recorded in MP4 format)
Movie Frame size (pixels) and frame rate (RAW Video): FX 8256 x 4644 /60p/50p/30p/25p/24p, * Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively , 5392 x 3032: 60p/50p/30p/25p/24p , 4128 x 2322: 120p/100p/60p/50p/30p/25p/24p , 3840 x 2160: 120p/100p/60p/50p
Movie: 8K UHD 7,680 × 4,320 / 30p (progressive), 8K UHD 7,680 × 4,320 /25p/24p, 4K UHD 3,840 × 2,160 /120p/100p/60p50p/30p/25p/24p, Full HD 1,920 x 1,080 /120p/100p/60p/50p/30p/25p/24p, Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively
8K UHD: Yes
4K Ultra High Definition (UHD): Yes
Full HD Movies (1080p): Yes
Slow Motion Video: Yes
Movie Audio: Built-in stereo or external microphone with attenuator option; sensitivity can be adjusted
Movie ISO: Mode M: Manual selection (ISO 64 to 25600; choose from step sizes of 1/3 and 1 EV); with additional options available equivalent to approximately 0.3, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600, Modes P, S, A: Auto ISO sensitivity control (ISO 64 to Hi 2.0) with selectable upper limit, Note: ISO sensitivity is limited to 400 to 25600 when HLG is selected for tone mode.
Movie Active D-Lighting: Can be selected from:
Extra High, High, Normal, Low, Off
Time Code: Yes
Movie Log Gamma Output: When using memory card in Z 8 and NOT using external recorder, N-Log or HLG videos are recorded to “memory card”, When NOT using memory card in Z 8 and using external recorder, N-Log or HLG video are recorded to “external recorder via HDMI-output”, When using both memory card in Z 8 and external recorder, N-Log or HLG video are recorded to both “memory card” and “external recorder via HDMI-output”, However, If you select 8K30p/25p/24p or 4K120p/100p, the recording frame size for HDMI-output is change to FHD, For example, if you select 8K30p, memory card is 8K30p and HDMI-output is FHD30p; If you select 4K60p, memory card is 4K60p and HDMI-output is 4K60p.
Movie e-VR: Yes
Movie HDMI Output: Yes
Movie Focus Peaking: Yes
Movie Highlight Display (Zebras): Yes
Time-Lapse Movie: Yes
AF for Movie: Yes
Raw Video Option: Yes
N-Log and HDR (HLG) video: Yes
Waveform display: Yes
Red REC frame indicator: Yes
Extended shutter speeds (mode M): Yes
Dual-format (proxy-video) recording for RAW video: Yes
Extended oversampling available: Yes
Option to view video recording info available via I menu: Yes
Hi-Res Zoom: Yes

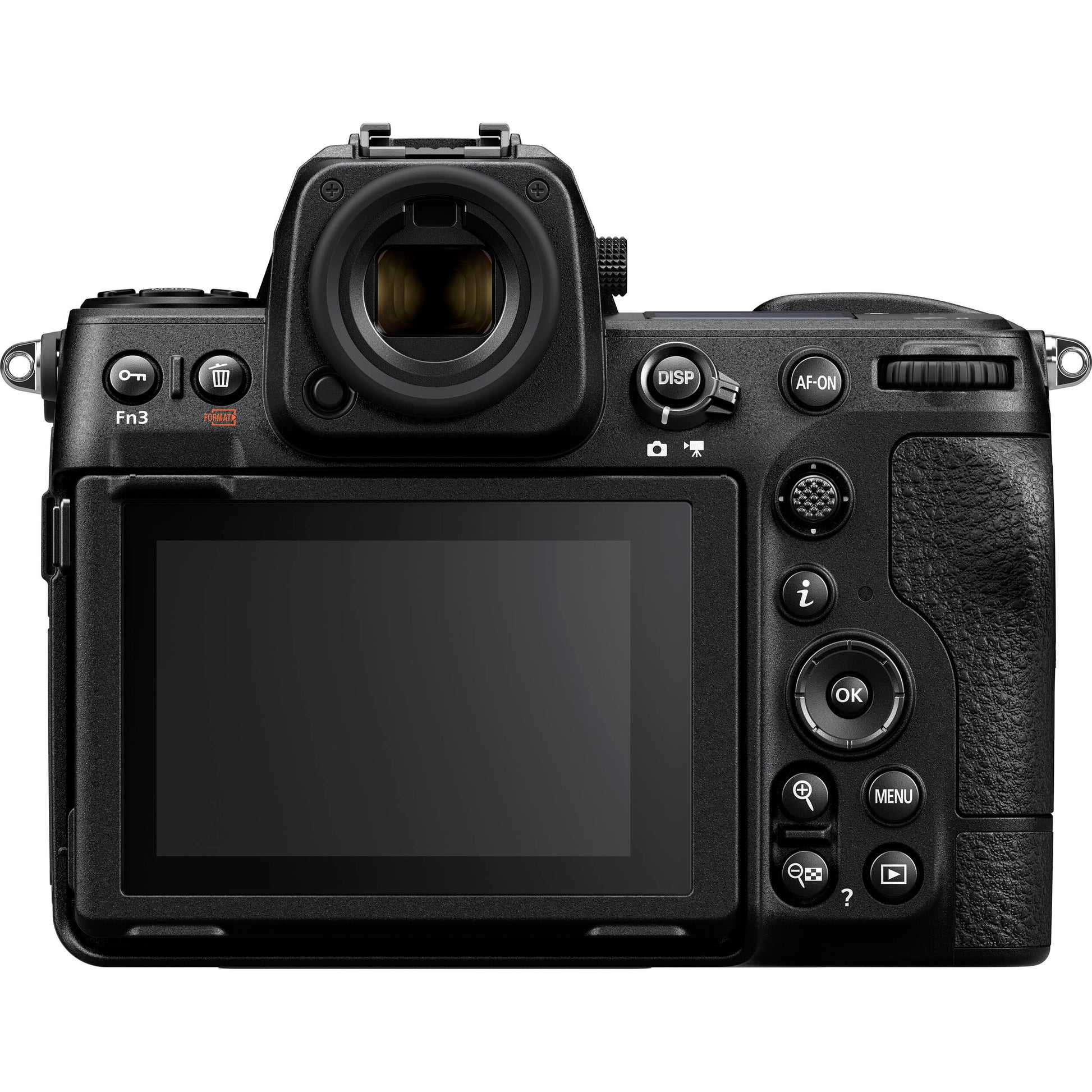

Monitor
Monitor Size: 3.2 in. diagonal
Monitor Resolution: 2100 k dots

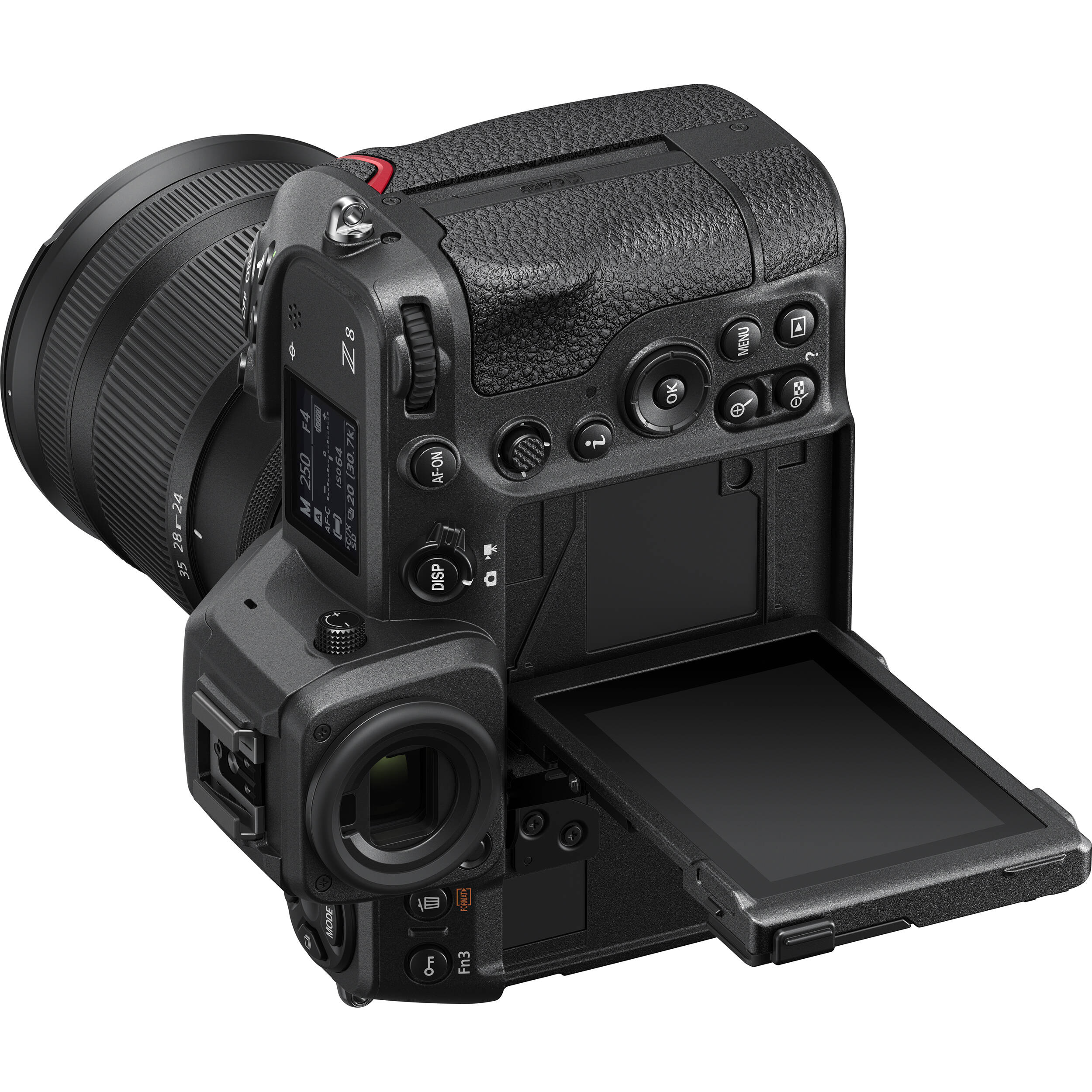

Monitor Type: Vertically and horizontally tilting TFT touch-sensitive LCD
Touchscreen: Yes
Monitor Angle of View: 170° viewing angle
Monitor Adjustments: Colour balance, 15-level manual brightness controls
Virtual Horizon Camera Indicator: Yes
Playback
Playback Functions: Auto Image Rotation, Full-frame and Thumbnail (4, 9, or 72 images), Highlights, Histogram Display, Location Data Display, Photo Information, Picture Rating , Playback with Playback Zoom, Playback Zoom Cropping, Slide Shows, Voice memo input and playback, IPTC information embedding and display, Filtered playback , Skip to first shot in series , Series playback , Save consecutive frames , Motion blend
In-Camera Image Editing: Distortion Control, D-Lighting, NEF (RAW) Processing, Perspective Control, Resize, Straighten, Trim, Monochrome
Image Comment: Yes
Voice Memo Function: Yes
Interface
Interface: Audio Input: Stereo mini-pin jack (3.5 mm diameter; plug-in power supported), Audio Output: Stereo mini-pin jack (3.5 mm diameter), Type A HDMI connector , 10 pin remote terminal: Built-in , USB: Type C USB connectors , USB data connector (SuperSpeed USB) x1 , USB Power Delivery connector x1
Wi-Fi Functionality: Standards: IEEE 802.11b/g/n/a/ac, Standards: IEEE 802.11b/g/n/a/ac (Europe, U.S.A., Canada, Mexico), Standards: IEEE 802.11b/g/n/a (other countries in the Americas), 2412–2462 MHz (channel 11) and 5180–5825 MHz (U.S.A., Canada, Mexico), 2412–2462 MHz (channel 11) and 5180–5805 MHz (other countries in the Americas), Operating frequency: 2412–2462 MHz (channel 11) and 5180–5805 MHz (other countries in the Americas), Operating frequency: 2412–2462 MHz (channel 11) and 5180–5825 MHz (U.S.A., Canada, Mexico), Authentication: Open system, WPA2-PSK, WPA3-SAE , U.S.A., Canada, and Mexico: 2412 to 2462 MHz (channel 11) and 5180 to 5825 MHz (5180 to 5240 MHz, 5500 to 5580 MHz, 5660 to 5700 MHz, and 5745 to 5825 MHz) , Other countries in the Americas: 2412 to 2462 MHz (channel 11) and 5180 to 5805 MHz (5180 to 5240 MHz and 5745 to 5805 MHz) , Maximum output power (EIRP): , 2.4 GHz band: 1.4 dBm , 5 GHz band (5180 to 5320 MHz): 10.8 dBm , 5 GHz band (5500 to 5825 MHz): 7.8 dBm
Smart Device App Connectivity: SnapBridge
Wireless Connectivity: Yes
Wireless Transfer to PC: Yes
Bluetooth: Communication protocols: Bluetooth Specification, Version 5.0, Operating frequency: Bluetooth: 2402–2480 MHz, Bluetooth Low Energy: 2402–2480 MHz , Maximum output power (EIRP), Bluetooth: -4.1 dBm , Bluetooth Low Energy: -5.6 dBm
GPS: Via the SnapBridge app
Save/Load Camera Settings: Yes
Supported Languages: English, French, Spanish
Date, Time and Daylight Savings Time Settings: Yes
Webcam Utility Compatible: Yes
Menus
Total Custom Settings: 73
My Menu: Yes
Recent Settings: Yes
Supported Languages: English, French, Spanish
Date, Time and Daylight Savings Time Settings: Yes
Power
Battery / Batteries: One EN-EL15c rechargeable Li-ion battery, EN‑EL15b and EN‑EL15a batteries can be used in place of the EN‑EL15c. Note, however, that fewer pictures can be taken on a single charge than with the EN‑EL15c. EH‑7P charging AC adapters and EH‑8P AC adapters can be used to charge EN‑EL15c and EN‑EL15b batteries only.
Battery Life (shots per charge):
Movies:[Viewfinder only] selected for monitor mode: Approx. 85 minutes , [Monitor only] selected for monitor mode: Approx. 85 minutes
Photo Mode: Number of Shots
true
AC Adapter: EH-7P charging AC adapter (available separately) , EH-5c/EH-5b AC Adapter (requires EP-5B power connector, available separately), EH‑8P Charging AC adapter; requires UC‑E25 USB cable (available separately)
Battery Charger: MH-25A Battery Charger
Miscellaneous
Tripod Socket: 1/4 in. (ISO 1222)
Approx. Dimensions (Width x Height x Depth): 5.7 in.144 mm x 4.7 in.118.5 mm x 3.3 in.83 mm
Approx. Weight: 32.1 oz.910 g
Operating Environment: Temperature: −10 °C–40 °C (+14 °F–104 °F) , Humidity: Less than 85% (no condensation)
