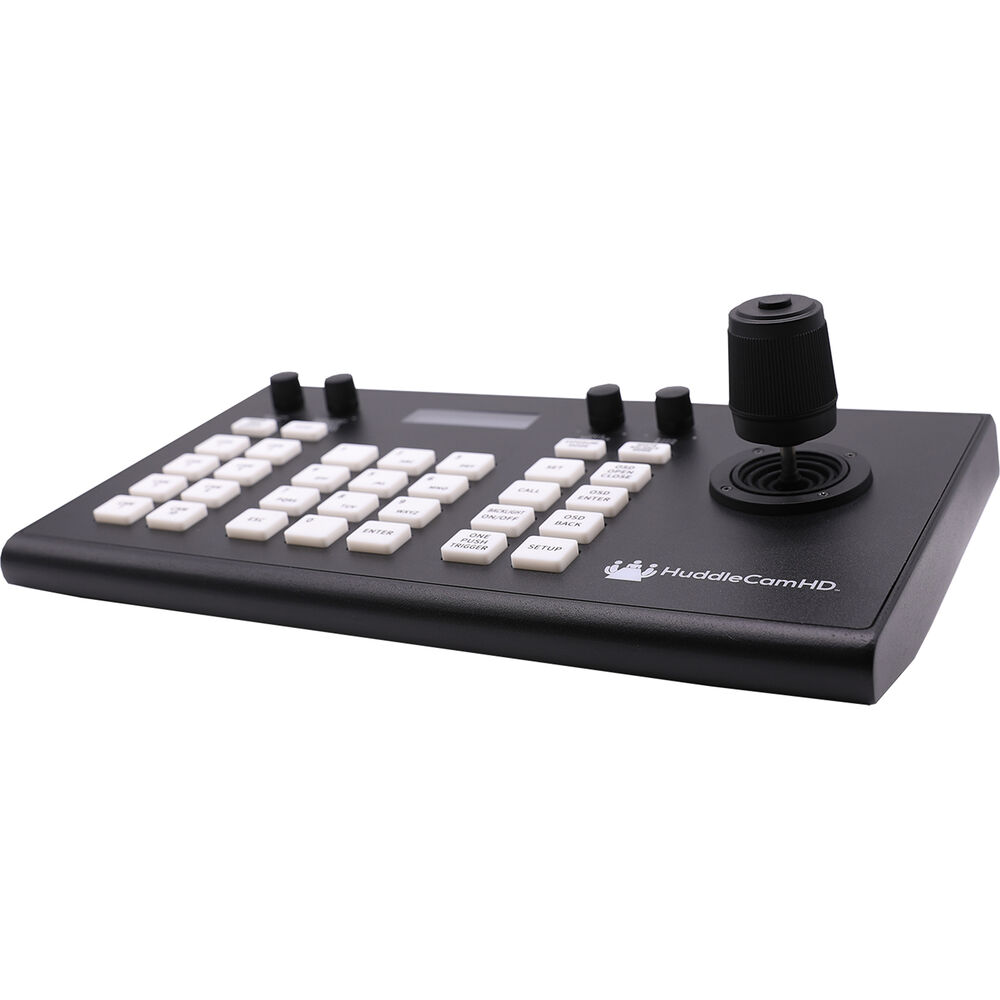

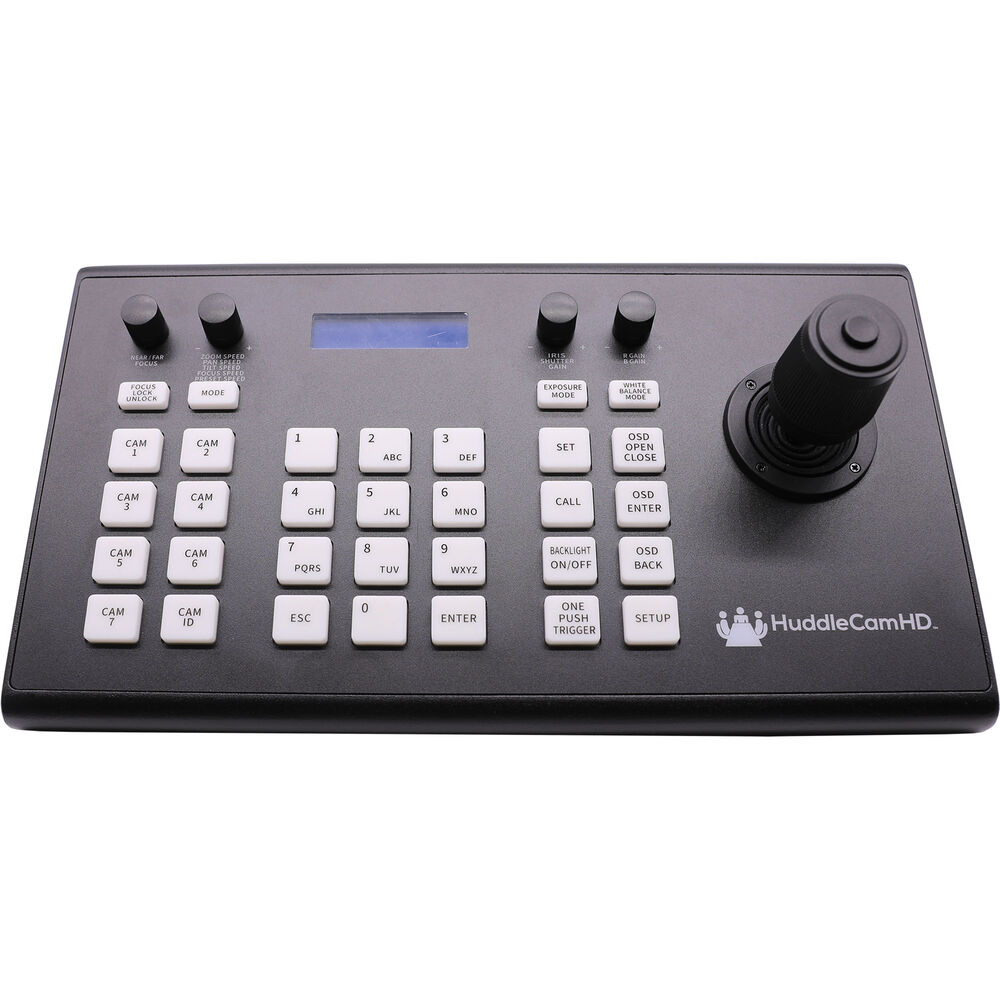

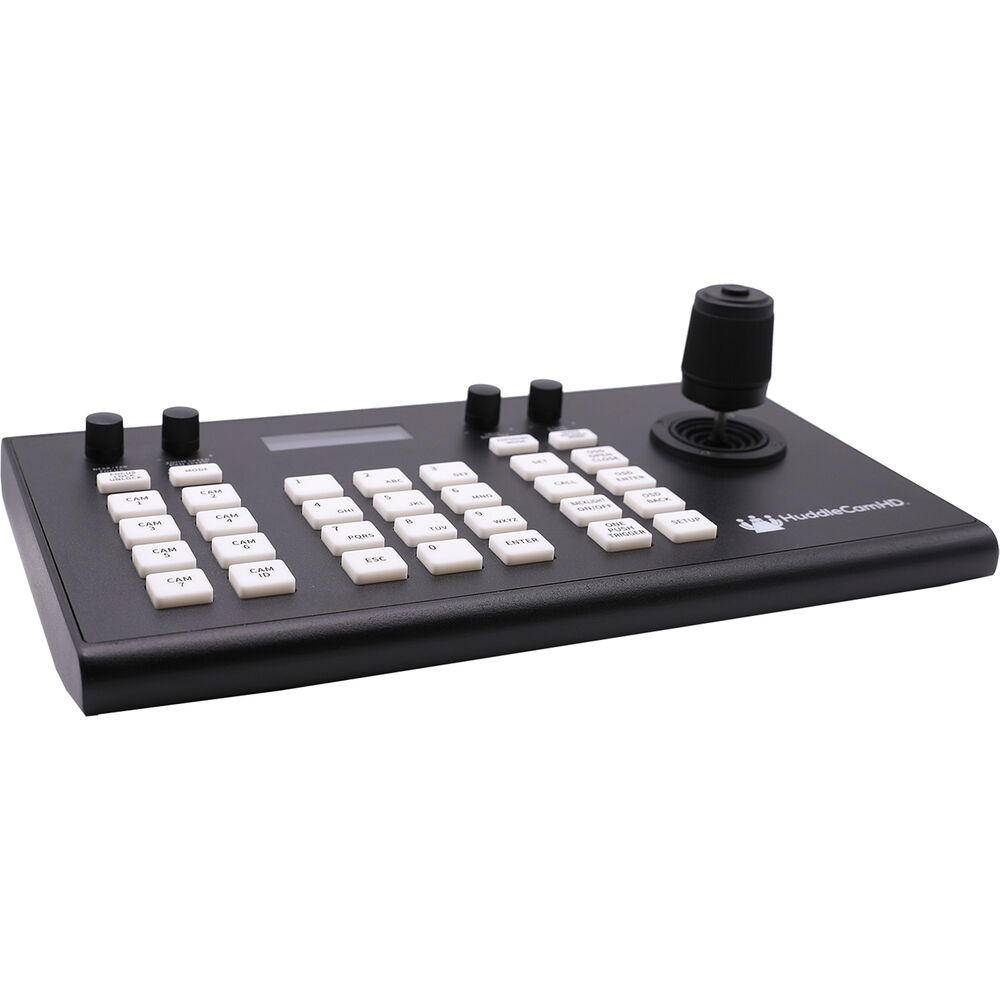

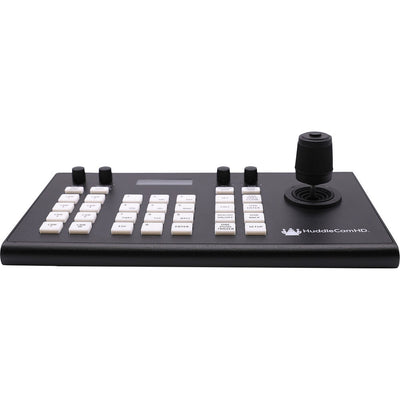

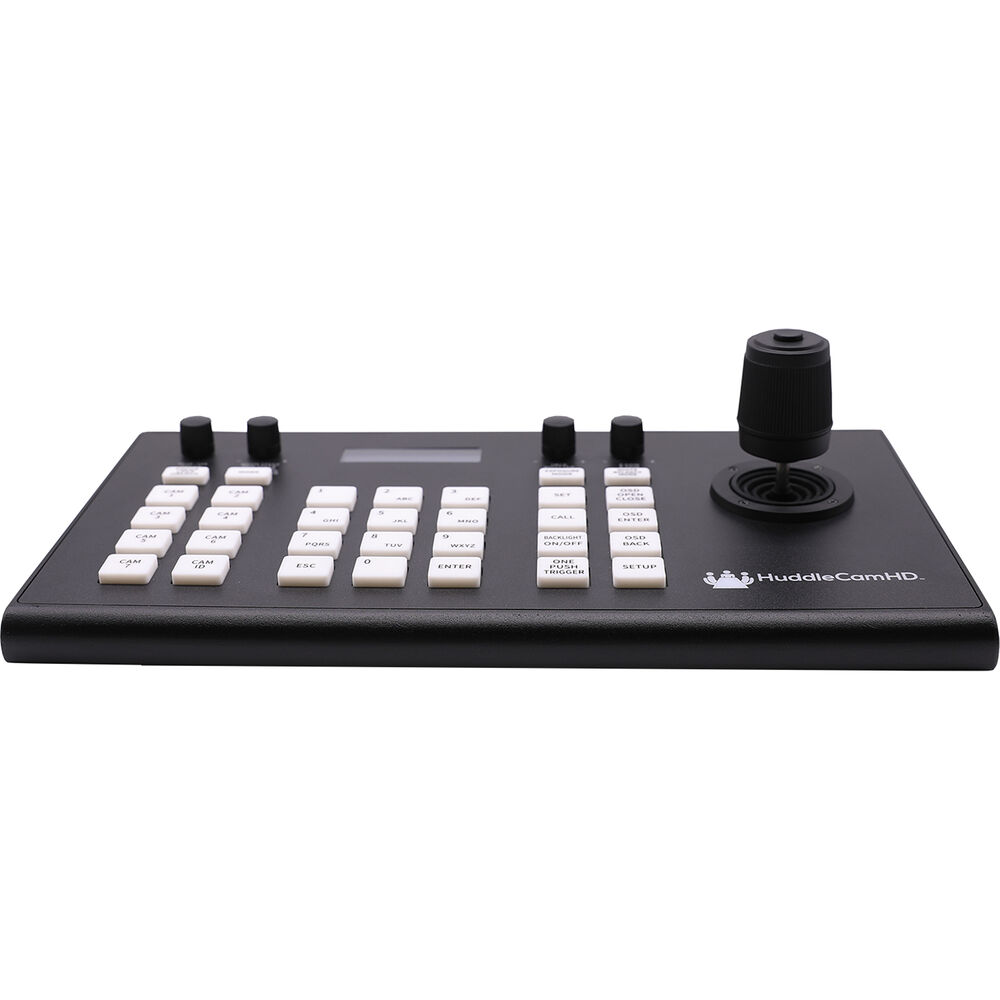

HuddleCamHD HC-JOY-G4 Serial PTZ Joystick Controller (4th Gen)

Your Serial Production Workflow Deserves an Upgrade

Built on the same platform as the award-winning PTZOptics SuperJoy, the HuddleCamHD HC-JOY-G4 offers everything you love about serial control in one simple, reliable, and super-sleek package, including:

• 7 Camera Quick-Select Buttons
• Iris, Shutter, & Gain Knobs
• Focus & PTZ Speed Knobs, Plus Focus Lock
• OSD Menu Control
• 10 Quick-Call Presets via Alphanumeric Buttons
• Modes for all users, including Basic, Basic PTZ, and Matrix mode

Enhanced User Experience & Control

The HC-JOY-G4 Serial PTZ joystick controller delivers a seamless user experience and is designed to adapt to a wide range of PTZ camera operation environments. With its intuitive layout, featuring seven camera quick-select buttons on the left side of the controller, users of all skill levels can easily switch between cameras. The controller’s three-axis joystick offers precise control over pan, tilt, and zoom functions, while the on-screen display (OSD) provides a simplified view of settings and functions. With user modes including Basic, Basic PTZ, and Matrix, both beginners and experts alike can use the HC-JOY-G4 to easily produce professional-quality video, regardless of their experience level.

Built for Versatility, Compatibility & Durability

With support for VISCA, PELCO-P, and PELCO-D protocols, and RS-232, RS-422, & RS-485 wiring methods, the HuddleCamHD HC-JOY-G4 is designed to perform in a broad range of serial production environments. It integrates seamlessly into your existing workflow or serves as the control centre for your latest setup. Plus, redesigned with an all-new premium metal housing, the HC-JOY-G4 is built to withstand the wear and tear of even the most intense production schedules, making it ideal for long-term use in professional environments.

Advanced Tactile Interface for On-the-Fly Tuning

Take your production’s precision to the next level. The HuddleCamHD HC-JOY-G4 features ergonomic, rubberised controls and pressure-sensitive, multifunctional knobs for precise, real-time fine-tuning. Intuitively adjust parameters like far and near focus, ensuring optimal image clarity. Control pan, tilt, and zoom speeds, as well as the speed with which cameras travel between presets, for smooth and seamless camera movements. Perfect your lighting and exposure on the fly with iris, shutter speed, and gain settings, and use red and blue gain settings to refine your colour balance – all with just a turn of your fingers. Plus, with a simple click on each knob, operators can effortlessly switch between parameters, making the HC-JOY-G4 an ideal tool for achieving professional-grade results with any serial PTZ camera setup.

Key Features

• Compatible with RS-232, RS-485, RS-422, VISCA, Pelco-D, and Pelco-P
• 7 Quick Camera Select Buttons
• 3-Axis Joystick Control
• Camera OSD Menu Control
• Exposure and White Balance Mode Cycle Buttons
• Focus Lock Toggle
• Iris, Shutter, Gain, Red Gain, & Blue Gain Knobs
• Basic, Basic PTZ, and Matrix Modes for users of all skill levels
• Durable metal housing and rubberised precision controls

• HuddleCamHD HC-JOY-G4 Serial PTZ Joystick (4th Gen)
• RS-232 Cable
• Power Supply
• Limited 2-Year Warranty

Supported Cameras and Channels: 255 Channels via Pelco-D/P

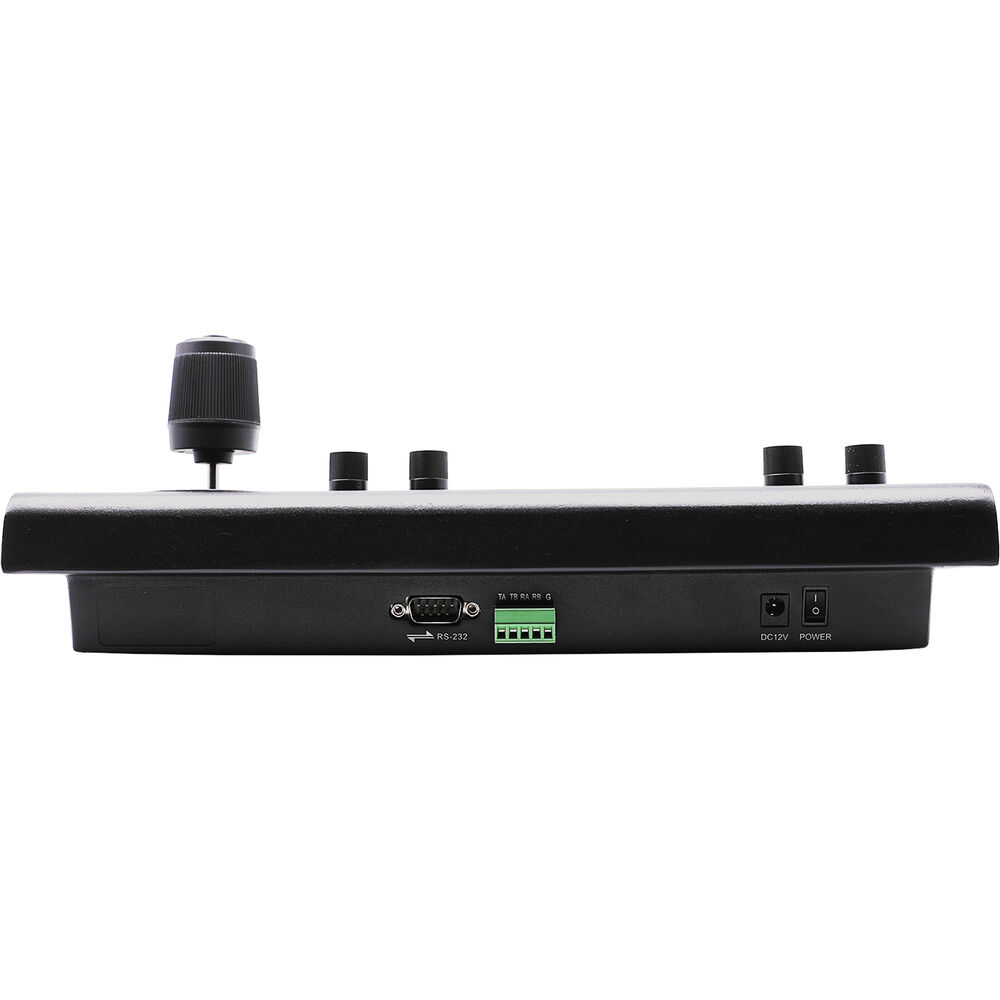

Control I/O: 1x D-Sub 9-Pin (RS-232), 1x Phoenix (RS-422, RS-485)
Controls: Camera Movement Speed Knob, Focus Speed Knob, Iris Adjustment/Gain Knob, White Balance Knob, Pan/Tilt/Zoom Joystick, Backlit Button, 9x Camera Selection Buttons, 14x Preset Selection Buttons
Power and Security: No PoE support, ≤6 W power consumption, 1x JEITA power connector, 12 VDC at 2000 mA input power, No security lock support
Control Protocols Supported: Pelco-D, Pelco-P, VISCA
Operating Conditions: -10 to 50°C, 10 to 90% Humidity
Dimensions: 320 x 181 x 110 mm
Weight: 1.5 kg
Presets: 255 Preset Settings
