Fujifilm X-H2S Mirrorless Camera

X-H2S - The FUJIFILM Hybrid

Balancing strong photo and video capabilities, the FUJIFILM X-H2S is a multimedia mirrorless camera featuring a X-Trans stacked sensor, refined AF and subject detection, and an impressive 6.2K video recording. Topping the X System, this camera mixes the intuitiveness, design, and image quality FUJIFILM is known for a fresh, speedy approach to video and continuous shooting applications.

Stacked Sensor and 64-Bit Processing

As a X Series camera built around a stacked sensor, the X-H2S harnesses a 26.1MP APS-C X-Trans CMOS 5 BSI design to deliver dramatically faster readout speeds and low-light performance that sets a standard for the series. First, as an X-Trans sensor, it uses the unique colour filter array that inherently minimises moiré and contributes to more natural colour rendering; next, the BSI design helps reduce noise and improve tonality and clarity; and, finally, the stacked design greatly reduces rolling shutter and other motion distortion to better suit high-speed video and photo applications.

Partner to the newly designed sensor is a fresh engine (the X-Processor 5) which uses 64-bit processing to realise 3x faster speeds for both video and photo tasks compared to the X-T4. On the video side, this enables recording at up to 6.2K with high bitrates like ProRes 422 HQ or at high speeds, like with 240 fps recording at Full HD.

On the stills end, this quick processing means faster shooting to suit photographing moving subjects. When working with an electronic shutter, shooting at up to 40 fps is possible, with a buffer of 140 consecutive uncompressed raw frame. With the mechanical shutter, shooting speeds up to 15 fps is possible, along with the ability to shoot upwards of 1000 raw frames in a single burst.

Benefitting both video and stills applications, this processing also benefits the sophisticated and AI-backed autofocus system, helps achieve a 14-stop dynamic range, and enables a broad sensitivity range from ISO 160-12800.

Powerful Video Capabilities

With a penchant for video, the X-H2S has a well-rounded recording system that places this camera squarely in the 'hybrid' category and performs equally well for video as it does for video. Internal 4:2:2 10-bit recording is possible in both DCI/UHD 4K at up to 120p and Full HD at up to 240p as well as an open-gate 3:2 6.2K setting that's suitable for anamorphic applications. A variety of codecs are supported as well, including H.265 and three tiers of ProRes: the high bitrate 422 HQ, the standard 422, and the more compressed 422 LT. Also, continuous recording times up to 90 minutes are possible at all frame rates and resolutions.

Using the full-size HDMI port, raw video recording is possible when paired with a compatible external recorder. Both ProRes RAW and Blackmagic RAW recording is possible, along with the ability to work with F-Log or F-Log 2 profiles, and either format supports working in resolutions up to the open-gate 6.2K.

Improved Autofocus and Image Stabilisation

Benefitted by the improved processing, autofocus performance is noticeably faster and more intelligent. This hybrid focusing system uses 425 phase-detection points and is now sensitive down to -7 EV for working in truly low-light conditions. Also, backed by deep learning, an AI adaptive algorithm means this focusing system is better suited to automatically detect and track a variety of subject types. Compared to previous focusing systems, the X-H2S's Face and Eye Detection capabilities have been refined for greater accuracy and to account for unique features, like glasses, face coverings, and hairlines. Also, the range of recognised subject types has been expanded to include cars, planes, trains, motorcyclists, birds, horses, dogs, cats and more.

Built-in 5-axis sensor-shift image stabilisation helps to minimise the appearance of camera shake by up to 7 stops. This system works in conjunction with most X Series lenses, including non-stabilised ones, and benefits working with slower shutter speeds and when shooting in difficult lighting conditions. Additionally, digital image stabilisation can also be used during video recording to further aid in steadying footage, especially when recording handheld.

Body Design

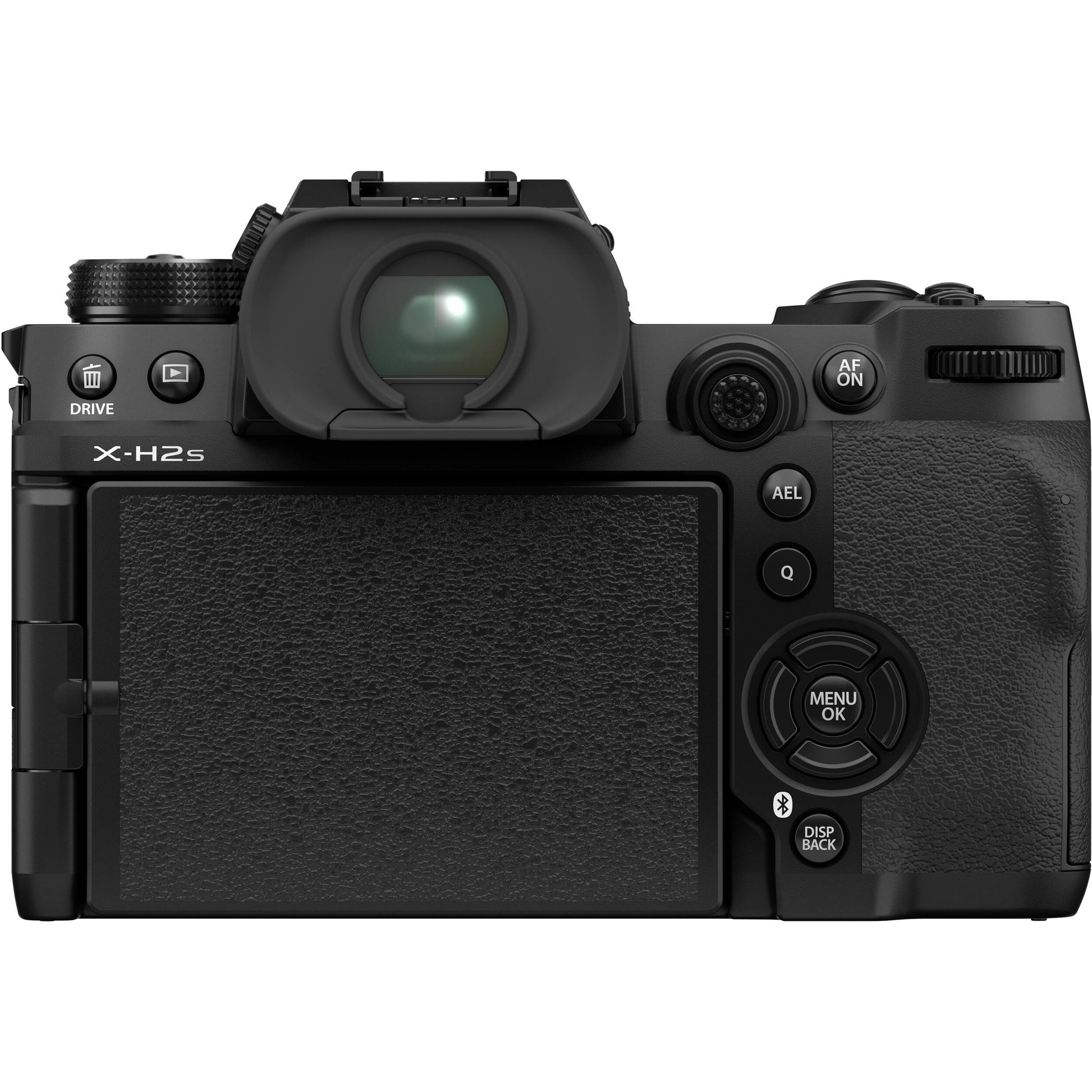

Large OLED electronic viewfinder features a crisp 5.76m-dot resolution and a 0.8x magnification for bright, clear, and detailed eye-level viewing.

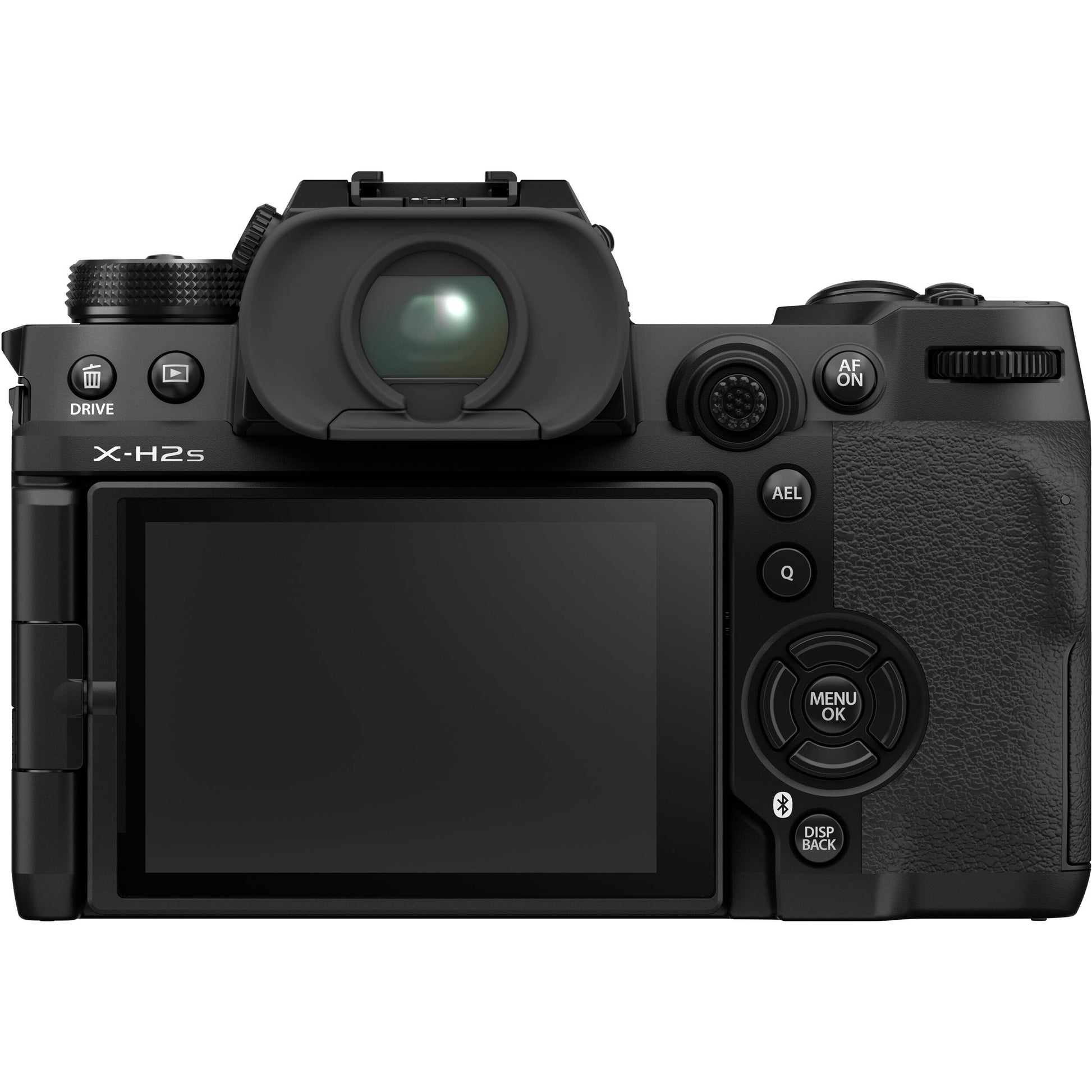

Rear 3.0" LCD has a high 1.62m-dot resolution and a touchscreen interface for intuitive control. Also, its vari-angle design means the screen can be flipped out to the side, tilted up or down, and closed with the screen against the body for protection.

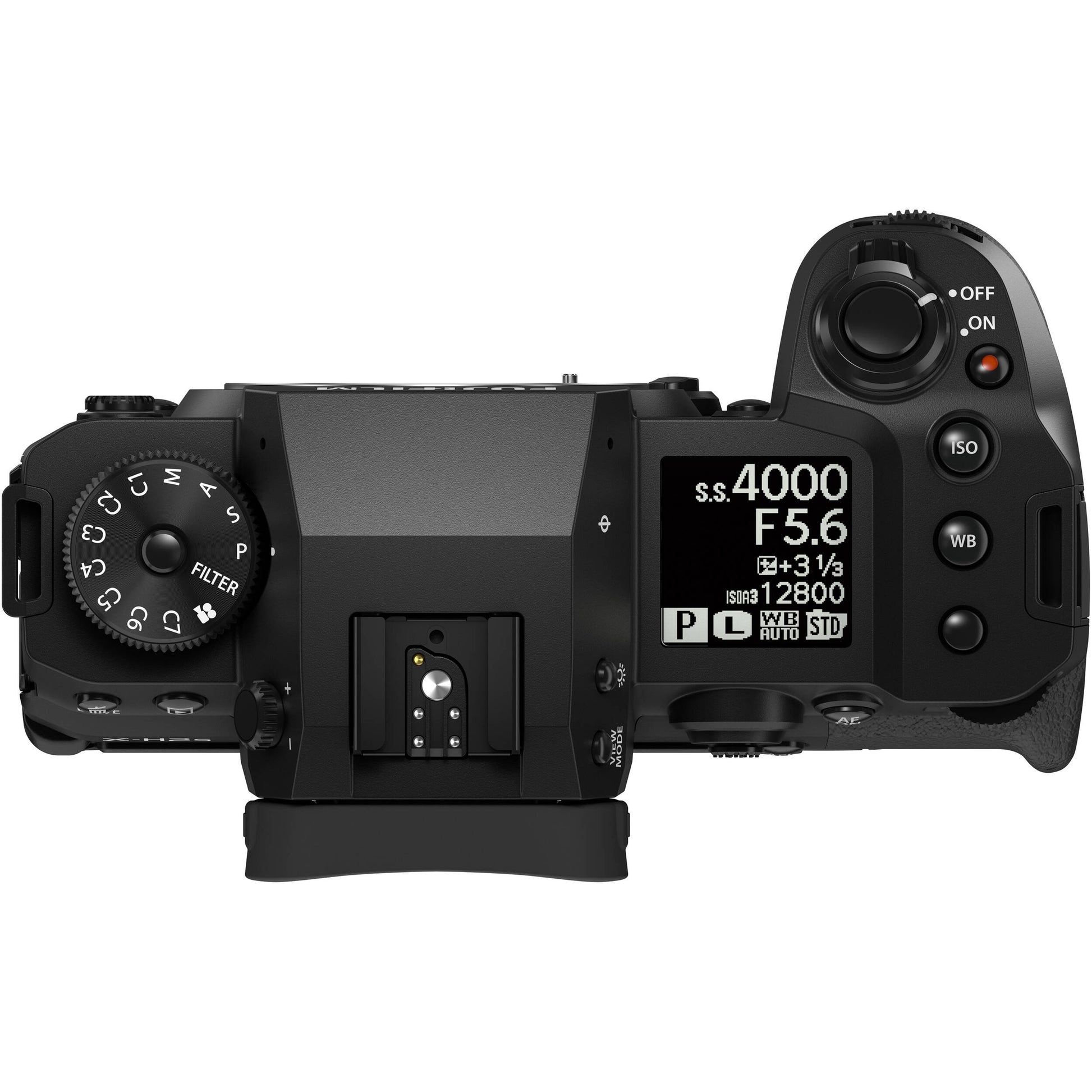

1.28" monochrome LCD screen on the top plate is a simple means for quickly reviewing shooting settings.

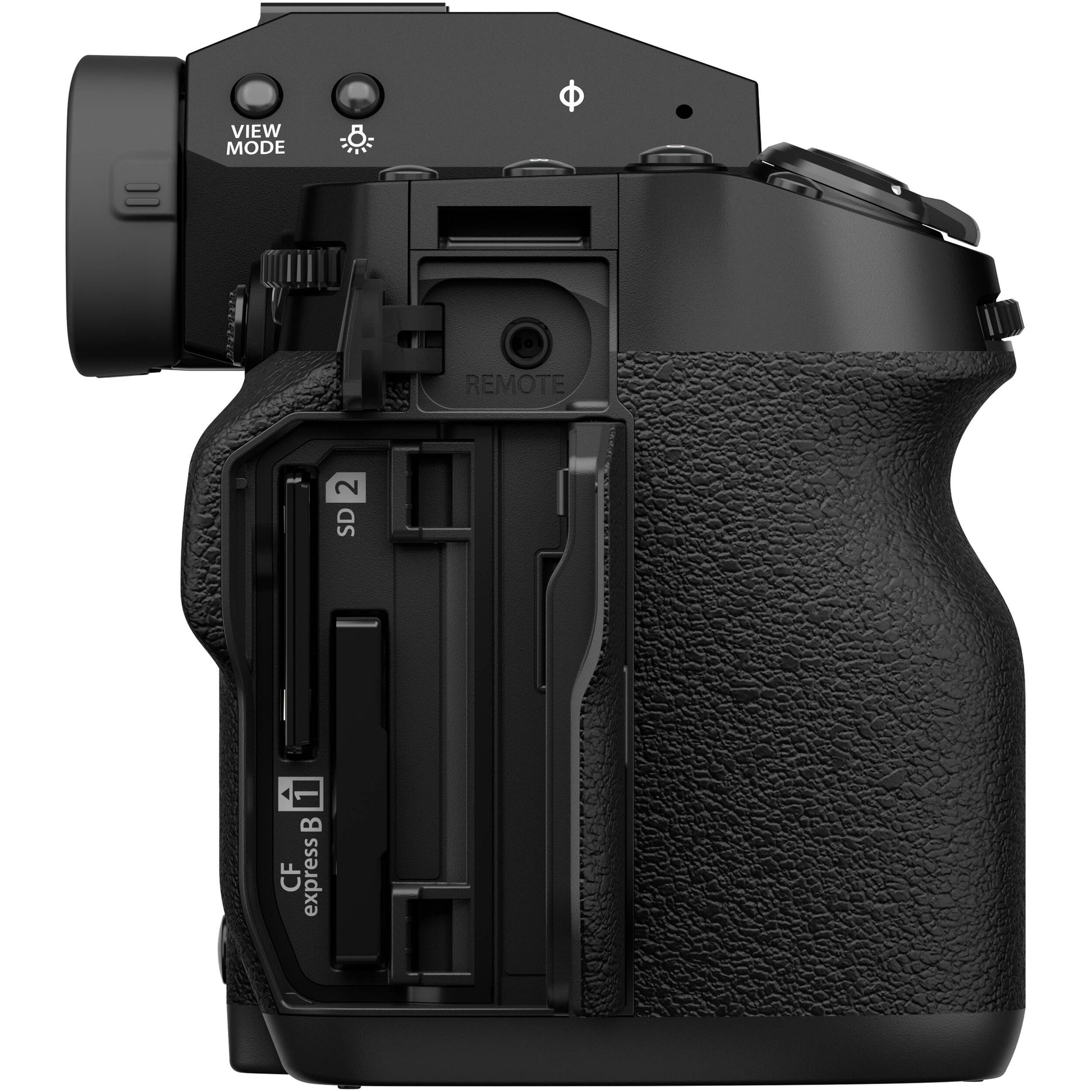

Dual memory card slots include one CFexpress Type B slot and one SD UHS-II slot for file-saving flexibility. The CFexpress Type B slot should be prioritised for higher bitrate video recording and fast continuous shooting, and the SD slot is a convenient alternative for backups or less speed-critical shooting.

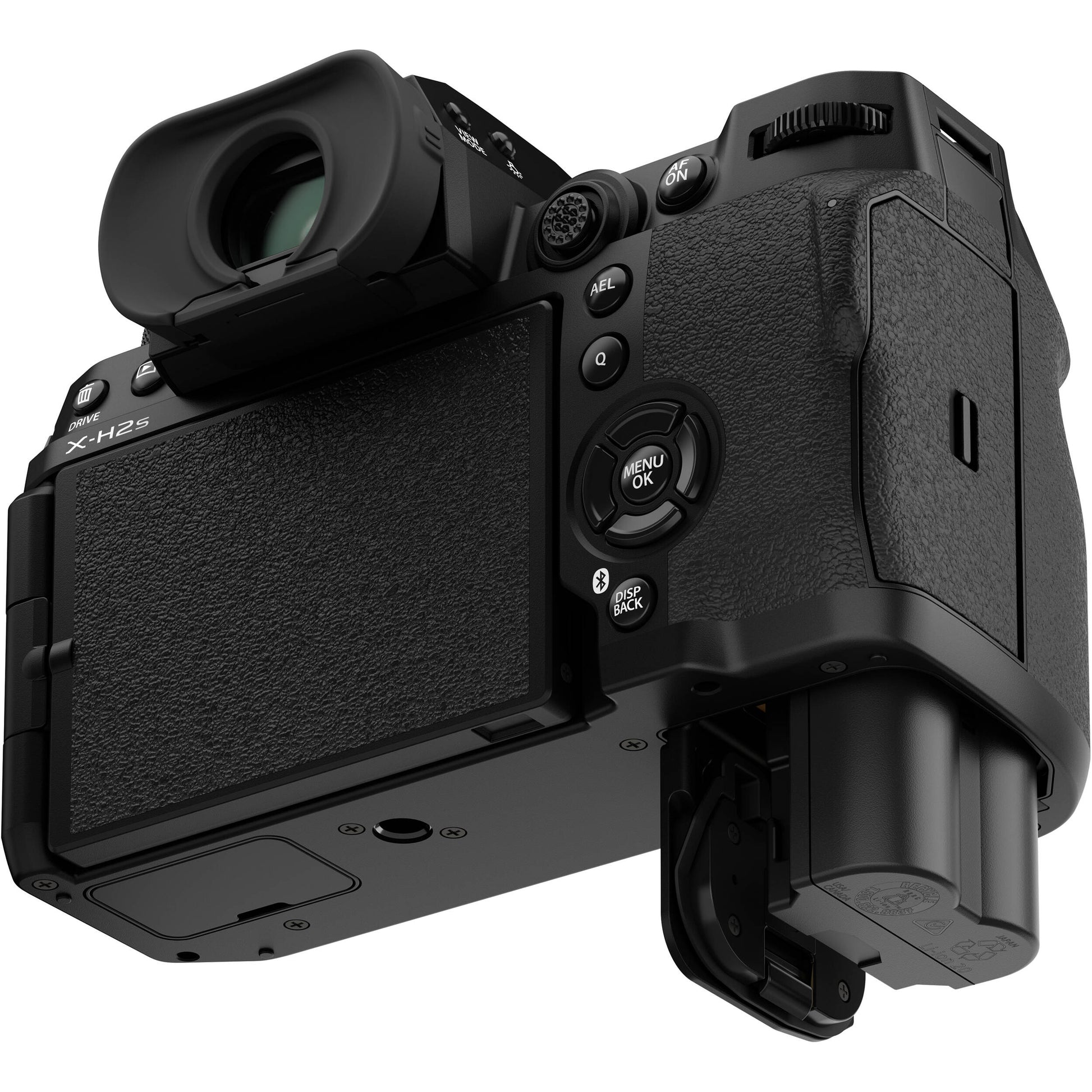

NP-W235 battery provides approximately 720 frames per charge when working with the EVF in Economy Mode, or approximately 580 frames in Normal Mode.

Connectivity

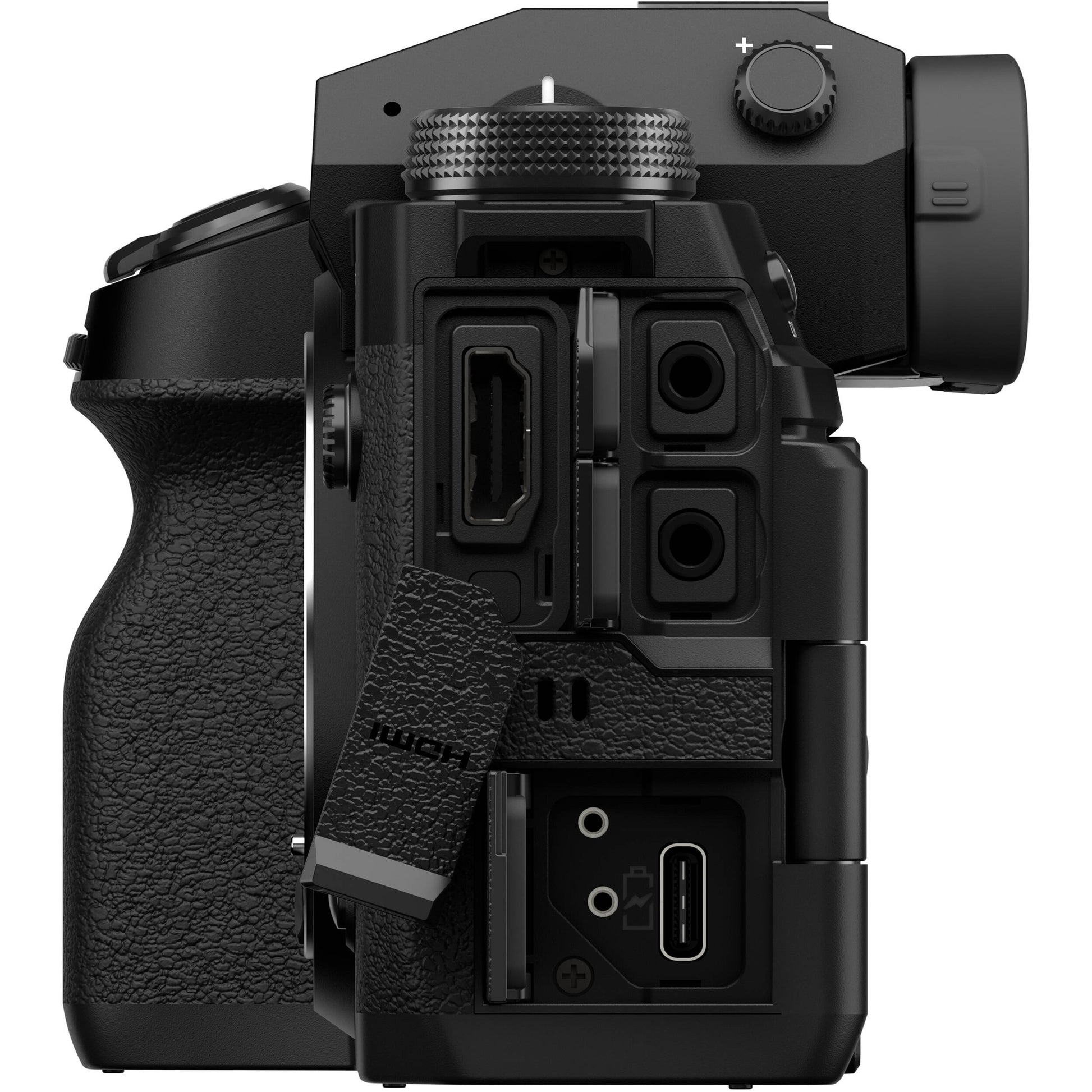

• Full-size HDMI Type A port for outputting video to an external recorder or monitor.
• USB 3.2 Gen 2 Type-C port supports tethering, data transfer, and in-camera battery charging.
• 3.5mm headphone and external microphone ports for greater control over audio recording.
• PC sync port for flash sync.
• 2.5mm remote port for using wired remote controllers.
• Integrated Bluetooth and Wi-Fi connectivity allow for wirelessly sharing images to a mobile device or to use the device to remotely control the camera.

Film Simulation Modes

Film Simulation modes allow you to reproduce the look and feel of several of FUJIFILM's film types, including Provia, Velvia, Astia, Classic Chrome, Classic Neg., Nostalgic Neg., Pro Neg. Hi, Pro Neg. Standard, Eterna, Eterna Bleach Bypass, Acros, Monochrome, and Sepia. Additionally, Grain Effect can be adjusted as well as the Colour Chrome effect to fine-tune the look of imagery.

• Fujifilm X-H2S Mirrorless Camera (Black)
• Fujifilm NP-W235 Lithium-Ion Battery
• AC Power Adaptor AC-5VJ
• Plug Adaptor
• USB Cable
• Shoulder Strap
• Fujifilm Body Cap BCP-001
• Hot Shoe Cover
• File Transmitter/Vertical Grip Connector Cover
• Memory Card Slot Cover
• Sync Terminal Cover
• Cooling Fan Connector Cover
• Cable Protector
• Limited 2-Year Warranty

Lens Mount: Fujifilm X
Sensor Resolution: Effective 26.16 MP (6240 x 4160)
Image Sensor: 23.5 x 15.6 mm APS-C CMOS
Sensor Crop (35mm Equivalent): 1.5x (additional crop in select video modes)
Image Stabilisation: Sensor-shift, 5-axis
Built-In ND Filter: No
Capture Type: Stills & Video
Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed: Electronic 1/32000 to 15 min, Mechanical 1/8000 to 15 min, various mode-dependent ranges
Bulb/Time Mode: Bulb up to 60 min
ISO/Gain Sensitivity: Photo Native 160–12,800 (80–51,200 Extended), Video Native 160–12,800 (160–25,600 Extended)
Metering Method: Average, Center-Weighted Average, Multi-Zone, Multiple, Spot
Exposure Modes: Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation: -5 to +5 EV (1/3 EV steps)
White Balance: 2500–10,000K, Presets: Auto, Daylight, Fluorescent, Incandescent, Shade, Underwater
Continuous Shooting: Up to 40 fps (Raw 140 frames / JPEG 184 frames)
Interval Recording: Yes
Self-Timer: 2/10 sec delay
Still Image Capture: Aspect Ratio 1:1, 3:2, 16:9; File Format HEIF, JPEG, Raw, TIFF; Bit Depth 14-bit
Video Capture: H.265/MOV 4:2:2 & 4:2:0 10-Bit, H.265 Long GOP 4:2:2 & 4:2:0 10-Bit, MOV/ProRes 422 10-Bit; Resolutions up to 6240 x 4160 and multiple 4K/2K/1080p frame rates
Video Output: Raw via HDMI, 4:2:2 10-Bit via HDMI at various resolutions and frame rates
Fast-/Slow-Motion Support: Yes
Gamma Curve: FUJIFILM F-Log, F-Log2
Recording Limit: No
IP Streaming: No
Built-In Microphone: Stereo
Audio Recording: MOV: 2-Channel 24-bit 48 kHz LPCM, MP4: 2-Channel AAC
Media/Memory Card Slot: Slot 1: CFexpress Type B/CFast 2.0 (2 TB max), Slot 2: SD/SDHC/SDXC (UHS-II, 2 TB max, V90 recommended)
Internal Storage: No
Video I/O: 1x HDMI Output
Audio I/O: 1x 3.5 mm TRS Headphone, 1x 3.5 mm TRS Microphone
Power I/O: 1x USB-C Input/Output
Other I/O: 1x 2.5 mm Sub-Mini Remote, 1x PC Flash Sync Output, 1x USB-C (USB 3.2/3.1 Gen 2) Data/Remote
Mobile App Compatible: Yes, Android & iOS, FUJIFILM XApp (access files, adjust settings, firmware update, remote control, setup, live view)
GPS: Via connected smartphone
Monitor: Free-angle tilting 3" touchscreen LCD; Top status 1.3" LCD; Resolution 1,620,000 dot
Viewfinder: Electronic OLED, 0.5", 5,760,000 dots, Eye Point 24 mm, 100% coverage, Magnification 0.8x, Diopter -5 to +3
Focus: Auto & manual, Continuous-Servo AF, Single-Servo AF, Manual Focus; Phase Detection 425 points
Flash: No built-in; Modes Auto, Commander, First/Second-Curtain Sync, Manual, Off, TTL Auto; Max sync 1/250 s; TTL dedicated flash; PC Terminal
Battery: 1x NP-W235 Li-Ion 7.2V 2200 mAh, ~720 shots
Shoe Mount: 1x Hot Shoe

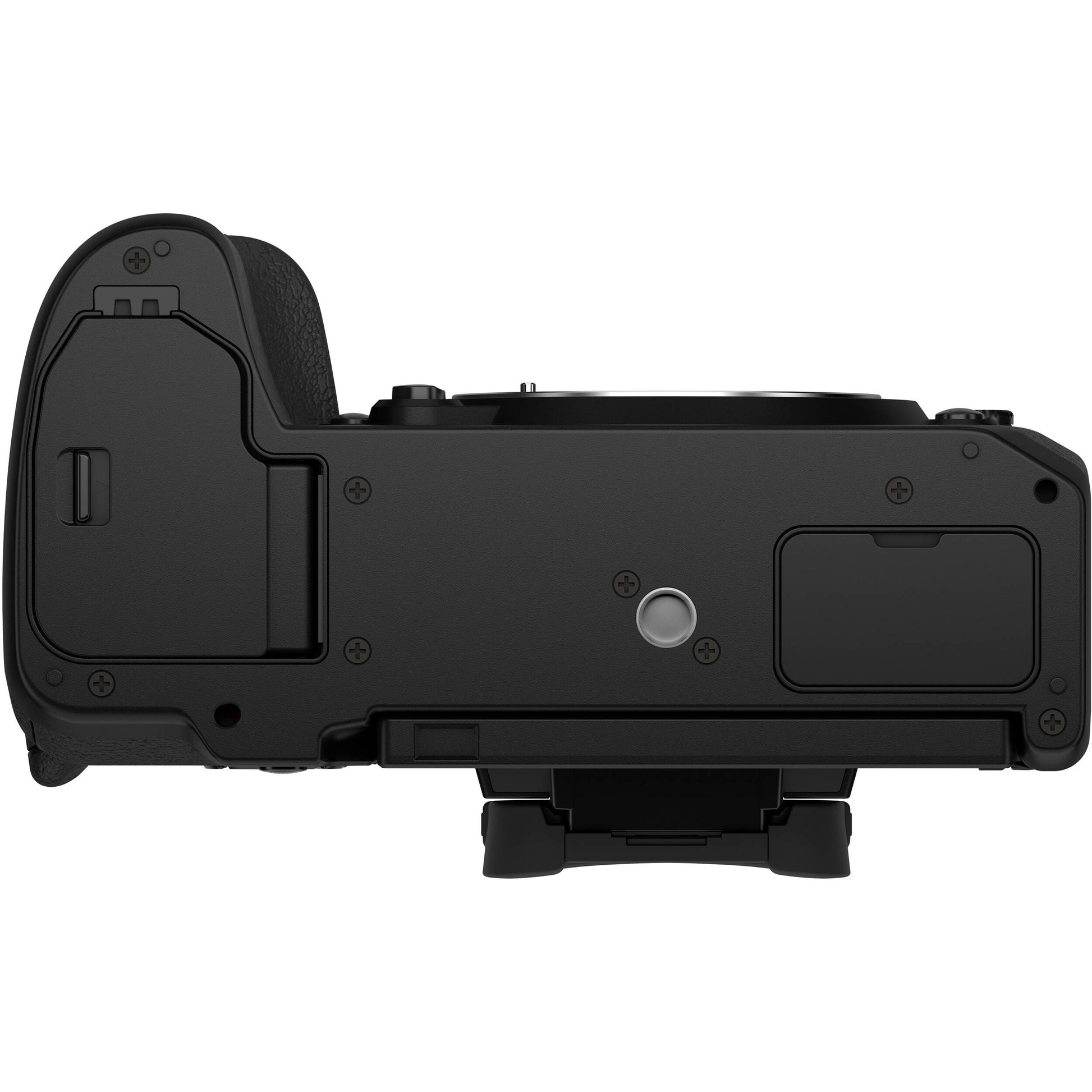

Tripod Mount: 1x 1/4"-20 Female (Bottom)
Operating Conditions: -10 to 40°C, 10–80% Humidity
Dimensions (W x H x D): 136.3 x 92.9 x 84.6 mm
Weight: 579 g (body only), 660 g (with battery & media)
