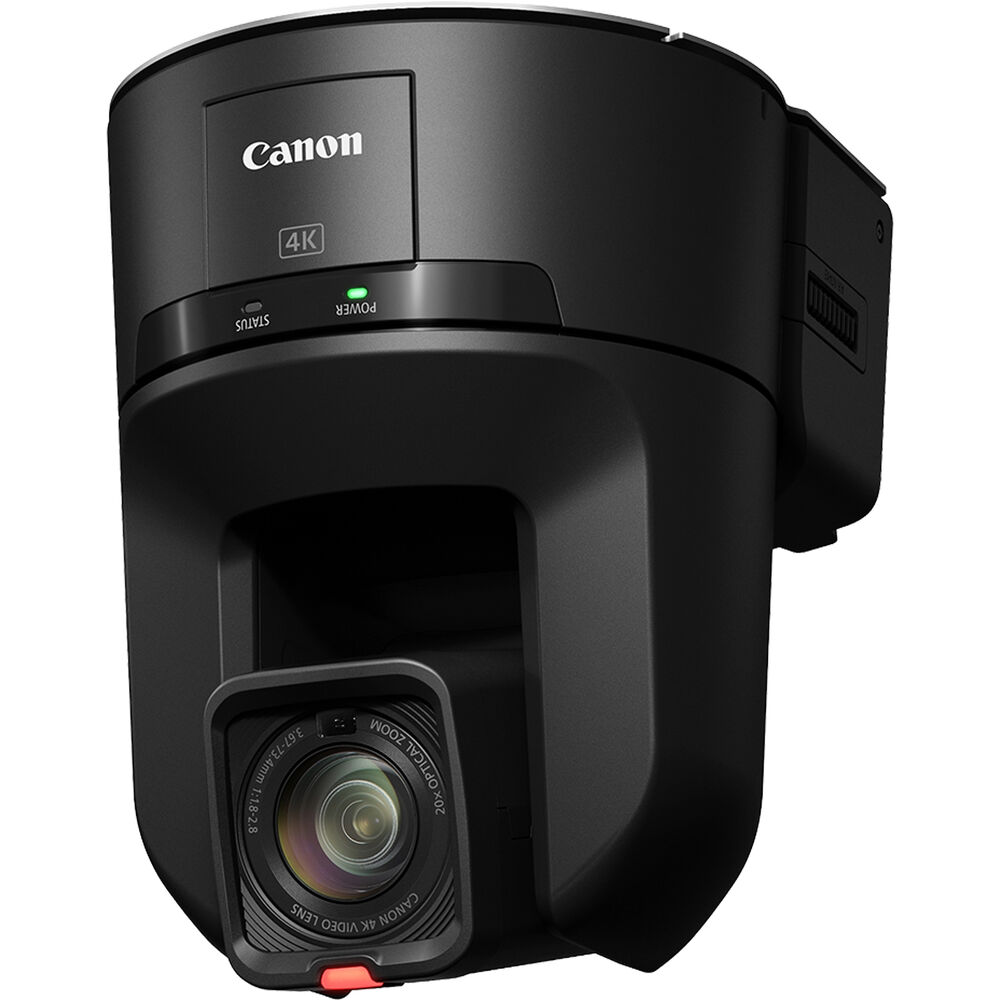

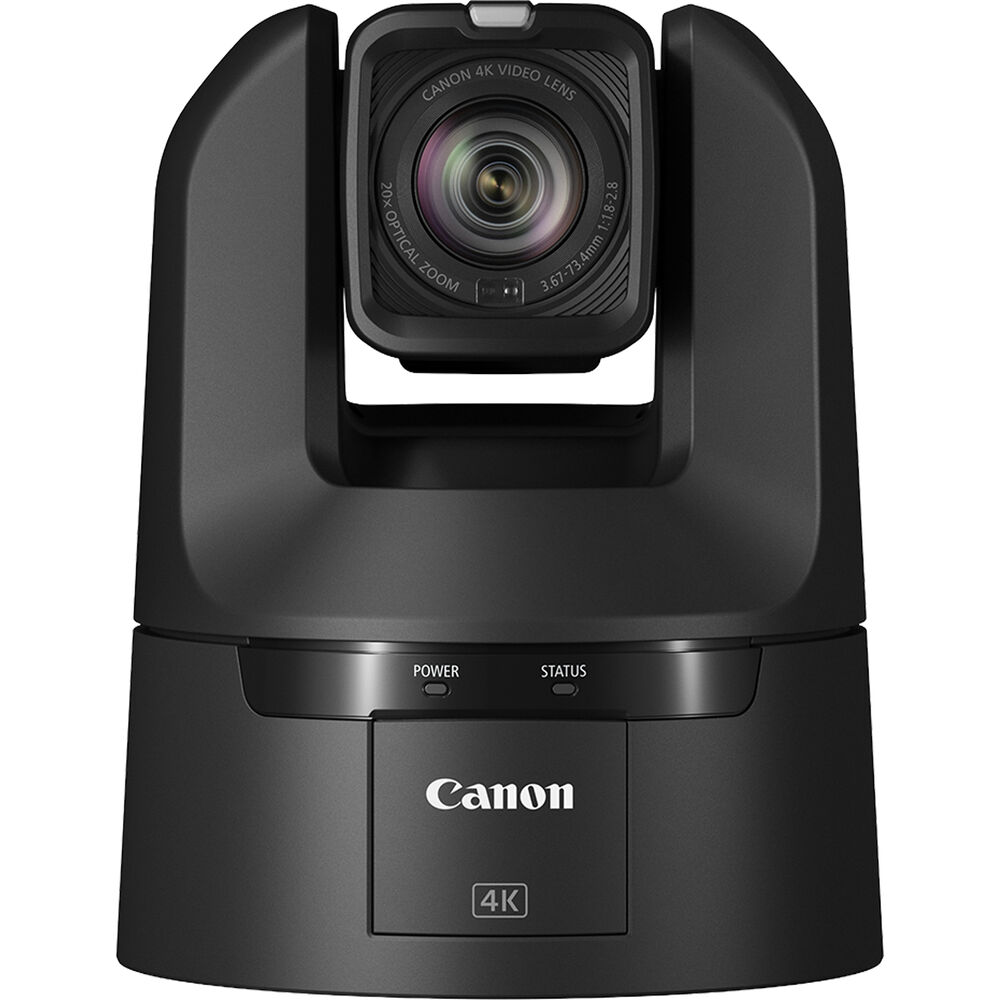

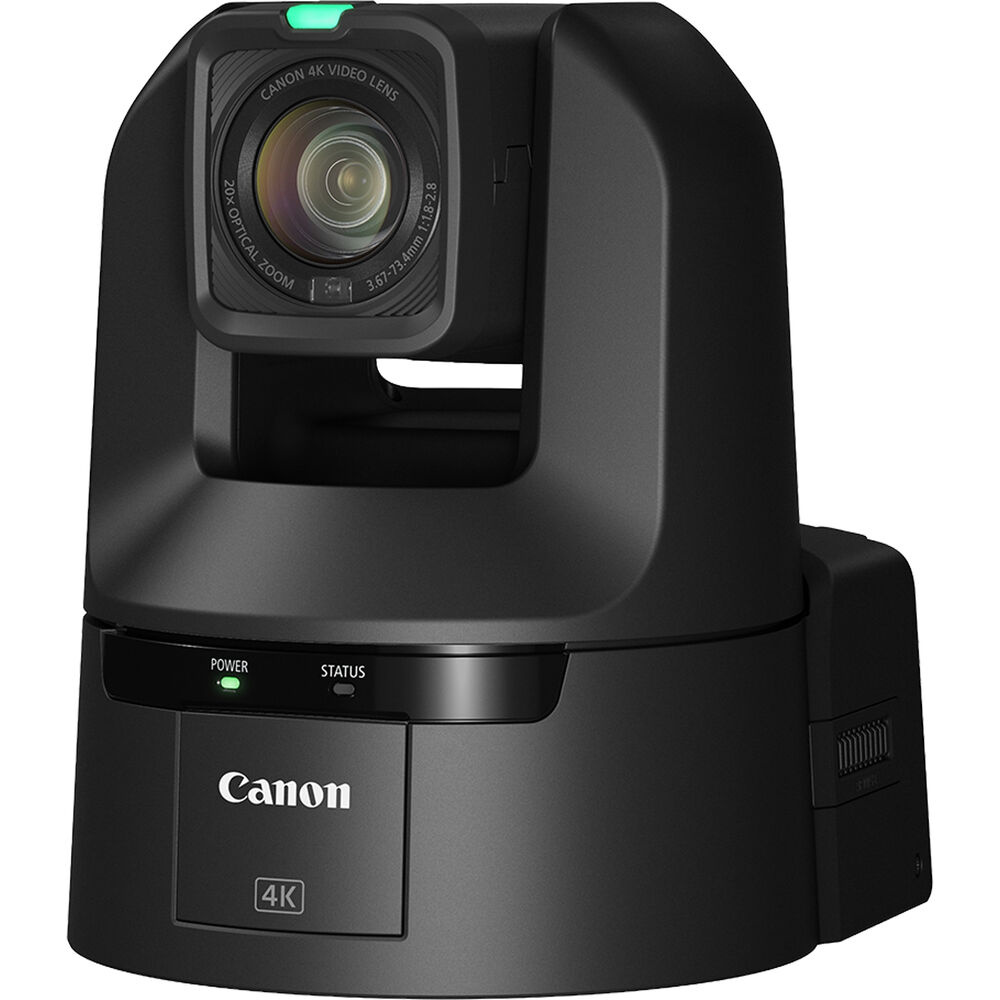

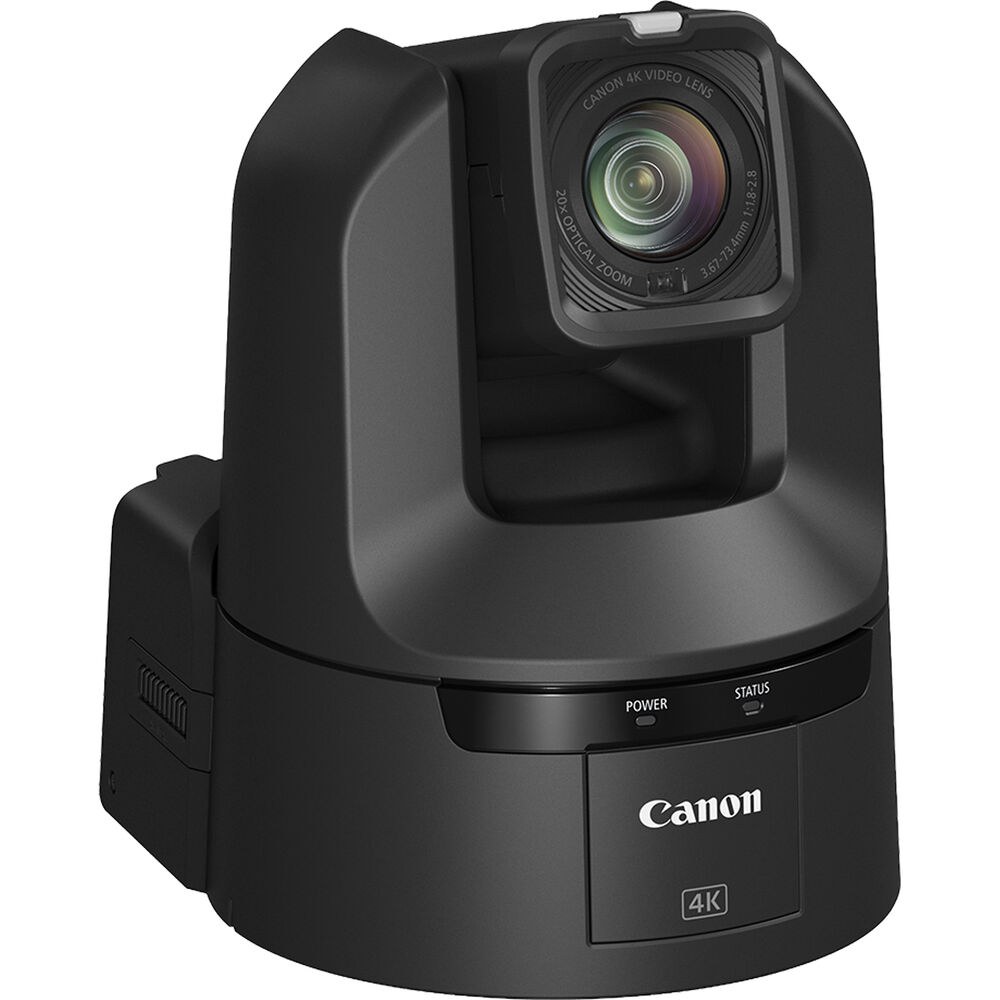

Canon CR-N400 PTZ Camera (Black)

The Canon CR-N400 PTZ Camera (Black) is a professional-grade camera designed for high-quality broadcast and live production. It delivers stunning 4K60P video, ensuring ultra-sharp detail and smooth motion, making it ideal for fast-action events, live sports, and cinematic scenes. The camera’s HDR capability, powered by the DIGIC DV7 processor, preserves highlights and shadows while providing sharp clarity, vivid contrast, and lifelike colour even in challenging lighting conditions.

Designed for seamless integration into professional workflows, the CR-N400 supports 12G-SDI, Time Code, Genlock, and Dual XLR inputs. Its robust connectivity ensures fast setup, reliable performance, and full studio compatibility. The camera’s advanced 40x Full HD zoom allows distant subjects in arenas, stadiums, and auditoriums to be captured with crystal-clear precision, bringing action closer than ever.

Advanced Auto tracking automatically keeps subjects framed and in focus, using face and head detection, precision motion tracking, and a smooth pan/tilt drive unit. This eliminates the need for constant operator intervention while maintaining fluid, professional movements. For consistent, broadcast-ready output, the enhanced Camera Colour Matching Application synchronises the CR-N400 with other cameras, ensuring uniform colours across multi-camera productions. With these features, the Canon CR-N400 PTZ Camera combines high-resolution imaging, versatile connectivity, and intelligent automation for demanding professional environments.

• Canon CR-N400 PTZ Camera (Black)
• IR Remote Control
• Mounting Bracket with Screw
• Safety Wire with Screw
• Camera-to-Mount Safety Wire with Screw
• IR Remote Controller
• 2 x AAA Battery
• AC Adaptor
• Power Cable
• Limited 3-Year Warranty

Image Sensor: 1/2.3"-Type CMOS
Resolution: Actual 21.14 MP, Effective 8.59 MP (3840 x 2160 UHD), 7.88 MP (3744 x 2104)
IR Cut Filter: No
Focus Control: Autofocus / Manual Focus
Shutter Speed: 1/3 to 1/2000 sec
Minimum Illumination: 3 Lux @1/60 sec, 1.5 Lux @1/30 sec
White Balance: 2000–15,000K, AWB, Daylight, Manual, Set A/B, Tungsten

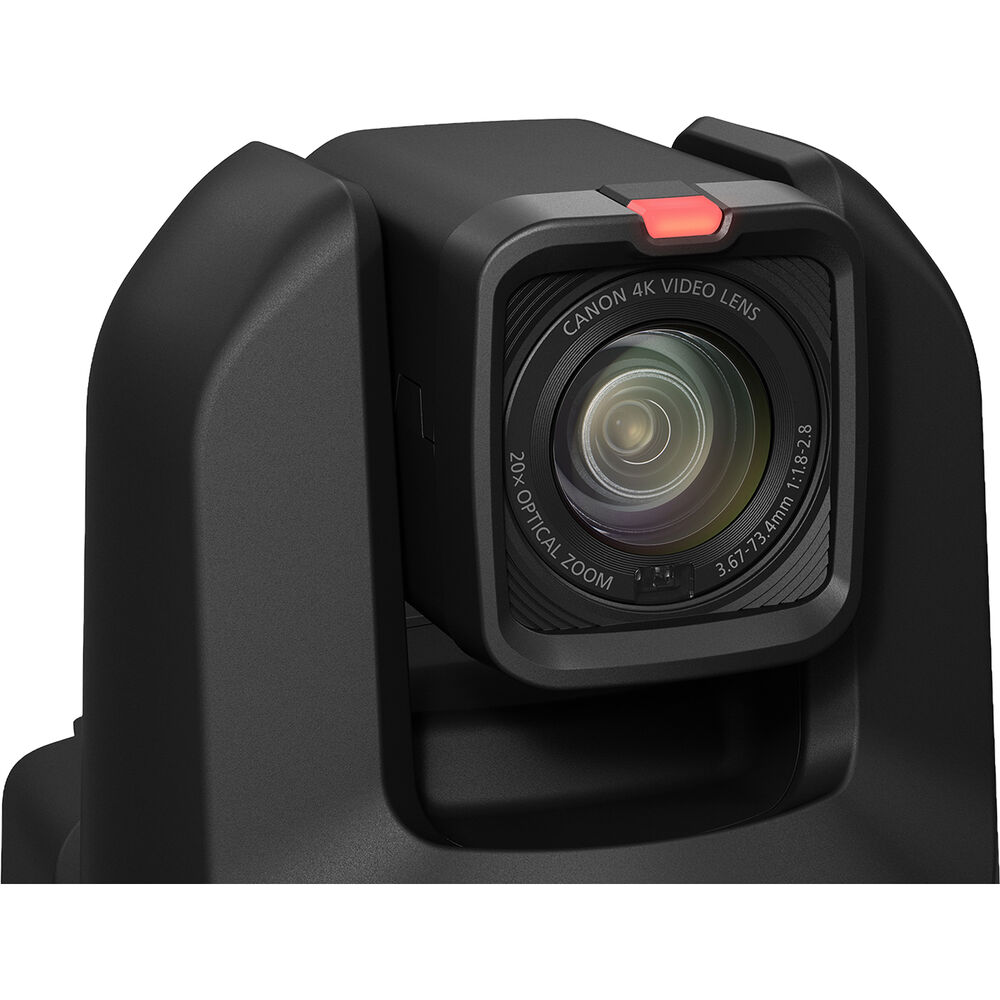

Lens Focal Length: 3.7–73.4mm (29.3–601mm 35mm equivalent)
Max Optical Zoom: 20x
Max Digital Zoom: 20x (UHD 4K), 40x (1080p)
Field of View: Horizontal 63.3–3.5°, Vertical 38.9–2°
Maximum Aperture: f/1.8–2.8
Minimum Focus Distance: 1 cm (Wide) to 60 cm (Tele)
Video Output:
4K UHD 3840x2160 up to 59.94 fps (4:2:0 8-bit via RJ45, 4:2:2 10-bit via HDMI/SDI)
1080p up to 59.94 fps, 720p/480p supported
Audio: HDMI/IP/NDI/SDI embedded, stereo recording, built-in microphone
IP Streaming: H.264 via NDI HX, RTMP, RTMPS, RTP, RTSP, SRT
Control: 100 presets via IP, IR, RS-422
Pan/Tilt: Pan 340° (-170° to 170°) @0.1–200°/s, Tilt 130° (-30° to 100°) @0.1–180°/s
Tally Light: Yes

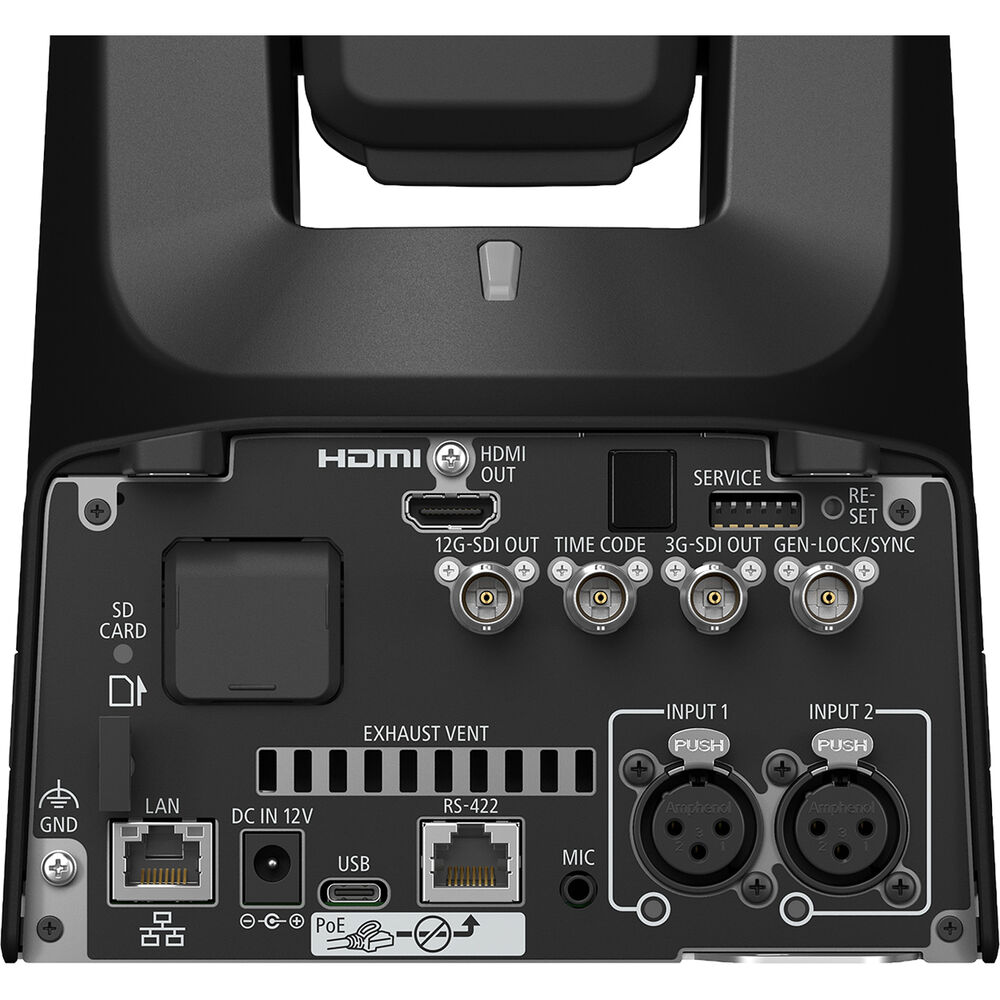

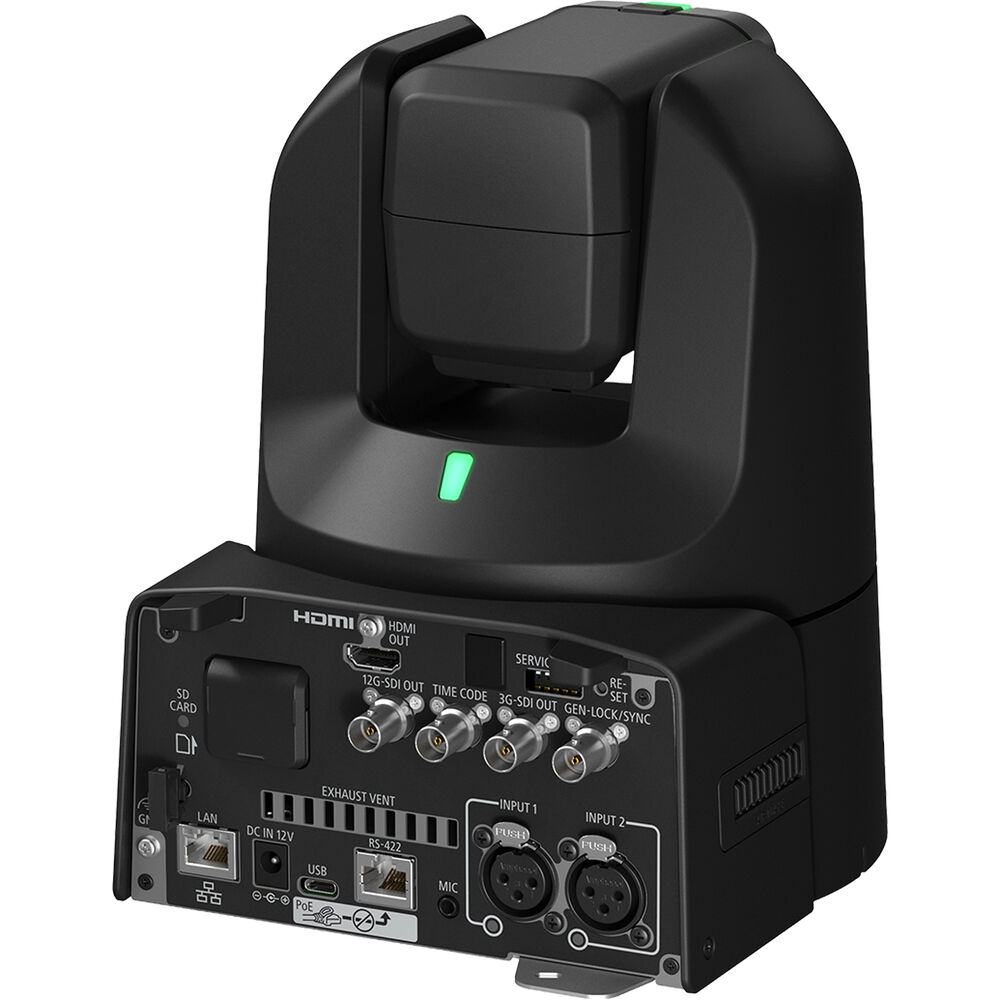

Video I/O: 12G-SDI, 3G-SDI, HDMI, RJ45 (NDI)
Audio I/O: 2x XLR, 1x 3.5mm TRS
Other: RJ45 (RS-422), BNC Timecode/Genlock, USB-C Control
Power: PoE++ 802.3bt, 12V DC Input, Consumption 34.4 W (PoE), 33.8 W (DC)
Environmental: Operating 0–40°C, 10–90% humidity
Mounting: 1/4"-20 female for tripod
Dimensions (W x H x D): 220 x 194 x 176 mm
Weight: 3.1 kg (body only)
