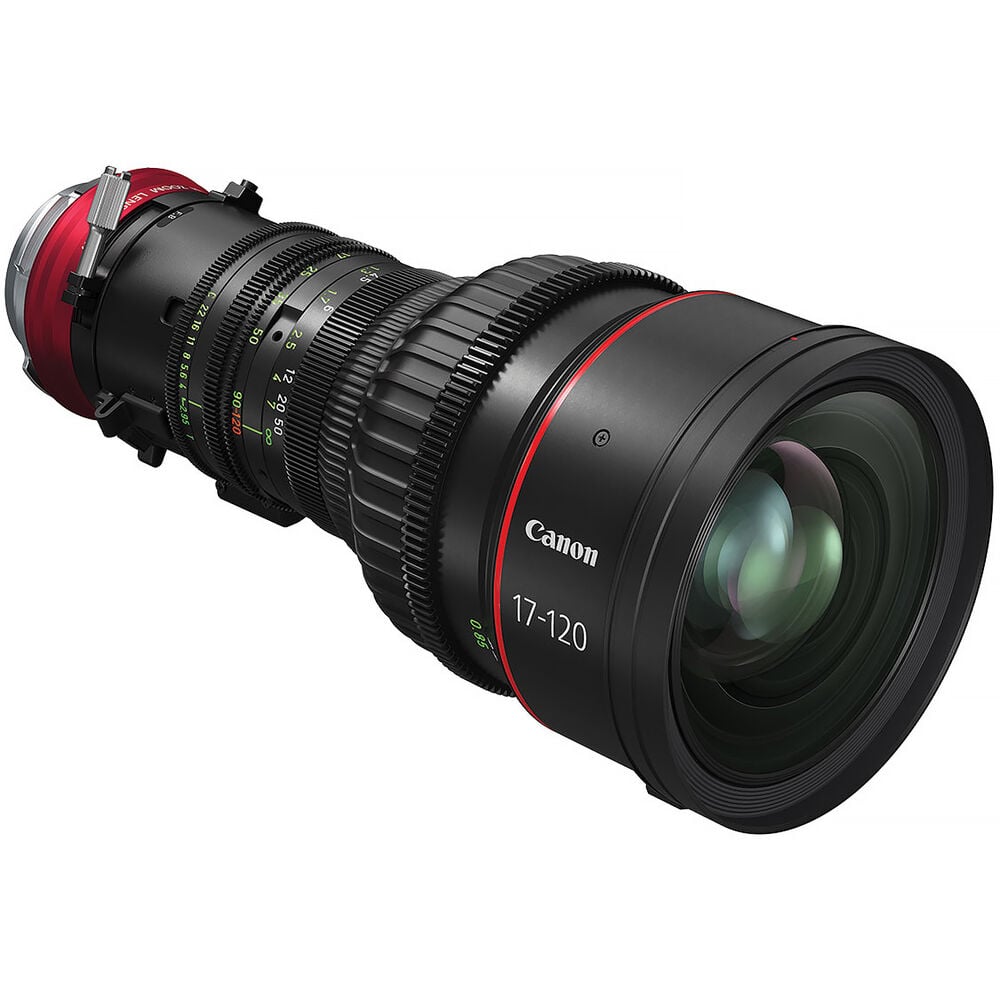

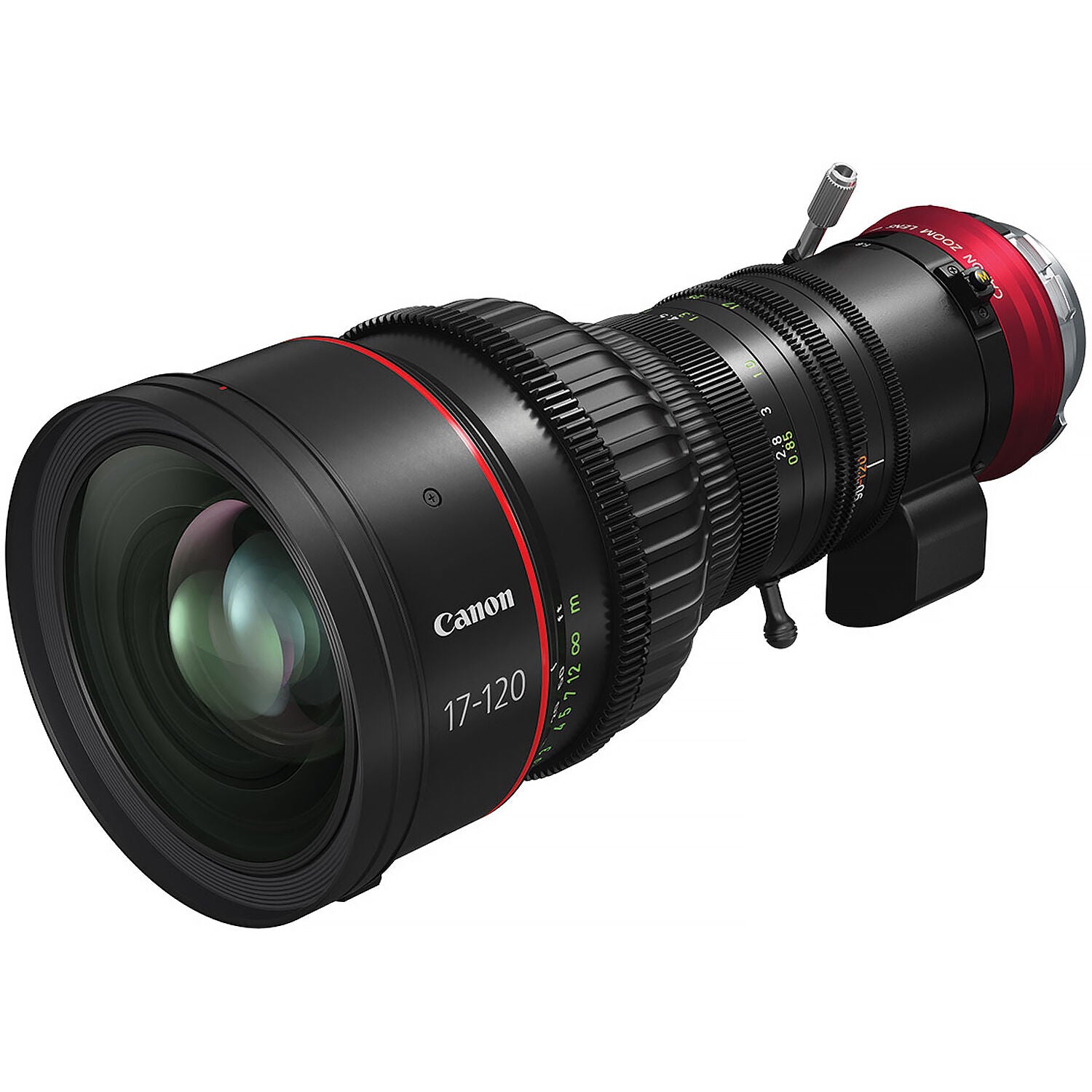

Canon CN7X17 PL 17-120mm T2.95-3.9 Lens

Versatile range. Powerful connection.

A Super 35mm Cine-Servo lens with an expansive zoom range, appealing to live sports and news, to documentary, film, remote and virtual productions.
With advanced metadata support, and a new generation eXs-V digital servo drive unit, CN7X17 KAS T delivers performance and precision for your production needs.

Improved servo performance

A faster servo than the previous drive unit allows for a more responsive iris, which, along with the renowned focus and zoom speeds, making the eXs-V drive optimised for sports broadcasts and live events.

Re-engineered design

An intuitive grip matches the shape of a hand for comfortable support during longer periods, while a repositioned display on the top of the unit gives better visibility when shooting.

Precise optical performance

Supports resolutions up to 8K HDR from the centre to the periphery with organic colour reproduction. With 11 iris blades, CN7X17 KAS T produces softly diffused highlights and silky out of focus backgrounds. An expansive 7x optical zoom with 17-120mm focal length delivers a versatile shooting experience.

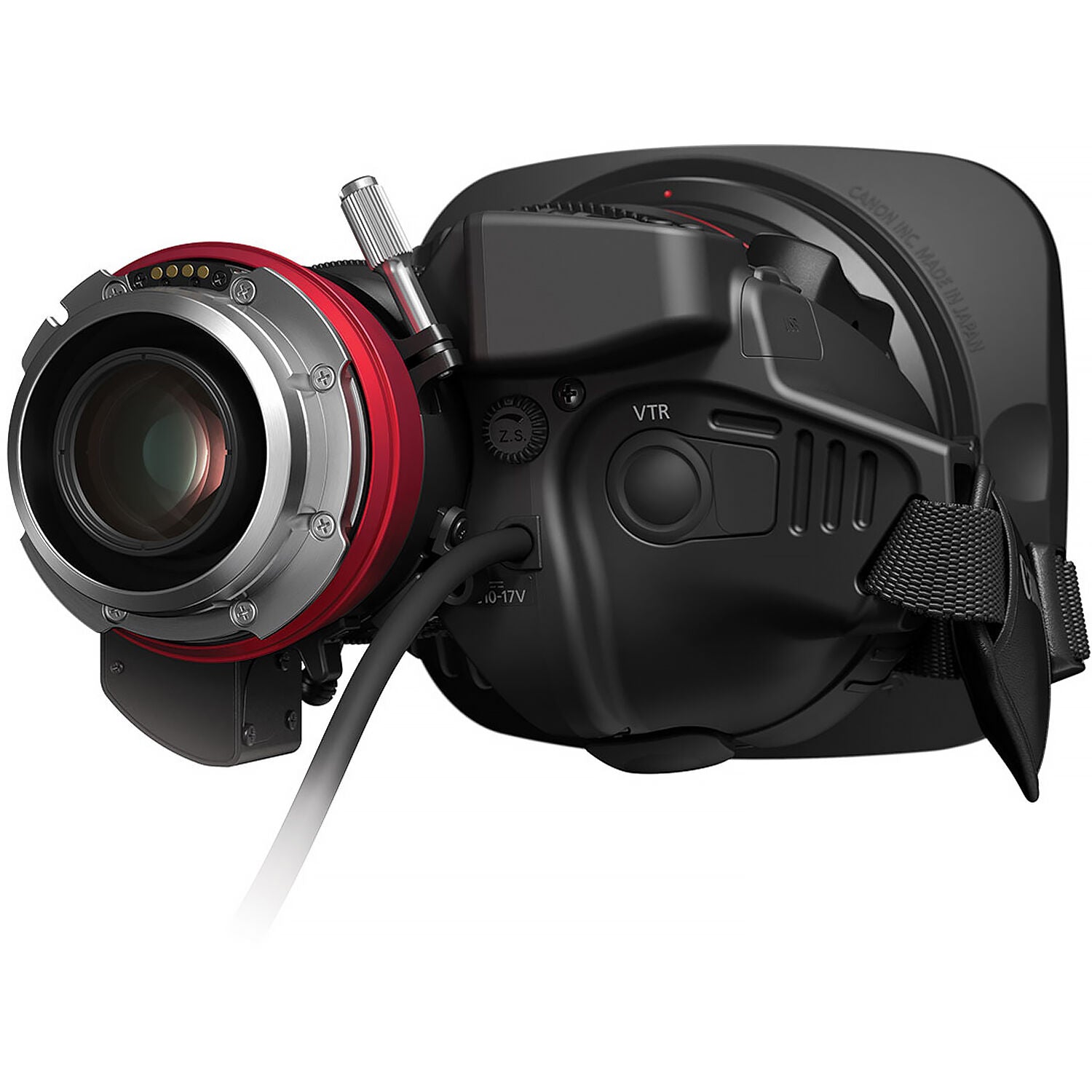

RF or PL mount communication

Thanks to the RF mount, CN7X17 KAS T offers lens distortion correction and real time metadata capture. While PL mount users benefit from Cooke /i TechnologyTM and ZEISS eXtended DataTM. Both mounts provide compatibility with virtual production and VFX workflows.

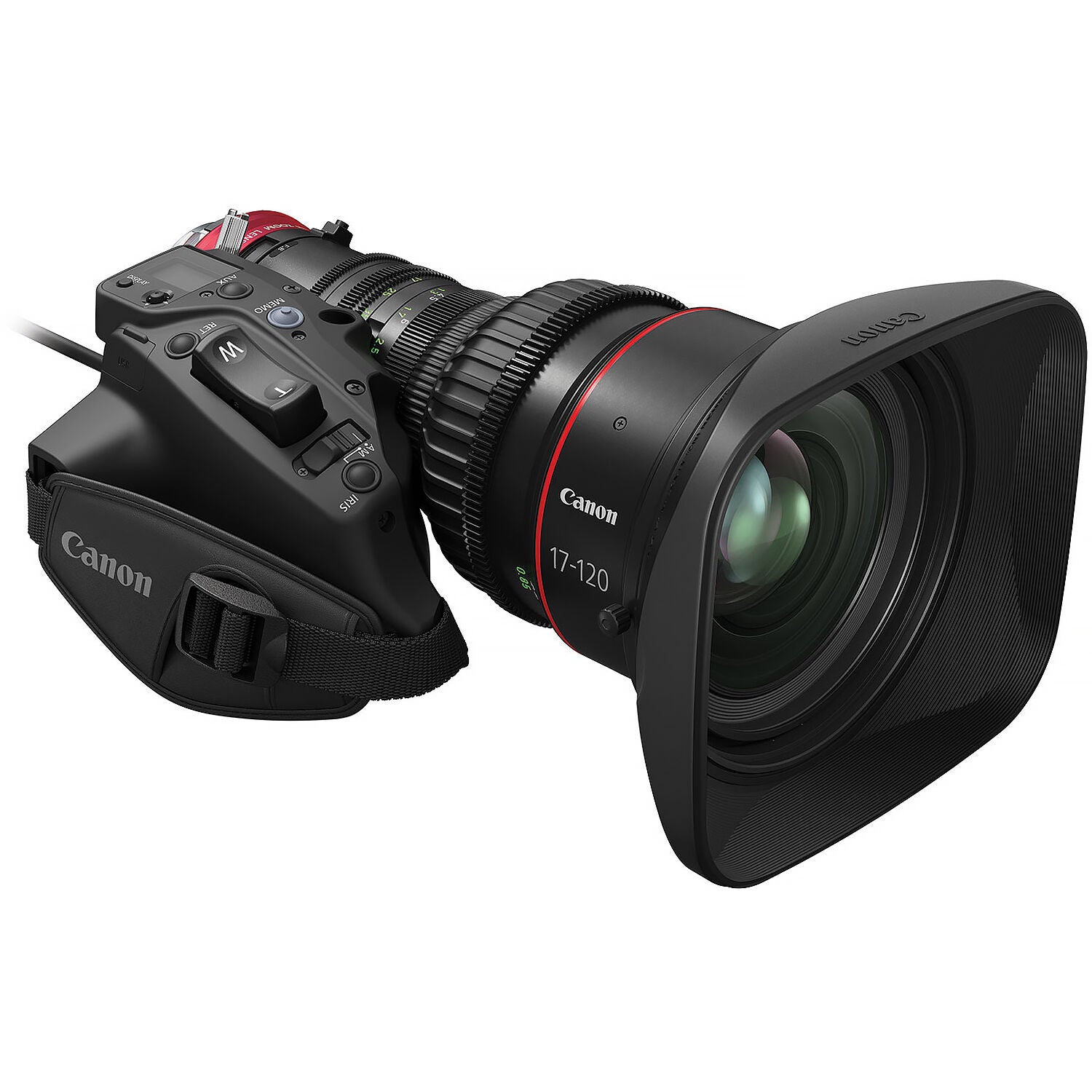

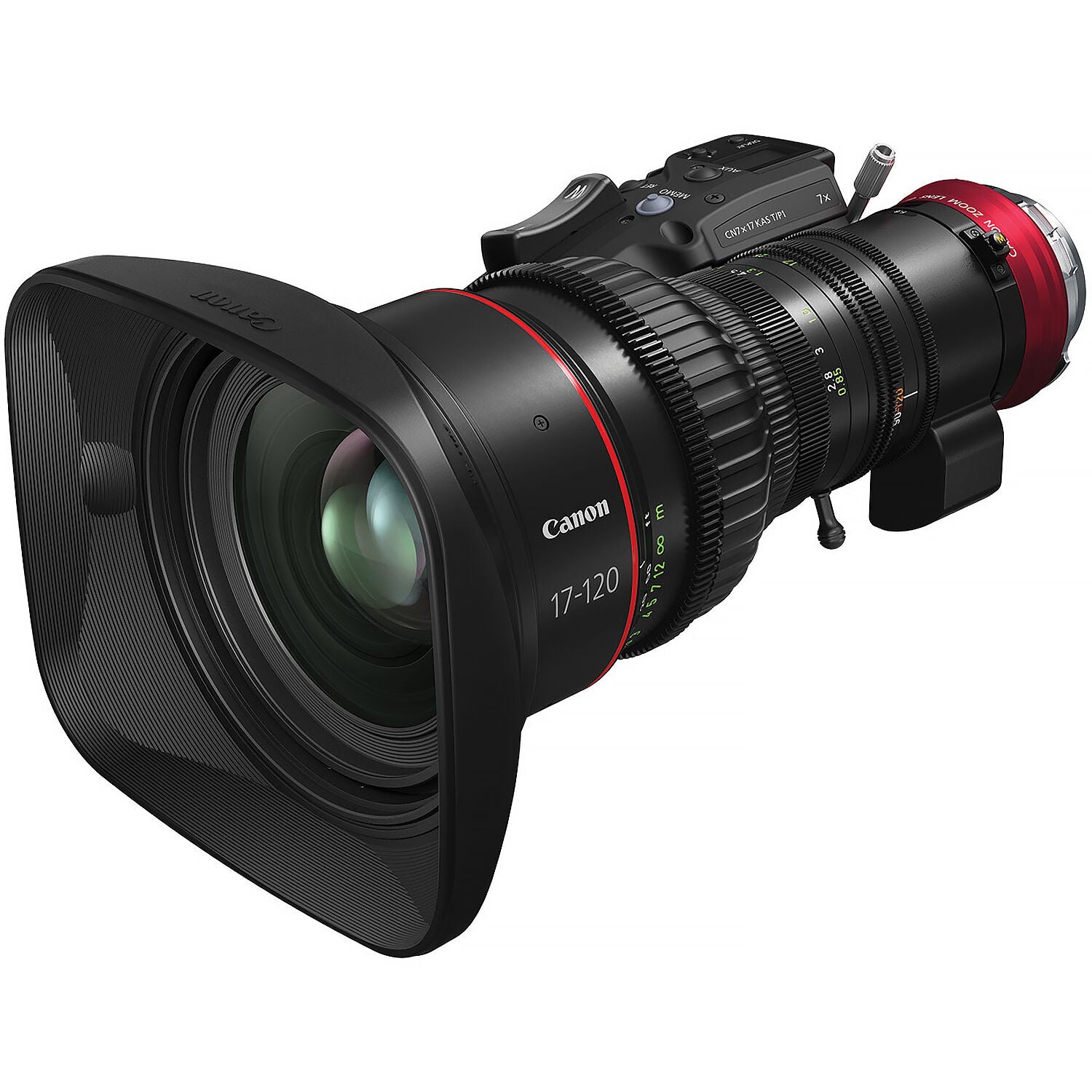

Re-engineered digital drive unit

Shoot with precision thanks to fast servo control with optical focus breathing correction for more intuitive performance. Multiple interfaces including three 20-pin connectors and USB-C allow for remote control and optimised user settings, while a 16-bit encoder ensures precise lens data output for virtual productions.

• Canon CN7X17 PL 17-120mm T2.95-3.9 Lens
• Drive Unit
• Lens Cap
• Dust Cap
• Hood
• Hood Cap
• Lens Support with 19mm Holder
• 3 x Screw
• Storage Bag for Drive Unit
• Limited 2-Year Warranty

Maximum Aperture: T2.95
Minimum Aperture: T3.9
Lens Mount: ARRI PL
Interchangeable Mount: No
Lens Format Coverage: Super35/APS-C
Image Circle: 31.4 mm
Angle of View (Super 35): Horizontal: 71.8° to 44.2°
Focus Scales: Metric, Imperial
Filter Thread: 112 mm
Zoom Ratio: 7x (Servo)
Minimum Focus Distance: 0.85 m
Aperture/Iris Blades: 11
Image Stabilisation: No
Gear Standard: 0.8 MOD
Electronic Communication: Yes
Camera Connection: Hirose 20-Pin (Canon Lens) Control, USB-C Data
Diameter (Overall W × H): 174.1 × 125 mm
Length: 254.9 mm
Weight: 3.04 kg
