Boya BY-XM6-S2 2.4GHz Wireless Microphone Set

The BOYA BY-XM6-S, a 2.4GHz adaptive frequency hopping wireless microphone system, consists of one transmitter and one receiver. It’s a perfect sound-capturing and delivering solution for a one-person vlog, YouTube video, live streaming, interview, recording, etc.

Advanced Technology for Stable Signal Transmission

The BY-XM6-S adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6-S automatically avoid the disturbed hop frequency parts to realise stable signal transmission in the range of up to 100m, without obstacles.

Professional Audio Capturing & Delivering

Featuring a high-quality capsule and signal processing circuit with a signal-to-noise ratio of over 84dB and a distortion rate less than 0.1%, the BY-XM6-S captures and delivers high-quality, clear and low-noise audio.

Ultra-versatile & Easy-to-use Wireless Microphone Kit

With a vivid and easy-to-read OLED display on the transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into the transmitter’s MIC IN jack for sound capturing. Plus, this microphone kit is equipped with both a 3.5mm TRS-TRS audio cable and a 3.5mm TRS-TRRS audio cable. So it can work well with your DSLR or mirrorless camera, smartphone and computer, etc.

• Ideal for two-person vlog, YouTube video, live streaming, interview, recording, etc.
• Compatible with DSLR, mirrorless camera, smartphone and computer
• 2.4GHz wireless dual-channel signal transmission technology
• Hi-Fi and low-noise audio processing and delivering system
• Built with an easy-to-read, vivid, and informative OLED display
• Built-in omnidirectional microphone and lavalier microphone on the transmitter
• Headphone output jack on the receiver for real-time monitoring
• Stereo and mono outputs are available and switchable on the receiver
• Built-in Li-ion batteries for 7h use on the transmitter and 6.5h use on the receiver
• Up to 100m operation range without obstacles

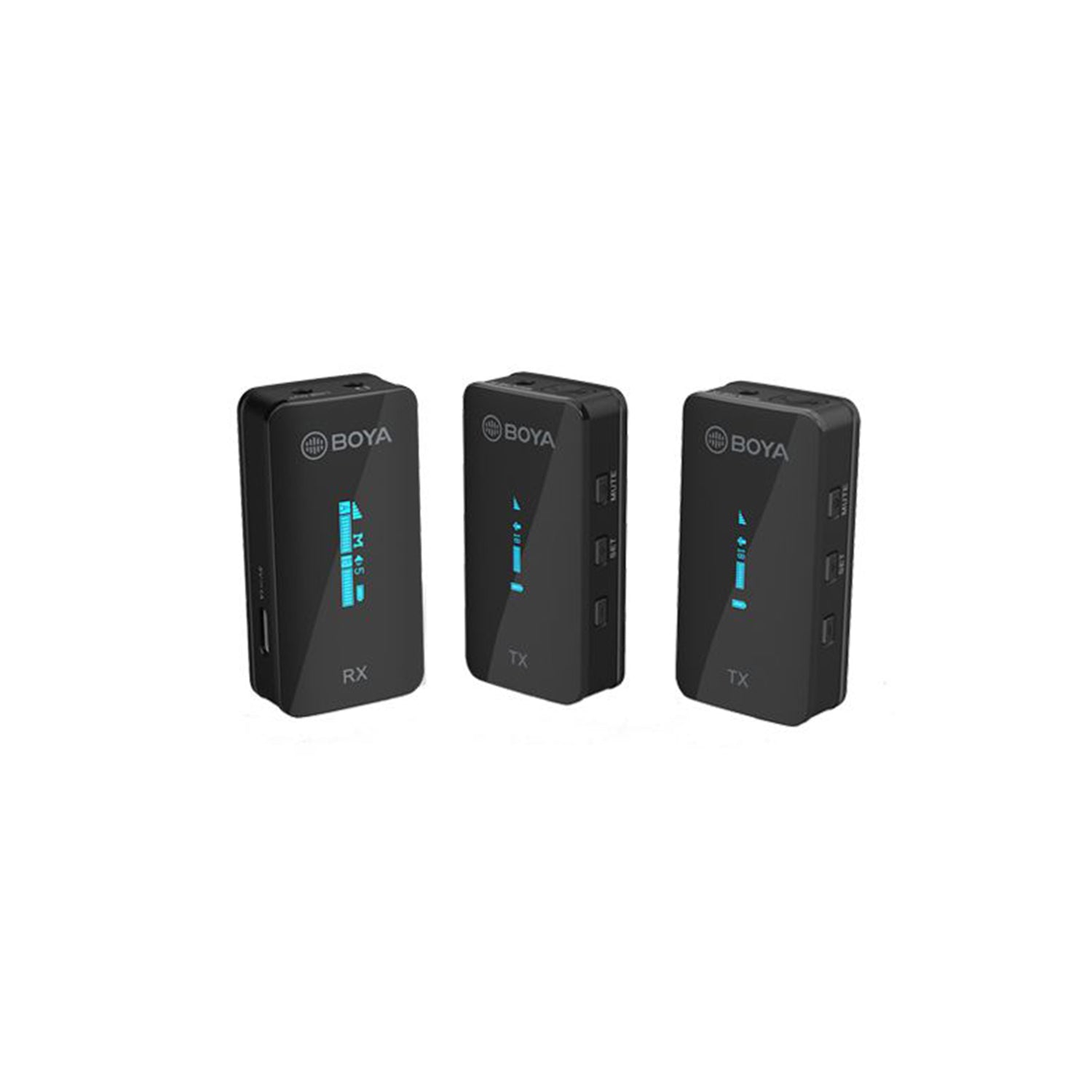

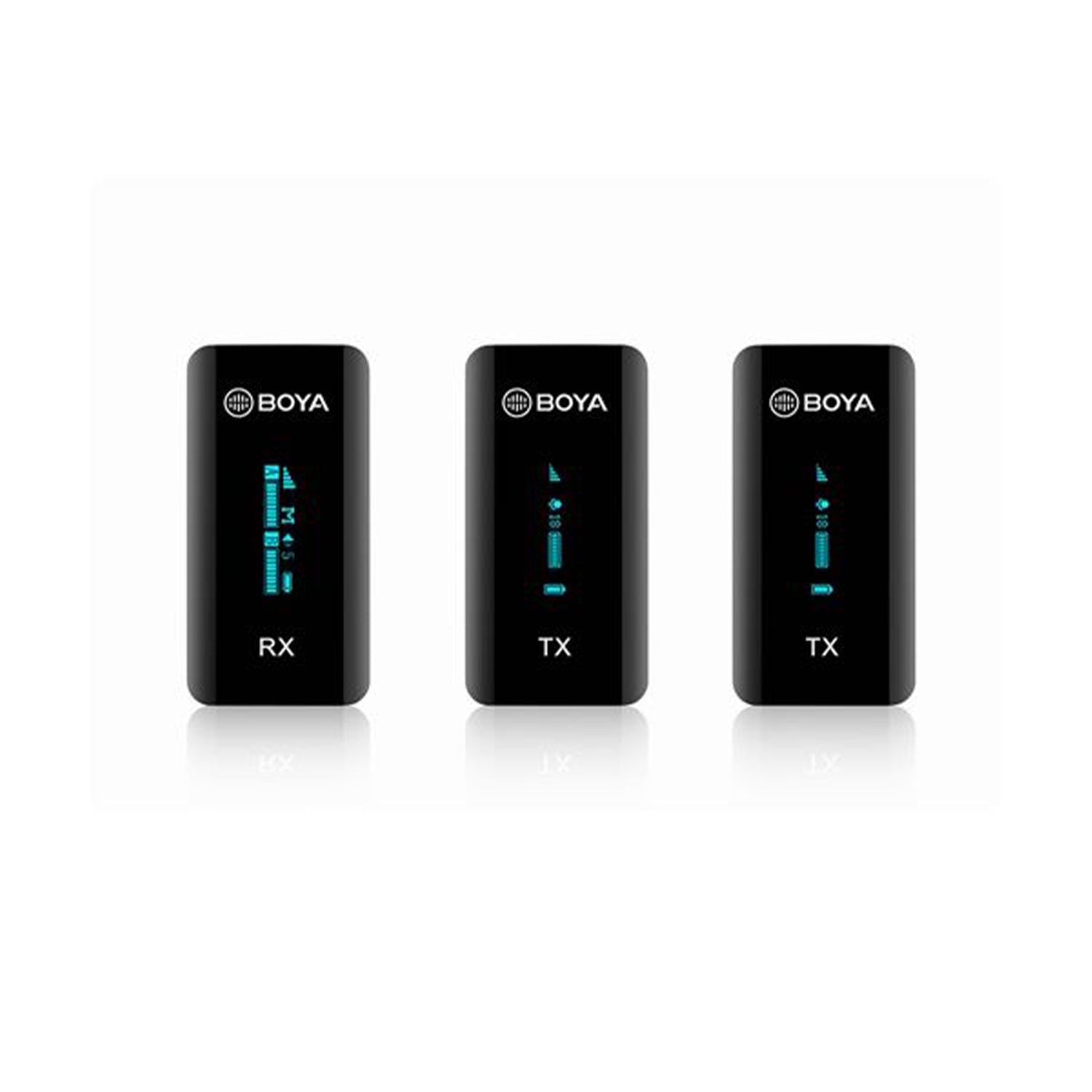

• Boya BY-XM6-S2 2.4GHz Wireless Microphone Set
• BY-XM6 RX Receiver
• 2x BY-XM6 TX Transmitter
• 3x USB-C Charging Cable
• 2x Lavalier Microphone
• 2x Mic Clip for Lavalier Microphone
• 2x Foam Windscreen for Lavalier Microphone
• 2x Fur Windshield for Built-in Microphone
• 3.5mm TRS to TRS Output Cable for Cameras
• 3.5mm TRS to TRRS Output Cable for Smartphones
• Limited 1-Year Warranty

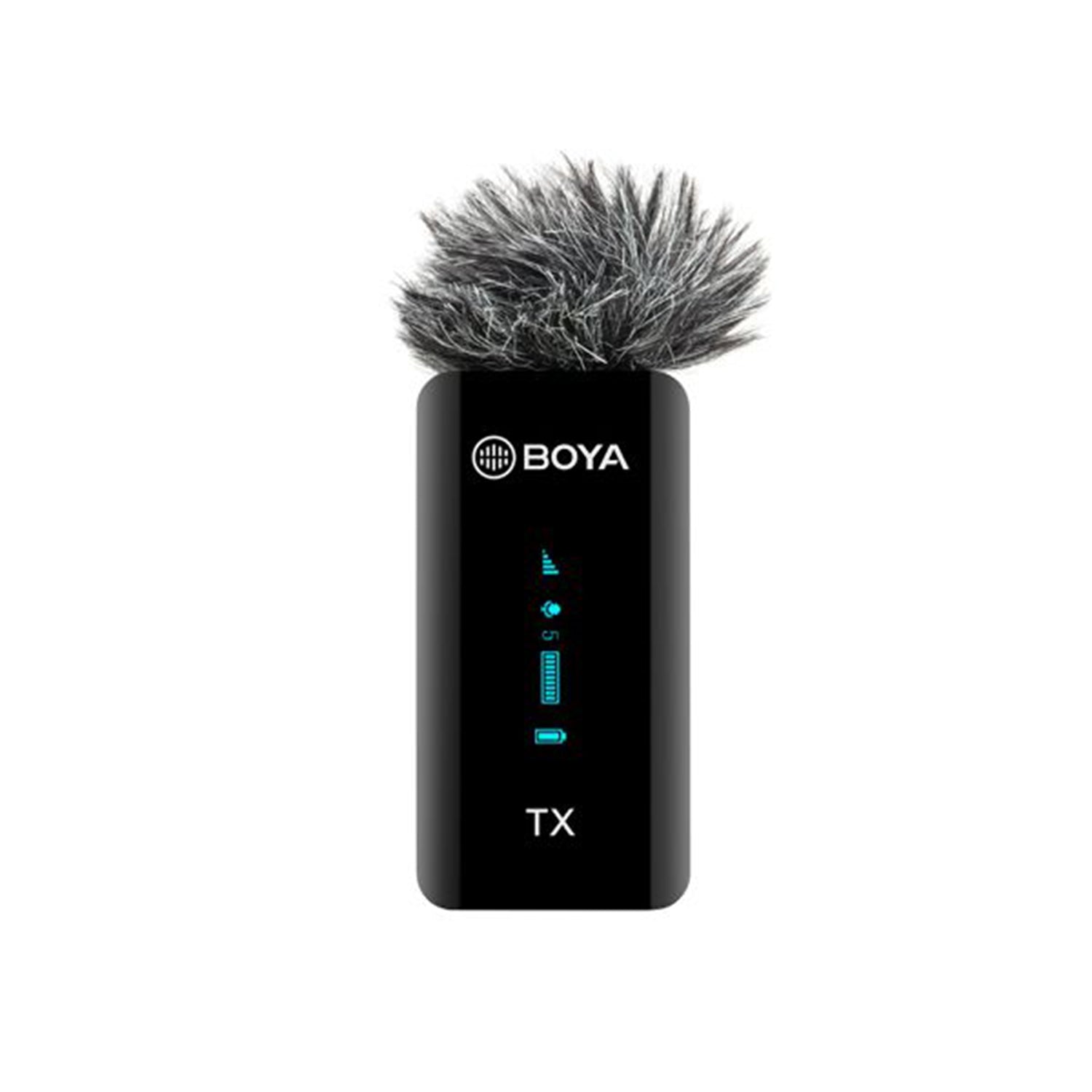

BY-XM6 TX Transmitter

Transmission Type: 2.4 GHz digital frequency
Modulation: GFSK
Operating Range (No Obstacle): Up to 100 m
RF Output Power: < 10 mW
Polar Pattern: Omnidirectional
Frequency Response: 50 Hz – 18 kHz
Maximum SPL: Built-in microphone 120 dB SPL / Lavalier microphone 110 dB SPL
Sensitivity: Built-in microphone −39 dB / Lavalier microphone −39 dB
Signal-to-Noise Ratio: > 84 dB
Audio Inputs: Built-in microphone or 3.5 mm TRS mic/line input
Antenna: PIFA antenna
Power Requirements: Built-in Li-ion battery, USB-C DC 5 V, or charging contact
Battery Life: Approx. 7 hours
Operating Temperature: −10 °C to 50 °C
Storage Temperature: −20 °C to +55 °C
Dimensions: 62.1 × 31.6 × 16.5 mm
Weight: Approx. 32 g

BY-XM6 RX Receiver

Transmission Type: 2.4 GHz digital frequency
Modulation: GFSK
Operating Range (No Obstacle): Up to 100 m

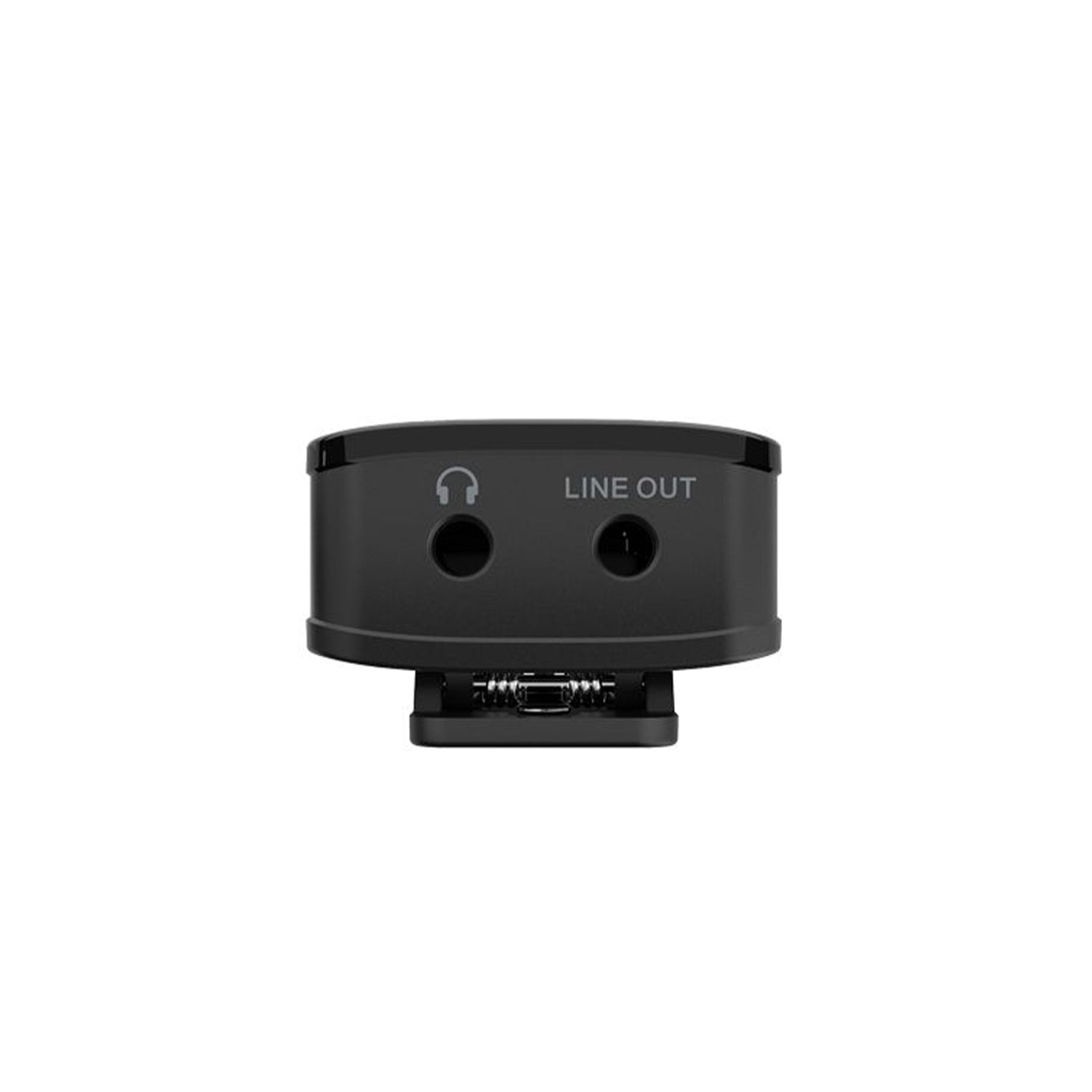

Audio Output Connectors: 3.5 mm headphone jack / 3.5 mm TRS output
Audio Output Level: −60 dBV to −20 dBV
Antenna: PIFA antenna
Power Requirements: Built-in Li-ion battery, USB-C DC 5 V, or charging contact
Battery Life: Approx. 6.5 hours
Operating Temperature: −10 °C to 50 °C
Storage Temperature: −20 °C to +55 °C
Dimensions: 62.1 × 31.6 × 16.5 mm
Weight: Approx. 32 g
