Blackmagic Design Teranex Mini Analogue to SDI 12G Converter

Analogue to SDI 12G Converter

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Blackmagic Design Teranex Mini Analogue to SDI 12G Converter, is a highly improved solution for rack-mount as well as cable duct and desktop installations.

Capable to upconvert

Upconvert an analogue video signal to up to Full 4K DCI 4096x2160p and route it out over up to two independent 12G-SDI outputs in SD, HD, 6G, or 12G-SDI formats. Run 4096x2160p signals approximately 70 ft using 6G-SDI cables, and carry lower-resolution signals, like 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to extend 4K DCI 4096x2160p signals for over 250 ft. You can also connect separate audio via full-size XLR inputs that are switchable between balanced analogue and AES/EBU digital audio.

Compact for portable racks or broadcast trucks

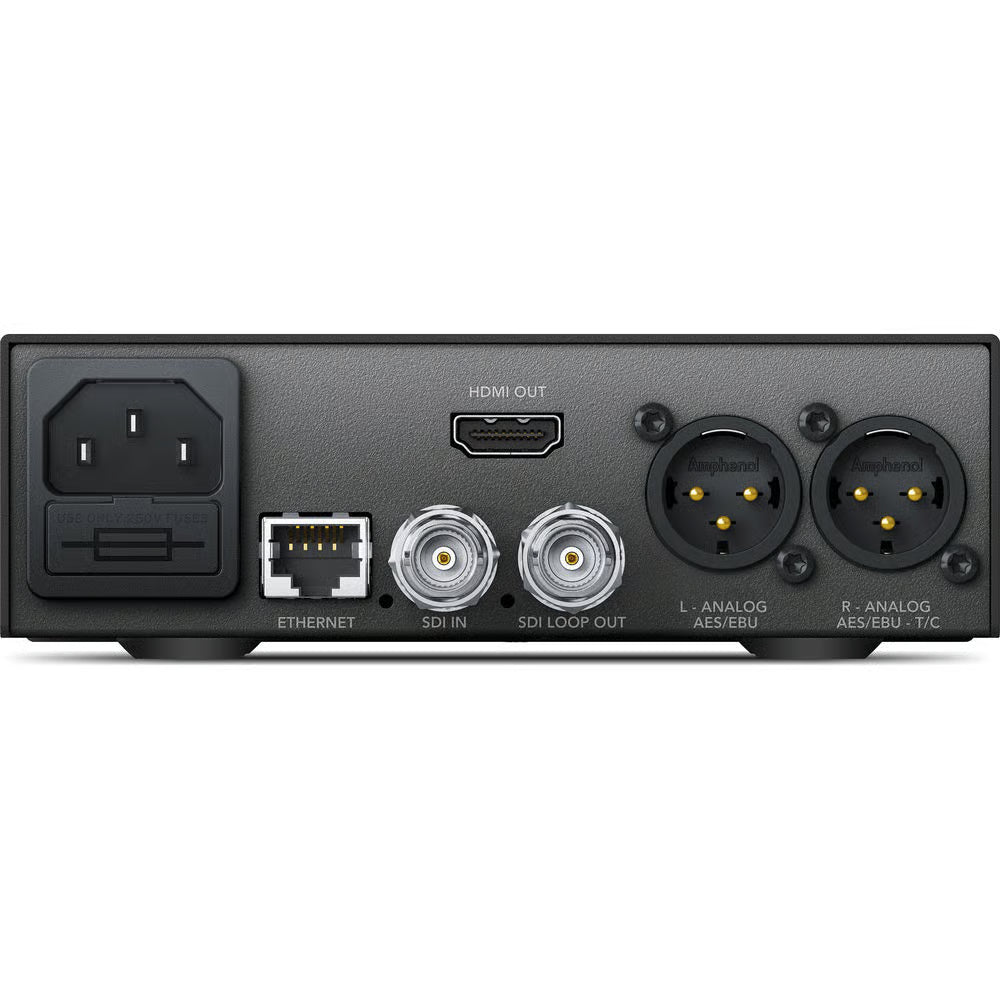

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 48cm rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

Features

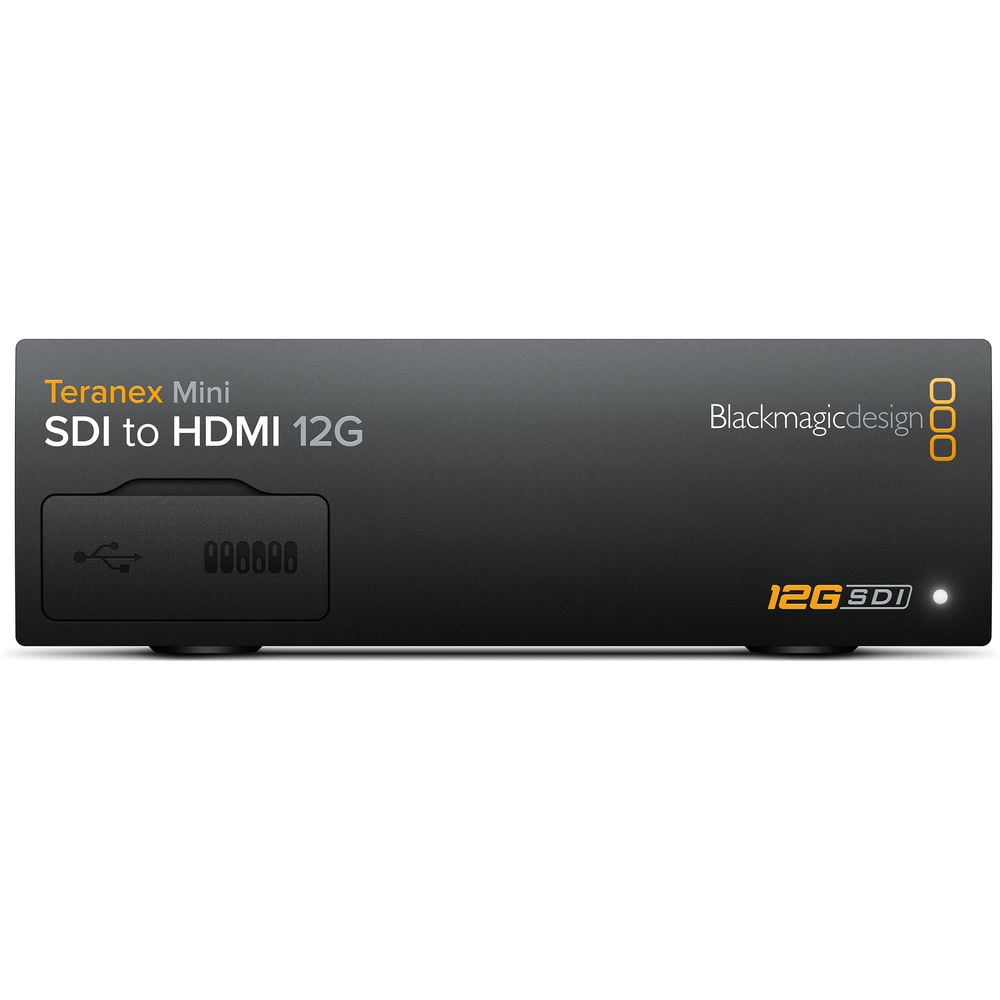

A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, colour LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.

Optimal heat dissipation

What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack keeping all units cool and providing redundancy for each one.

• Blackmagic Design Teranex Mini Analog to SDI 12G Converter
• Software SD Card
• Limited 1-Year Warranty

*Requires a standard IEC power cable.

SDI Video Input: 1× 12G-SDI (SD/HD/2K/4K Auto Switching)
SDI Video Output: 1× 12G-SDI Loop Output
Analogue Video Output: Component SD/HD, NTSC, PAL & S-Video
Analogue Audio Output: 2-Channel Balanced Audio via XLR (Right XLR Configurable for Timecode)
AES/EBU Audio Output: 4-Channel Balanced Digital Audio via XLR (Right XLR Configurable for Timecode)
Multi-Rate Support: Automatic SD, HD, 2K & 4K Switching
Configuration & Updates: USB or Ethernet
Reclocking: Yes
Supported Formats: SD (NTSC, PAL), HD (720p, 1080i, 1080PsF, 1080p), 2K, UHD (3840 × 2160), DCI 4K (4096 × 2160)
SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M-B, 425M, ITU-R BT.656, ITU-R BT.601
SDI Video Rates: Auto-Switching SD-SDI, HD-SDI, 3G-SDI Level B, 6G-SDI & 12G-SDI
SDI Video Sampling: 4:2:2, 4:4:4
SDI Audio Sampling: 24-Bit, 48 kHz
SDI Colour Precision: 4:2:2, 4:4:4
SDI Colour Space: YUV
Analogue Format Support: NTSC, PAL, 720p, 1080i, 1080p
Analogue Colour Space: Rec.601, Rec.709
Analogue Colour Precision: YUV 4:2:2, RGB 4:4:4 (HD, 2K & 4K)
Format Conversion: HD Down Conversion
Software Control: macOS & Windows via USB or Ethernet
Firmware Updates: Via Included Updater Application
Settings Control: Mini Switches, USB & Ethernet
Power Supply: Built-In 90–240 V AC (IEC C14 Inlet, Power Cable Not Included)
Power over Ethernet: 48 V DC PoE Supported
Power Consumption: 15 W
Operating Voltage: 90–240 V AC
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 0–90% (Non-Condensing)
Dimensions: 140 × 46 × 170 mm
Weight: 700 g
