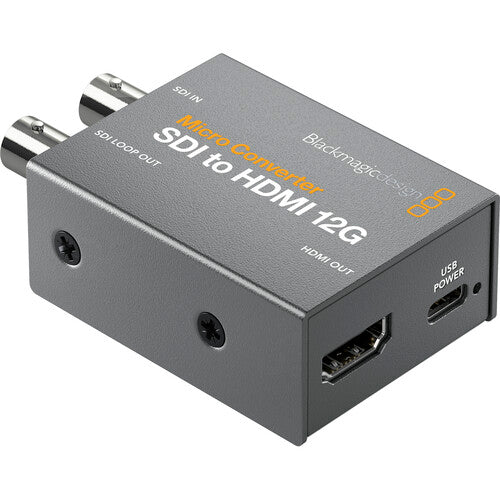

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturised broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33-point 3D LUT for colour calibrating any monitor, projector or television. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger!
Connections
- SDI Video Inputs - 1
- SDI Video Outputs - 1 x loop out.
- HDMI 2.0 Video Outputs - 1 x type A.
- SDI Rates - 270Mb, 1.5G, 3G, 6G, 12G.
- Multi Rate Support - Auto detection of SD, HD, 2K, Ultra HD and 4K.
- Updates, Configurations and Power - USB Type‑C.
Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
- SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Colour Precision:
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor colour.
SDI Auto Switching
Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI.
HDMI Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Colour Precision
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor colour.
HDMI Colour Space
YUV
Settings Control
Via MacOSâ„¢ and Windowsâ„¢ software utility connected by USB.
Software
Internal software upgrade via USB.
Power Requirements
Power Consumption: 4W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
