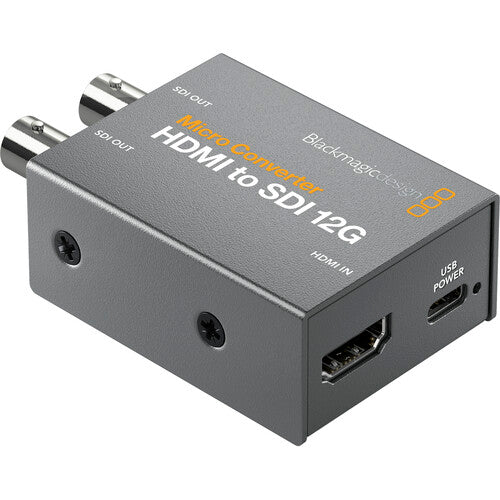

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply

The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturised broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, and 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!

Connections:

SDI Video Outputs: 2 - Automatically matches the HDMI input.

HDMI 2.0 Video Outputs: 1 x type A.

SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.

Multi Rate Support: Auto-detection of SD, HD, 2K, Ultra HD and 4K.

Updates, Configurations and Power: USB Type‑C

Reclocking: Yes

Standards:

• SD Video Standards - 525i59.94 NTSC, 625i50 PAL
• HD Video Standards - 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards - 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards - 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• SDI Compliance - SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
• SDI Video Rates - SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.

SDI Colour Precision:

4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor colour.

SDI Colour Space:

YUV

SDI Auto Switching:

Automatically detects SD, HD, Ultra HD and 4K DCI. Levels A and B are users selectable on output for 3G‑SDI.

HDMI Video Standards:

525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

HDMI Colour Precision

4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor colour.

HDMI Colour Space:

YUV

Copy Protection:

HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capturing or distributing content.

Settings Control:

Via MacOS™ and Windows™ software utility connected by USB.

Software:

Internal software upgrade via USB.

Power Requirements:

Power Consumption - 4W max.

Operational Voltage Range:

4.4V to 5.25V DC

Operating Temperature:

0° to 40° C (32° to 104° F)

Storage Temperature:

-20° to 60° C (-4° to 140° F)

Relative Humidity:

0% to 90% non-condensing

• Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
• Limited 3-Year Warranty

Operating Temperature: 0 to 40°C
Power Consumption: 4 W
Size: 76.45 x 45.7 x 24.89 mm
Weight: 150 g
