Blackmagic Design HyperDeck Studio HD Mini

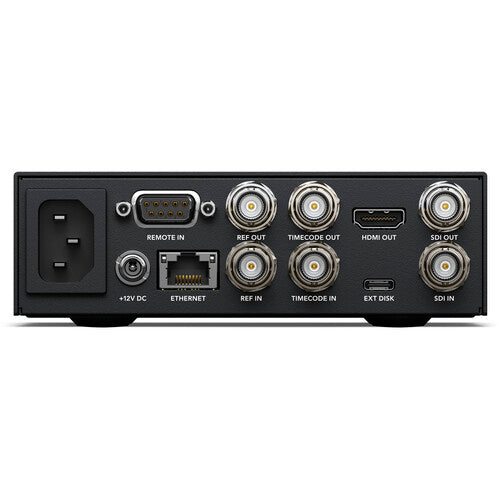

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.

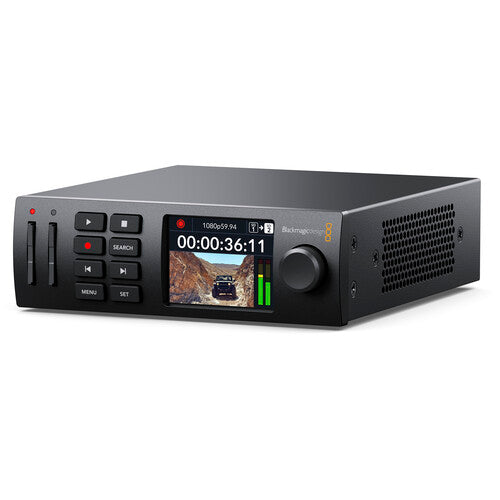

Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analogue scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.

Video Inputs

It supports SD, HD, and select 3G signals over SDI.

Supported Codecs

• ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
• DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
• H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

VTR-Style Controls

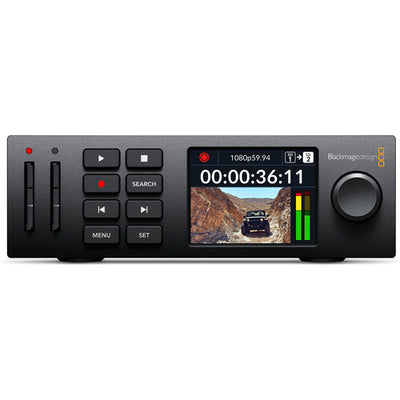

Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analogue-style control over your playback.

Remote

The unit is controllable via RS-422 control and over the Ethernet or USB port.

Built-In LCD Monitor

The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video.

Included Software

The HyperDeck Studio HD Mini includes Blackmagic OS and Blackmagic HyperDeck Setup.

• Blackmagic Design HyperDeck Studio HD Mini
• Software CD
• Limited 1-Year Warranty
• Note: Required power cable not included.

Supported Formats: SD, HD up to 1080p60
Recording Codecs: ProRes, DNxHD
Media: Dual SD card slots for continuous recording
SDI Input/Output: 6G-SDI in/out
HDMI Output: HDMI monitoring output
Material: Durable metal housing
Control: Front-panel buttons for recording, playback, and navigation
