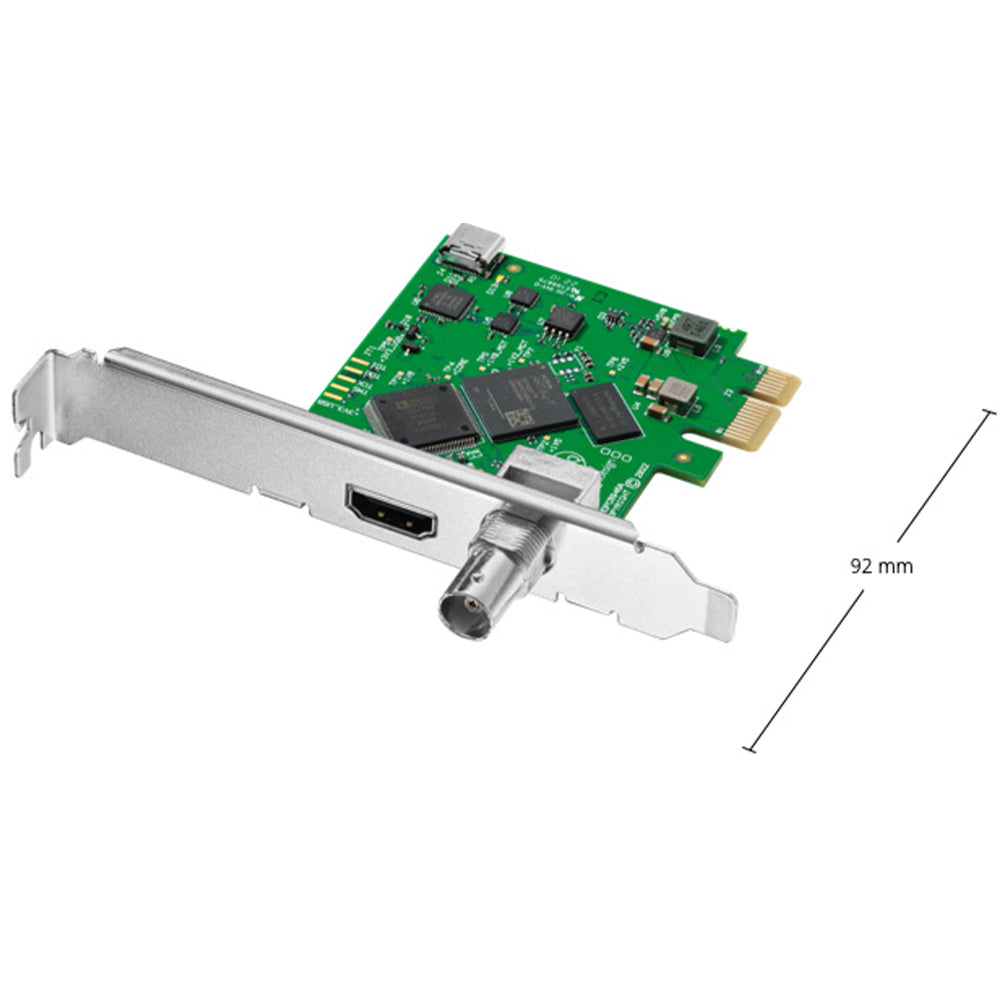

Blackmagic Design DeckLink Mini Recorder HD

Get broadcast-quality HDMI and SDI video capture for your PCIe computer.

DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI. This versatile capture card is compatible with virtually all SD and HD equipment and integrates smoothly with popular software like DaVinci Resolve.

Perfect for live streaming, content creation, or post-production workflows.

Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, DVCPRO HD, HEVC, XDCAM HD, DNxHR, Apple ProRes 4444, 422, LT, Proxy, Uncompressed 8-bit / 10-bit 4:2:2, 4:4:4.

Software: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility & drivers (for macOS, Windows, Linux).

Physical Installation: PCIe 1-lane Gen 2 slot (compatible with 1–16 lane slots).

Video Standards Supported:

•
  SDI: NTSC / PAL / 720p / 1080p / 1080PsF / 1080i / 2K DCI (23.98 – 60 fps)

•
  HDMI: Same frame rates as above with Deep Colour & REC 601/709/2020 support

•
  Colour Precision: 8-, 10-, 12-bit RGB 4:4:4 and YUV 4:2:2

•
  Audio: 48 kHz / 24-bit embedded

•
  Copy Protection: HDMI input cannot record copy-protected sources


Processing: Hardware-based real-time colourspace conversion

Blackmagic Design DeckLink Mini Recorder HD
Low-Profile Bracket
Limited 3-Year Warranty

Colour: Silver
Operating Temperature: 5 – 40 °C
Power Consumption: 3 W
Power Supply: None
Size: 91.95 mm
Weight: 56 g
