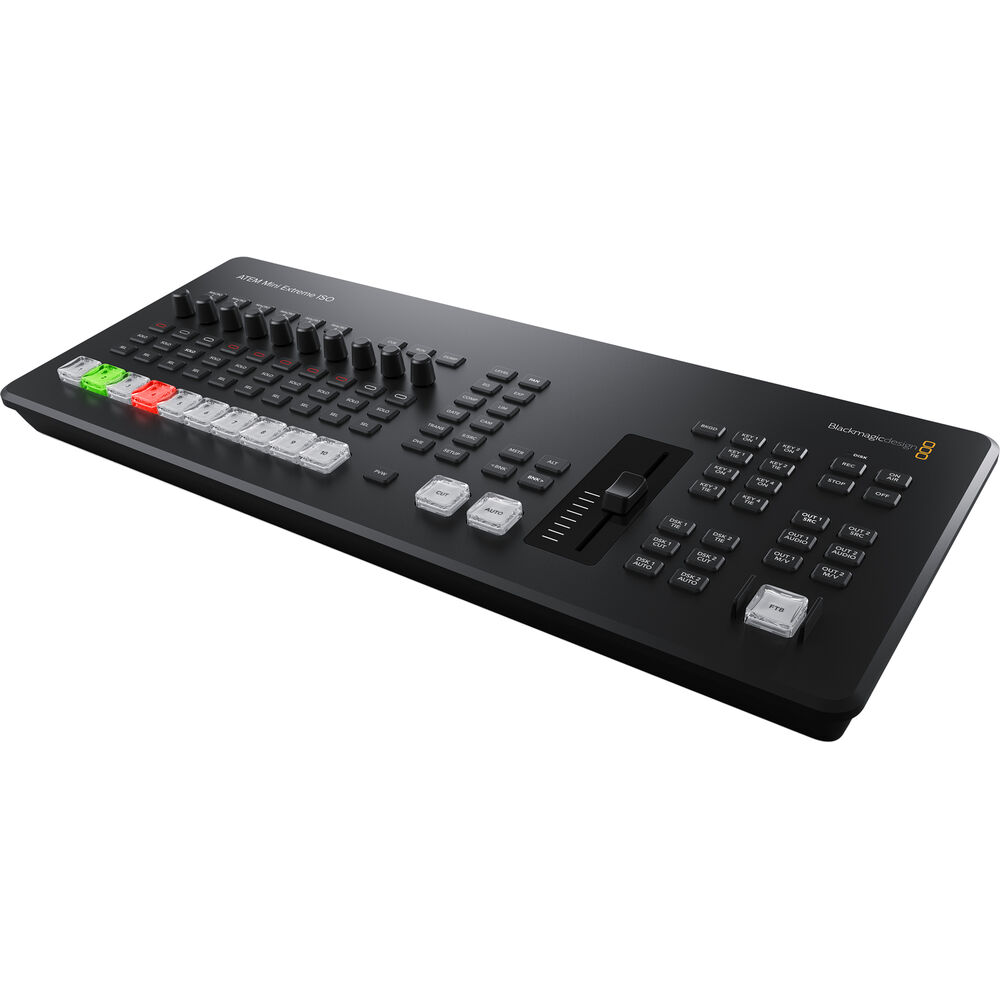

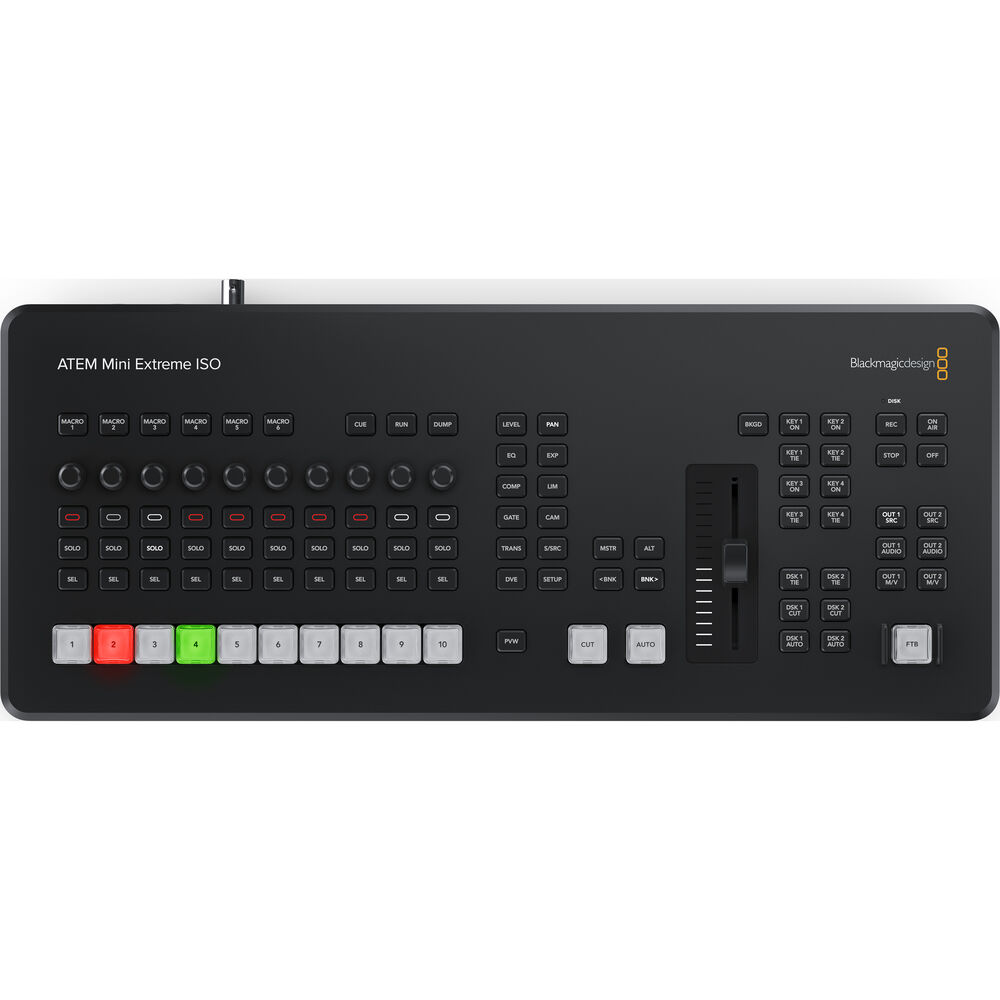

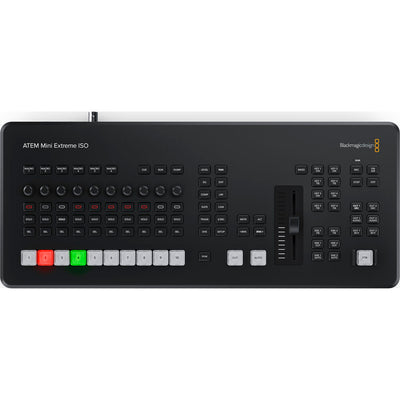

Blackmagic ATEM Mini Extreme ISO G2

ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built-in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built-in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.

Audio Mixer

• 26 input x 2 channel mixer (8 HDMI +16MADI +XLR +Thunderbolt)
• Selectable On/Off/Audio-Follow-Video per channel, plus separate gain control per channel.
• Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Streaming Source Format

RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality settings.

Direct Streaming

Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over Ethernet or a shared internet connection over USB‑C.

Video Recording

• 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
• 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analogue 2-channel audio input, 8 x Input sources 2-channel embedded audio inputs and 32 x MADI audio channels.

Multi-View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Camera Control

When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, colour corrector, tally and record start/stop.

Control Panel Included

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.

Software Updates

Using USB or Ethernet connection directly connected to macOS or Windows computers.

• Blackmagic ATEM Mini Extreme ISO G212 VDC Power Supply
• Limited 1-Year Warranty

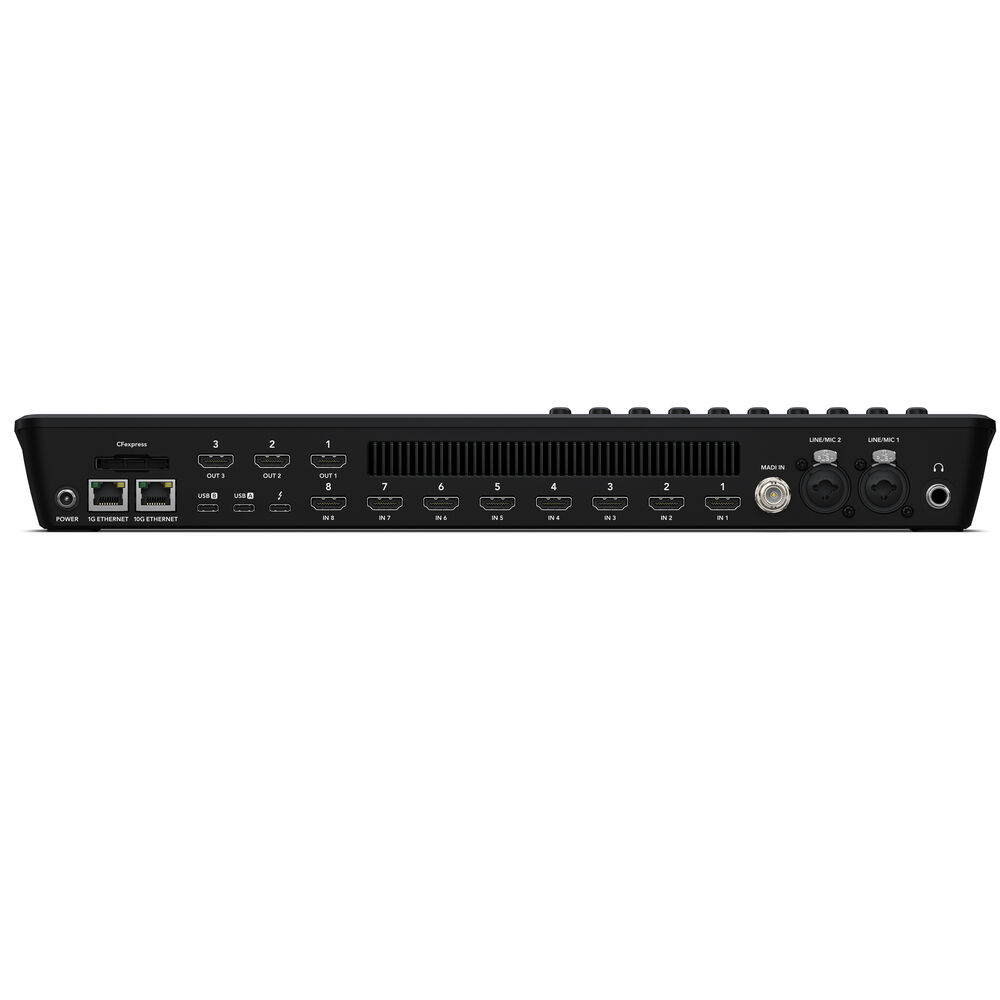

Audio Input Connectors:
2x XLR 3-Pin Mono Analog Female
1x BNC Female
Audio Output Connectors: 1x 1/4" TRS Stereo Analog Female, Audio Processing: Pushbutton, Software
Input Video Format: HDMI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps
Operating Temperature: 5 to 40°C up to 70% Humidity, Output Video Format: HDMI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Power Connector: 1x Barrel (12 VDC ) Input,
Size: 41.4 x 18.67 x 5 cm
Video Input Connectors: 8x HDMI
Video Output Connectors: 3x HDMI Female
Weight: 1.86 kg
