The powerful 4K monitor-recorder-switcher for live production & broadcast
Features
- 19-inch, 4K HDR DCI-P3 7RU rack-mounted monitor
- Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
- Record up to four isolated camera feeds (ISOs) plus a fifth program output
- Live multi-camera monitoring

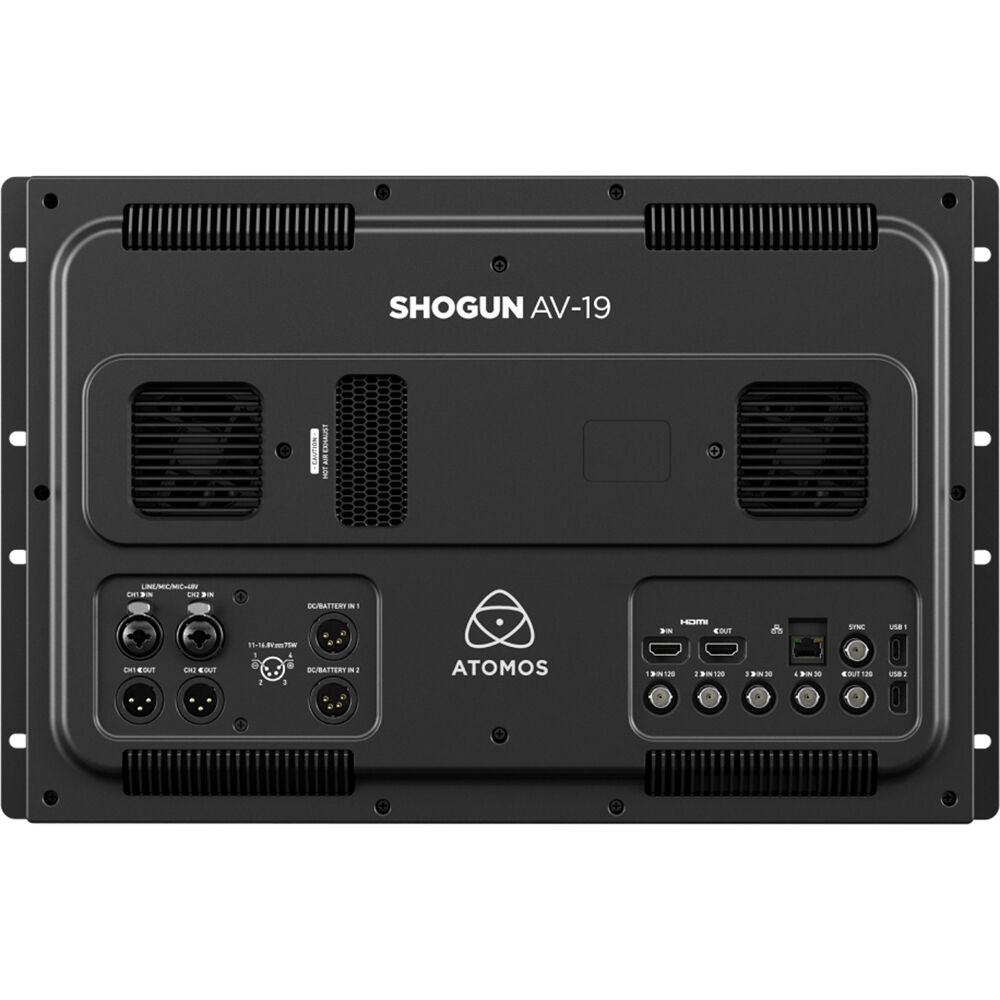

- 2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
- Comprehensive technical monitoring tools including EL Zone™ false colour, focus peaking, waveform & more
- Transmit and receive NDI® HX3 over Ethernet
- User-definable function buttons
- Log to LUT viewing, supporting 3D & .cube

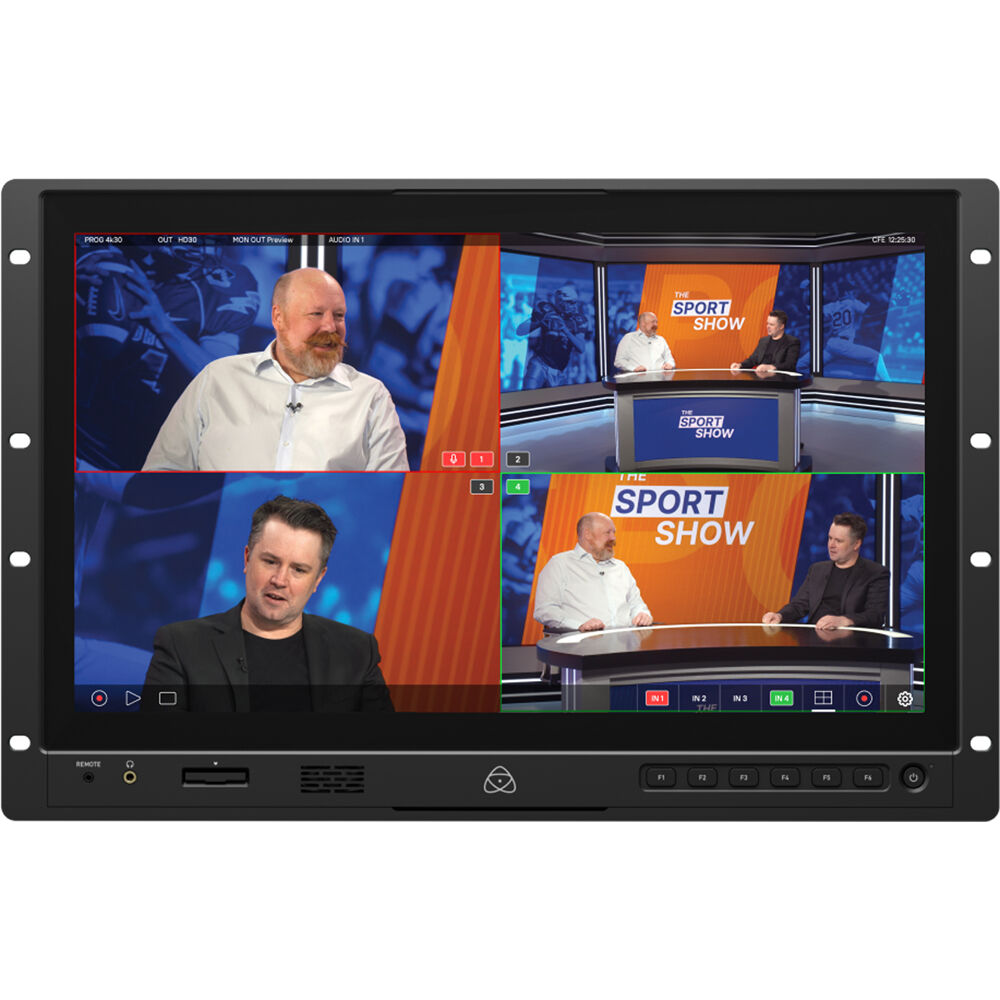

Shogun AV‑19 brings powerful multi‑camera monitoring, recording, and switching to live production, broadcast, and video village environments. All in a rugged, 19‑inch rack-mountable 4K HDR form factor.
Multi‑camera monitoring, switching & quad-view
Shogun AV‑19 manages demanding productions with a large, colour-accurate 4K HDR DCI‑P3 display and built‑in live switching. It can play and record up to four ISO camera feeds plus a fifth program channel, with real‑time cueing and switching for fast, coordinated workflows.
Reliable 4K confidence monitoring & advanced tools
The bright 19‑inch display offers EL Zone™, waveform, vectorscope, focus peaking, and more. Its rack‑mountable design makes it ideal for studio control rooms, OB trucks, and on‑set viewing stations. Support for 3D/1D LUTs, Log-to-LUT viewing, Log-to-Rec.709 preview, anamorphic de‑squeeze, and custom LUT uploads ensures precise exposure and colour monitoring in any setup.
10‑bit recording & flexible media options
Shogun AV‑19 records Apple ProRes, ProRes RAW, or Avid DNx in up to 10‑bit 4:2:2 from SDI or HDMI. It supports CFexpress and external USB‑C media for fast turnaround in live and event workflows.
Integrated camera control
On‑screen camera control allows adjustment of aperture, shutter, ISO, and white balance on supported Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM cameras. A red edge tally confirms internal recording, providing clear visual assurance that the camera is rolling.
NDI® HX3 & IP‑based production
With native NDI HX3 and built‑in Ethernet, Shogun AV‑19 enables high‑quality, low‑latency video and audio to be sent over a single RJ45 cable. This reduces cabling, speeds up setup, and supports a smoother transition to flexible IP‑based workflows.
Accurate calibration & integrated pro audio
Shogun AV‑19 works with Calibrite Display Pro HL and Plus HL probes to ensure HDR and Rec.709 monitoring stays consistently accurate, even across long productions. Its dual balanced XLR inputs with 48V phantom power, XLR outputs, embedded SDI/HDMI audio, built‑in speakers, and headphone jack provide a complete, integrated professional audio setup without needing extra gear.
