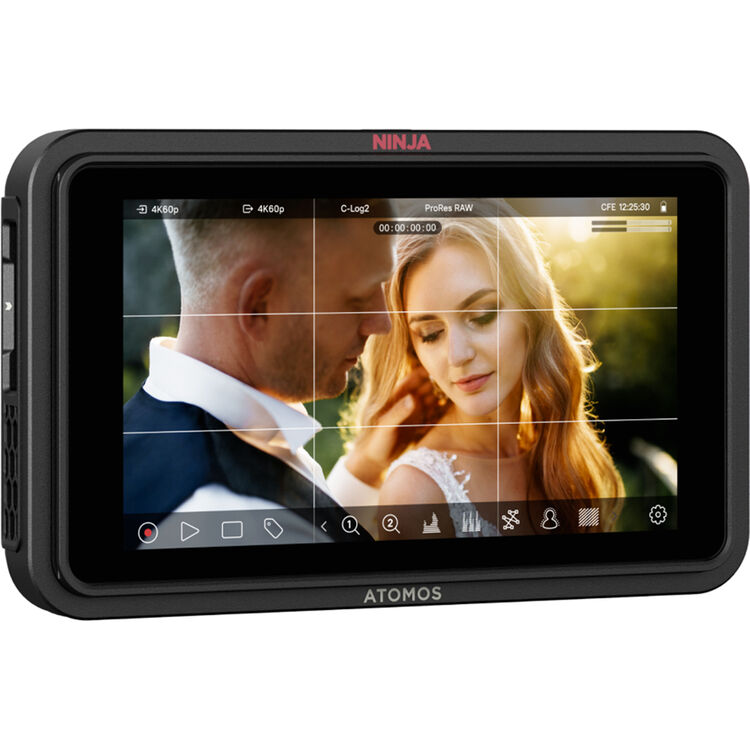

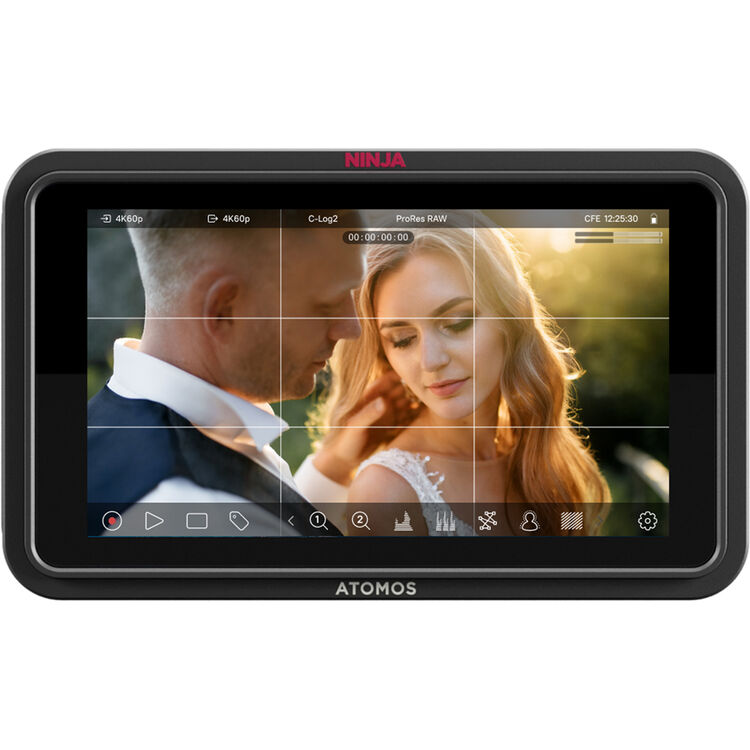

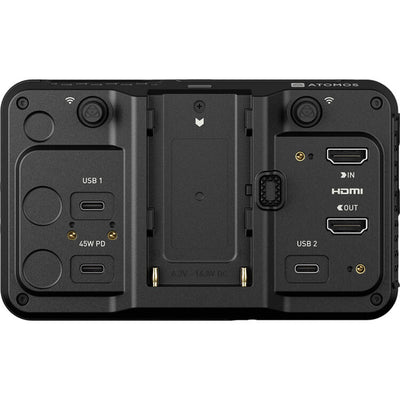

Atomos Ninja TX Go 5.2" HDMI and Wi-Fi Recording Monitor

The Atomos Ninja TX Go 5.2" HDMI and Wi-Fi Recording Monitor is a compact, professional monitor-recorder designed for videographers and filmmakers requiring high-end monitoring and recording capabilities in a portable package. The unit features a 5.2″ IPS touchscreen with 1500nits brightness, 8/10-bit colour processing, HDR support, Rec.709 colour gamut, and calibration support, ensuring precise and vibrant monitoring in a variety of shooting environments, from bright outdoor conditions to controlled studio setups.

Powered by the AtomOS Linux operating system, the Ninja TX GO provides a responsive and intuitive user experience, with a full suite of professional monitoring tools including focus peaking, zoom, zebras, false colour, frame guides, SMPTE safe areas, grid markers, waveforms, RGB parade, vectorscope, 3D/1D LUT support, and anamorphic de-squeeze. HDMI input supports resolutions up to 6Kp30, 4K60, and 1080p120, while loop-through allows pass-through to other devices.

Recording options include Apple ProRes/RAW up to 6Kp30, Avid DNx, H.265, and NDI 6 HX3 TX & RX, with storage on CFexpress Type B cards or dual USB-C outputs. Ninja TX GO also supports wireless connectivity, camera-to-cloud workflows, and OTA firmware updates, making it ideal for remote and collaborative productions. The monitor supports metadata capture from HDMI, including white balance, shutter, ISO, and gamma information. Power is via NP-F L-series batteries, optional battery eliminators, or USB-C PD at 30W. This combination of compactness, connectivity, and professional-grade features makes it a versatile tool for modern video production.

Features:

• Camera Control (coming soon via OTA update!)
• Record in Apple ProRes, Avid DNx or H.265
• Quieter, cooler temperature while using
• Capture to CFexpress Type B or USB-C storage
• Super-bright, 1500nit 5-inch touchscreen display
• HDMI 2.0, Wi-Fi 6E input and output
• Direct upload to ATOMOSphere, Frame.io, Dropbox
• Streaming via NDI 6
• Powered by USB-C, NP-F battery or AC adaptor
• Get 20GB cloud storage Free with ATOMOSphere
• Over-the-air (OTA) firmware updates

• Atomos Ninja TX Go 5.2" HDMI and Wi-Fi Recording Monitor
• USB-C locking cable adaptor
• USB-C locking cable (45cm)
• HDMI locking cable adaptor

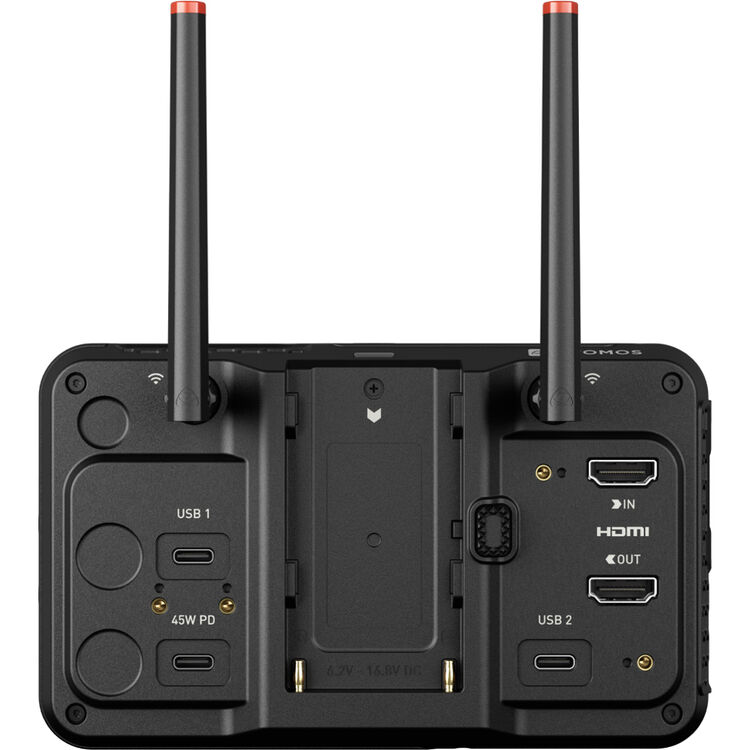

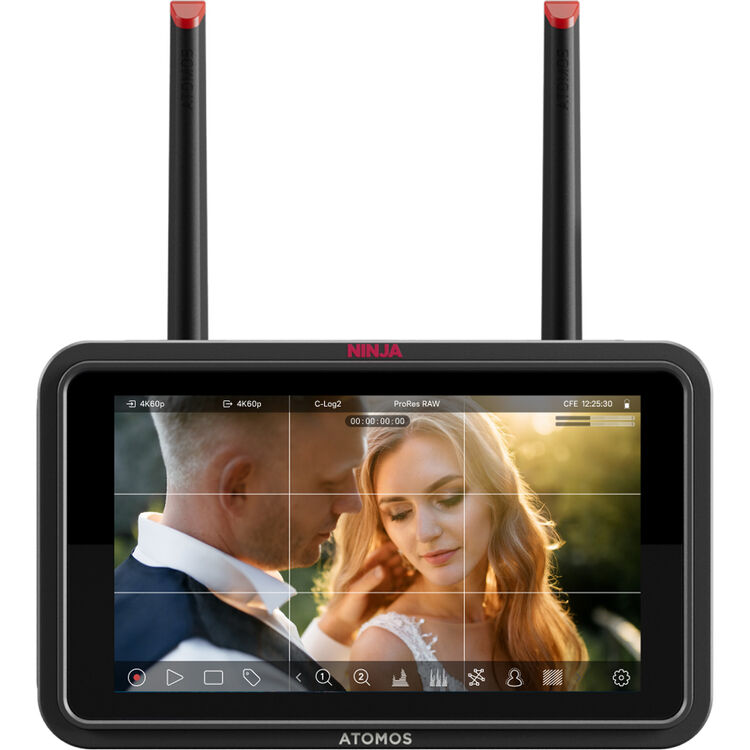

• Wi-Fi antenna + antenna caps
• AirGlu antenna + antenna caps
• Limited 1-Year Warranty

Panel Type: IPS-Type LCD
Display Size: 5.2" / 13.2 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1500 nits / cd/m²
Colour Support: 1.07 Billion Colours (8-Bit+FRC)
HDR Support: Hybrid Log Gamma
Colour Gamut: 100% Rec. 709
LUT Support: Yes
Image Controls: Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

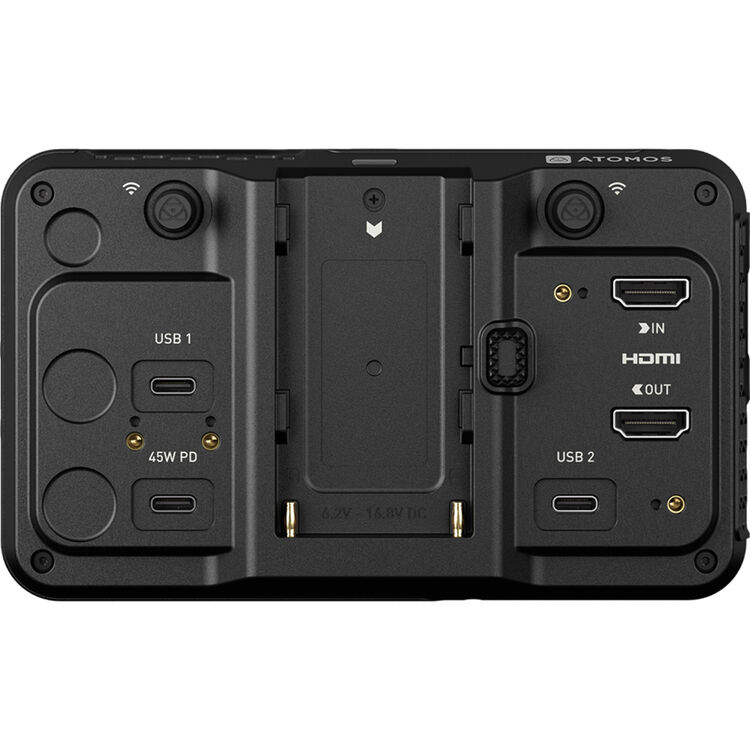

Video I/O: 1x HDMI 2.0 Input, 1x HDMI 2.0 Output

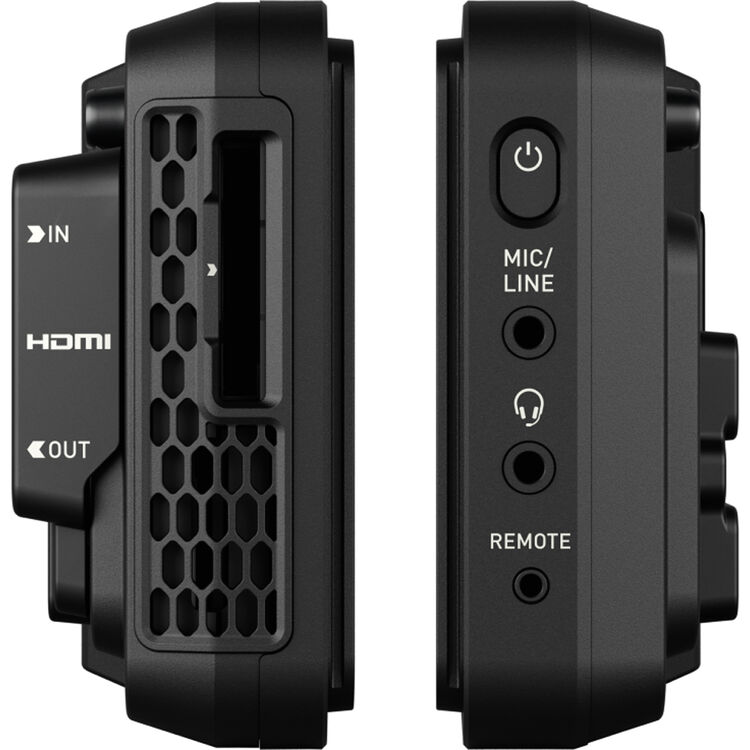

Audio I/O: 1x 1/8" / 3.5 mm Input, 1x 1/8" / 3.5 mm Headphone Output
Power I/O: 1x USB-C (16.8 VDC) Input, 2x USB-C Input/Output (Firmware/LUT Upload/Record/Power)

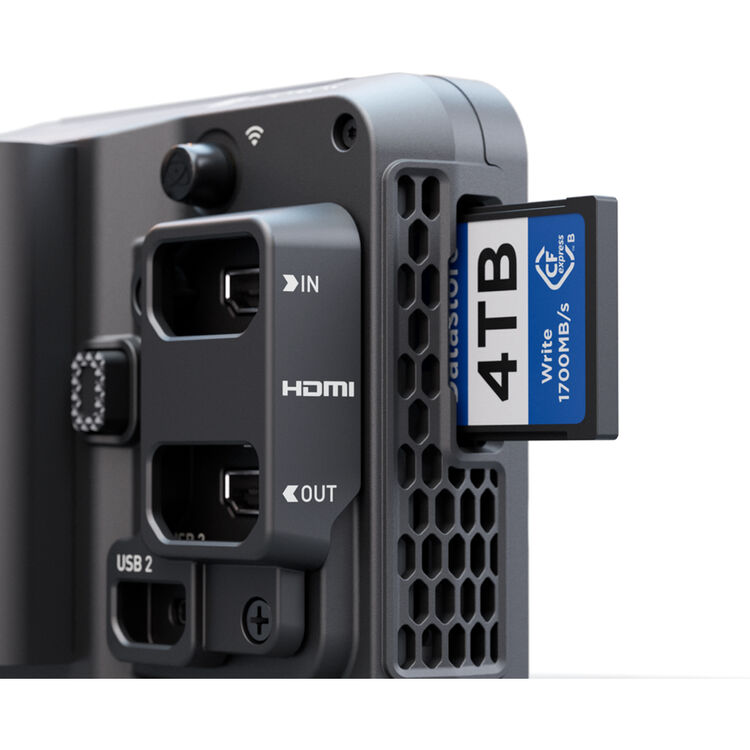

Media Slot: CFexpress Type B
Wireless: Wi-Fi 6E (802.11ax), Mobile App Compatible (iOS Only, AtomRemote)
Video Format: HDMI 8/10/16-Bit 4:2:2, 6K Raw: 60fps, DCI 4K up to 60fps, UHD 4K up to 60fps, 1080p up to 120fps
Audio Format: 24-Bit, Maximum 8 Tracks
Timecode Support: Yes
Encoding Formats: DNxHD, DNxHR, ProRes 422 (various), H.265 (various)
Input Power: 6.2 to 16.8 VDC
Battery: 1x L-Series Mount on Fixed Plate
Power Consumption: 30 W

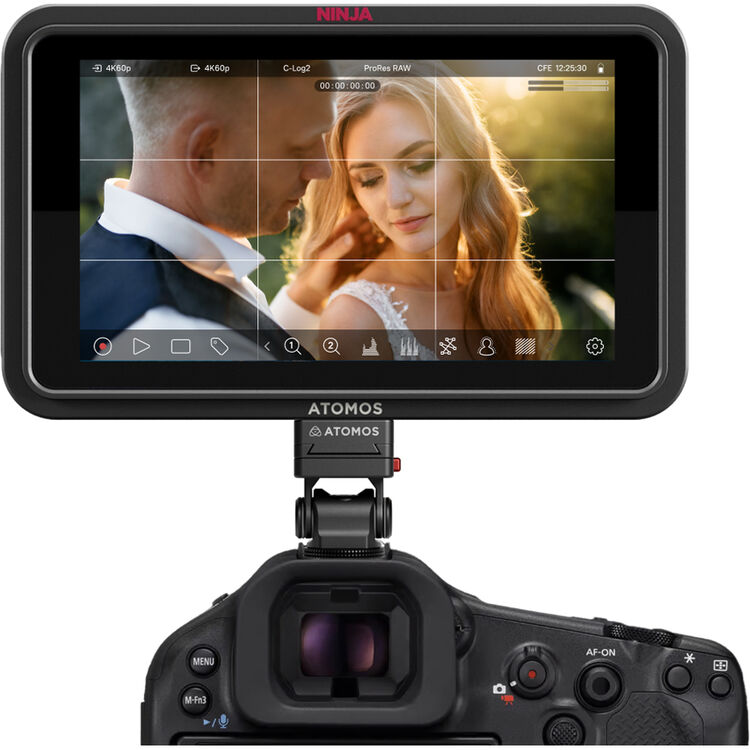

Mounting: 1x ARRI Anti-Twist 1/4"-20, 2x 3/8"-16 Female
Dimensions (W x H x D): 151 x 92 x 36 mm
Weight: 400 g
