Atomos AtomX CAST for Ninja V & Ninja V+

4-Input HDMI Switcher

Converts the Ninja V/V+ into a robust, four channel live production switcher, accepting up to four HDMI sources (cameras, consoles, computers) up to 1080p60 resolution.

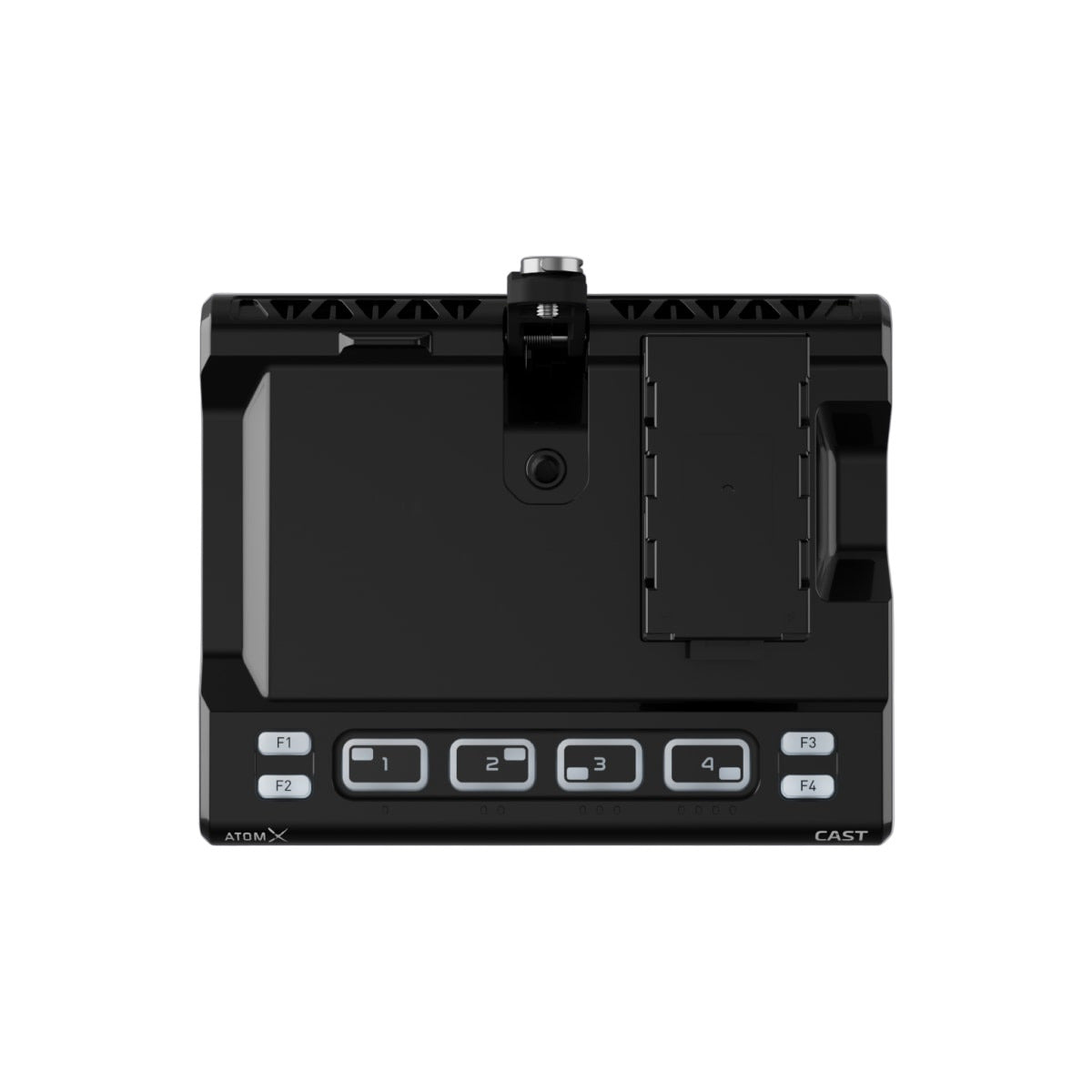

Integrated Hardware Dock

Docks directly to the Ninja V/V+ via the AtomX expansion port, creating a single, unified device that functions as a monitor, recorder, and switcher.

Dual Control Options

Switching is easy using both the four dedicated physical source buttons on the CAST unit and the intuitive 5-inch touchscreen of the Ninja monitor.

Webcam Streaming Ready

The USB-C output functions as a UVC (USB Video Class) webcam, providing instant plug and play compatibility with all major video conferencing and streaming platforms (Teams, Zoom, OBS).

Professional Overlays and PiP

Features advanced tools for production enhancement, including graphic overlays (logos, lower thirds) and a Picture-in-Picture (PiP) effect.

ProRes Recording

The Ninja V/V+ continues to record the live switched Program output in high quality edit ready codecs like Apple ProRes and Avid DNxHR/HD.

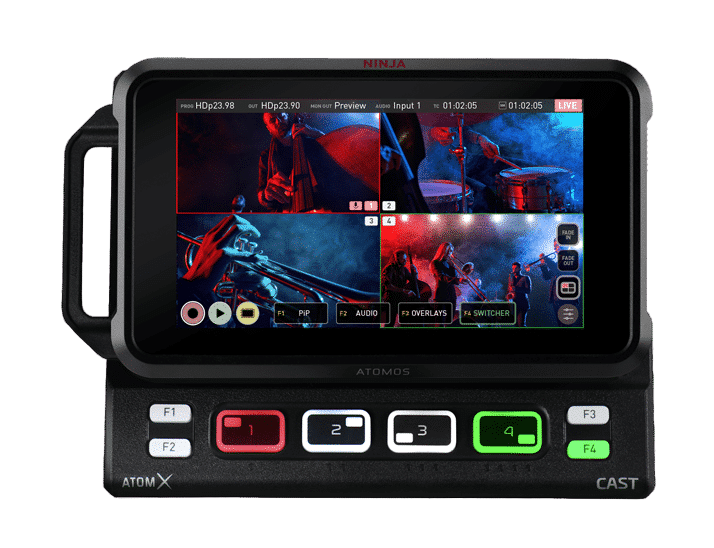

Integrated Multiview

Utilises the Ninja's screen to display Multiview mode, allowing simultaneous monitoring of all four inputs before switching to the Program output.

Tally Light Indication

The illuminated physical buttons provide Program and Preview tally indication, simplifying operation for crew members in dimly lit environments.

• AtomX CAST module
• USB-C cable
• AtomX SSDmini handle
• Quick Start Guide
