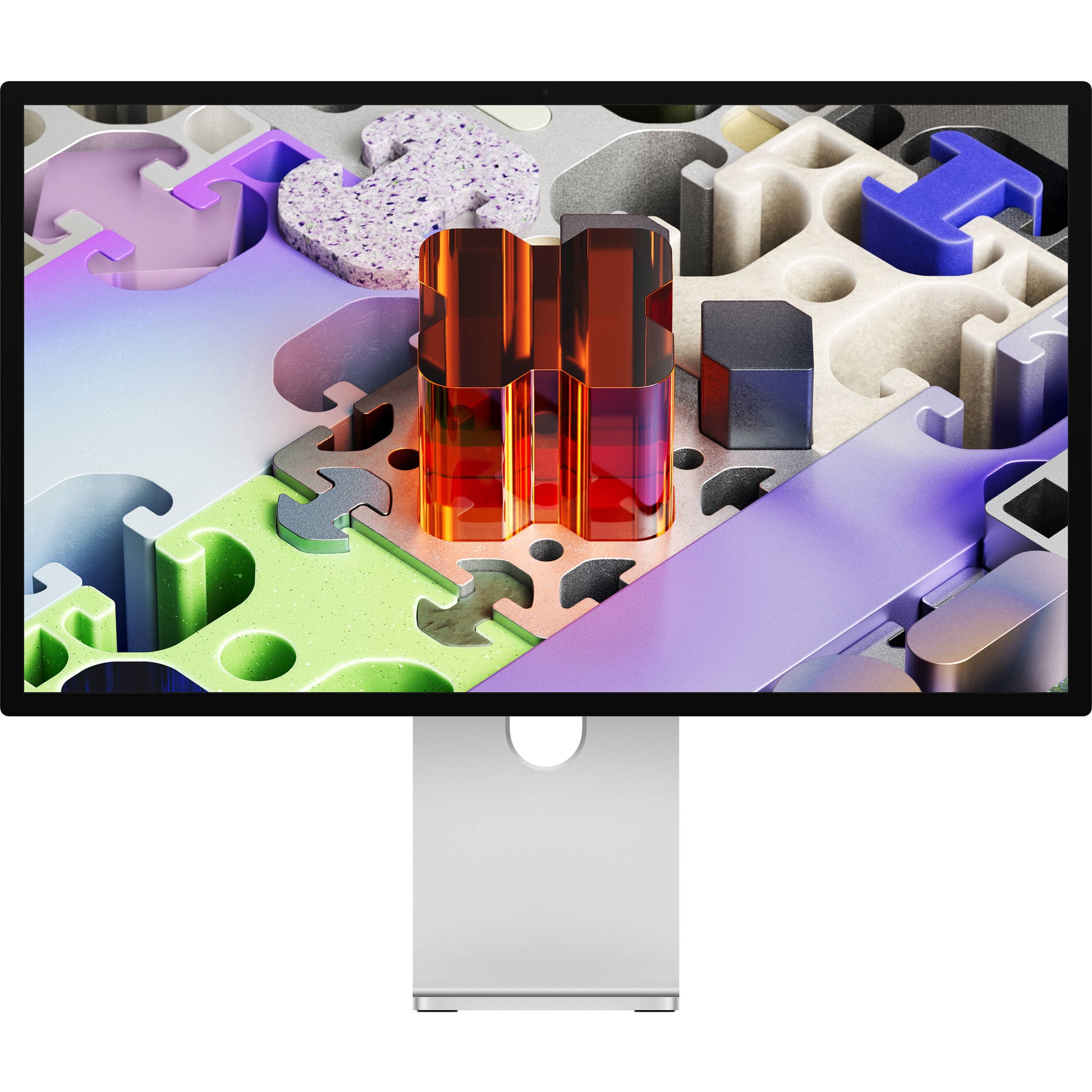

Apple 27" Studio Display XDR

Image Quality. Most Def.

Introducing the all-new Studio Display XDR. With incredible brightness, contrast and colour, this 27‑inch 5K Retina XDR display pushes extreme dynamic range further for stunning, true-to-life imagery. It’s a pro-level reference display that’s built to meet the demanding needs of those in film, video, design and gaming.

Get the highlights.

• 27-inch 5K Retina XDR display with mini-LED backlight. Precision for your vision.
• Pushes XDR further with 2,000 nits peak HDR brightness, exceptional contrast, and P3 + Adobe RGB wide colour gamut. Dream screen.
• Two Thunderbolt 5 ports. Daisy-chain a second Studio Display XDR. See your work blossom.
• 12MP Center Stage camera, three studio-quality mics and a six-speaker sound system.
• Come through loud and clear.

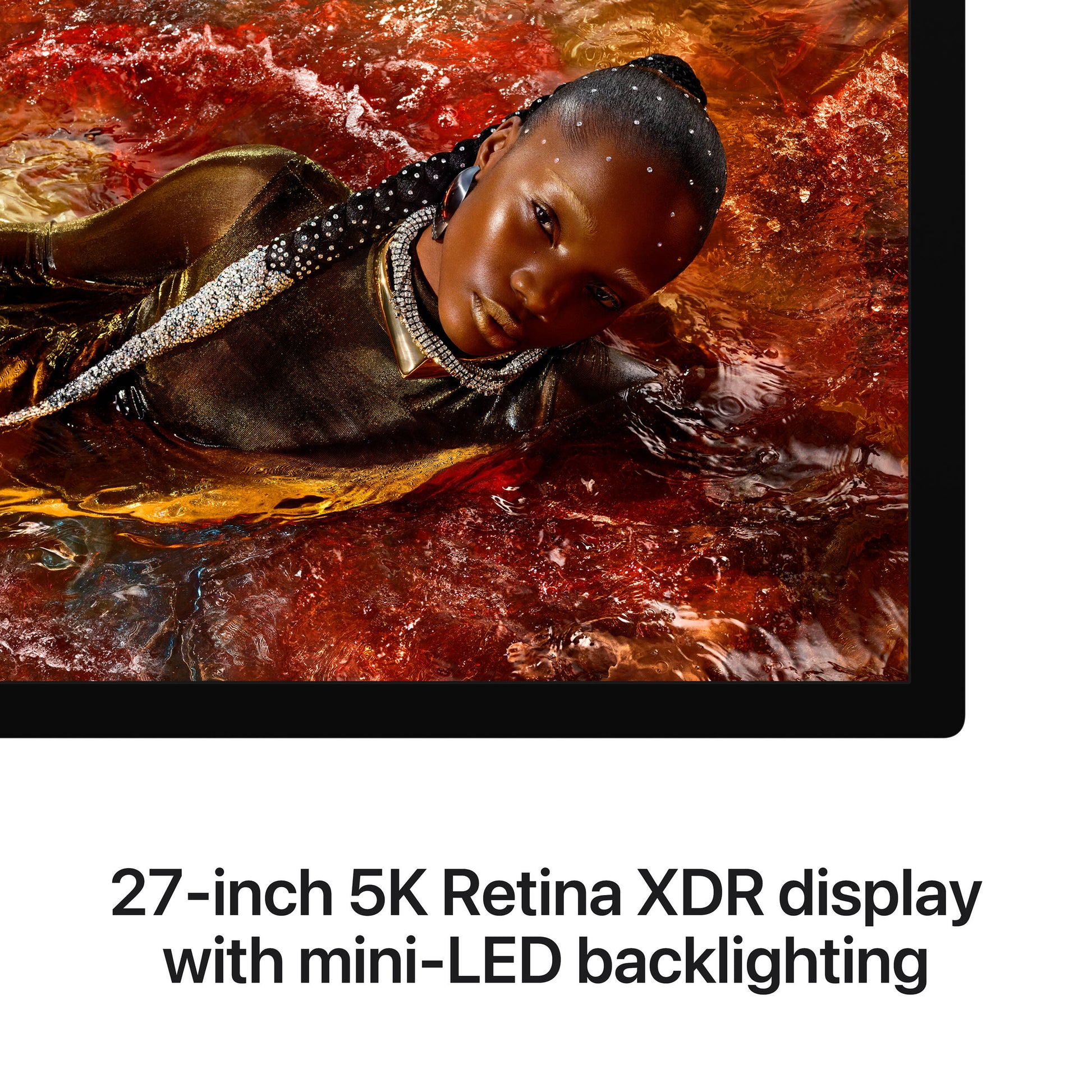

Mini-LED backlight. 2,304 dimming zones deliver remarkably precise lighting. For deeper blacks, brighter whites, and reduced halo and blooming.

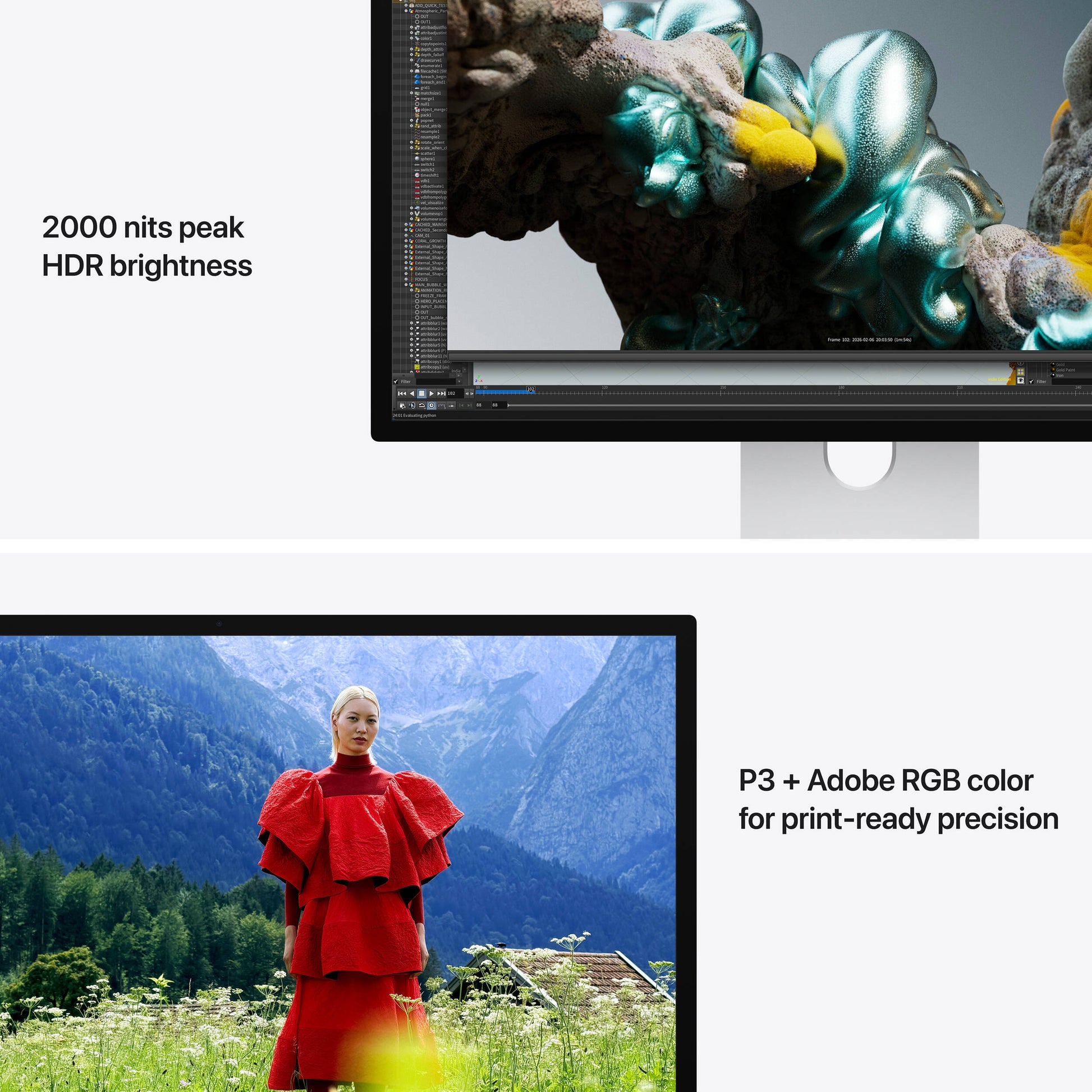

Exceptional brightness and contrast. 1,000 nits SDR is twice as bright as what’s possible with Pro Display XDR, allowing you to work in more varied lighting conditions. 2,000 nits peak HDR is 25 per cent brighter, for outstanding contrast between highlights and shadows.

P3 + Adobe RGB. This remarkably wide colour gamut allows access to both P3 and Adobe RGB colour spaces. Essential for designers and photographers who demand accuracy, especially when going to print.

Nano‑texture. Less reflectivity. More clarity. For those who work in particularly bright spaces inside or out (the nano), the texture option reduces reflections to eliminate distractions while maintaining an excellent viewing experience.

Set your screen to stun.

Studio Display XDR offers calibration and a wide range of reference modes ideal for filmmakers, photographers and graphic designers. And VFX artists, animators and game developers will love how the display enhances the detail and re­spon­sive­ness of their work.

• Filmmaking - Real to reel. A variety of reference modes cover the types of projects filmmakers work on, including HDR, HDTV, NTSC, PAL and SECAM, and Digital Cinema.
• Print + Design - True hues. The P3 + Adobe RGB colour space delivers incredible colour spectrum coverage from screen to print, giving people working in design, publishing and print access to both P3 and Adobe RGB from the same preset.
• Photography - Image-conscious. Reference mode presets for HDR, P3-D65 and Adobe RGB give photographers choices for the optimal way to view their work.
• VFX - Highly effective. Next-level XDR technology helps VFX artists visualise colours, materials, textures and lighting with incredible fidelity.
• Animation - Motion pictures. Smooth, accurate motion previews let animators evaluate fast-paced sequences and transitions with frame-by-frame precision.
• Game Animation - Game-time precision. Adaptive Sync allows refresh rates to vary from 47Hz to 120Hz, lowering input lag and making 3D rendering more responsive.

Everything revolves around you.

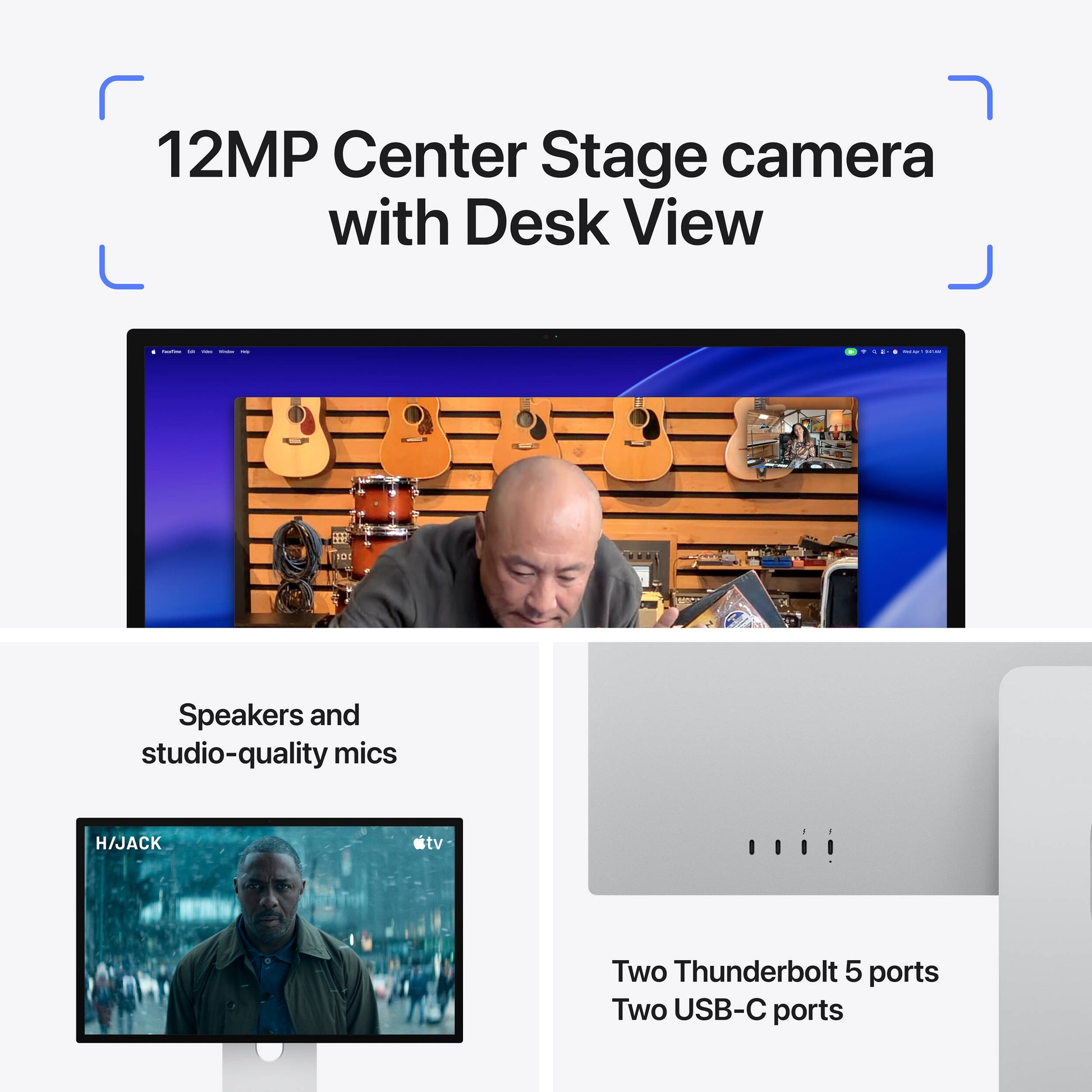

Studio Display XDR features a 12MP Center Stage camera with impressive image quality and low-light performance. Stay perfectly in frame during video calls, even as you move around or others join you. Desk View shows a top‑down view of your workspace while keeping you onscreen. And Edge Light illuminates your face by creating a virtual ring light around the edges of the display.

So they hear you. And only you.

The studio-quality three‑mic array makes you the centre of attention on video calls and voice recordings. And with directional beamforming, everyone hears you and not what’s going on around you.

Six speakers. Soundsational.

A six-speaker sound system features four force-cancelling woofers for bold bass. And two high-performance tweeters deliver accurate mids and crisp highs. Altogether, this is the highest-fidelity speaker system ever created for Mac.

Spatial Audio immerses you in sound. It’s like having your own personal cinema or concert hall. When you’re playing music or video with Dolby Atmos, all six speakers work together to create a sophisticated, cinematic soundstage.

Connectivity Plugged in.

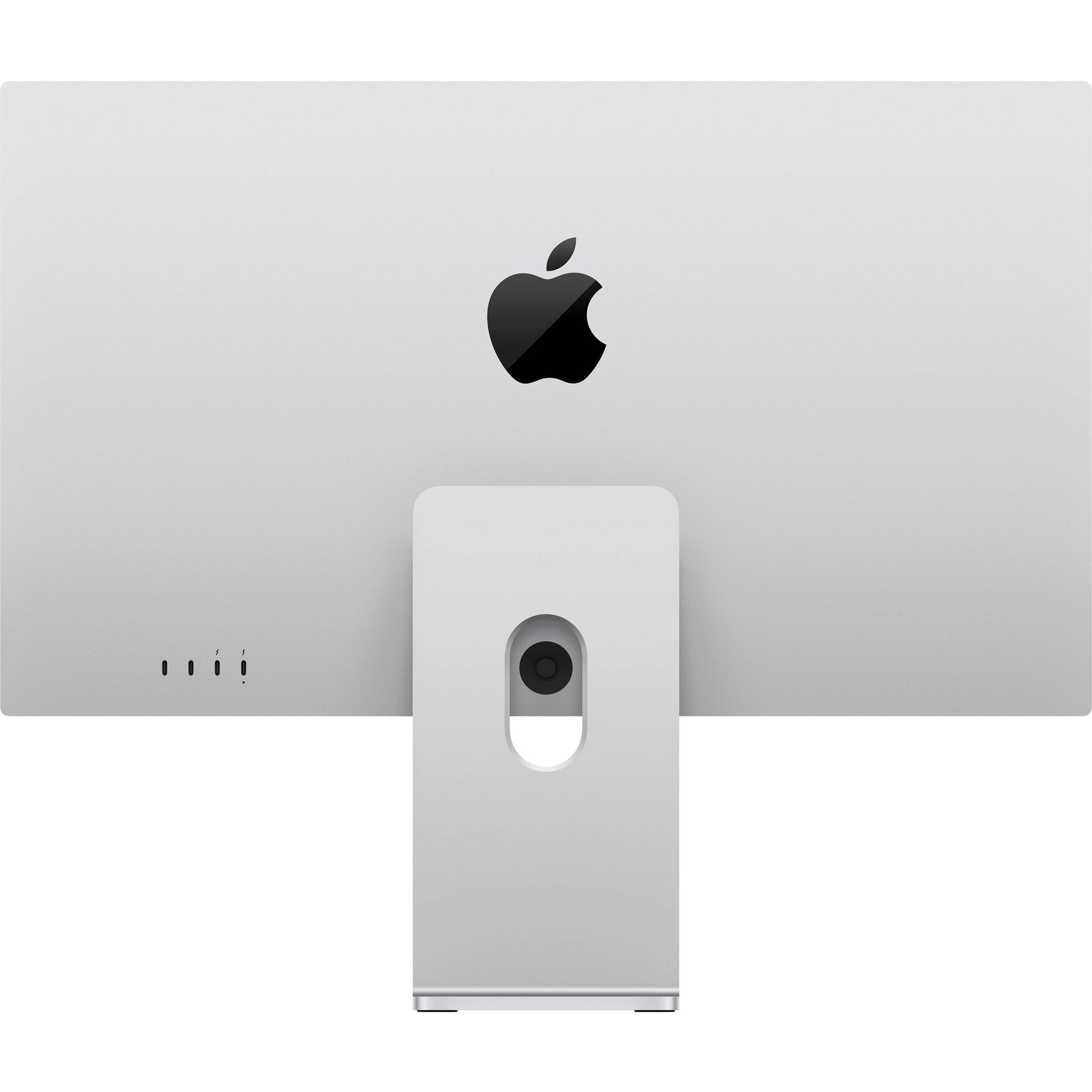

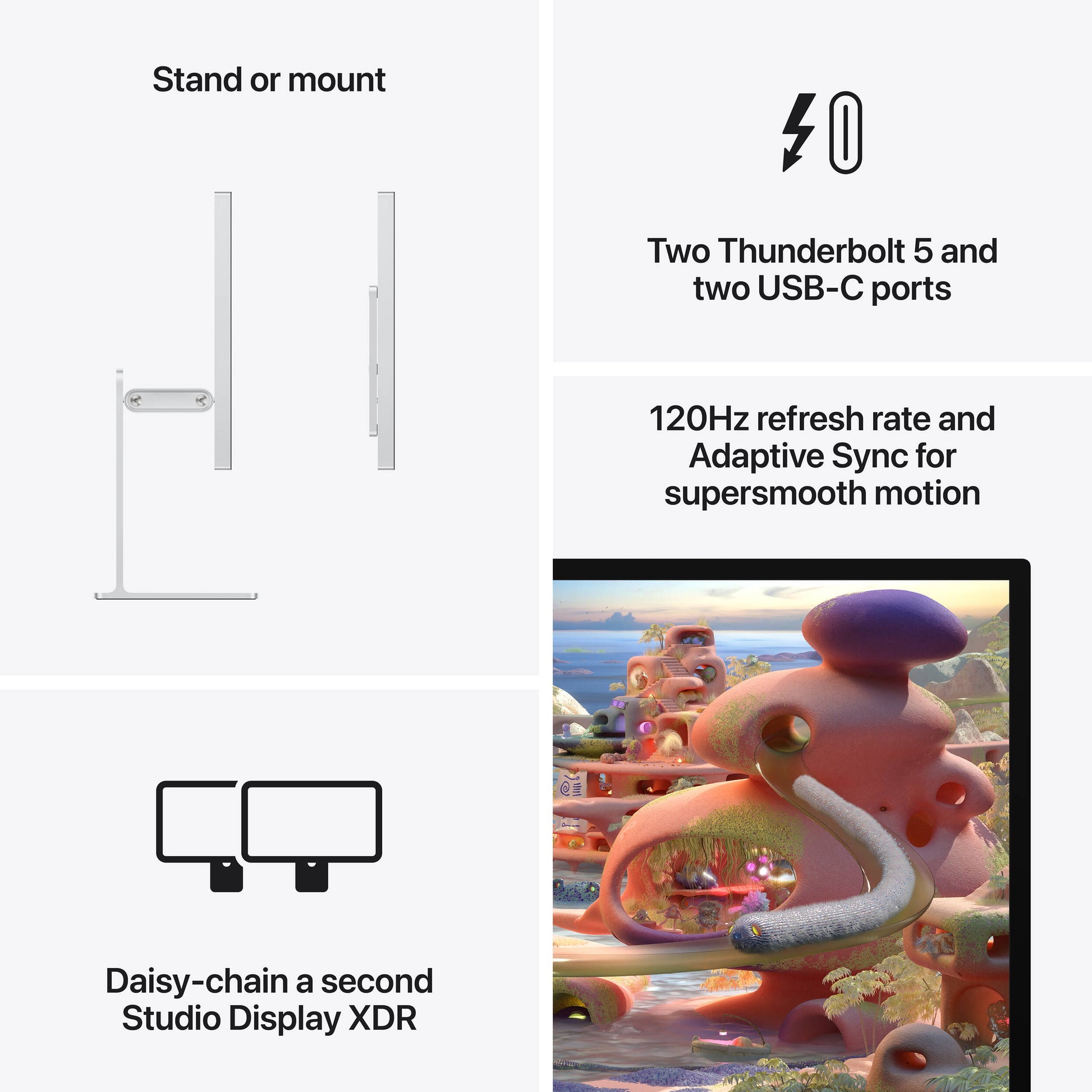

Studio Display XDR features two powerful Thunderbolt 5 ports for connecting your Mac, high-speed accessories or additional displays. Two USB‑C ports can be used to connect your external drives, keyboard or mouse.

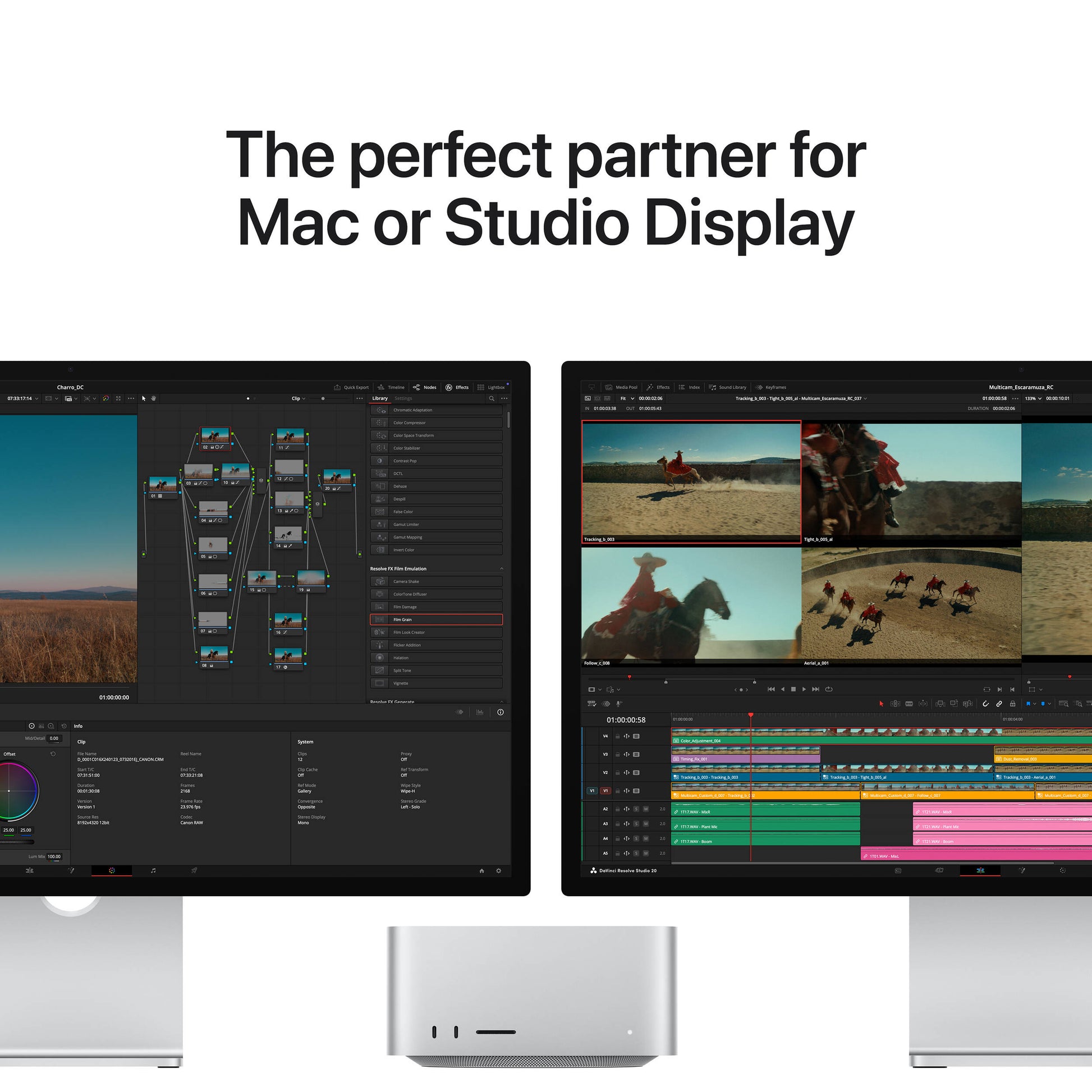

Two Thunderbolt 5 ports. Use one Thunderbolt 5 port to connect your Mac. If you’re using a Mac laptop, a single cable can connect and charge your device simultaneously. Use the other port to daisy-chain an additional Studio Display XDR for a total of over 29 million pixels. Or expand your studio setup by daisy-chaining up to two Studio Display monitors.

Stand Adjust right.

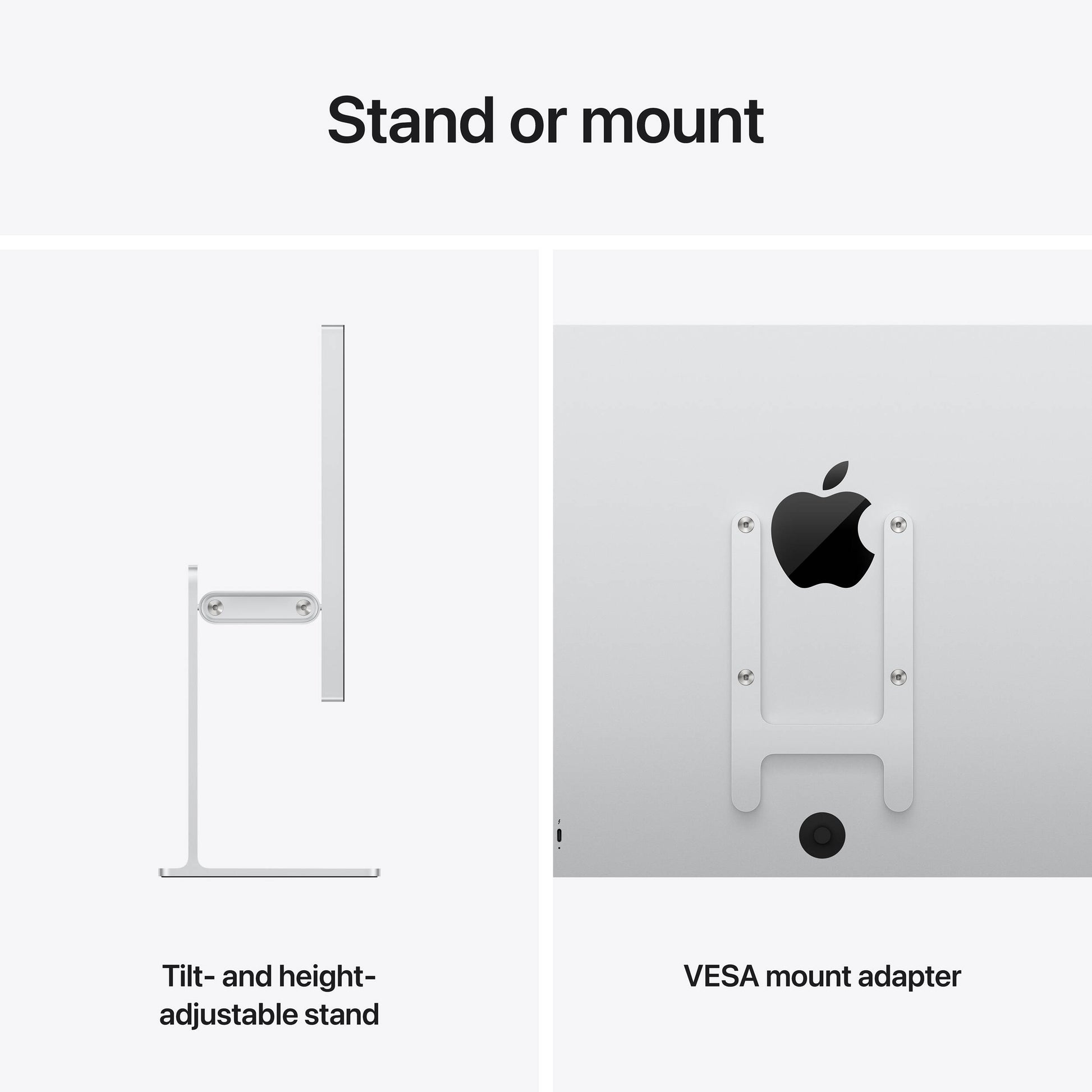

A tilt- and height-adjustable stand is included with Studio Display XDR, allowing you to effortlessly position your screen at the perfect angle and height. A counterbalancing arm allows for 30 degrees of tilt as well as 105mm of height adjustment and makes the display feel weightless as you adjust it.

VESA mount adaptor option. For custom setups, the VESA mount adaptor supports landscape and portrait orientation. And it’s compatible with any 100x100mm VESA wall mount, desk mount, stand or articulating arm.

Mac Compatibility

MacBook Pro: 14" & 16" (2021+), 13" (2020+)
MacBook Air: 13" (2020+), 15" (2023+)
Desktop Macs: Mac mini (2020+), Mac Studio (2022+), Mac Pro (2023+), and the 24" iMac.
Note on Refresh Rate: Most Macs currently support this display at 60Hz.

iPad Compatibility

iPad Pro: M4 & M5 models, plus older 11" (1st Gen+) and 12.9" (3rd Gen+).
iPad Air: M2, M3, M4 models, and the 5th Gen Air.

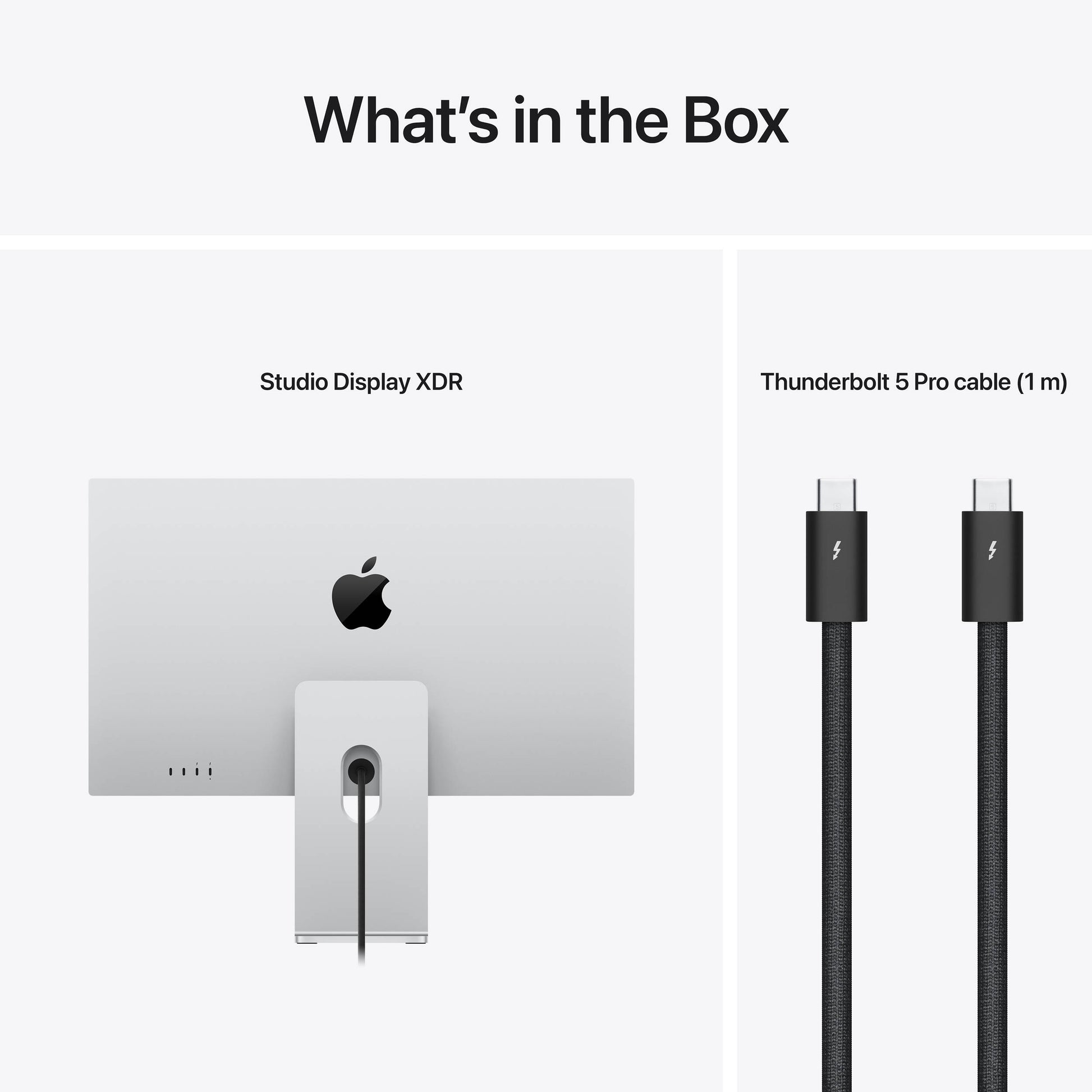

• Apple 27" Studio Display XDR
• Tilt- and Height-Adjustable Stand
• Thunderbolt 5 Pro Cable (1m)
• Limited 1-Year Warranty

Display

5K Retina XDR display:
27‑inch (diagonal) 5K Retina XDR display
5120x2880 resolution at 218 pixels per inch
Mini-LED backlight with 2,304 dimming zones
Up to 1,000 nits brightness (SDR)
2,000 nits peak1 brightness (HDR)
120Hz refresh rate and Adaptive Sync
Support for 1 billion colours
P3 + Adobe RGB wide colour gamuts
True Tone technology
Configurable with: Nano-texture glass

Reference Modes
Studio Display XDR (P3-2,000 nits)
Studio Display XDR (P3 + Adobe RGB-2,000 nits)
HDR Video (P3-ST 2084)
HDTV Video (BT.709–BT.1886)
NTSC Video (BT.601 SMPTE-C)
PAL and SECAM Video (BT.601 EBU)
Digital Cinema (P3-DCI)
Digital Cinema (P3-D65)
Design and Print (P3-D50)
Design and Print (Adobe RGB-D50)
Photography (P3-D65)
Photography (Adobe RGB-D65)
HDR Photography (P3-D65)
Internet and Web (sRGB)

Camera

12MP Center Stage camera with Desk View

Audio

High‑fidelity six‑speaker system with force‑cancelling woofers
Wide stereo sound
Support for Spatial Audio when playing music or video with Dolby Atmos
Studio‑quality three‑mic array with high signal‑to‑noise ratio and directional beamforming
Support for “Hey Siri”

Connections

Two Thunderbolt 5 ports (up to 120Gb/s) and two USB‑C ports (up to 10Gb/s)
One upstream Thunderbolt 5 port for host (with 140W host charging)
One downstream Thunderbolt 5 port for connecting high‑speed accessories or daisy-chaining additional displays
Two USB‑C ports (up to 10Gb/s) for connecting peripherals, storage and networking

Stand

Tilt- and height-adjustable stand
Tilt: −5° to +25°
Height adjustment: 105mm in total
Orientation: landscape
Configurable with:
VESA mount adaptor
Compatible with 100 x 100 mm VESA stand
Orientation: landscape or portrait

Size and Weight

Studio Display XDR with tilt- and height-adjustable stand
Height (bottom position): 47.8 cm (18.8 inches)
Width: 62.3 cm
Height (top position): 58.3 cm
Weight: 8.5 kg
Depth: 21.4 cm

Studio Display XDR with VESA mount adaptor
Height: 36.2 cm
Width: 62.3 cm
Depth: 3.3 cm
Weight: 6.3 kg

Electrical and Oper­at­ing Require­ments

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Oper­at­ing temperature: 10° to 35° C
Relative humidity: 5% to 90% non-condensing
Maximum altitude: tested up to 5,000 metres
