Blackmagic Design SDI to Analogue 4K Mini Converter

SDI to Analogue 4K from Blackmagic Design

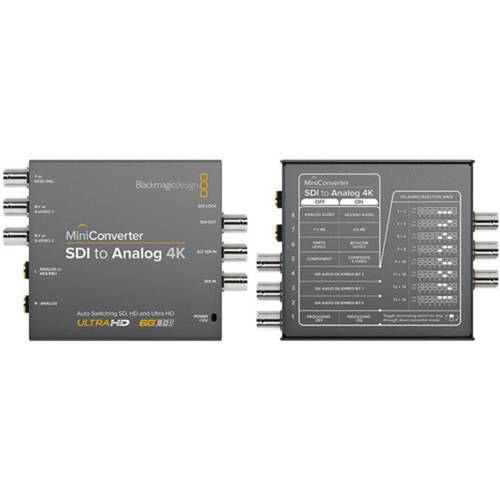

The Mini Converter SDI to Analogue 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analogue SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analogue video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

6G-SDI technology

Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional backup, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analogue audio output via 1/4" output jacks.

Built-in DIP switches

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
